Operator manual
easyFlow M
spray technology

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the easyFlow M and is the answer not in the manual?

Questions and answers

Randy Wiemers
January 24, 2025

Inquiring if there is an add on decal to show measurements in fluid ounces that could be attached to the cone

0

Related Manuals for agrotop easyFlow M

Summary of Contents for agrotop easyFlow M

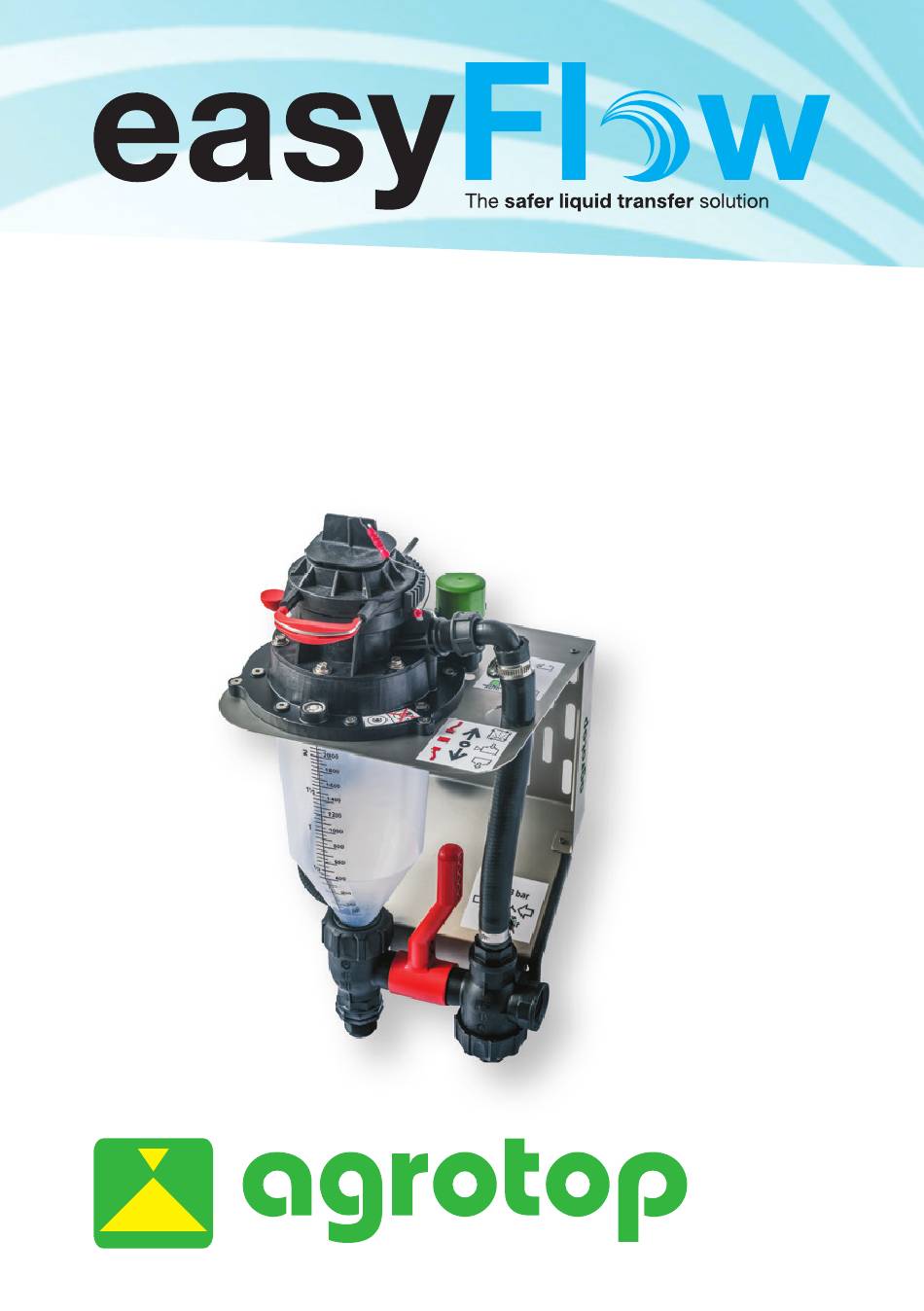

  • Page 1 Operator manual easyFlow M spray technology...

  • Page 2: Table Of Contents

    GmbH. Any reproduction, duplication, distribution or storage on data media, in any form an manner, without authorization from agrotop GmbH, constitutes a violation of existing copyright laws an will be prosecuted. Issuing party responsible for the content:...

  • Page 3: Introduction

    Introduction 1.1 easyFlow M basic unit and optional accessories Container support (optional, recommended for using container >10 l ) easyFlow M basic unit 3 m discharge hose to the sprayer (optional, recommended when installed as an external unit) easyFlow container adapter (order seperatly –...
  • Page 4 Agrotop GmbH assumes no liability for damage and malfunctions resulting  from non-compliance with the operating instructions. We reserve the right to make technical changes that serve to improve the  easyFlow M or that increase the safety standard – even without a separate announcement. spray technology...
  • Page 5 General symbols and notes This symbol denotes an imminent danger. Failure to avoid it will result in death or serious injury. DANGER! This symbol indicates a potentially imminent danger. Failure to avoid it can result in death or serious injury. WARNING! This symbol indicates a potentially imminent danger.
  • Page 6 The following manual uses the abbreviation “PPP” for plant protection  products. Operator must follow all instruction on the label of the PPP.  For better illustration, work-related parts are colour marked in some of the  drawings in this manual. Real parts may vary in colour, size and proportions. The installation options shown in this manual use simplifi ed drawings that ...
  • Page 7 The effectiveness of operating and control components must not be inadmissible  influenced or removed. If mounted on a trolley, always check that the easyFlow M is placed on an even  surface to prevent accidental falls. spray technology...
  • Page 8 Person qualification and training The easyFlow M system may only be used, maintained and repaired by persons  who are familiar with it and have been instructed in the dangers involved. The area of responsibility, competence and supervision of the personnel must be ...
  • Page 9 Abuse and residual hazards The operational safety of the delivered system is only guaranteed under  normal use. The limits given in the data sheets must under no circumstances be exceeded. Residual dangers are special hazards that can not be eliminated despite the ...
  • Page 10 Instructions for storage The easyFlow M must be stored in a frost-protected place.  To winter the device, remove the hoses, drain the unit completely and put the  measuring jug valve in pos. 3 (see page 16). spray technology...
  • Page 11 1.3 System explanation 1.3.1 Components and parts of the easyFlow M system Container support (recommended for PPP container larger than 10 l, see page 20) Hand lever (see page 12 ff.) Bullseye level (see page 21) Measuring jug (see page 21) Measuring jug lever (see page 16 ff.)
  • Page 12 1.3.2 Functions of the components and controls Hand lever Connecting the PPP-container assembly with the easyFlow system: Pull the easyFlow container adapter apart and screw it firmly on the PPP container  (see page 31). To connect the easyFlow container adapter the hand lever must be turned ...
  • Page 13 Engage easyFlow container adapter (fi rmly mounted on PPP container) into the  easyFlow basic unit. By pulling the hand lever backwards to the limit the container adapter is locked  and ready for dosing. If the lever is hard to pull or inhibited, the container adapter has not latched properly.
  • Page 14 Disconnecting the PPP-container assembly: Before disconnecting the easyFlow container adapter (PPP container is still mounted), make sure the faces are properly rinsed and, if the PPP container is empty that the container rinsing has been carried out effi ciently with no remaining PPP residues.
  • Page 15 open close Dosing: Turn the hand lever clockwise to open the container adapter for dosing of PPP. The  transfer rate increases accordingly with increasing opening angle (maximum 90°). For complete container dosing, make sure the measuring jug lever is in position 2 ...
  • Page 16 Measuring jug lever The measuring jug lever offers three positions. It simultaneously operates the shut-off valve of the measuring jug and the rinsing water valve. Position 1 : Position 2 : Position 3 : Dosing Transfer Rinsing To dose PPP into the measuring jug, turn the red lever in the horizontal position 1 (dosing).
  • Page 17 The rinsing water is drained into the plumbing circuit of the sprayer. Check the discharge hose of the easyFlow M and all connected parts (valves, induction hoppers, etc.) of the discharge/suction line on the sprayer for unobstructed runoff before using the rinsing function.
  • Page 18 To start the rinsing procedures for an empty PPP container, turn the hand lever on the easyFlow M basic unit clockwise until stop. Rotate the container clockwise during the rinsing to get to all parts of it. Cleaning must not be carried out on partially emptied PPP container.
  • Page 19 Pressing the valve button shuts down the valve. This will build up a vacuum, if the easyFlow M is connected to an active suction line. A short push will give a quick pulse and the valve will open again, pressing the button for a longer period will close the valve.
  • Page 20 Container support PPP-containers with volumes larger than 10 l need additional support for secure handling on top of the easyFlow M. Turn the star knob (A) counterclockwise to adjust the sliding guide (B) to the shape of the container, putting it in a vertical position upon the easyFlow M basic unit.
  • Page 21 60 ml. The measuring jug is interchangeable as needed. Rinse the system completely before replacing the jug and test it for leaks with clean water before reusing the easyFlow M for dosing of PPP! NOTE! spray technology...
  • Page 22 NOTE! The easyFlow M discharge hose must be connected to the suction side of the pump either by a T-fi tting onto the suction line or onto the connection to the induction hopper. If connected to the suction line with a straight link to the induction hopper, ensure that the port to the hopper can be closed (may require an additional valve).
  • Page 23 Rinsing connection The rinsing water connection has a G 1" BSP female thread. In case of using an external rinsing water hose we recommend for fast and easy connection a G1" GEKA-jaw-clutch (to order see page 38) or any other suitable quick coupling. Make sure the coupling is properly sealed up to the adapter to prevent leakage.

  • Page 24: Installation And Startup

    Installation and startup 2.1 General installation instructions The easyFlow M can be installed directly on a sprayer or at a stationary or mobile filling station or nurse truck. In either case we recommend connecting the easyFlow M onto the suction side of the sprayer pump, before the suction filter.
  • Page 25 2.2 Installation container support (optional) Set up both pipe connector pads (A) onto the bolts (B). Secure the pads using the cap nuts and the washers. Tighten the nuts with torque 6 Nm. (see fig. 1). Insert the pole mounting tube from the container support through the pads until the desired position of the container support is reached.
  • Page 26 2.3 Dimenstions easyFlow M, incl. container support spray technology...
  • Page 27 Connect the discharge hose to the suction side feeding the pump on the sprayer before the suction filter. Install a valve on the T-fitting to close the connection to the easyFlow M. Keep the valve shut during normal sprayer operation to maintain max. suction performance of the sprayer pump.
  • Page 28 The following articles described in this installation guide are optional and not part of this easyFlow M package. Using the agrotop part numbers these items can be purchased through local dealers.
  • Page 29 (male) using adapter kit part no. 14716. Connect the female coupling, part no. 16536, to the discharge hose from the easyFlow M using the straight hose barb fitting. c) Connect straight to an anti-spill valve (part. no. 15638, male) already mounted on the sprayer or the induction hopper.
  • Page 30 Ask your sprayer manufacturer in case you have any questions regarding the correct installation. In case of transfer of liquids from the easyFlow M to the sprayer only by gravity (no pump or pump is not running), make sure the run-out point is below the level of the...

  • Page 31: Operation

    Operation 3.1 Partial discharge Unscrew original cap from the PPP container. Before mounting check if the cap seal of the easyFlow container adapter is in perfect condition and tighten the cap firmly on the container. Check if the easyFlow container adapter is stretched out completely before mounting it onto a PPP container, like shown in the picture (seal cutter must be draw-in).
  • Page 32 Mount the easyFlow container adapter on the easyFlow M basic unit. The container adapter must click in place. Normally the weight of a full container will do this, if not slightly press down the container until the adapters click in and secure by pulling the hand lever.
  • Page 33 15. Strech out the container adapter (like shown under point 2). Don’t remove the container adapter from the container! Store the container while the container adapter is still attached to the container. 16. Install and secure the blind cap by pulling the hand lever. spray technology...
  • Page 34 3.2 Total discharge Unscrew original cap from the PPP container. Before mounting check if the cap seal of the easyFlow container adapter is in perfect condition and tighten the cap firmly on the container. Check if the easyFlow container adapter is stretched out completely before mounting it onto a PPP container, like shown in the picture (seal cutter must be draw-in).
  • Page 35 Mount the easyFlow container adapter on the easyFlow M basic unit. The container adapter must click in place. Normally the weight of a full container will do this, if not slightly press down the container until the adapters click in and secure by pulling the hand lever.
  • Page 36 13. Finish rinsing by putting the measuring jug lever in pos. 2 (down). Wait until the jug is completely drained. If there is still liquid in the PPP container, turn the hand lever briefly clockwise to allow it to drain completely. Then turn the hand lever counterclockwise into the stop.

  • Page 37: Notes

    Notes spray technology...

  • Page 38: Spare Parts Easyflow M

    Spare parts easyFlow M easyFlow M easyFlow easyFlow container adapter container support Part no.: 16532 Part no.: 15954 Part no.: 16740 Anti spill dry coupling easyFlow GEKA jaw clutch discharge hose 1" with male thread 1" female part incl. hose barb 25 mm Part no.: 16873...
  • Page 39 Measuring jug easyFlow M Adapter for 2" Quick coupling Part no.: 16571 Part no.: 14716 Anti spill dry coupling Universal mounting kit T-piece for suction line male part with female thread 1" BSP for installation onto suction line, Part no.: 15638 incl.

  • Page 40: Agrotop Gmbh

    GmbH Köferinger Straße 5 93083 Obertraubling (Germany) Phone +49 (0)9453 9938-0 +49 (0)9453 993845 E-Mail info@agrotop.com Internet www.agrotop.com...
