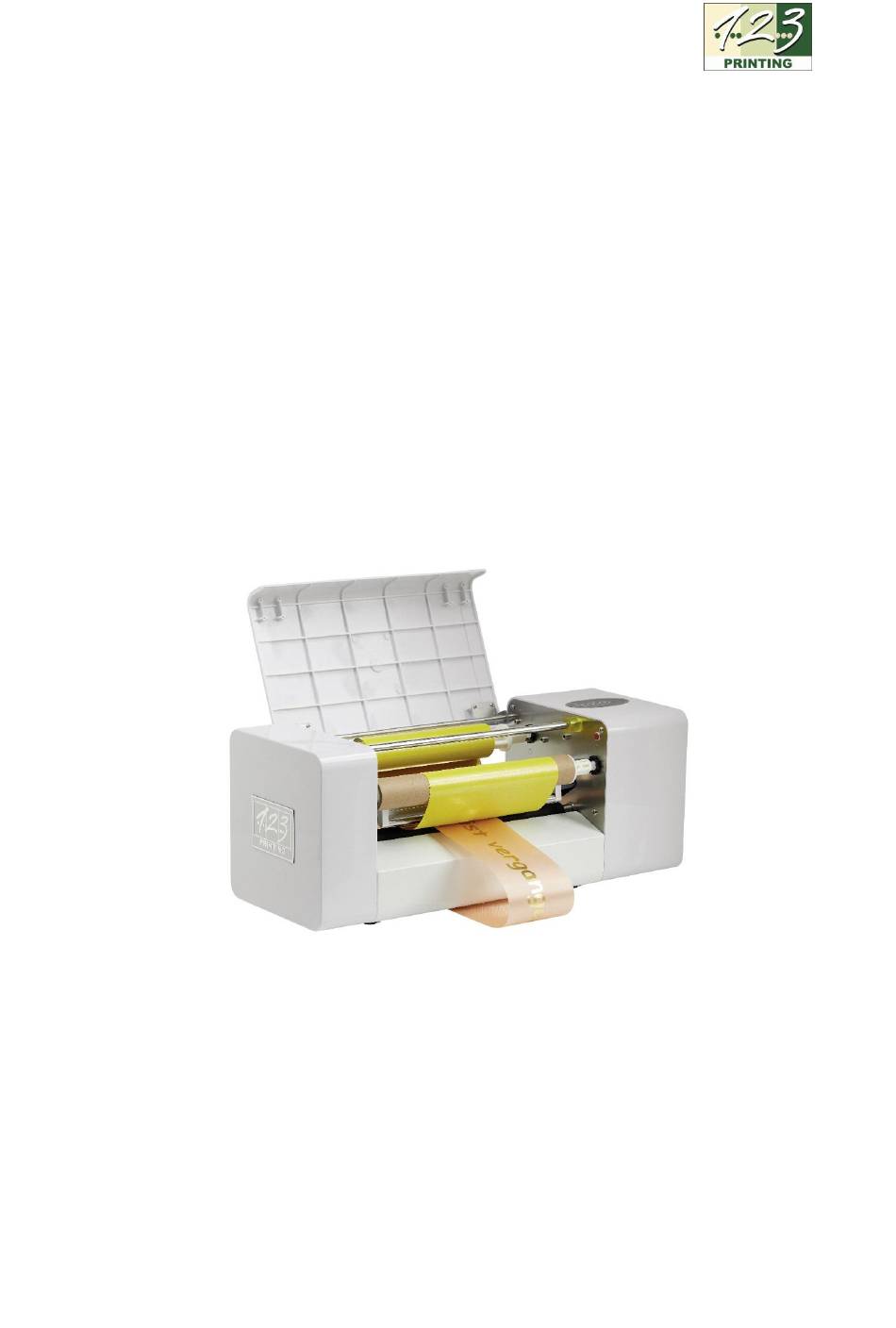

USER MANUAL FOR 123 SCHLEIFENPROFI
VX EMBOSSING MACHINE
1
© 2018 – HRMTEC – www.hrmtec.com
v1.6e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 123 SCHLEIFENPROFI VX and is the answer not in the manual?

Questions and answers

Related Manuals for HRMTEC 123 SCHLEIFENPROFI VX

Summary of Contents for HRMTEC 123 SCHLEIFENPROFI VX

  • Page 1 USER MANUAL FOR 123 SCHLEIFENPROFI VX EMBOSSING MACHINE © 2018 – HRMTEC – www.hrmtec.com v1.6e...

  • Page 2: Table Of Contents

    2.2.3 Setting the Print Size and Print Quality ..............10 Installation of Ribbon Printing Software ............... 11 Instructions ..........................12 Prepare the 123 Schleifenprofi VX Embossing Machine ........... 12 3.1.1 Check Parts ........................12 3.1.2 Keys and Functions ..................... 12 3.1.3...

  • Page 3: Delivered Parts

    1. Delivered Parts Please check the complete delivery of your 123 Schleifenprofi VX Embossing Machine: Hardware  1 Embossing machine  3 carrier rolls for the printing foil, the ribbon and the waste foil  1 Carton roll for the waste foil ...

  • Page 4: Setup

    2. Setup Installation Printer Driver After downloading the latest printer driver from https://www.hrmtec.com/en/downloads/, unpack the zip file (using WinZip https://www.winzip.com/win/en/downwz.html) and run the file "Schleifenprofi_VX.exe" to install the printer driver. To do this, follow the steps below: Schleifenprofi_VX.exe Double-click to execute the program.
  • Page 5 The Schleifenprofi_VX should be set as default printer.  Press "Next" to continue.  The printer drive is now installed.  Please wait until the installation is complete (which can take several minutes). © 2018 – HRMTEC – www.hrmtec.com v1.6e...

  • Page 6: Setting Printer Driver

    Printers" if the Schleifenprofi VX is defined as the default printer (green checkmark).  If another printer is defined as the default printer, then set the Schleifenprofi VX as the default printer (see next step). © 2018 – HRMTEC – www.hrmtec.com v1.6e...

  • Page 7: Set The Parameters Of The Printer Driver

    Select "Set as Default Printer". The Schleifenprofi VX is set correctly as Standard Printer. 2.2.2 Set the Parameters of the Printer Driver Under "Properties" of the printer driver, the following settings have to be checked or made: © 2018 – HRMTEC – www.hrmtec.com v1.6e...
  • Page 8 252 x 750 mm. Enter the following:  Paper Name: 252 x 550mm  Width: 252  Length: 550 Press "OK" recommend additional settings:  Paper Name: 252 x 650mm  Width: 252  Length: 650 © 2018 – HRMTEC – www.hrmtec.com v1.6e...
  • Page 9 ATTENTION: the values given here for "Density" and "Print Speed" are for Warp Moiré and Embossed Moiré in combination with Metallic Print Foils (Gold, Silver). For other materials and foil colors, these values must be adjusted, see also 3.3.3 © 2018 – HRMTEC – www.hrmtec.com v1.6e...

  • Page 10: Setting The Print Size And Print Quality

    Setting the Print Size and Print Quality Under "Properties" of the printer driver, the following settings have to be checked or made:  Select Schleifenprofi VX and press the right mouse button.  Select "Printing preferences"  Select "Advanced" © 2018 – HRMTEC – www.hrmtec.com v1.6e...

  • Page 11: Installation Of Ribbon Printing Software

    GreenRibbon is a freeware provided by the manufacturer watermann IT without support and without warranty. For a supported full version (GreenRibbon 2.x) or another ribbon printing software, please contact the appropriate manufacturer. © 2018 – HRMTEC – www.hrmtec.com v1.6e...

  • Page 12: Instructions

    3.1.1 Check Parts The 123 Schleifenprofi VX embossing machine consists of three carrier rollers (one for the new printing foil, one for used printing foil and one for the ribbon), the automatic embossing machine, the power supply cable and the connecting cable to the computer.

  • Page 13: Insert Ribbon

    For example, when different ribbon ribbons are to be printed with the same foil (e.g., gold on black ribbon and gold on white ribbon). © 2018 – HRMTEC – www.hrmtec.com v1.6e...

  • Page 14: Insert Printing Foil

    3.1.4 Insert Printing Foil NOTE: use only original high-tech premium printing foils from HRMTEC. Third party foils can damage your embossing machine (print head and / or motors). Such damage is excluded from the product warranty. First, make sure that the foil is mounted on the carrier roll so that the material is at the top, which should ultimately appear on the ribbon.

  • Page 15: Prepare Ribbon Printing Software

    Prepare Ribbon Printing Software The ribbon printing software is freely selectable. In use with the 123 Schleifenprofi VX automatic embossing machine, various commercially available products specialized in ribbon printing are possible (P & W, GreenRibbon, GreenSchleife, Terradata, etc.). But programs that do not specifically specialize in ribbon printing can also be used (CorelDraw, BarTender, Word, PowerPoint, etc.).

  • Page 16: Embossing Process

    3.3.1 Preparations The 123 Schleifenprofi VX embossing machine is switched on, ribbon and printing foil are inserted according to the description. Your ribbon printing software is started and you have a layout ready (usually the left ribbon with a commemorative note and the right ribbon with the names of the survivors).

  • Page 17: Print Quality

    HighSpeed Gold 1-30 LowSpeed Silber 1-30 LowSpeed Schwarz 1-20 NormalSpeed Table 2 RECOMMENDED PRINTING PARAMETERS PER MATERIAL AND PRINTING FOIL These parameters must be modified according to the device, room temperature and humidity. © 2018 – HRMTEC – www.hrmtec.com v1.6e...
  • Page 18 (manufacturer, surface) and room temperature. It is possible that satisfactory print quality cannot be achieved. In such a case, one should change to another band material. Changed parameters are saved for further embossing. © 2018 – HRMTEC – www.hrmtec.com v1.6e...

  • Page 19: Maintenance

    6. Reload the printing foil, reconnect the power and turn the power back on, and the 123 Schleifenprofi VX embossing machine is ready for additional embossing. Storage of Printing Foils The printing foils, as well as the ribbon, must be stored with care.

  • Page 20: Technical Data

    Printing foils Exclusively original high-tech premium printing foils from HRMTEC 6. Index Table 1 MARGIN ADJUSTMENTS PER WIDTH................. 16 Table 2 RECOMMENDED PRINTING PARAMETERS PER MATERIAL AND PRINTING FOIL ................................ 17 © 2018 – HRMTEC – www.hrmtec.com v1.6e...

  • Page 21: Trouble Shooting

    (2) off) even though the then  embossing machine is Delete open print jobs and  turned on and Remove checkmark in "Use connected printer offline" © 2018 – HRMTEC – www.hrmtec.com v1.6e...
  • Page 22 NOTE: use only original high-tech premium printing foils from HRMTEC. Third party foils can damage your embossing machine (print head and / or motors). Such damage is excluded from the product warranty.
