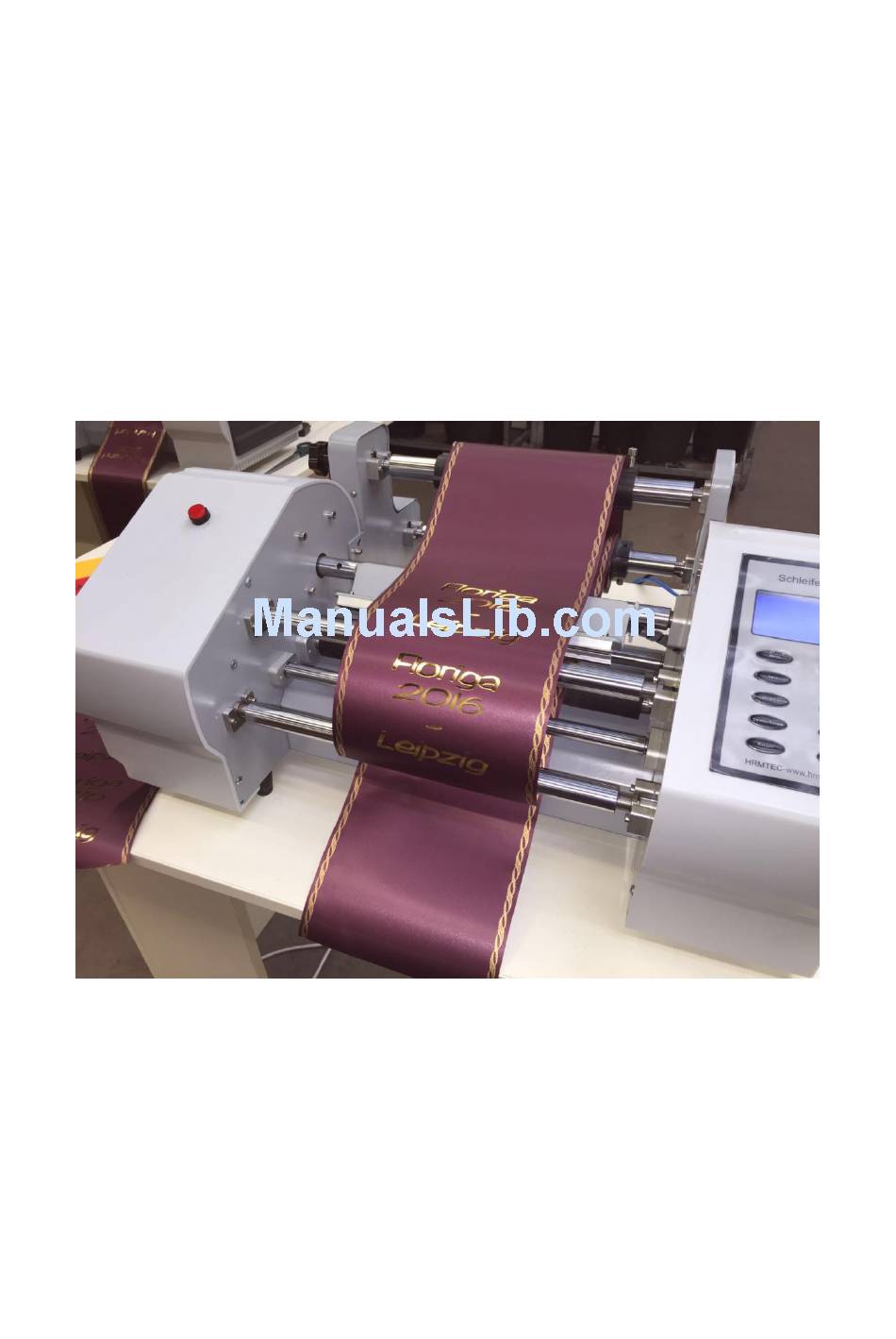

MANUAL FOR 123 RIBBON PRINTER
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 123 and is the answer not in the manual?

Questions and answers

Related Manuals for HRMTEC 123

Summary of Contents for HRMTEC 123

  • Page 1 MANUAL FOR 123 RIBBON PRINTER...

  • Page 2: Table Of Contents

    Prepare Shortcuts ......................12 Release copy protection (“Freischaltung”) ............... 12 3.3.2 3.3.3 Prepare Layout ......................15 3.3.4 Specialties in use with 123 Ribbon Printer .............. 16 Design ..........................19 “Schleifenprofi” Software .................... 19 3.4.1 3.4.2 Printing Parameters in Foil Control Center .............. 19 3.4.3...

  • Page 3: Machine Settings

    1. Machine Settings ：V3.22 version don't support Ribn Dog Heads : the quantity of the print head IP Addr : Equipment network IP address NIC Type: Equipment network card type Numbers Date: the current date Clock: the current time HeadType: the type of the print head Save: The distance of the saving foil...
  • Page 4 Restore CFG: if click “Enter", the main board goes back to default value. FormatS: use to format SD card or USB, Pressing "test" can adjust the printing settings, and can change for the memory device. When the machine works, the machine will stop printing after printing the text/image, repress, the machine will continue to work, in "Suspend"...
  • Page 5 Choose the menu Menu choice and file printing Control the run or stop of the receiving motor This button must be pressed down when you printing. This switch controls the print head up/down position. Position I: print head moves up Position Middle: print head remains stationary in position (without pressure) Position II: print head moves down.

  • Page 6: Software Setup

    2. Software setup Driver Execute the file setup.exe in the folder ftp://hrmtec.com/Printer_Schleifenprofi_v1/ISIX_setup (User: f00a54fc, Password: fcc123...). Configure the driver as follows: Click "Next"...
  • Page 7 Click "Finish" Enter a printer name, e.g.. "SchleifenProfi2" choose "RF_Xpress", and press "OK" Click "OK"...
  • Page 8 The printer was installed...

  • Page 9: Use Instructions

    3.2.1 Check parts The 123 Ribbon Printer consists of two feeding axes (one for the foil and one for the ribbon) with four mounting sleeves, two waste axes for the foil, the printer itself, the power cable and the network cable. The delivery also includes a tool to fix the mounting sleeves, plus cotton pads to clean the print head.

  • Page 10: Enter Foil

    The printing section consists of three axles: the main printing axles (black rubber) and two deflection axles just before and after the printing axle. Enter the ribbon in the order “down”, “up”, “down”: 1. Below the first deflection axis (“down”) 2.

  • Page 11: Adjustments

    Hint: to change the foil, you can let the ribbon installed. E.g. if you want to print different colors on the same ribbon (e.g. gold on white ribbon and black on white ribbon). Hint: it’s also possible to use the lower waste axis. This makes sense, when a smaller angle to release the foil is required.

  • Page 12: Prepare "Schleifenprofi" Software

    Earlier, this code had to be asked by phone at the reception of FCC. Since there’s no reception anymore, this is no longer possible. HRMTEC provides the software to release the copy-protection in exchange to a non- disclose agreement.
  • Page 13 Press OK, then see: After accepting these messages (press OK), the “Schleifenprofi” software starts and is fully functional, except of the printing function (printing is not possible). To release the copy-protection and to enable printing again, you follow these steps: 1.
  • Page 14 2. Start "FREISCH.EXE" and enter the „Schleifenprofi Code“ in the field "Code vom Kunden" (please type, don’t use copy/paste) 3. Press the button "Berechne" -> a password is required 4. Open "Freischaltung.txt" with a Text Editor (e.g. Notepad), copy the password (no typing necessary) and paste it in the password dialog of "FREISCH.EXE"...

  • Page 15: Prepare Layout

    The “Schleifenprofi” software contains lots of features, which are designed for the microdry printers (OKI, Citizen Printiva etc.), but not work anymore, or work different when using the 123 Ribbon Printer. With the 123 Ribbon Printer, the following applies (use this when creating layouts):...

  • Page 16: Specialties In Use With 123 Ribbon Printer

    For smaller ribbons you should use vertical printing (Längsdruck) 3.3.4 Specialties in use with 123 Ribbon Printer Let’s see the use of the above explained setup in a real example. We want to print on 175 mm ribbon, horizontal, the following text: ...
  • Page 17 Now we are ready to print. Press the print (Drucken) button and decide which ribbon you want to print now (left or right). With the 123 Ribbon printer you have to print one side after the other, it’s not possible to print both sides the same time.
  • Page 18 30. Put the print head down (switch on II) and start the receiving motor (press the red button) to prepare the 123 ribbon printer, then press “Drucken” in the foil control center. The printing starts. Press the “Warten” button, which then changes to “Wieder aufnehmen”. This means, that the printing will not stop right after the print head.

  • Page 19: Design

    Design “Schleifenprofi” Software 3.4.1 Please refer to the manual of “Schleifenprofi” Software, to create a ribbon design or to use the cliché library. 3.4.2 Printing Parameters in Foil Control Center Click "Print", then see the interface “foil control center”. Then click "modify Job", pop up the frame like following:...

  • Page 20: Standard Parameters Per Ribbon/Foil

    Then click the modify job, setting the cold dot energy is "20-55 (this means the print head temperature when printing, if this parameter is too big, maybe it will cut the foil). The edge energy is 0, the print head warmup is 0, the speed down is “1-35” (this means the print speed, if the value is bigger, the speed is slower).
  • Page 21 Cold dot Speed energy Ribbon Foil down (Temper (Speed) ature) Gold Silber Schwarz Weiss Gold Silber Schwarz Weiss Gold Silber Schwarz Weiss Gold Silber Schwarz Weiss These parameters need to be modified depending on the room temperature and the humidity. Generally, if the print temperature is too hot, the foil will cut.
  • Page 22 Must connect the printer with computer by the cable, IP address selected to be automatic get IP. If connect the printer to an exchange box with the cable, must make sure only one computer run the foil control center.

  • Page 23: Preventive Maintenance

    4. Preventive Maintenance The print head is a precise and sensitive electronic device. It may get damaged by hardware or static. Also in der Arbeitssituation, um das Risiko zu reduzieren und die Lebensdauer zu erhöhen, bitte genug Feuchtigkeit behalten. The surface of print head is made up of a kind of thin hardness of high silica protective film, but it may also be broken by hardware.

  • Page 24: Technical Data

    5. Technical Data Operating system Windows XP / Windows 7 (32 bit) Size 68cm x 47cm x 29cm Resolution 200x200 dots per inch Software compatibility Schleifenprofi (v2.9) Input port, Output port Network (RJ45 cable) 110 VAC – 220 VAC 50-60 Hz 150 W Power supply The factory equipment configuration voltage for 220 VAC, in you have special...
