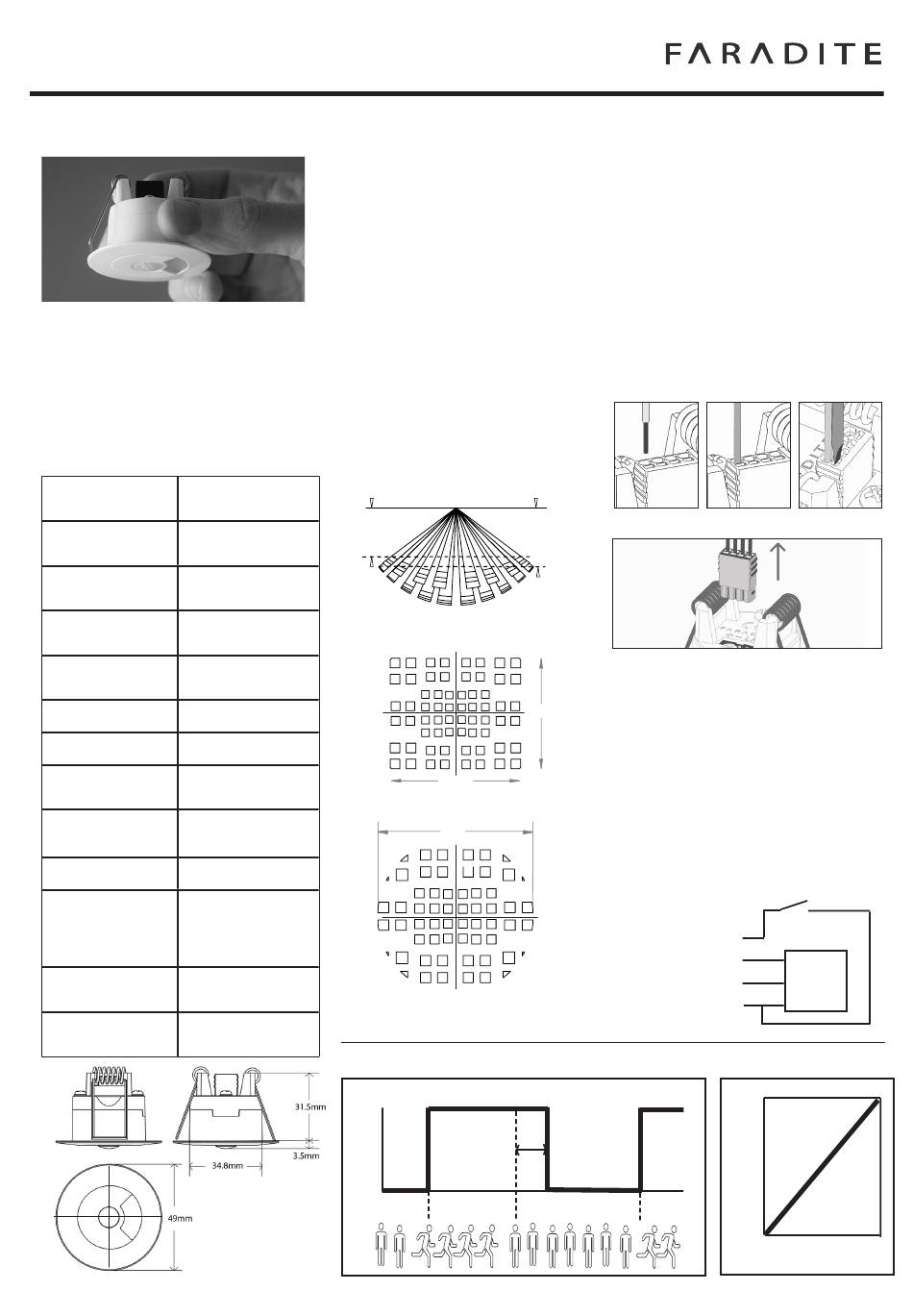

Faradite Motion Sensor 360 Quick Start Manual

MOTION SENSOR 360
FAR-M360-0-10V-LUX
OVERVIEW
The Faradite Motion Sensor 360 is
a low profile passive infrared ceiling
mounted motion sensor with an
integrated 0-10V (0-1000 Lux) light
sensor. It's designed for use with
home/building automation systems.
TECHNICAL DATA
Power supply 12V-24V DC @ 24V
(consumption) (3mA)
Motion output
12V-24V DC
voltage
Max, motion
80ma
output current
0 Lux (0V) -
Lux range
1000 Lux (10V)
Ambient -15-50 ° C
temperature (Indoor Only)
IP Rating IP20
Range 5m
(Note 1)
Max mounting 3m (For optimal
height performance)
Motion output
1 second
timeout
Mounting hole 35mm
35mm hole-saw
diameter
Dimensions
49mm rim diameter
c.35.5mm height
Push-fit AWG 20- 24 CAT5 /
connector CAT6 / CAT7
Standards EN 61000-6-1
EN 61000-6-3
Y
X
X
Note 1: Please note that the specified range is 5m but under optimal conditions the sensor might detect movement at a much longer range
OBSERVATION AREA
At 2.5M it gives a 5.6M * 6.6M
detection area.
At 3M it gives a ~8M diameter, as
shown below.
The following conditions have to
be met to detect motion:
1.Movement speed: 1.0m/s
2.Target concept is a human body
(Min object size: ~700×250mm)
3. The temperature difference
between the target and the
surroundings must be greater
than 4 ° C when mounted at 5m
2.5M
2.5M Height - Detection area
Y
X
6.6M
3M Height - Detection area
8M
X
Y
MOTION OUTPUT
12V- 24V DC
0V
ELECTRICAL CONNECTIONS
It is recommended to use CAT cable
to connect the motion sensor to the
building automation system.
1: Strip the cable back 6mm
2: Push into circular hole on the
connector
3: To remove the wire insert the
supplied tool or a small screwdriver
in the slot behind the wire
4: The connector can be removed
from the motion sensor by pulling it
Strip back
3M
Pull to remove connector from motion sensor
FIRE RATING
5.6M
The stand-alone Motion Sensor 360
is not fire rated.
To achieve a 60 minute fire rating to
BS 476: Part 21 1987, the optional
Fire IDR must be fitted to the
Motion Sensor 360.
The Fire IDR is an optional extra.
EQUIVALENT CIRCUIT
M MOTION
L LUX 0V - 10V
-
0V/GND
+ 12V-24V DC
OUTPUT
TIMEOUT
1 SECOND
Push in Remove
CLOSED DURING
MOTION
LUX
SENSOR
LUX OUTPUT
10V
0V
0 Lux 1000 Lux
