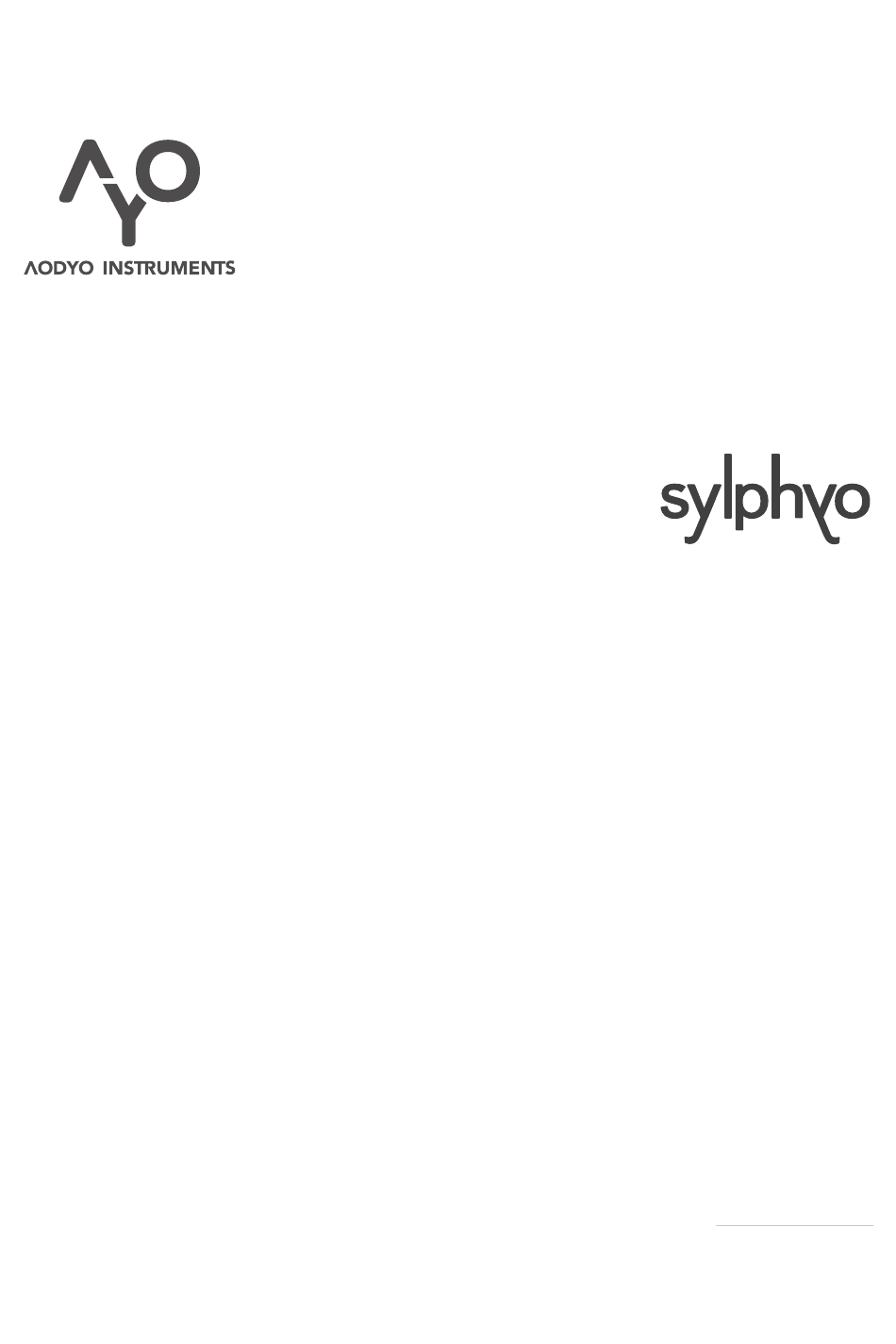

- Page 1 LINK User guide VERSION 1.3.3 APRIL 12, 2019 www.aodyo.com...
- Page 2 www.aodyo.com...
-
Page 3: Table Of Contents
Contents The Sylphyo Link at a glance ......5 Overview • What’s in the box? •... -
Page 5: The Sylphyo Link At A Glance
A warm thank you from the Aodyo team for believing in us and suppor ng our work! We hope you will love using your Link as much as we do. Sylphyo Link is a compact sound bank for electronic wind instruments and other MIDI controllers. Aodyo Instruments constantly improves it and updates its sounds to o er musicians rich and expressive sonic worlds in a small and portable package. -
Page 6: Overview (6) • What's In The Box
The Sylphyo Link at a glance as an in-ear monitor on stage while the Link is connected to the control booth and to various expanders and synths at the same me. Overview Front panel Indicator light. Tells whether there is a wireless connec on to a Sylphyo: A yellow light means the Link is looking to pair with any Sylphyo. - Page 7 Rear panel Headphone output port (6.35mm stereo jack). Play the Link synth with headphones. Line input port (6.35mm stereo jack). Mix any sound source to your own sound. Line output ports (le and right 6.35mm mono jacks). Play the Link synth on an amp, a mixer, or a hi- system.
- Page 8 The Sylphyo Link at a glance What's in the box? VIDEO youtu.be/yZnmMfIc1EI Unboxing Two accessories are included along with your Link: 5W charger Plug the 5W charger into a mains socket in order to power the Link using the USB cable.
- Page 9 Connect the Link to the mains using the included USB cable and charger. The cable must be connected to the smaller USB power supply port of the Link. Then, turn on your Link using the power-on switch, and turn on your Sylphyo as well.
-
Page 10: Connec Ng Another Controller To The Link
The Sylphyo Link at a glance icon. If your Link doesn’t nd your Sylphyo, it will display a red light . VIDEO youtu.be/LvsWkr39zLc Pairing with the Link receiver Connec ng another controller to the Link If you plan to use the Link with another MIDI controller, there are sev- eral op ons to connect it. -
Page 11: Playing With The Link
Playing with the Link In this sec on, you will learn how to use the Link with your controller, Syl- phyo or otherwise, to play its internal sounds as well as other sounds on your computer, phone, tablet, or synthesizer. Playing using the internal sounds Connect the Link to a power supply. -
Page 12: Playing With An Ios Smartphone Or Tablet
Playing with the Link VIDEO youtu.be/Jov0iqmQ7Q0 Quick start with a PC/Mac computer Note that the Link shows up in your computer as three di erent MIDI input/output ports in the following order: − Sylphyo. This is the wireless MIDI input and output to your Syl- phyo. -
Page 13: Midi Rou Ng
Playing with a hardware synthesizer You can control any MIDI-compa ble hardware synthesizer with the Sylphyo +Link. However, you will need to get a MIDI cable to connect your synthesizer to the Link. First, connect the Link to a power supply. Then, plug one end of the MIDI cable to the MIDI Out port of your Link, and plug the other end into the MIDI In port of your synth. - Page 14 Playing with the Link Sylphyo WIRELESS USB-MIDI MIDI DIN POWER SUPPLY USB-MIDI Host USB-MIDI MIDI Internal sounds PHONES & LINE OUT HOST...
-
Page 15: Complementary Informa On
Complementary informa on Please take note of the following important informa on before you begin to use your Link. Repairing the Link Do not open the Link and do not a empt to service it yourself. Damage to you or your instrument could occur during teardown. Please contact Aodyo or an authorized service provider. -
Page 16: Regulatory Compliance Informa On (16) • Trademarks
Complementary informa on Regulatory compliance informa on This device complies with part 15 of the FCC Rules. Opera on is sub- ject to the following two condi ons: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired opera on. -
Page 17: Disclaimer
Disclaimer This documenta on represents the current state of the product, how- ever it may evolve. We do everything we can to provide our users with high-quality products and documenta on. However, Aodyo does not guarantee that this documenta on exactly re ects the state of the product. - Page 18 ©2019 Aodyo. All rights reserved. LINK Aodyo SAS 11B avenue de l’Harmonie 59650 Villeneuve d’Ascq France contact@aodyo.com www.aodyo.com...
