Owners & Safety Manual

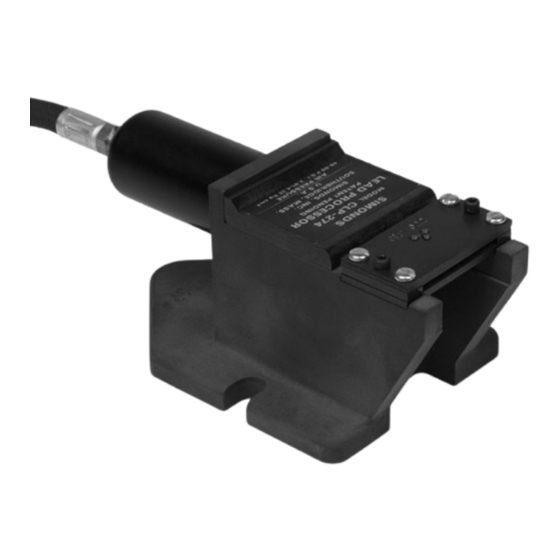

COMPONENT LEAD PROCESSOR
DIMENSIONS
WEIGHT
WORKING PRESSURES
248 ELM ST.
SOUTHBRIDGE, MASSACHUSETTS 01550
USA
PHONE: 508-764-3235
FAX: 508-765-5125
E-mail:
sales@simonds-inc.com
6/10/2013
CLP-274
Wear Eye Protection
3"H X 5 3/4"L X 3 1/2"W
1 LBS
40-60 PSI
Read manual carefully.
Made in the U.S.A.
Advertisement
Table of Contents
Related Manuals for Simonds CLP-274
Summary of Contents for Simonds CLP-274
- Page 1 Owners & Safety Manual CLP-274 COMPONENT LEAD PROCESSOR 3”H X 5 3/4”L X 3 1/2”W DIMENSIONS WEIGHT 1 LBS 40-60 PSI WORKING PRESSURES Wear Eye Protection Read manual carefully. 248 ELM ST. SOUTHBRIDGE, MASSACHUSETTS 01550 PHONE: 508-764-3235 FAX: 508-765-5125 E-mail: sales@simonds-inc.com...
- Page 2 15-MSP*** O’RING 18-MSP-10*** LOCK NUT 21-CLP*** ***PART OF POWER PACK REPAIR KIT- #274-CLP-KIT NOT SHOWN BUT SUPPLIED WITH CLP-274-ALUM OUTFIT: 103—FOOTSWITCH 102-5 - AIR HOSE # 7—Cutter Blade #7A-CLP may be factory re-sharpened 248 ELM ST., SOUTHBRIDGE, MA 508-764-3235 6/17/13 sales@simonds-inc.com...
-
Page 3: Safety Instructions
Dispose of tool and material as recommended by local disposal regulations. Simonds tools are not for use other than on production line. Tool should not be used as a hammer or pry bar. A “two hand control” may be required depending on the attached tool. - Page 4 Hold the seal end of the piston shaft part 2 in a vise and with a thin open end wrench remove the cutter blade from the shaft. ASSEMBLY IN REVERSE ORDER Simonds CLP-274-ALUM is a pneumatic tool intended to cut or crimp wires. Any use other than intended by Simonds Inc. may void all warranties. WARRANTY Simonds Inc.
