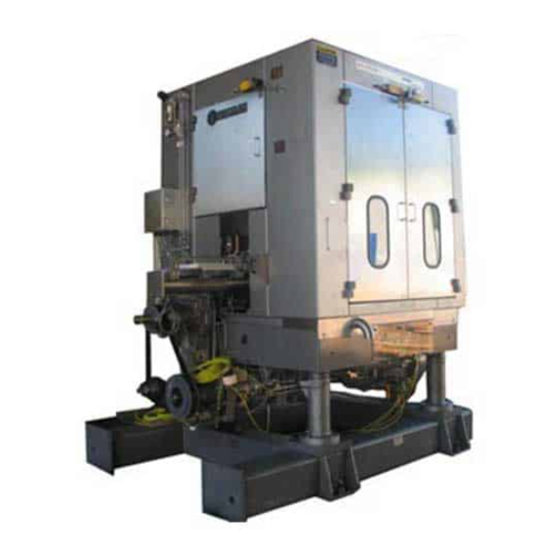

Angelus 180S Service Notices

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

1) Select the Bookmark option

2) Click on appropriate Service Notice

Service Notice Numbering and Tracking System

The following layout is using a single part number for reference

65L614 Rubber Plug

8 characters used as a "File Name" on the computer system.

060

001

Subdivision related to the part "14" which will continually increase as the number

of Lubrication Notices are created.

Type of part - Main Division, such as "14" for Lubrication or "44" for Shafts or "00" for an

assembled component.

Designates Seamer Model Number

Revisions to existing Service Notices will be as follows:The "File Name" will be duplicated on

the Service Notice with the latest revision level designated by a letter.

Example: 06014001"A". Revision levels on Service Notices are rare but can happen. The

Service Notice will provide remaining needed information.

Angelus 4900 Pacific Blvd. Los Angeles, CA 90058-2214 Tel: (323) 583-2171

Service Notices

Model 180S

1/1

Table of Contents

Need help?

Do you have a question about the 180S and is the answer not in the manual?

Questions and answers

Summary of Contents for Angelus 180S

Page 1 Service Notice with the latest revision level designated by a letter. Example: 06014001"A". Revision levels on Service Notices are rare but can happen. The Service Notice will provide remaining needed information. Angelus 4900 Pacific Blvd. Los Angeles, CA 90058-2214 Tel: (323) 583-2171...
Page 2 SERVICE NOTICE 5/21/91-18000001 180S Seaming Roll Lever Torque Specifications Seaming Lever Cone Point Set Screw , number 32S826. used to locate the Seaming Roll Lever on the Seaming Lever Shaft should be tightened to 80 ft. lbs 80 ft. lbs 80 ft.
Page 3 11/10/90-18000002 Complete Oil Change, 180S Seamer The following procedure will drain all oil from the 180S seamer to insure all contami- nates have been removed before new oil is installed. A. Drain oil from the Upper Turret. Take out the Drain Plug located at station no.1...
Page 4 If this accidently happens, all 18 Seaming Spindles will have to come out to drain water. D. Turn off air pressure supply to the Drive Case before disconnecting return line at Lower Turret Guard. ANGELUS SANITARY CAN MACHINE COMPANY 2 of 5...
Page 5 F. Drain oil from Filler Gear Drive Case. Take out a 3/4" pipe plug under the Filler Drive Clutch Housing. Take out a 1/2" pipe plug on the bottom of this Drive Case. ANGELUS SANITARY CAN MACHINE COMPANY 3 of 5...
Page 6 Drain In-Motion Timer and Tail Shaft Assemblies. Two 3/4" pipe plugs located under each of these. Replace Filtration System Filter. Clean out Filter canister and install new Filter. Drain oil reservoir and Clean out Water Separator ANGELUS SANITARY CAN MACHINE COMPANY 4 of 5...
Page 7 Listed are quantities of oil per foot. A 1/2" Tube line holds 0.04 quarts of oil / Foot. 3/4" line holds 0.1 qts./ft. 1.0" line holds 0.16 qts./ft. ANGELUS SANITARY CAN MACHINE COMPANY 5 of 5...
Page 8 SERVICE NOTICE 8/31/04-18000003 Model 180S Seaming Rolls with Ceramic Ball Bearing Assembly Installation Requirements ANGELUS SANITARY CAN MACHINE COMPANY...
Page 9 8/31/04-18000003 Seaming Roll with Ceramic Bearing Assembly Installation Sequence for 180S Seamers LUBRICATION REQUIREMENTS: Ceramic Ball Bearings assembled within the Seaming Roll and mounted ready for production, should only require one shot of grease from a hand grease gun for each assembly. If more than one shot of grease is installed, the ceramic ball bearing will expel excess grease out of the assembly.
Page 10 Electrical Programming Changes - Connect chain oiler solenoid to a unused 24VDC output. In PLC program add a line of logic. Program “Jog Command” bit parallel with “Run Command” bit to energize Gravity Feed Lubricator. Angelus 4900 Pacific Blvd. Los Angeles, CA 90058-2214 Tel: (323) 583-2171...
Page 11 “Y” Feed Sprocket Line “P” Lower Chuck Cam Line Fig. 3 - 180S with Gravity Feed Lubricator Plugged Feed Sprocket Line Fig. 4 - 180S with Gravity Feed Lubricator Angelus 4900 Pacific Blvd. Los Angeles, CA 90058-2214 Tel: (323) 583-2171...
Page 12 Service Notice 18014001 - 11/7/05 Fig. 5 - Lube Line Diversion Ref. Data Sheet G180.156-A Angelus 4900 Pacific Blvd. Los Angeles, CA 90058-2214 Tel: (323) 583-2171...
Page 13 Service Notice 18014001 - 11/7/05 Fig. 6 - Lubricator Assembly Ref. Data Sheet G180.156-A Angelus 4900 Pacific Blvd. Los Angeles, CA 90058-2214 Tel: (323) 583-2171...
Page 14 Service Notice 18014001 - 11/7/05 Fig. 7 - 262S854 Feed Sprocket Guard Modification Ref. Data Sheet G180.156-A Angelus 4900 Pacific Blvd. Los Angeles, CA 90058-2214 Tel: (323) 583-2171...
Page 15 Service Notice 18014001 - 11/7/05 Fig. 7 - 262S854 Feed Sprocket Guard Modification Ref. Data Sheet G180.156-A Angelus 4900 Pacific Blvd. Los Angeles, CA 90058-2214 Tel: (323) 583-2171...
Page 16 Subject: 180S Seamers - Filler Drive Safety Clutch Oil Seal (26S815) Purpose: To give customers notification regarding Angelus in house overhauls of Filler Drive In Motion Timer & Filler Drive Safety Clutch Assemblies. • The oil seal (26S815) will be shipped separately or uninstalled.
Page 17 SERVICE NOTICE 18016001-12/15/98 Model 180S Main Drive Shaft Locknut 192S816 Requirements. Calculated Pinion location shims must be installed prior to final assembly and torquing the Locknut. 1. Install the Bearing Carrier, Tapered Roller Bearing Assembly and the Clamp Locknut 192S816.
Page 18 SERVICE NOTICE 10/7/99-18020001 Knockout Pad Adjustment Procedures 204 diameter covers only! Model 180S Seamer must be equipped with the following; 204 cover dia. Knockout Pad no. F 056L841 Knockout Cam no. F 017S820 Lower Chuck Cam no. F 01S820 Adjusting Umbrella style Knockout Pads 1st.
Page 19 Lower Chuck Plate during the entire duration or cam rise, but still be able to turn the can freely without any binding or pressure from above. ANGELUS SANITARY CAN MACHINE COMPANY...
Page 20 ROTATION LIMITER UNTIL IT BOTTOMS OUT AGAINST THE ADJUSTING MECHANISM AND RETIGHTEN THE LOCKNUT. VIEW OF VARIATOR IS FROM THE OUTPUT SHAFT END. ITEMS 1 & 4 = LOCKNUTS ITEMS 2 & 3 = ROTATION LIMITERS CLOCKWISE ROTATION LIMITER COUNTERCLOCKWISE ROTATION LIMITER ANGELUS SANITARY CAN MACHINE COMPANY...
Page 21 SERVICE NOTICE 6/30/99-18023001 Model 180S Idler Gear Assembly Procedure Idler Gear 11S823 Retaining Rings (2) 11S817 Ball Bearing 14S816 11S823 1. Position Idler Gear with stamping or etched side facing "UP". Install bottom Retaining Ring into Idler 14S816 Gear bevel side facing down.
Page 22 Adjust Filler Brake to stop both Seamer and Filler after 20 stations have passed. * 2000 CPM in this case is used as an example for the 180S Seamer. This formula applies to all Seamer - Filler Brake Adjustments. In the case of other Angelus Model Seamers, use the intended production speed of your Seamer when setting the Brakes.
Page 23 From: Angelus Customer Service Department On page 53 of your 180S Instruction section in your "Parts and Instruc- tion Manual", Page 78, if you are using an obsolete instruction section. Please change the first sentence of the second paragraph, following the "NOTE"...
Page 24 The following is a step by step procedure used to align the Main Drive Motor with the Main Drive Shaft for Coupling Installation. This installation process is arranged using Angelus fixture J-13695 or Motor Sub-Base 28S843. Dial indicator attachment. The Seamer must be level within .001 of an inch/foot with the Can Feed Line Height set according to Floor Plan dimensions Angelus Fixture J-13695 attachment.
Page 25 Dial set for the Perimeter Reading. Use jack screws and Pad screws to bring vertical and side to side alignment between the Motor Shaft and Brake Housing within .005 of an inch. This is the Perimeter alignment. ANGELUS SANITARY CAN MACHINE COMPANY 2 of 3...
Page 26 Secure Motor mount fasteners. Re-check the Face Reading and Perimeter Reading once all fasteners have been secured. Install the drive coupling and all Guards. Motor installed with Coupling Guard. ANGELUS SANITARY CAN MACHINE COMPANY 3 of 3...
Page 27 System Operation Control Logic Oil Lubrication System Optional Seaming Roll Grease System Variable Speed Inching Mechanism Filler Drive / Seamer Safety Clutch No Can No Cover System Dual Speed Undercover Gassing System ANGELUS SANITARY CAN MACHINE COMPANY 1 of 14...
Page 28 OIL LUBRICATION SYSTEM OPERATION AND CONTROL LOGIC FOR 180S SEAMERS THE OIL LUBRICATION SYSTEM AS STANDARD EQUIPMENT ON THE ANGELUS 180S LINE OF SEAMERS CONSISTS OF TWO PRIMARY SYSTEMS. THE FIRST IS A THREE (3) PHASE MOTOR DRIVEN POSITIVE DISPLACEMENT OIL PUMP WITH CANISTER TYPE FILTERS FOR CLEANSING AND CIRCULATING SEAMER BASE OIL.
Page 29 AS A MEANS OF OIL LEVEL LIMIT CONTROL AND INDICA- TION, A DUAL MAGNET REED FLOAT SWITCH IS IN STALLED BY ANGELUS IN THE TRABON OIL RESERVOIR. THE LOW OIL SWITCH IS SET TO ACTIVATE 3.5 INCHES ABOVE THE EMPTY RESERVOIR MARK WHICH WILL GIVE A 2.62"...
Page 30 - OIL CYCLE PROXIMITY SENSOR FAILURE. - OIL RESERVOIR IS EMPTY. LOW TRABON OIL LIGHT. AMBER PILOT LIGHT WHICH INDICATES A TRABON OIL RESERVOIR LEVEL FAULT OR FAIL URE, BY THE FOLLOWING STATES. ANGELUS SANITARY CAN MACHINE COMPANY 4 of 14...
Page 31 ILLUMINATED:THE FILTRATION SYSTEM PRESSURE HAS EXCEEDED 75 PSI. THE FILTERS MUST BE CHANGED NOW. NOTE: A MECHANICAL INTERNAL RELIEF VALVE WILL COMPLETELY BYPASS THE PUMP AT 95 PSI. *OIL BOOST ON LIGHT ANGELUS SANITARY CAN MACHINE COMPANY 5 of 14...
Page 32 THIS SWITCH IS FACTORY SET TO OPEN DURING OPERATION SHOULD THE OIL FLOW FALL BELOW A RANGE OF 0.2 TO 0.25 GPM. *OIL DIVERTER SOLENOID VALVE. 3 PORT 2 POSITION, SOLENOID OPERATED, SPRING RETURNED, DIRECTIONAL CONTROL VALVE WITH 24VDC (120VAC OPTIONAL) ANGELUS SANITARY CAN MACHINE COMPANY 6 of 14...
Page 33 PRESSURE ALARMS FOR ONE HOUR TO PREVENT OIL PRESSURE ALARMS AT START UP. COUNT BASE: UNITS PRESET: INPUT: NO START SEQUENCE NO FREE RUN I MINUTE TIMER RESET: NO OIL FILTER PUMP MOTOR STARTER. ANGELUS SANITARY CAN MACHINE COMPANY 7 of 14...
Page 34 SYSTEM VENT. ENERGIZING SOLENOID A WILL DIRECT THE GREASE TO THE SEAMER. SOLENOID "B" IS USED FOR DIRECTING THE GREASE TO THE FILLER CONNECTED TO THE 180S SEAMER. SYSTEM GREASE PRESSURE SWITCH OPERATION THE GREASE SYSTEM CYCLE WILL BE COMPLETE IF THE SYSTEM PRESSURE SWITCH IS ACTUATED.
Page 35 SWITCH WILL BE ACTUATED BY THE CHAIN AS THE GREASE LEVEL GOES DOWN TO THE MINIMUM GREASE LEVEL. VARIABLE SPEED INCHING MECHANISM SYSTEM OPERATION AND CONTROL LOGIC FOR 180S SEAMERS CONTROL COMPONENTS FOR THE OPERATION OF THE INCHING MECHANISM SYSTEM CONSIST OF THE FOL- LOWING;...
Page 36 ENABLE THE INCH CLUTCH TO ENERGIZE, SO THE FILLER DRIVE CLUTCH CAN BE ENABLED. FILLER DRIVE / SEAMER SAFETY CLUTCH SYSTEM OPERATION AND CONTROL LOGIC FOR 180S SEAMERS THE CONTROL COMPONENTS FOR THE OPERATION OF THE FILLER DRIVE CLUTCH SYSTEM CONSIST OF THE FOLLOWING;...
Page 37 EMERGENCY STOP. NO CAN NO COVER SYSTEM OPERATION AND CONTROL LOGIC FOR 180S SEAMERS THE CONTROL COMPONENTS FOR THE OPERATION OF THE NO CAN NO COVER SYSTEM CONSIST OF THE FOLLOWING; TURCK NO CAN PROXIMITY SENSOR, TURCK FLAG PROXIMITY SENSOR, GORDOS DC SOLID STATE RELAY, AND COVER FEED SOLENOID POWER CIRCUIT COMPONENTS.
Page 38 STOPPING COVER FEED. DUAL SPEED UNDERCOVER GASSING SYSTEM OPERATION AND CONTROL LOGIC FOR 180S SEAMERS THE CONTROL COMPONENTS FOR THE OPERATION OF THE UNDERCOVER GASSING SYSTEM CONSIST OF THE FOLLOWING; 0 - 100 SCFM YOKOGAWA FLOWMETER, FOUR 20MA NEWPORT DIGITAL DISPLAY, TWO ASCO SOLENOID VALVES, AND A TURCK NO CAN- NO GAS PROXIMITY SENSOR.
Page 39 TABLE AND PAST THE NO CAN NO GAS SENSOR. PLUGCOCK LIMIT SWITCH OPERATION THE 180S EMPLOYS TWO (2) PLUGCOCK LIMITS TO INDICATE AND REGISTER TO THE PLC WHAT CONDITION THE UNDERCOVER GASSING SYSTEM IS IN. THESE LIMITS ARE LOCATED ON THE PIPING OUTSIDE THE OUTER ENCLOSURE.
Page 40 ENERGIZED TO SHUT THE SYSTEM OFF IF NO CANS ARE SENSED BY THE SENSOR. IF THE WASH MODE IS SELECTED, THIS WILL DISABLE THE SOLENOID VALVES, REGARDLESS OF THE SENSOR SENSING A CAN. ANGELUS SANITARY CAN MACHINE COMPANY 14 of 14...
Page 41 Angelus Model 180S Seamer Instructions 9/22/99 - 18033005 MODEL 180S SEAMER CRT CONTROL STARTUP & OPERATION INSTRUCTIONS 1 OF 9...
Page 42 Model 180S Seamer 9/22/99 - 18033005 ANGELUS MODEL 180S SEAMER INSTRUCTIONS 1. MAIN POWER A. AT THE MAIN CONTROL ENCLOSURE, MOVE THE DISCONNECT HANDLE, AT THE UPPER RIGHT CORNER TO THE UP (ON) POSITION. A 1. THE ABOVE ACTION SUPPLIES POWER TO THE CONTROL TRANSFORMER AND POWERS UP THE PROGRAMMABLE LOGIC CONTROLLER.
Page 43 Angelus Model 180S Seamer Instructions 9/22/99 - 18033005 4. CRT PAGE EXPLANTION A. ANYTIME YOU DESIRE TO CHANGE FROM ONE PAGE TO ANOTHER, COMPLETE THE FOLLOWING STEPS. STEP 1. PRESS THE CANCEL PUSH BUTTON THE LOWER CONTROL PUSH BUTTON LABEL WILL BE “GET PAGE”.
Page 44 Model 180S Seamer 9/22/99 - 18033005 5. CELL DESCRIPTIONS AND OPERATION CONTINUED; A. PAGE 0. MAIN SEAMER CONTROL. A 3. SEAMER BRAKE WHEN THE MEMBRANE KEY IS PRESSED AND THE CURSOR IS AROUND SEAMER BRAKE CELL, WITHIN THE CELL WELL BE DISPLAYED THE STATUS, OF THIS INDICATOR. THE TEXT WILL SHOW WHICH STATE THE SEAMER IS IN.
Page 45 Angelus Model 180S Seamer Instructions 9/22/99 - 18033005 5. CELL DESCRIPTIONS AND OPERATION CONTINUED; A. PAGE 0. MAIN SEAMER CONTROL. A 7. INCH/RUN OPERATION WHEN THE MEMBRANE KEY IS PRESSED AND THE CURSOR IS AROUND THE INCH RUN SELECT CELL, THE CONTROL LABEL ASSOCIATED WITH THIS SELECTOR IS DISPLAYED AS “...
Page 46 Model 180S Seamer 9/22/99 - 18033005 5. CELL DESCRIPTIONS AND OPERATION CONTINUED; A. PAGE 0. MAIN SEAMER CONTROL. A 12. MESSAGE DISPLAY WHEN THE MEMBRANE KEY IS PRESSED AND THE CURSOR IS AROUND THE MIESSAGE DISPLAY CELL, THE CONTROL LABELS ASSOCIATED WITH THIS SELECTOR IS DISPLAYED AS “PRESS FOR NEXT MIESSAGE”...
Page 47 Angelus Model 180S Seamer Instructions 9/22/99 - 18033005 B. PAGE 1. SEAMER ALARM SCREEN CONTINUED; B 6. HOLD DOWN BAR WHEN THE MEMBRANE KEY IS PRESSED AND THE CURSOR IS AROUND THE HOLD DOWN BAR CELL, WITHIN THE CELL THIS INDICATOR WILL SHOW THE STATUS OF THE HOLD DOWN BAR BY THE FOLLOWING TEXT;...
Page 48 Model 180S Seamer 9/22/99 - 18033005 B. PAGE 1. SEAMER ALARM SCREEN CONTINUED; B 13. OIL FILTER SYSTEM WHEN THE MEMBRANE KEY IS PRESSED AND THE CURSOR IS AROUND THE OIL FILTER SYSTEM CELL, WITHIN THE CELL WILL BE DISPLAYED THE STATUS OF THE FILTER SYSTEM.
Page 49 Angelus Model 180S Seamer Instructions 9/22/99 - 18033005 D. PAGE 3 JAM STOPS CONTROL SCREEN D 1. START/STOP SEAMER SAME AS ON PAGE 0 START/STOP SEAMER D 2. JAM STOPS WHEN THE MEMBRANE KEY IS PRESSED AND THE CURSOR IS AROUND THE JAM STOPS CELL, THE CONTROL LABEL ASSOCIATED WITH THIS SELECTOR IS DISPLAYED AS “JAM STOP...
Page 50 SERVICE NOTICE 18043001 Model 180S Seamer Discharge Table Assembly Procedures ANGELUS SANITARY CAN MACHINE COMPANY 1/12...
Page 51 SERVICE NOTICE 18043001 180S DISCHARGE TABLE PROCEDURES DISCHARGE TABLE BREAKDOWN Raise Seamer to 26 inches between Upper Turret Housing & Base surface: Remove two M12 Hex. Head screws from the Cap Guide Section Outer Two M16 Hub Clamp Bolts Collar Inserts. Inserts conceal two M16 Upper Turret Hub Clamp bolts.
Page 52 SERVICE NOTICE 18043001 180S Seamer Discharge Table The Discharge Rail Trip Finger mounted on top of the Discharge Rail Upper must be loosened and moved off to the side or will be broken when the Seamer height is changed. 51S846 =...
Page 53 Discharge Column Support free to fall. Use two longer M10 screws, placed opposite the jack screws, to insure against having Discharge Turret Gear seen through the Support fall. Base opening. ANGELUS SANITARY CAN MACHINE COMPANY 4/12...
Page 54 11S844 = Column W/ Insert 54L826 9S823 = Discharge Turret Gear 21S844 = Discharge Turret Hollow Shaft Install the Bearing Locknut onto the Column. ANGELUS SANITARY CAN MACHINE COMPANY 5/12...
Page 55 27L444 = Eccentric Pulley Shaft Disconnect the Elevator Assembly Drive Chain. .625 Pitch Stainless Steel Roller Chain, 129 3/8" Long w/connecting link Eccentric Pulley Shaft & Elevator Chain located above the Separator Drive area. ANGELUS SANITARY CAN MACHINE COMPANY 6/12...
Page 56 135 lbs. These parts only need to be lowered a total of 18 inches before there is ample clearance for parts removal. Discharge Turret Hollow Shaft lowered approx. 18 inches using a jack. Assembly procedures follow on page 8. ANGELUS SANITARY CAN MACHINE COMPANY 7/12...
Page 57 Carefully align the Ball Bearing with Hollow Shaft as it reaches this point. Lubricate Oil Seals within the Upper Turret Housing Bottom before entering the Housing bore. 2S815 = Oil Seal 4S843 = Upper Turret Housing Bottom ANGELUS SANITARY CAN MACHINE COMPANY 8/12...
Page 58 Install Ball Bearing up into the Gear followed by the Bearing Retainer and six M10-1.5 X 70mm L. Soc. Hd. Screws.Use thread adhesive on screw threads. 113S816 = Ball Bearing 62S817 = Bearing Retainer Ball Bearing & Bearing Retainer ANGELUS SANITARY CAN MACHINE COMPANY 9/12...
Page 59 M10 -1.5 X 40mm Hex. Hd. Screws. 63S817 = Discharge Bearing Retainer 65S815 = Oil Seals 64S815 = V-Ring NOTE: Be certain that O-Ring 12S815 is in place before securing the Bearing Retainer ANGELUS SANITARY CAN MACHINE COMPANY 10/12...
Page 60 Elevator Screw and Sprocket teeth. All three points must be within .005 of an inch. Once set, connect Elevator Chain and always check Housing to Base dimensions when Elevating the Housing. Inside Micrometer used to check height ANGELUS SANITARY CAN MACHINE COMPANY 11/12...
Page 61 Seaming & Discharge Turret Split 27S817 = Discharge Turret Clamp-Split 11S853 = Discharge Turret Spacer-Split 51S846 = Discharge Rail Trip Finger __S845 = Discharge Rail Inner __S845 = Discharge Rail Outer Realignment of Can Size change parts ANGELUS SANITARY CAN MACHINE COMPANY 12/12...
Page 62 SERVICE NOTICE Model 180S Seaming Spindle Assembly Procedure 1 of 4 ANGELUS SANITARY CAN MACHINE COMPANY...
Page 63 Fixture No. J-8223 9" Press Sleeve 9" Press Sleeve 9" Press Sleeve 9" Press Sleeve 9" Press Sleeve Fixture No. J-8223 Fixture No. J-8223 Fixture No. J-8223 Fixture No. J-8223 Fixture No. J-8223 2 of 4 ANGELUS SANITARY CAN MACHINE COMPANY...
Page 64 SERVICE NOTICE Ball Bearing 34L816 9" Sleeve Fixture J-11072 Tube (approx. 2 1/2" long) 3 of 4 ANGELUS SANITARY CAN MACHINE COMPANY...
Page 65 Heat Resistant Gloves Heat Resistant Gloves Heat Resistant Gloves 9" Press Sleeve 9" Press Sleeve 9" Press Sleeve 9" Press Sleeve 9" Press Sleeve Lubri-Kote Lubri-Kote Lubri-Kote Compound Compound Compound Lubri-Kote Lubri-Kote Compound Compound 4 of 4 ANGELUS SANITARY CAN MACHINE COMPANY...
Page 66 SERVICE NOTICE 8/29/95-18045001 Model 180S Can Feed & Discharge Rail Assembly Procedure Modified to include the "Discharge Rail Upper Insert" Major components. Can Feed & Discharge Rail 8S883 - 211 diameter Discharge Rail Upper 30S845 - 211 dia. x 505 min.
Page 67 SERVICE NOTICE 8/29/95-18045001 Model 180S Can Feed & Discharge Rail Assembly Procedure continued; Modified to include the "Discharge Rail Upper Insert" Place the square at this point of the transfer from the Insert to the Can Feed & Discharge Rail Assembly.
Page 68 A design change to the Seaming Spindle with additional Double Lip Seal and Seal Sleeve from a one-piece to a two-piece part for model 180S machines will make shimming the seaming chucks to the proper height setting significantly easier and eliminate the requirement to remove and potentially disturb the integrity of the double-lip seal.
Page 69 Notes: 1) Field conversion for model 180S Seamer require that the customer remachine the seaming levers per Angelus Data Sheet G140.35, or use the new style seaming levers with clearance cut for seaming spindle lower bearing retainer. 2) Angelus machine modification parts lists: 180SM111.
Page 70 140/180S Seamers Modification required on Seaming Levers to accomodate Face Seal, Rotor & Dual Lip Seal w/85S817 Retainer 35° Typ. .683 Typ. .375 Typ. Note: Remachine to dimensions shown above Angelus 4900 Pacific Blvd. Los Angeles, CA 90058-2214 Tel: (323) 583-2171...
Page 71 SERVICE NOTICE 11/10/90-18054001 Instructions to Replace existing 2S854 Oil Guard with 188S854 Oil Guard & 79S815 V-Ring Seal ANGELUS SANITARY CAN MACHINE COMPANY 1 of 6...
Page 72 Portable 1 1/2 ton Hydraulic Jack "Permatex" no. 2 Liquid Gasket "Permatex Quick Gel" (1 tube, used to glue "V" Ring) "Parker Super Lube" (1 tube) "Loctite Safety Solvent" (1 spray can) continued next page; ANGELUS SANITARY CAN MACHINE COMPANY 2 of 6...
Page 73 Screws and take out Cap Guide Section Outer. Remove Knockout Rod Trip Lever located on the Discharge Jam Rail. Remove screws and standoffs securing Electrical Box mounted inside the Upper Turret Housing and set off to the side. ANGELUS SANITARY CAN MACHINE COMPANY 3 of 6...
Page 74 Cap Guide Outer. This part may have to be removed also. Rotate the Oil Guard until radius cut is located at the Discharge area. Completely Mask off the entire area leaving only the radius area of the Oil Guard exposed. ANGELUS SANITARY CAN MACHINE COMPANY 4 of 6...
Page 75 Upper Turret Housing - Top until contact is made with Upper Turret Housing - Bottom. NOTE: Install Cap Guide Section Outer when able. Secure Elevator Bearing Retainer in place with (4) M12 Hex. Hd. screws. ANGELUS SANITARY CAN MACHINE COMPANY 5 of 6...
Page 76 Level Upper Turret Housing to Base. (hold within .005 of an inch between three points.) Install Lubrication lines. Re-Set Pin Gauge Height. Adjust Cap Guide Section Outer. Install Knockout Rod Trip Lever. NOTE: Two men, job completed in approx. 6 hours. ANGELUS SANITARY CAN MACHINE COMPANY 6 of 6...
Page 77 Rotating Union. Bending the Union may disrupt seals within. Connect three Feed Hoses previously marked for their original location. Check the assembly for any leakge of oil or grease. ANGELUS SANITARY CAN MACHINE COMPANY...
Page 78 18054003-5/7/01 323S854 Oil Baffle Angelus now makes available a Drive Case Oil Baffle that eliminates the large air bubbles that come through the Oil Line into the 29H614 Oil Filtration Unit. The Baffle is a SS Sheet that is installed between the 20S843 Drive Case and the 6S854 Drive Case Cover. The Baffle acts to...
Page 79 SERVICE NOTICE 10/11/99-18059001 Model 140S and 180S Seamers Cover Feed Systems Subject: Feed Turret Cap Pusher height in relation to Inner Cap Guide Rail. Description: Cap Pushers mounted to the Feed Turret guide ends through Cap Guide Rails from Separator Assemblies to the Can and End Makeup area.
Page 80 SERVICE NOTICE 10/11/99-18059001 Model 140S and 180S Seamers Cover Feed Systems Procedures continued; 8. Remove fasteners from the Bearing Retainer and pull down from the Housing. 9. The measurement taken earlier placed the Cap Pusher even with the Rail. Precision machine the bottom of the Bearing Retainer to remove .015 material (,38mm).
Page 81 SERVICE NOTICE 10/11/99-18059001 Model 140S and 180S Seamers Cover Feed Systems Procedures continued; Feed Turret installation fixture #160S816 is designed to easily install the 75 lb. Feed Turret. the fixture mounts directly to the face of the Can Feed Drive Case Cover fasteners.
