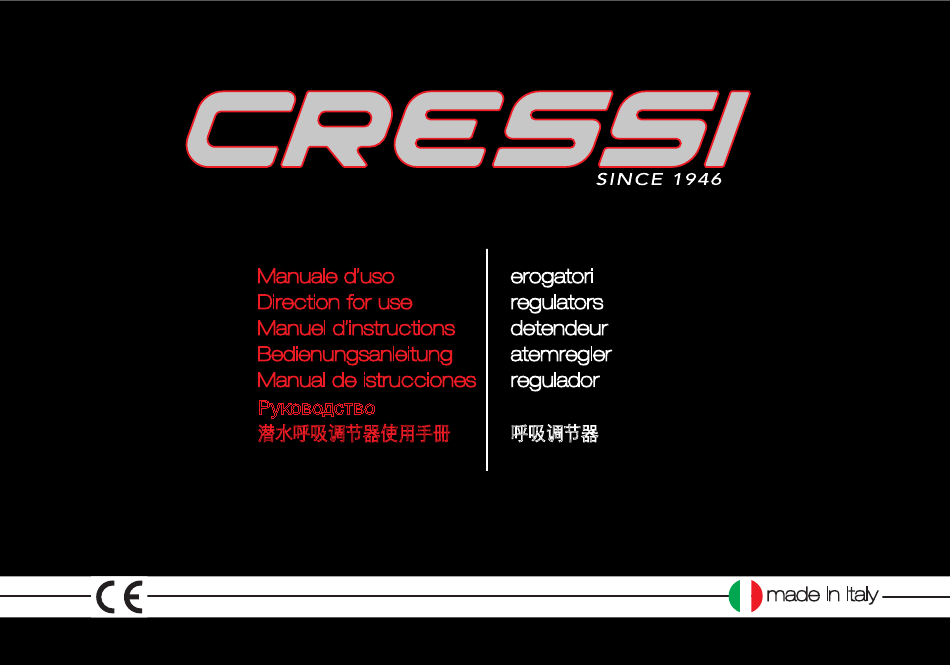

  • Page 1 Manuale d’uso erogatori Direction for use regulators Manuel d’instructions detendeur Bedienungsanleitung atemregler Manual de istrucciones regulador Pуководство пользователя 潜水呼吸调节器使用手册 呼吸调节器 made in Italy...

  • Page 2: Table Of Contents

    USE AND MAINTENANCE ...page 77 T10 - T10 S.C.-T10 SC Cromo ...page 48 Use of the regulator and risk assessment .page 78 MC9 - MC9 S.C.

  • Page 3: Introduction

    All Cressi-sub devices must be used by divers who have All Cressi-sub regulator are certified to 146 ft (50 m), and some attended regular courses held by certified trainers. for use in cold water with temperatures below 10° C, having Using underwater devices without a licence or the necessary passed the stringent operations testing at 4°...

  • Page 4: First Stages

    Direction for use regulators FIRST STAGES 1.1 - T10 - T10 S.C. - T10 SC Cromo 1.2 - MC9 - MC9 S.C. 1.3 - MC5 1.4 - AC2...

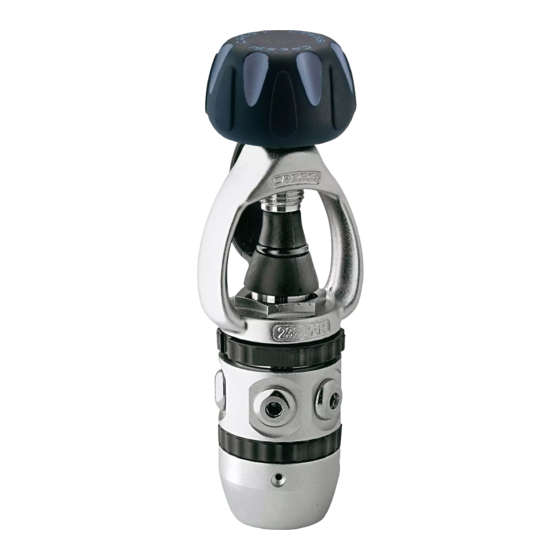

  • Page 5 HP valve mechanism to simplify maintenance and disassembling of the regulator. Thanks to this feature, the T10 first stage assists the diver in the It provides outstanding respiratory performance, constant in any dive, guaranteeing the highest working performance which in-...
  • Page 6 Cressi-sub centres and the calibration values CANNOT and MUST NOT be changed by the user, to As with all regulators in the Cressi-sub range, the T10 first stage avoid prejudicing the good working order of the regulator. We...
  • Page 7 For diving in extreme conditions we recommend using combina- transmission element which transfers all information on the ex- tions with the T10SC or the T10 Cromo SC versions equipped with treme pressure variations to the diaphragm. The main diaphragm the Seal Chamber (S.C.)
  • Page 8 Cressi Sub s.p.a. (email: info@cressi.com). The T10 first stage can therefore be used in cold water (with water temperature below 10 °C/50 °F), since it complies with Di- rective 89/686/EEC dated 21/12/1989, checked and certified by Test Authority No.
  • Page 9 The regulation system of intermediate pressure in MC9 balanced best performing small and light regulators on the market. diaphragm first stage is the same as all other Cressi-sub first stages, which allows an easy and quick adjustment of interme- In this first stage (fig. 3), the elastic diaphragm protects and seals diate pressure without having to disassemble any component of the system’...
  • Page 10 WARNING: In case of dives in cold water (temperature less Balanced diaphragm first stage features a light compact structure than 10°C/50° F), Cressi-sub recommend to use a tank sup- in chromium-plated brass with inner components in stainless steel, plied with a valve featuring two separate outlet ports, with chromium-plated brass and state-of-the-art thermoplastic resins.
  • Page 11 Visit our web-site www.cressi.com, where you can find further in- diaphragm. The main diaphragm protects and seals the device’ formation relating to your safety.
  • Page 12 The regulation system of intermediate pressure in MC5 balan- national, by means of an extremely modern designed bracket, ced diaphragm first stage is the same as all other Cressi-sub first orwith a threaded connection DIN 300 bar (4350 psi) (EN ISO stages, allowing an easy and quick adjustment of intermediate pres- 12209), both complying with EN 250:2014 standard.
  • Page 13 Both international yoke and DIN (at 200 or 300 bar) (2900÷4350 psi) connection are fully interchangeable and are replaced with each other very quickly (only at authorized Cressi-sub centres). Its satin finish guarantees the regulator’ s best surface perfor- mance, while contributing to its outstanding strength and relia- bility.
  • Page 14 Direction for use regulators 1.5 - Performance First Stages...

  • Page 15: Mc9 - Mc9 S.c

    1.5 - Performance T10 / T10 S.C. / T10 S.C. Cromo Working pressure (INT connection) 0÷232 bar Working pressure (DIN connection) 0÷300 bar Calibration pressure (with 200 bar supply) 10 bar Air supply 4500 l/min (*) High pressure (HP) ports...
  • Page 16 1.5 - Performance Working pressure (INT connection) 0÷232 bar - (0÷3365 psi) Working pressure (DIN connection) 0÷300 bar - (0÷4350 psi) Calibration pressure (200 bar feeding) 10 bar - (145 psi) Air supply 2100 l/min (*) High pressure (HP) ports Low pressure (LP) ports (*) Values measured at LP port with second stage connected and tank pressure at 200 150 bar (2900...

  • Page 17: Second Stages

    Direction for use regulators SECOND STAGES 2.1 - Galaxy Adjustable /Master / Master Cromo / Galaxy / Octopus MG Balanced 2.2 - Master / Master Cromo / Galaxy / Octopus MG Balanced disassembly and maintenance 2.3 - XS Compact Pro / XS Compact 2.4 - XS Compact Pro / XS Compact, disassembly and servicing 2.5 - XS2...
  • Page 18 The lever is subsequently lowered and in doing so, opens the valve. Cressi sub's line of balanced second stages is represented by Cressi-Sub’s range of second-stage balanced regulators are revolutionary pneumatic balanced regulators. They are elliptical in...
  • Page 19 The adjustable Galaxy/Master second-stage regulator makes it In order to enhance the Venturi effect, both stages of Cressi-Sub possible to modify the inhalation effort thanks to the external metal regulators are equipped with an air flow deflector which can be po- knob, thus directly affecting inhalation resistance.
  • Page 20 WARNING: for diving in cold waters (temperature <10°C) The new cap (only in the adjustable version) is aesthetically pleas- Cressi-Sub recommends the use of a tank with a pillar valve ing and designed with special etched Titanium, a material of unsur- with two independent outputs, to which two complete regula- passable lightness and corrosion resistance.

  • Page 21: Octopus Mg Balanced Disassembly And Maintenance

    In keeping with our objective of quick and easy control mainte- requirements for category III PPE. It also regulates the conditions nance and tuning operations, the mechanics of Cressi-Sub sec- for bringing such equipment to market. ond-stage regulators have been designed so as to be instantly removable, without risking altering the level of calibration.

  • Page 22: Xs Compact Pro / Xs Compact / Octopus

    Compact may be sold in combination with various first stage ice (the result of the natural humidity inside the second stage), fol- products of the Cressi sub range, which have the same compo- lowing an abrupt drop in the temperature of the air arriving from...
  • Page 23 16 ual airflow button, with a functional return that is better than pre- vious regulators in the Cressi-sub line. It also has a special The air exiting the nozzle on the adjustable valve when the mech- asymmetrical design in the way the holes are distributed that cal-...
  • Page 24 SECOND STAGES pre-dive and dive (Fig. 16). In the first mode, a flow limiting device placed in the mouthpiece inlet starts operating, and inhibits the Venturi effect, preventing free flow. With the latter on, the Venturi effect is able to work at its best, increasing the air flow released by the regulator to the maximum level.

  • Page 25: Xs Compact Pro / Xs Compact

    Cressi-sub spare parts are to be used. The range of Cressi-sub XS Compact regulators is compliant with The unique bayonet mount lock system of the cap allows the the requirements of directive EU 2016/425, having been tested...
  • Page 26 XS range: on one side, it is connected to Visit our site www.cressi.com: you will find more information about the lever, on the other side, it houses a newly designed thicker our equipment.
  • Page 27 All Cressi-sub second stages are downstream, that is the valve automatically opens in case of calibration loss of first stage or of WARNING: Always remember to set the flow deflector’...
  • Page 28 SECOND STAGES You can find your authorized Cressi-Sub center by asking your dealer, or Cressi Sub S.p.A. itself (email: info@cressi.com). Inner components are in chromium-plated brass, stainless steel and acetyl resins; springs are in stainless steel, diaphragms in sili- cone, O-rings in NBR and the mouthpiece in comfortable hypoallergenic silicone.
  • Page 29 Direction for use regulators 2.6 - Performance Second Stages...

  • Page 30: Performance

    2.6 - Performance Galaxy Adjustable / Master Working pressure 0÷232 bar (INT); 0÷300 bar (DIN) Calibration pressure (with 200 bar supply) 9,5 bar (T10 S.C. - T10 S.C. Cromo) Average inhalation effort (*) 3 mbar Average exhalation effort (*) 7 mbar...
  • Page 31 2.6 - Performance XS Compact Pro / XS Compact / Octopus Working pressure 0÷232 bar (INT); 0÷300 bar (DIN) Calibration pressure (200 bar feeding) 9,5 bar (MC9 - MC5 - AC2) Average inhalation effort (*) 6 mbar Average exhalation effort (*) 10 mbar Average breathing effort (*) 1,1 J/l...

  • Page 32: Use And Maintenance

    Direction for use regulators 3 - Use and Maintenance...

  • Page 33: Use Of The Regulator And Risk Assessment

    3.2 – Checks before use second stage as well. Before using your Cressi-sub regulator, we recommend to carry A last acoustic test might discover and/or point out possible los- out some easy though very important and unavoidable checks, ses from connections and hoses or a free air flow from the in order to avoid any kind of problem.

  • Page 34: Mounting The Regulator To The Tank

    We recom- without tighten too much. mend to use only original Cressi-sub spare parts. In case a second independent regulator is used, connect it to For yoke connected first stages, use following procedure: the additional valve outlet following the above instructions.

  • Page 35: Use Of The Regulator In Cold Water

    If your regulator is certified to be used in cold water (tempera- equipment may not be used at depths of greater than 30 me- tures < 10° C/50°F), Cressi sub recommend to follow carefully the ters, or at water temperatures below 10 °C.

  • Page 36: Equipment Maintenance

    Interventions carried out by untrained personnel may cause pharmaceutical products. high risks to the diver’ s health and life. Cressi-sub decline any Cressi-Sub second-stage regulators meet the requirements set by responsibility for any servicing or setting of the regulators car- standard EU 250:2014 in compliance with regulation UE 2016/425 ried out by unauthorized and uncertified personnel.
  • Page 37 All Cressi-sub regulators are supplied with NBR O-rings and all inner components are greased with appropriate lubricants; these materials guarantee the best lubrication and protection from the salty and corrosive sea environment. As proved by tests carried out by NASA (NASA DOCUMENT...
  • Page 38 MODEL SERIAL DATE DEALER TECHNICIAN'S NOTES ON PROCEDURES SIGNATURE (Date of the next NAME NUMBER NAME scheduled maintenance)

  • Page 39: Cressi-Sub Certified Combinations

    3.8 - Cressi-sub Certified Combinations. Note: Cressi-sub regulators can be used with SCUBA component assemblies according to the combinations that satisfy the requirements of regulation 2016/425 (ex 89/686/EEC), and with standard EN 250:2014. FIRST STAGES T10 S.C. T10 S.C. CROMO CROMO S.C.
  • Page 40 Regulators Chart Primi Stadi First Stages Premiers Etages Erste Stufen Primeras Etapas ВТОРЫЕ СТУПЕНИ...
  • Page 41 (kit revisione/maintenance kit) HZXXXXXX* Contenuto nel kit revisione e non disponibile Ed./Issue T10SC-SCCr/A singolarmente. / Only available in maintenance kit; not 1° Stadio Membrana Bilanciata T10 S.C. /Balanced Diaphragm 1 Stage T10 S.C. 02/15 N° Tav./Rev. available individually. HZXXXXXX Non disponibile / Not available.
  • Page 42 (kit revisione/maintenance kit) HZXXXXXX* Contenuto nel kit revisione e non disponibile Ed./Issue T10SC-Cromo/A singolarmente. / Only available in maintenance kit; not 1° Stadio Membrana Bilanciata T10 S.C. Cromo /Balanced Diaphragm 1 Stage T10 S.C. Cromo 01/18 N° Tav./Rev. available individually. HZXXXXXX Non disponibile / Not available.
  • Page 43 POS CODICE/CODE 1 HZ730027 2 HZ770080 3k HZ800090 4 HZ800054 5 HZ800055 * 6 HZ800056 * 7k HZ800057 * 8 HZ800086 9 HZ800085 * 10k HZ800058 11 HZ800059 * 12 HZ730106 13 HZ730108 * 14 HZ730127 15 HZ730132 * 16k HZ800040 17 HZ800038 18 HZ800062 * 19 HZ800082 *...
  • Page 44 POS CODICE/CODE 1 HZ730027 2 HZ770080 3k HZ800090 4 HZ800054 5 HZ800055 * 6 HZ800056 * 7k HZ800057 * 8 HZ800086 9 HZ800085 * 10k HZ800058 11 HZ800059 * 12 HZ730106 13 HZ730108 * 14 HZ730127 15 HZ730132 * 16k HZ800040 17 HZ800041 25k* 18 HZ800062 *...
  • Page 45 POS CODICE/CODE 1 HZ730027 2 HZ770080 3k HZ800090 4 HZ800054 5 HZ800055 * 6 HZ800056 * 7k HZ800057 * 8 HZ800086 9 HZ800085 * 10k HZ800058 11 HZ800059 * 12 HZ730106 13 HZ730108 * 14 HZ730127 15 HZ730132 * 16k HZ800060 17 HZ800061 18 HZ800062 * 19 HZ800082 *...
  • Page 46 POS CODICE/CODE HZ730027 HZ700089 HZ730188 * HZ800090 HZ730114 * HZ730151 HZ735126 * 28k* HZ730152 HZ730153 HZ730106 HZ730108 * (kit revisione/maintenance kit) HZ730127 HZ730132 * HZ730154 HZ730105 HZ730104 * HZ730155 * HZ730156 HZ730108 * HZ730157 HZ730158 HZ730222 Nero HZ730225 Giallo 26k* HZ735158 (DIN 200 bar) HZ730157 (DIN 300 bar) HZ735154 *...
  • Page 47 Regulators Chart Secondi Stadi Second Stage Deuxiemes Etages Zweite Stufen Segundas Etapas ПЕРВЫЕ СТУПЕНИ...

  • Page 48: Tables

    POS CODE HZ830101 HZ820051 * HZ810095 * HZ810094 HZ820052 HZ820053 HZ820054 * 10* 11 12* 13* 15* 16 17* 18 HZ820055 * HZ820056 HZ820057 * HZ820058 HZ820059 * HZ820060 * HZ830096 HZ820062 * HZ820063 HZ730108 * (kit revisione/ HZ830097 maintenance kit) HZ820065 * HZ810077 HZ782097 *...
  • Page 49 POS CODE HZ820050 Titanium HZ830101 Steel HZ820051 * HZ810095 * HZ810094 HZ820052 HZ820053 35k* HZ820054 * HZ820055 * HZ820056 HZ820057 * HZ820058 HZ820059 * HZ820060 * HZ830096 HZ820062 * HZ820063 HZ730108 * HZ830097 (kit revisione/maintenance kit) HZ820065 * HZ810077 HZ782097 * HZ820066 HZ820067 HZ820068...
  • Page 50 POS CODICE/CODE HZ820050 HZ820051 * HZ810095 HZ810094 HZ820052 HZ820053 HZ820087 HZ820055 * HZ820056 HZ820057 * HZ820058 HZ820059 * HZ820083 HZ820060 * HZ820085 HZ810077 HZ782097 * HZ820066 HZ820067 HZ820068 HZ820069 * HZ820070 HZ820071 HZ820072 HZ820073 HZ820088 (Galaxy) HZ820083 (Octopus MG Balanced) HZ820089 HZ820076 HZ820077...
  • Page 51 POS CODICE/CODE 1 HZ810094 2 HZ810095 * 3 HZ780080 11k* 14* 15* 16k 4 HZ742013 * 5 HZ780079 6 HZ780078 7k HZ780077 8 HZ730207 9 HZ780076 * 10 HZ780075 11k HZ746094 * 12 HZ780074 13 HZ780073 14 HZ820069 * 15 HZ810080 * 16k HZ780072 17 HZ780071 18 HZ820054 *...
  • Page 52 POS CODICE/CODE 1 HZ810094 2 HZ810095 * 3 HZ780080 4 HZ742013 * 11k* 14* 15* 16k 5 HZ780079 6 HZ780078 7k HZ780077 8 HZ730207 9 HZ780076 * 10 HZ780075 11k HZ746094 * 12 HZ780074 13 HZ780073 14 HZ820069 * 15 HZ810080 * 16k HZ780072 17 HZ780071 18 HZ820054 *...
  • Page 53 POS CODICE/CODE 1k HZ780050 Nero 1k HZ780051 Giallo (octopus) 2 HZ742007 3 HZ730218 * 4 HZ730208 5 HZ742008 6k HZ730222 Nero 6k HZ730225 Giallo 7 HZ730207 8 HZ770096 9 HZ770095 10 HZ770094 11k HZ746094 * 12k HZ770099 13k HZ770097 14k HZ790096 15 HZ790095 16 HZ790094 17 HZ730202...
  • Page 54 Via Gelasio Adamoli, 501 - 16165 - Genova - Italia Tel. +39 010 830.79.1 - Fax +39 010 830.79.220 info@cressi.com • www.cressi.com rev_08_2019...
