Kramer VS-8UFX Quick Start Manual

VS-8UFX Quick Start Guide
This guide helps you install and use your VS-8UFX for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box
VS-8UFX Programmable 8 port 12G SDI Router
1 Power cord

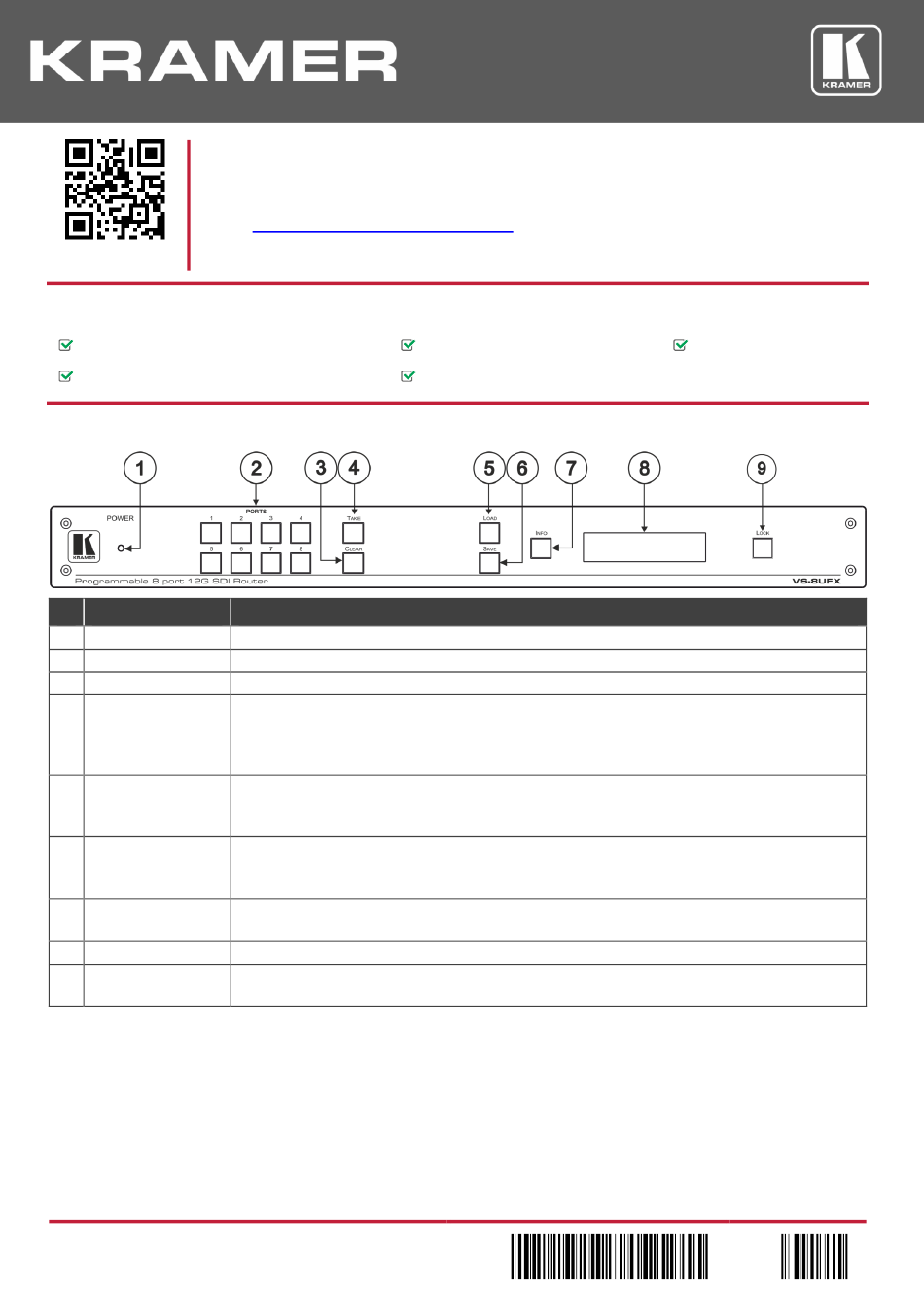

Step 2: Get to know your VS-8UFX
# Feature
1 POWER LED
2 PORT Buttons
3 CLEAR Button
4 TAKE Button
5 LOAD Button
6 SAVE Button
7 INFO Button
8 LCD Display Panel
9 LOCK Button
VS-8UFX Quick Start (P/N: 2900-300846QS REV 1)
www.kramerav.com/downloads/VS-8UFX
Function
Illuminates when the device is powered.
Press an output port (lights green) and then an input port (lights blue) to route an input to an output.
Press to clear a selection.
Press to enter Take mode.
In Take mode, press several sets of output-input ports and then press TAKE to activate all the selected
routings at the same time.
When Take mode is off, each output-input pair is switched immediately.
To load a preset configuration:
Press LOAD, press the appropriate PORT preset button to select a preset configuration, and then press
TAKE to load that preset.
To save the current port configuration to a PORT preset button:
Press SAVE, press the port button to which you want to save the configuration, and then press TAKE to
save the setup to that port.
Press to display general information, such as the firmware version and IP address.
Press INFO and then a specific PORT button to display the information of that selected port.
Displays the current routing status, device information and so on.
Press for 3 seconds (approx.) to lock the front panel buttons. When locked (button is lit), press again for 3
seconds (approx.) to unlock the front panel buttons.
to download the latest user manual and check if firmware
1 Set of rack ears
4 Rubber feet
P/N:
2 9 0 0 - 3 0 0 8 4 6 Q S
1 Quick start guide
Rev:
1
