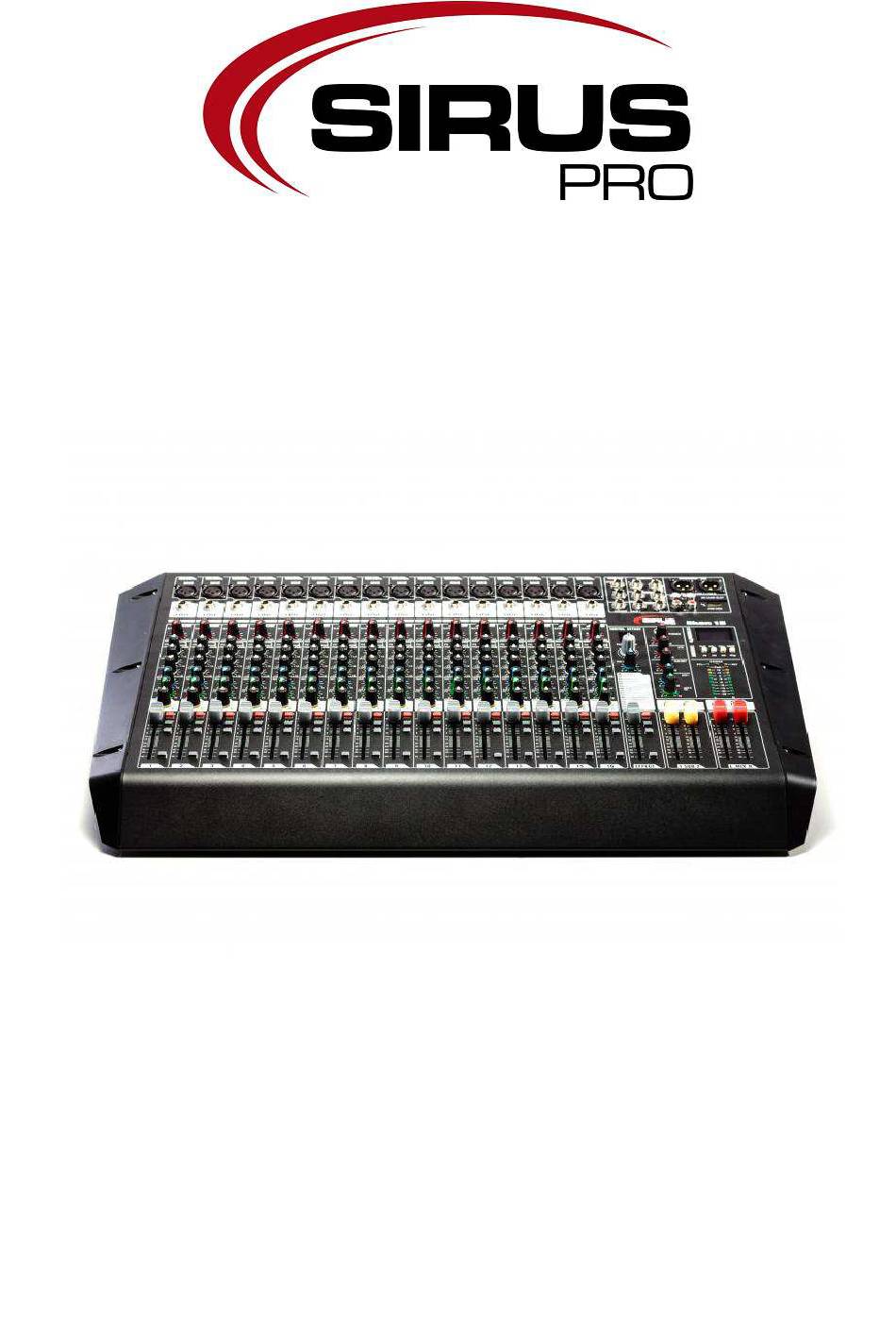

- Page 1 Manual EKON 8/12/16...
-
Page 2: Table Of Contents
Table of contents Features ............................3 Safety instructions ..........................3 2.1. FOR SAFE AND EFFICIENT OPERATION ................3 Mono input channel .......................... 5 Stereo outputs ..........................7 Master .............................. 8 MP3 ..............................9 Back view ............................10 Specifications ..........................10 Troubleshooting .......................... -
Page 3: Features
1. Features • 8/12/16 Mono (MIC) channel inputs • 48V phantom power switch • Built-in 16 DSP effect • 2 groups • 2 AUX send (AUX 1 send pre-fader, AUX 2 send post-fader) • 2 band EQ (100Hz-12kHz) • True balance XLR output •... - Page 4 Do not use chemicals or volatile liquids for cleaning Use a clean dry cloth to wipe off the dust, or a wet soft cloth for stubborn dirt. Pull the plug before cleaning. If out of work, contact sales agency immediately Any troubles arose, remove the power plug soon, and contact with an engineer for repairing, do not open the cabinet by yourself, it might result a danger of electric shock.
-
Page 5: Mono Input Channel
3. Mono input channel 1. Balance input (MIC) Electronically balanced inputs accept a standard XLR male connector. 2. LINE-input The unbalanced LINE input is provided for the use of an unbalanced mic or to accept an unbalanced high impedance input signal (e.g. Deck, turntable, keyboards…) 3. - Page 6 7. AUX 1/AUX 2 FX The AUX are pre-fader and post-EQ. Normally they are used for foldback or monitor speakers, which need to be controlled separately from the main P.A. 8. PAN With this control you can change the distribution of volume on the channel R and L or the groups 1 and 2.
-
Page 7: Stereo Outputs
4. Stereo outputs 1. MIX OUT The mix left and right outputs are sent from the XLR sockets as balanced signals. 2. SUB The SUB output jack. 3. AUX OUT AUX 1: This is an impedance balanced phone-jack type output. This jack outputs the signals from AUX (AUX1) bus. -
Page 8: Master
5. Master 1. DIGITAL EFFECT DISPLAY 2. PHONE This is used for monitoring the master signal and individually monitoring each channel with PFL, L/R 6 G1/G2. 3. PARAMETER With this control you can adjust the effect parameter such as depth, speed and so on. All the parametric levels will being resetting 4. - Page 9 10. MIX/SUB to PHONES-Taste If the switch is pressed the signal of the SUB is send to phones, if it is not pressed the phones get the signal from the MIX. 11. MIX/SUB to 2TK/MP3-Taste If the switch is pressed the signal of the SUB is send to 2TK/MP3, if it is not pressed it gets the signal from the MIX.
-
Page 10: Back View
5. Display Shows which song is played. 6. USB DISK 7. SD CARD SLOT 7. Back view 8. Specifications Tone Fader down -85dBu Nominal input level 2,4kΩ LINE 11kΩ Stereo input 100kΩ Max. output level 18dBM (1kHz, THD = 0, 5 %) S/N Ratio 71dB <0,007%... -
Page 11: Troubleshooting
9. Troubleshooting Symptoms Cause Solution Mixer is not plugged in Plug in the mixer and or turned on. turn it on. Channel levels are too Turn up channel levels. low. Control room level is Turn up the control turned down. room level. - Page 12 appliances such as air high-pass filter by conditioners. pressing the -20dB switch. Make sure you are using Not using TRS cables. 1/4ˈˈ TRS cables. Turn on the phantom power using the switch Phantom power is not on the rear panel of the turned on.
- Page 13 Make sure that the Aux outputs of mixer are mixer outputs are not connected to inputs connected to the of processor or processor’s inputs and processor’s outputs are the processor’s outputs not connected to mixer’s are connected to the outputs. mixer’s aux inputs.
-
Page 14: Block Diagram
Block diagram 14 / 15... - Page 15 Importer: B & K Braun GmbH Industriestraße 2 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 15 / 15...
