GR GR6 Series Manual

GR GR6 Series Manual

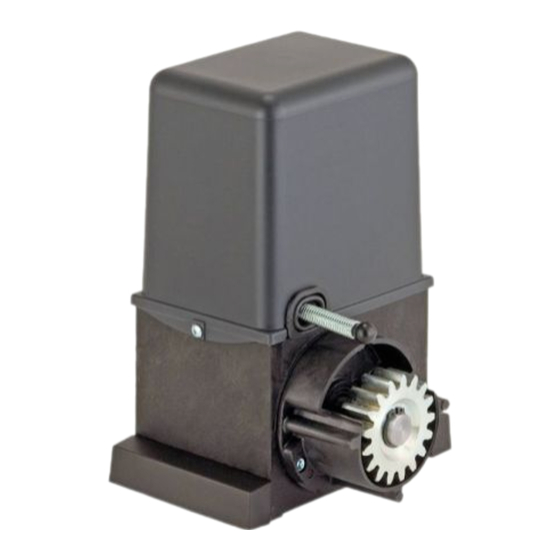

Motor for sliding gates 220v
Hide thumbs Also See for GR6 Series:

Advertisement

Quick Links

Our
compliments
for
electromechanical gear motor has been produced according to a
high quality and a strict reliability, that's why it will assure you long-
lasting performances.
This booklet will offer you all the pieces of information you may need
to install your gear motor and to safeguard your safety.
However, the caution is unquestionably indispensable and
nothing is better than preventing accidents.
All our products have been made in conformity with the regulations
in force.
WARNING: any repair or adjustment of the working machinery is
strictly prohibited unless all the necessary precautions (electrical
supply disconnected and motor off) have been taken in order to
avoid possible accidents.
WARNING: The feeder line has to be protected for the max. current
in blocked rotor condition.
WARNING: Install the motor on gate who are in conformity with the
EN 12604
WARNING: Execute the measurement of the force produced by the
motor and take the measures expected by the EN 12445
WARNING: any repair must be carried out by qualified people.
All moving mechanisms must be provided with suitable protections.
WARNING: Keep the automatic controls out of the reach of
childrens. The controls must be installed at a minimum high of 1,5
mt. from the ground surface and out of the work of mobile parts.
WARNING: command pulses must be given from positions where
the gate is visible.
WARNING: use the transmitters only if you can see the gate.
WARNING: GR Srl is not responsible for possible damages or
injuries to people, objects or animals, caused by any unauthorised
modification of the product.
Keep scrupulously this booklet in a suitable place well known by all
the interested people.
In order to make the automation work efficiently; the gate to
automate must have the following characteristics:
- it must be balanced;
- it must oscillate fluently;
- you have to carry out the manual closing and opening the gate
without any effort;
- remember that the motorization has been planned in order to help
you use the gate. This means that it does not resolve the problems
caused by an inadequate installation or by a poor upkeep of the
gate.
SAFETY RULES
During the installation and the use of the automation, you have to
pay attention to the following safety rules:
- Security distance!
- Mechanism in movement!
- Do not install the automation in places with presence of
iniammable gasses!
- Electric shock!
- Use the gloves!
- Use glasses for welding!
- Keep the protection carter!
In order to install the automation you have to provide yourself with
keys, screwdriver, metre, slope detector (water level), saw, drilling
machine and welding machine.
MOTOR FOR SLIDING GATES
SAFETY
your
excellent
choice.
EQUIPMENT
SERIE GR6 – 220V
Your
new
Power supply
Current absorbed
Capacitor
Power absorbed
RPM
Thermal protection
Torque
Max. thrust
Wotking temperature
Lubrication
Motor weight
Max. wing weight
Speed
Protection level
A = 80 = DISTANCE BETWEEN THE FIXATION HOLE OF THE
RACK AND THE SURFACE OF THE BASEMENT PLATE OF
THE MOTOR.
1 - GATE
2 - BASEMENT PLATE
B – POSITION OF BASEMENT PLATE WITH THE CORRECT
ORIENTATION OF THE HOLE FOR THE CABLES
It's in accordance with Machine Directive 39/89/CE and following
modify.
It's in accordance with the following directive CE:
Electromagnetic
following modify.
Low tension Directive 73/23/CEE and following modify.
Have been applied the following harmonized norms:
EN292/1/2, EN 294, EN60335-1, UNI EN 12453, and what
applicable of the EN12445-2000.
TECHNICAL DATA
GR6 220-230 Volt
DIMENSIONS
CONFORMITY DECLARATION:
compatibility
Directive
220-230 Vac
1,5 Ampere
12,5 µFarad
350 Watt
1400 rpm
150°
20,5 Nm
600 N
-25+75°C
Grease
6,3 – 7,5 Kg.
600 Kg.
10 m/ min.
IP55
89/336/CEE
and
