IN-LINE BLOwERS
MODELS

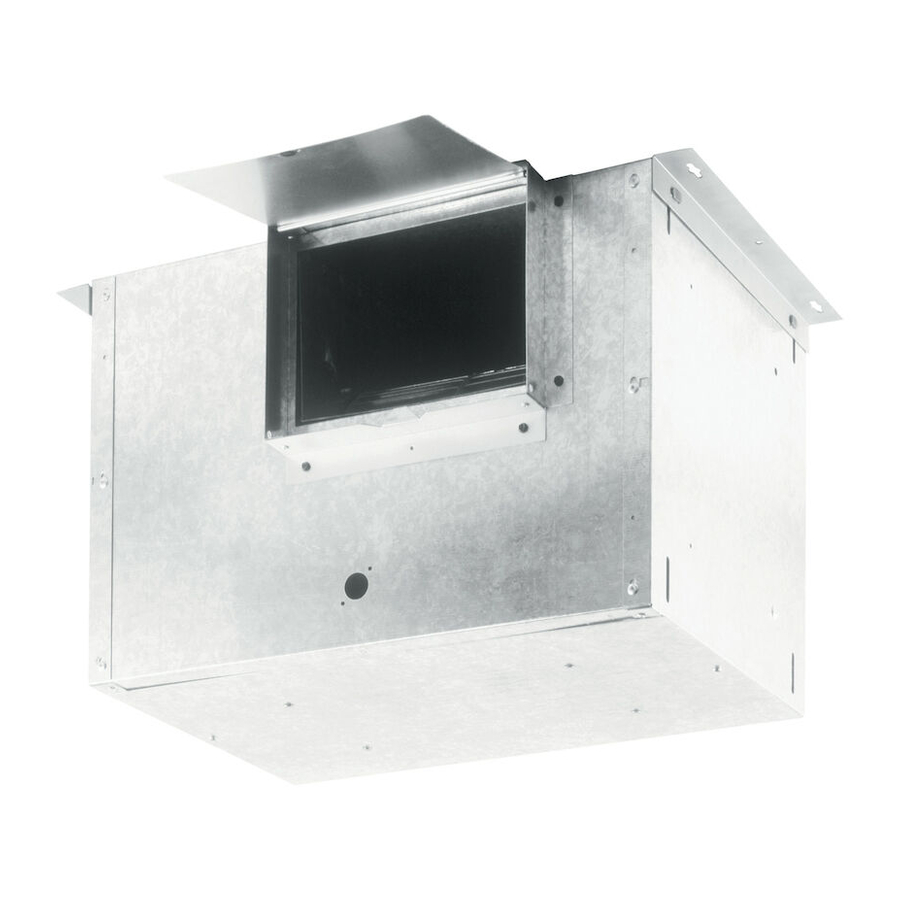

Powerful yet quiet blowers - exhaust the cooking area
from a remote location.

FEATURES

BLOWER:

• Low RPM for quiet operation
• Resilient anti-vibration mounts
• Dynamically-balanced, galvanized steel, centrifugal
blower wheel for quiet, efficient performance
• Permanently lubricated, thermally protected motor
• Plug-in motor rated at 120 VAC
• Designed for continuous operation

HOUSING:

• Rugged galvanized steel
• 8-position mounting brackets for easy installation and
greater adaptability to various mounting requirements
• Automatic backdraft damper located within exhaust
duct connector
• Factory-shipped in horizontal discharge position
• May be converted to vertical discharge
• Suitable for kitchen installations

ACCESSORIES INCLUDED:

• 8-inch x 12-inch integrated duct connectors
• Two (2) 8-inch x 12-inch to 10-inch-round transitions
• Hanger kit - for additional installation flexibility
• Range hood rough-in kit with integrated 10-inch duct
connector

SPECIFICATIONS

Model
Volts
Hz Amps
ILB9
120
60
3.0
ILB11
120
60
5.0
* Performance ratings include the addition of a 10" round transition
on inlet and outlet.
REFERENCE
QTY.
ilb9
ilb11
&
CFM
Duct
weight
700 (V)
8" x 12" * 75.8 lbs.
800 (H)
1000 (V) 8" x 12" * 75.9 lbs.
1100 (H)
HVI-2100 certIfIed ratIngs comply with new testing
technologies and procedures prescribed by the Home Ventilating
Institute, for off-the-shelf products, as they are available to
consumers. Product performance is rated at 0.1 in. static
pressure, based on tests conducted in aMca's state-of-the-art
test laboratory. sones are a measure of humanly-perceived
loudness, based on laboratory measurements.
Best by Broan, P.O. Box 140, Hartford, Wisconsin 53027
REMARKS
SPECIFICATION SHEET

TYPICAL SPECIFICATION

In-Line Blower shall be Best by Broan Model ILB9, (ILB11).
Unit shall have galvanized steel housing. Housing to have
adjustable mounting brackets.
Blower to include hanger kit, two (2) 8-inch x 12-inch to 10-inch-
round transitions, 8-inch x 12-inch integrated duct connectors,
and a range hood rough-in kit with integrated 10-inch duct
connector.
Automatic backdraft damper to be located within exhaust duct
connector. Duct connectors, blower assembly and wiring plate
shall be adjustable for either horizontal or vertical installation.
Blower unit shall be removable from housing and will have a
galvanized steel, centrifugal-type blower wheel. Motor to be
permanently lubricated and mounted with resilient anti-vibration
mounts.
Air delivery shall be n o less than listed for each model. All
air ratings shall be certified by HVI. Units to be UL and cUL
listed.
DUCT CONNECTOR
Project
Location
Architect
Engineer
Contractor
Submitted by
8" x 12"
Date
70E
