Summary of Contents for AireSpa ASWRB100

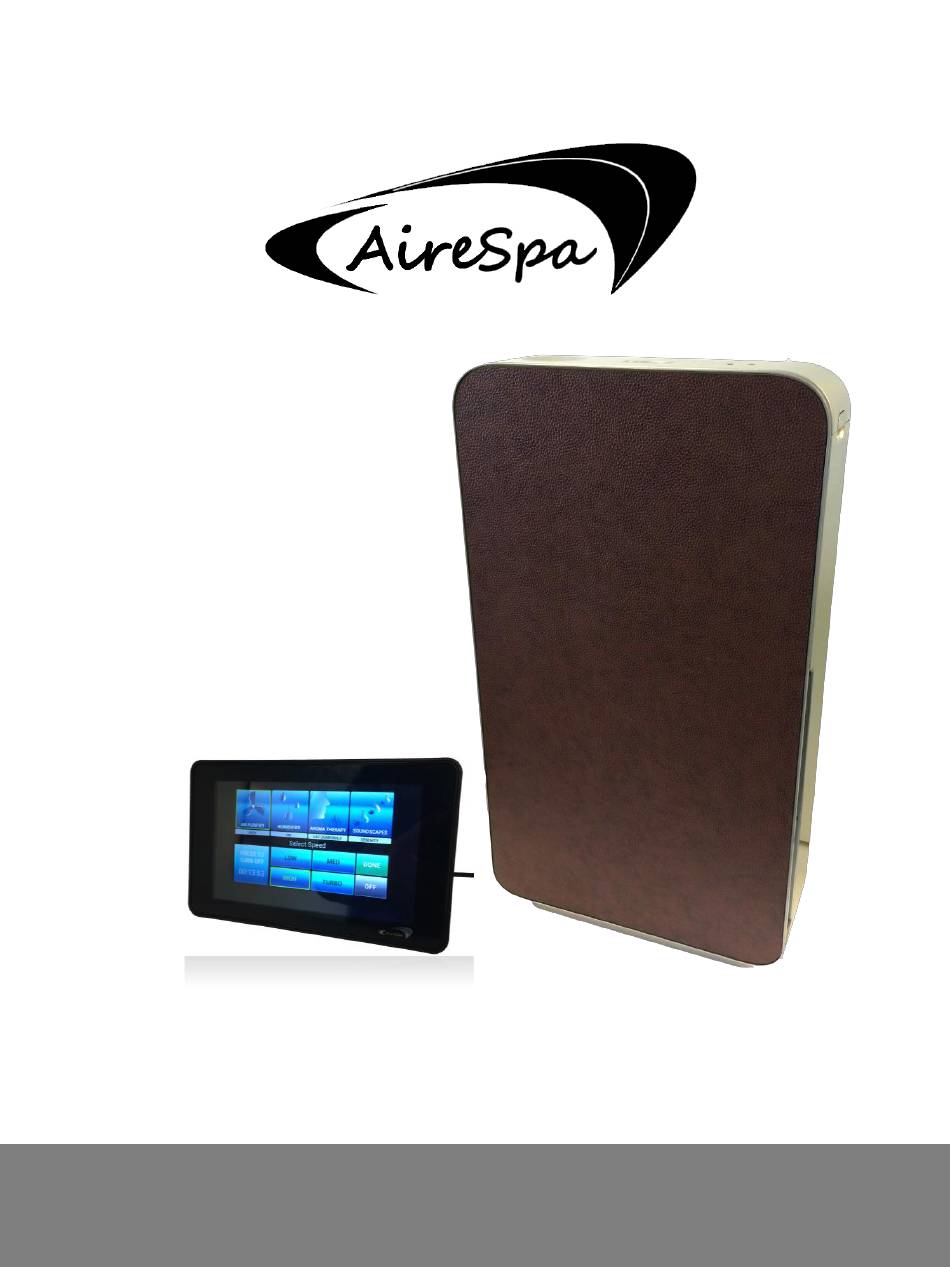

- Page 1 ASWRB100 ASWRB300 USE & CARE GUIDE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page Description Part Names Touchscreen Remote Features Floor Unit Setup Care and Maintenance Alerts Error Messages Helpful Hints Important Safety Instructions Floor Unit Specs Touchscreen Remote Specs... -
Page 3: Part Names
PART NAMES 1. Floor Unit 2. Touchscreen Remote 3. Remote Adaptor 4. Aroma Wheel 5. Water Pitcher Pitcher Drain adapter Handle 6. Three Stage Filter Set Carbon HEPA Pre filter... - Page 4 PART NAMES A. Mist Output Port B. LED Functionality Indicators C. Water Tank Latch D. Water Tank Lock E. Aroma Tray F. Water Drain G. Piezo Cleaning Brush H. Front Panel J. Air Outlet K. Carrying Handle L. Air Intake...
-
Page 5: Touchscreen Remote Features
TOUCHSCREEN REMOTE FEATURES 1. Air Purifier 2. Humidifier 3. Aroma 4. Soundscapes 5. Turn All Off / Reset Energy Saver 6. Feature Controls 7. Speakers (on back of unit) -
Page 6: Floor Unit Setup
FLOOR UNIT SETUP Unpack unit Remove floor unit from box and plastic bag. Place unit in desired location. Remove water pitcher Open front panel by pulling from top. [Diagram 1] Unhook water tank lock. [Diagram 2] Press-in side latch of floor unit. [Diagram 3] Carefully lift lid until fully open. - Page 7 FLOOR UNIT SETUP Assemble water pitcher Diagram 1 Remove all packaging. Attach pitcher handle [Part P] by sliding it up as shown above. Hold the drain adapter [Part N] in hand with angled fin [as shown in Diagram 1] facing the lip of the pitcher. Place drain adapter [Part N] onto top edge of water pitcher [Part M] and slide back until drain adapter clicks onto water pitcher.
- Page 8 FLOOR UNIT SETUP Install the filters Remove all filters from unit. Remove all packaging from HEPA, Carbon and washable Pre-Filters. Insert Carbon filter. [Part Q] Insert HEPA air filter. [Part R] Insert washable Pre-filter. [Part S] Note: When installing the filters use pull tabs located on top front of all filters;...
- Page 9 FLOOR UNIT SETUP Insert aroma tray Grasp aroma door handle and press to left to release and pull open. [Part F] Remove aroma wheel from packaging. [Part 4] Place aroma wheel into aroma tray. [Part F] (CAUTION: The wheel is keyed to fit only one way on the aroma tray spindle, DO NOT FORCE) Push aroma door closed until locked in place.
- Page 10 FLOOR UNIT SETUP Close front panel Close front panel. Place lower hinges into slots on unit. Push front panel toward the unit until magnets lock in place. Plug both unit and tablet to power source. Connect touchscreen remote to Wi-Fi Once the touchscreen remote is powered up, press and hold the power button until the penguin appears in the upper left corner of the touchscreen remote.
- Page 11 CARE AND MAINTANENCE Touchscreen remote floor unit & To prevent dirt or stains on the unit, clean regularly. If stains are allowed to remain, they may become difficult to remove. Wipe with a dry, soft cloth For stubborn stains or dirt, use a soft cloth dampened with warm water. Do not use volatile fluids Benzene, paint thinner, polishing powder, may damage the surface.
- Page 12 CARE AND MAINTANENCE Draining water tank (use water pitcher) Pull tab to remove cover of water drain. Twist water drain cap counterclockwise to remove. Remove water drain cap. Align fins on top of water pitcher with rails below the water drain. Gently slide forward to engage fins of water pitcher fully into rails.
-
Page 13: Alerts
ALERTS Please Close the Front Panel GREEN LED Unit has power and ready to use RED LED Action Required • Front Panel Open • Top Lid Open • Refill Water • Unit Unstable • Floor unit unplugged • Aroma Tray Open... -
Page 14: Error Messages
ERROR MESSAGES HEPA filter error If the AireSpa unit is bumped or moved, the filters may slightly move away from the sensor and trigger an error. If a HEPA FILTER ERROR displays on the touchscreen remote: Please Close the Front Panel Remove front panel and place to the side. - Page 15 Replace small round water filter. Water tank low If a WATER TANK LOW ERROR displays on the touchscreen remote: Fill tank with tap water to MAX FILL LINE using the water pitcher. Note: Please contact SUPPORT@AIRESPA.COM for added support...
-
Page 16: Helpful Hints
If this ring does not float, it does not trigger the humidifier to work. Energy saver mode • The AireSpa purifier has a 24 hour energy saver mode. • Once the 24 hour cycle is complete, the unit will automatically shut off. -
Page 17: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should be followed, including the following: WARNING - To reduce the risk of electrical shock, fire or injury to persons: •Read all instructions before using the unit. •Use only a 120 volt outlet. •Do not use the unit if the power cord or plug is damaged or the connection to the wall outlet is loosened. - Page 18 IMPORTANT SAFETY INSTRUCTIONS CAUTIONS CONCERNING OPERATION • Do not block the intake and/or air outlet. • Do not use the unit near or on hot objects, such as stoves or heaters or where it may come into contact with steam. •...
-
Page 19: Floor Unit Specs
FLOOR UNIT SPECS MODEL ASWR300 FLOOR UNIT: Air Purifier/Humidifier/Aromatherapy Unit Size/Weight H 30.0" x W 17.5" x D 11.0" 25 lbs Room Size 300 Sq Ft. Voltage/Watts 120V/60hz/120W DC Motor Speeds: LOW/MED/HIGH/TURBO Operating Temperature 0-40 Degrees C Internal Transformer 120V/60hz Power Cord: 120V/60hz 2-Prong, Flat plug end, 90 Degree Angle, 12' Bluetooth... -
Page 20: Touchscreen Remote Specs
TOUCHSCREEN REMOTE SPECS MODEL ASWRT100 Touch Screen Remote Control with SoundScapes CTS MultiPoint EasyTouch® Remote Control 7" 16:9 Display Screen Resolution 1024x600 Pixels Processor: Rockchip RK2928G DDR3 512 MB Android 4.1 Internal Memory Nand Flash 16.0 GB External Memory T Flash 32 GB Max Lithium Battery 2000Mah, 3.7V Power Cord: 120V/60hz...
