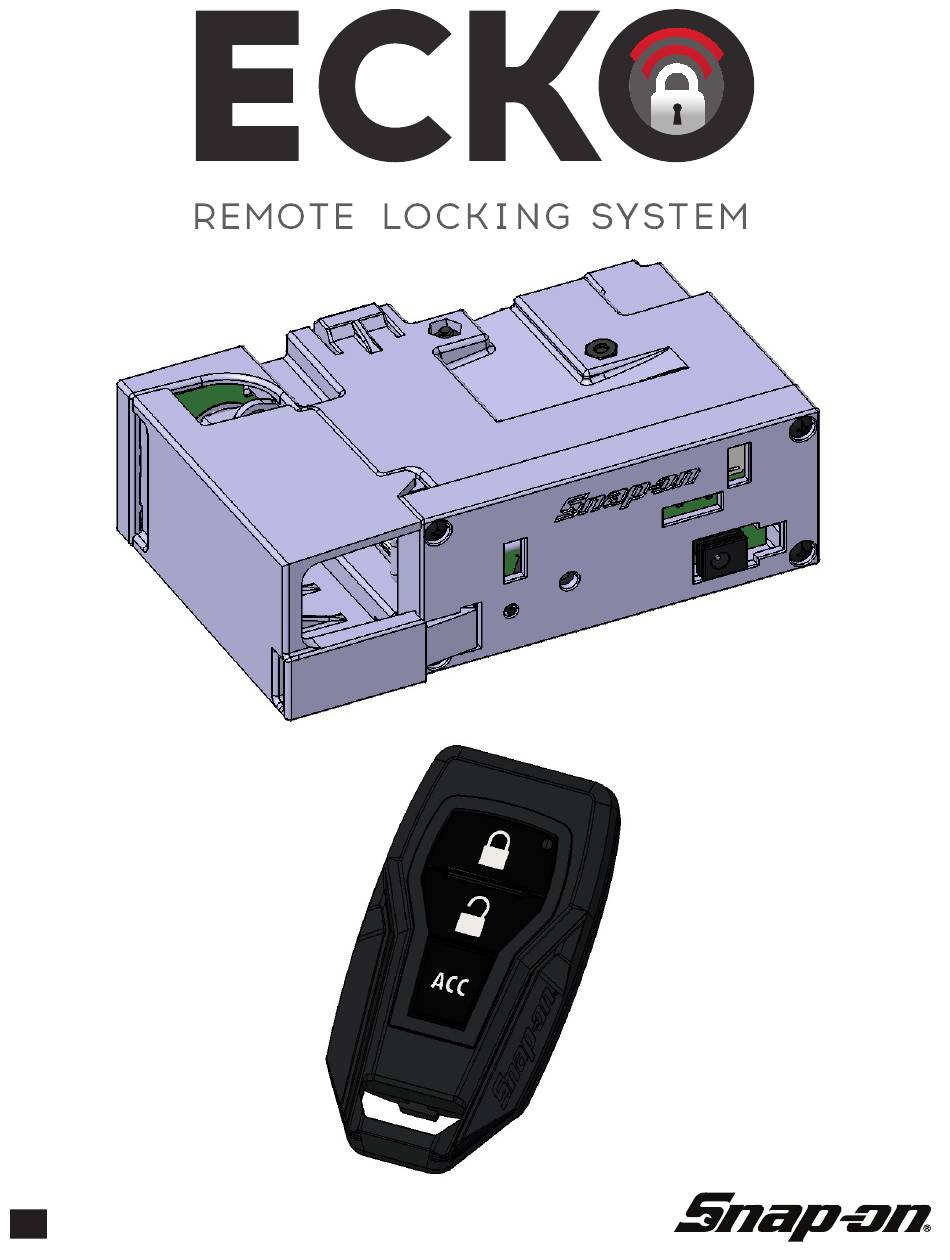

- Page 1 ZECKOROLL REV ‘A’ OCT 2018...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS This document contains important safety and operation instructions for tool storage units. Refer to this information often for safe usage and operation. SAVE THESE INSTRUCTIONS When using electric products, basic precautions should Risk of electric shock and fire. always be followed, including the following: •...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS CONT This document contains important safety and operation instructions for tool storage units. Refer to this information often for safe usage and operation. SAVE THESE INSTRUCTIONS INSTRUCTIONS PERTAINING TO INSTALLATION INSTRUCTIONS Do not install or store this product where it will be exposed to rain, RISK OF FIRE, ELECTRIC SHOCK, snow, or wet conditions.
- Page 4 MOVING & STORAGE INSTRUCTIONS MOVING & STORAGE INSTRUCTIONS Close and lock all drawers, doors, and lids and lock unit prior to moving. CONT. Disconnect or unplug all power cords and cable assemblies prior to moving Casters can be converted from swivel to rigid by pulling and rotating unit.
- Page 5 FCC Notice This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
-
Page 6: Table Of Contents
• Audible signal of unlock or lock • On/Off switch Manual Locking / Unlocking Specifications ECKO remote lock units use a unique lock with only one position that the key can be removed. Follow these instructions to manually unlock your TSU for the first Remote... -
Page 7: Setting Up Ecko Remote Lock
Each remote lock equipped TSU comes pre-pro- grammed from the factory with the drawers Remote Battery Replacement locked. Follow these steps to setup your ECKO remote lock for the first time: 1. Locate keyway location on remote case. 2. Using small flat head screwdriver (or equiva- 1. -
Page 8: Remote Pairing
Remote Pairing Resetting Remote Lock Receiver Module Follow these steps to reset the ECKO remote lock re- ECKO remotes come from the factory already ceiver module: paired to the ECKO receiver module. This proce- 1. Open top drawer of the TSU and locate the receiv- dure will only be necessary if your remote has lost er module. -
Page 9: Troubleshooting
Remote out of range - Move closer to TSU - Unplug and re-plug remote lock cord on back of ECKO receiver Reset needed - Unplug and re-plug remote lock cord on back of Check sensor board and sensor board cable to Self-test start up provides tone ensure correct assembly. -
Page 10: Service
Service – Removing Remote Lock Module Follow these steps to remove the ECKO remote lock receiver module: 6. Remove nut and lock washer on back of lock. 1. Remove top two drawers from roll cab. 2. Remove DC jack from remote lock mod- ule. -
Page 11: Zeckoroll Rev 'A' Oct
Service – Roll Cab Wiring Service – Roll Cab Part Numbers Follow these steps to replace the ECKO receiver 8-72737BR module wiring harness: Receiver Module with 1. Remove top two drawers from roll cab. Lock Cover 2. Remove DC jack from remote lock module.
