Summary of Contents for Snap-On BK5500W

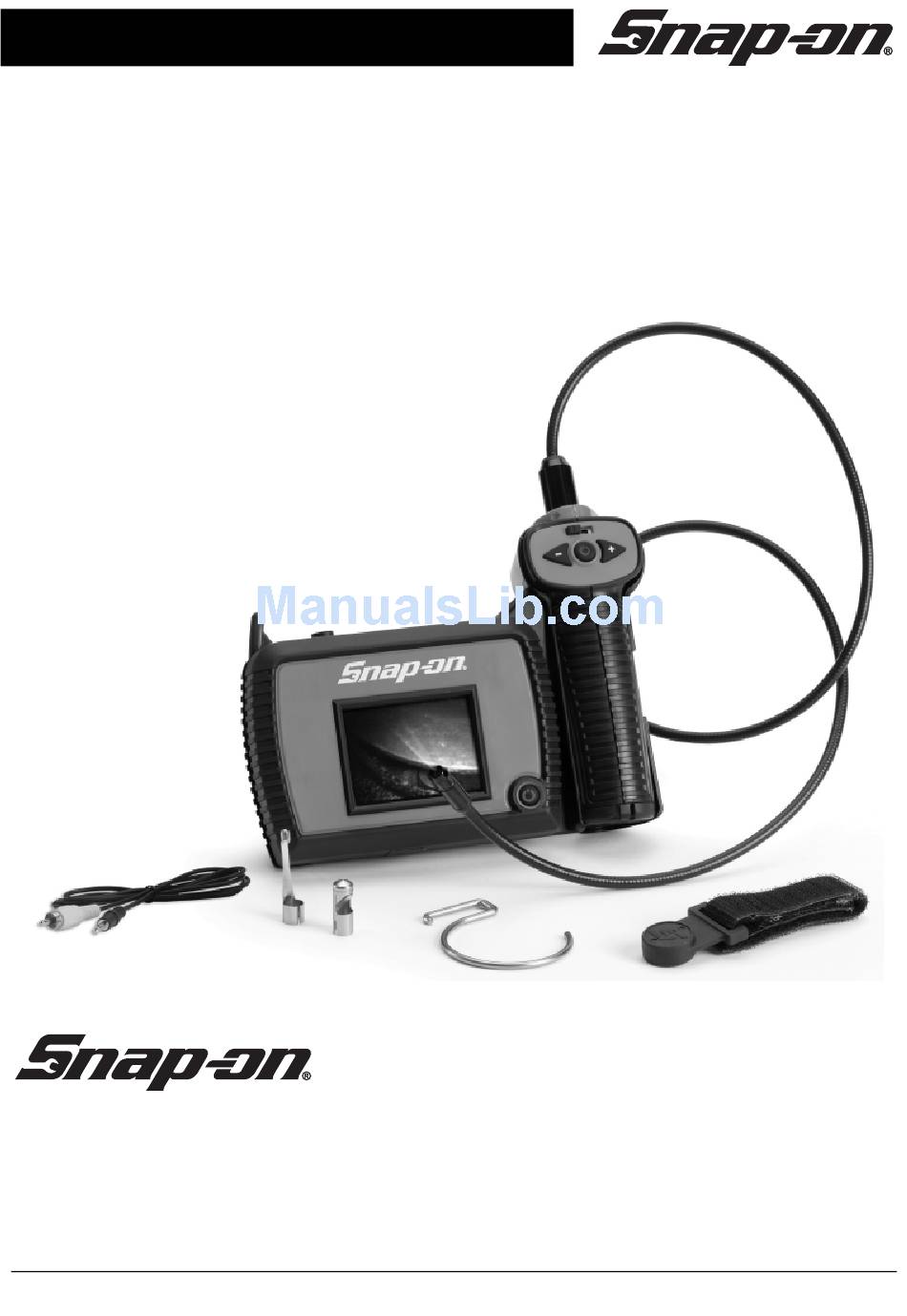

- Page 1 Wireless Video Scope Wireless Video Scope BK5500W Snap-on...
-
Page 3: Table Of Contents
Instructions for the Video-out feature ..........12 Transportation and Storage ............13 Maintenance Instructions ..............13 Additional Accessories ..............13 Snap-on Service Center Locations ..........14 Troubleshooting ................15 Replacement Accessory Parts Numbers ........16 Warranty .................... 16 ... -
Page 4: General Safety Information
A the battery compartment. moment of inattention while operating Properly dispose of the battery. tools may result in serious personal Exposure to high temperatures can injury. Snap-on... -
Page 5: Wireless Video Scope Use And Care
If product does not operate tool’s operation. If damaged, have normally by following the the tool serviced before using. Many operating instructions; Snap-on... -
Page 6: Specific Safety Information
Part 15 of the FCC write the appropriate repair center rules. These limits are designed to provide location (see "Snap-on Service Center reasonable protection against harmful Locations" on page 14). interference in a residential installation. -
Page 7: Fcc Exposure Statement
FOR AUTOMOBILES/HEAVY EQUIPMENT/MOTORSPORTS: Be sure the automobile, heavy equipment or motorsport is not running during inspection. Metal and liquid under the hood may be hot. Always clean imager with mild detergent or solvent after exposure to any chemical, especially petroleum- Snap-on... -
Page 8: Description
32 °F to 113 °F (0 °C to 45 °C) Humidity 5 % to 95 % non-condensing (display unit) Storage Temperature -4 °F to 158 °F (-20 °C to 70 °C) Water Resistance Imager head and extensions up to 10 ft (3.05 m) water depth. (When assembled) Snap-on... -
Page 9: Standard Equipment
Display Unit or the Imager Handle: Open battery compartment cover by depressing tab and pulling door open. Insert three (3) new AA batteries into the proper slots. Proper battery orientation is indicated on the battery compartment. Snap battery compartment cover back into place. Snap-on... -
Page 10: To Install Batteries In Either The Display Unit Or The Imager Handle:9 To Connect The Imager To The Imager Handle
Review the General Safety Information (on page 4) of this manual. Check work area for: adequate lighting, flammable liquids, vapors or dust that may ignite. Follow tool set-up according to specific tool operator's manual. Snap-on... -
Page 11: Operating Instructions
Using the Imager LED's To adjust the brightness of the LED light: Press the arrow key with the (+) sign to increase the brightness and press the arrow key with the (-) sign to decrease the brightness. Snap-on... -
Page 12: Typical Applications
Wireless Video Scope Cable Routing Typical Applications The Snap-on Wireless Video Scope is designed as a remote inspection device. Typical applications might include automotive inspection, cable routing, heavy equipment / boat / aircraft inspection, etc. Automotive Inspection Please review the PAL/SECAM Statement Instructions for the Video-out (on page 7). -
Page 13: Transportation And Storage
Make sure the batteries have been removed from the unit before performing maintenance. The Snap-on wireless video scope has been designed to require little maintenance. However, in order to maintain its performance, you must always follow these guidelines: Always handle the device with care. It is not shock-resistant and should not be banged or dropped. -
Page 14: Snap-On Service Center Locations
OEM, National Accounts, GSA Distribution: +81-3-5534-1300 Industrial: +81-3-5534-1281 BAHCD: +81-3-5534-1301 Technical Repair Center: +81-3-5534-1289 UK Repair Centre Snap-on Tools of Canada Repair Center Snap-on Tools, Ltd. 7403 48th St. S.E. Telford Way, Calgary, Alberta T2C 4H6 Kettering Toll Free #: (866) 824-0525... -
Page 15: Troubleshooting
Display switches Battery power is low Check battery status, and between black and replace batteries if white necessary. Handle and/or Battery power is very low. Replace batteries. viewer unit will not turn on. Snap-on... -
Page 16: Replacement Accessory Parts Numbers
Warranty Limited Two (2) Year Warranty Snap-on Tools Company (the "Seller") warrants only to the original purchaser that under normal use, care and service, the Equipment (except as otherwise provided herein) shall be free from defects in material and workmanship for twoyears from the date of original invoice. - Page 17 Drahtloses Video-Endoskop Drahtloses Video-Endoskop BK5500W Snap-on...
- Page 18 FCC NOTIFICATION： This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
