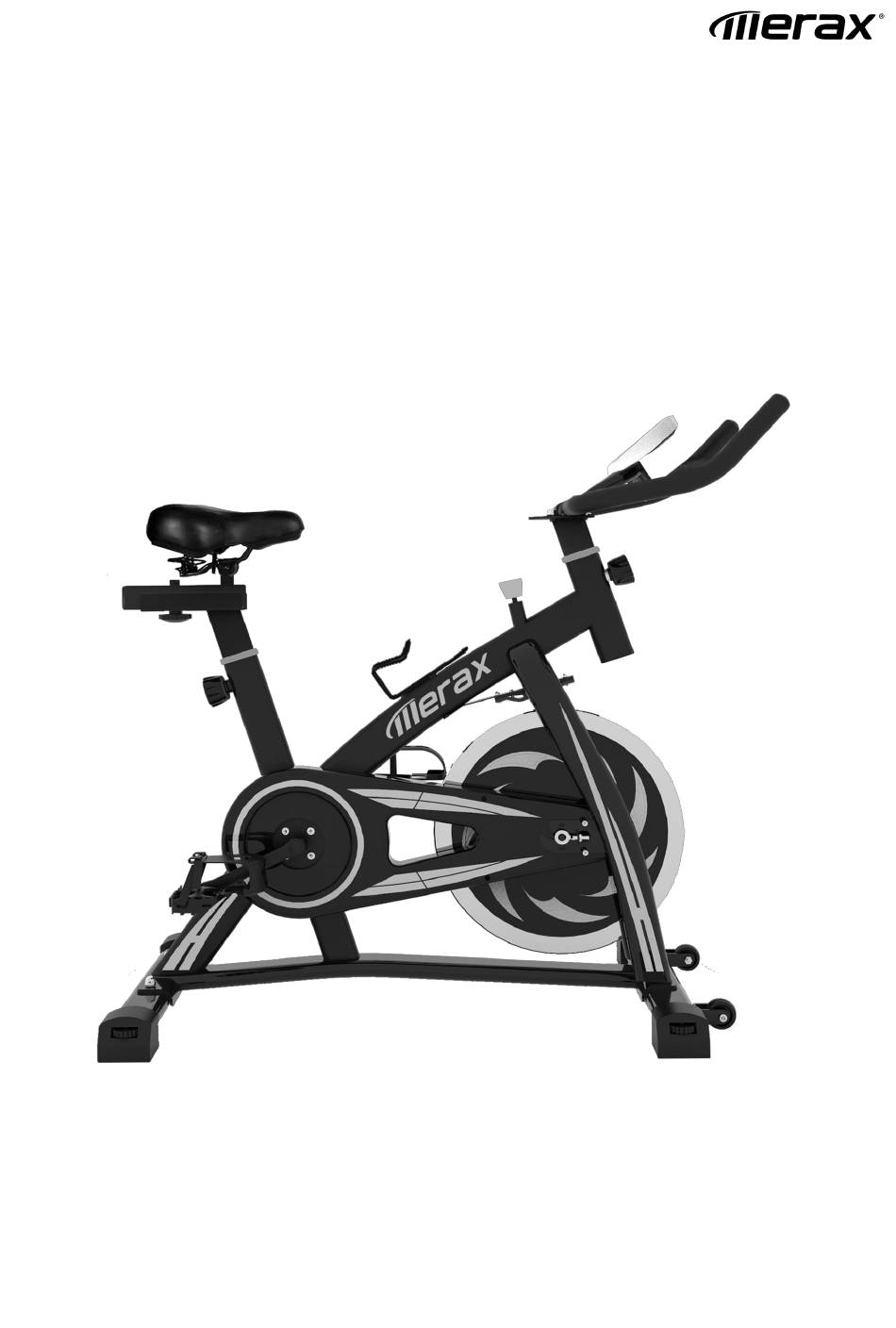

- Page 1 INDOOR CYCLING BIKE User Manual Photo may differ from actual product Customer Service: CSR@MERAX.COM...
-
Page 2: Safety Information
THANKS FOR VIEWING THE USER MANUAL Please read the instructions fully before assembly or using. These instructions contain important information which will help you get best result from your equipment and ensure safe and correct assembly, use and maintenance. Safety Information * This equipment is intended for home/domestic use, with a maximum loading weight 150kgs/330lbs. -
Page 3: Components - Parts
COMPONENTS - PARTS Please check if you have all parts as listing below. Note ： Small components/parts might be pre-fitted to the larger components as to make it easier for end users to assembly the spin bike. Please check carefully on all the parts before contacting us regarding any missing components. -
Page 4: Parts List
13. Lock Nut N1 x 1 14. Bolt S1 x 4 15. Allen Bolt T1 x 4 16. Nut x 4 17. Washer x 8 18. Allen Wrench x1 19. Open End Wrench x 2 Parts List NO. ITEM ITEM Main Body Monitor Holder Rear Stabilizer... -
Page 5: Assembly Instruction
Assembly Instruction STABILIZER ASSEMBLY Divide the front stabilizer and rear stabilizer, to fix them onto the main body with bolts T1 x 4, washer x 4 and nuts x 4. PEDAL(L/R) ASSEMBLY Fasten the LEFT pedal by turning in ANTI-CLOCKWISE direction, and then tighten anti-separtion nut... - Page 6 SADDLE ASSEMBLY Loose the lock knob and pull out, insert saddle post assembly into rear opening tube, then tighten the lock knob. Loose the lock nut to select the correct position and fix the nut. Place saddle onto saddle adjustment frame and tighten the saddle locking nuts.
-
Page 7: Specification
This User Manual is compatible with home use spin bike. Any question on modification of specification, please contact the sales agent directly. The size and weight information is subject to change without notice. BRAND MERAX REMARK 56lbs NET WEIGHT 65lbs...
