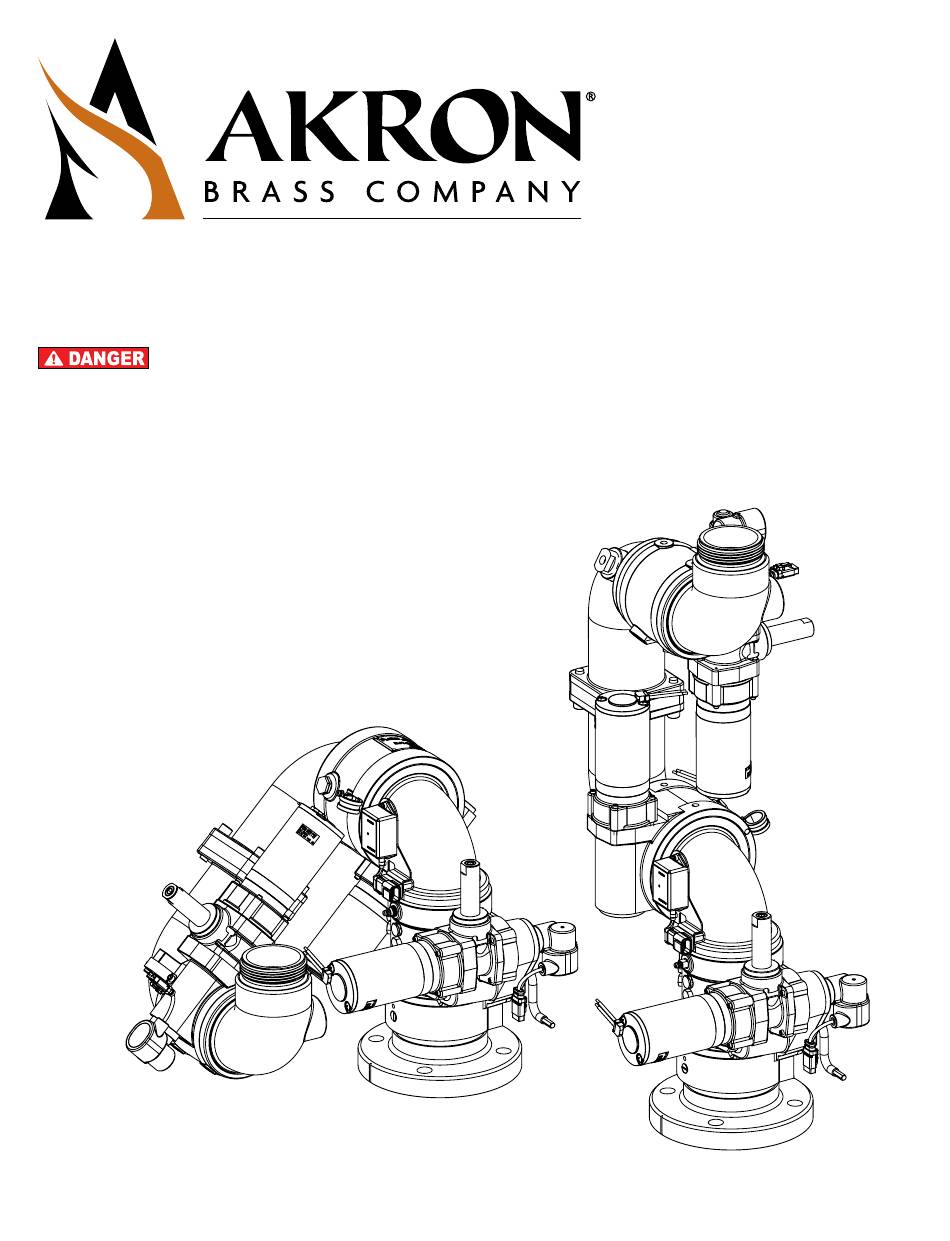

STYLE 3440 DECKMASTER™ ELECTRIC MONITOR FOR
STANDARD CONFIGURATION WITH POTENTIOMETERS & U2 LOGIC BOX
INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS
The following is intended to provide the basic instructions for installation, operation and maintenance.
Read and understand these operation instructions before use.
127006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DECKMASTER 3440 and is the answer not in the manual?

Questions and answers

Related Manuals for Akron DECKMASTER 3440

Summary of Contents for Akron DECKMASTER 3440

  • Page 1 STYLE 3440 DECKMASTER™ ELECTRIC MONITOR FOR STANDARD CONFIGURATION WITH POTENTIOMETERS & U2 LOGIC BOX INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS The following is intended to provide the basic instructions for installation, operation and maintenance. Read and understand these operation instructions before use. 127006...

  • Page 2: Mechanical Specifications

    Product Ratings Electrical Specifications 12-VOLT SYSTEM (11-14 Volts DC) 24-VOLT SYSTEM (22-28 Volts DC) MOTOR Maximum Normal* Maximum Normal* Operating Current Operating Current Operating Current Operating Current Rotation 14 Amps 3-10 Amps 7.5 Amps 2-5 Amps Elevation 14 Amps 3-10 Amps 7.5 Amps 2-5 Amps Swing Arm...
  • Page 3 Do not install shutoffs on the outlet of the monitor. Shutoffs increase the potential for pressure surges due to water hammer, which have the potential to cause an injury or damage the monitor. Disconnect power and disable flow before maintenance. Keep all personnel out of the Danger Zone, in front of the outlet of the monitor when the water source is attached.
  • Page 4 FIGURE: 1A - Operating Window DECKMASTER WITH 5177 AKROMATIC NOZZLE 14-5/16 +170 ~ 38-17/32 -170~ +225 ~ -45~ 24-7/32 14-11/32 14-3/32 DEPLOYED (TOP VIEW) 7-1/2 DEPLOYED (LEFT SIDE VIEW) 19-5/32 11-9/32 16-5/8 17-1/32 5-5/16 STOWED (LEFT SIDE VIEW - NOZZLE AT +90 ~) 14-11/32 4-7/16 18-25/32...
  • Page 5 FIGURE: 1B - Operating Window DECKMASTER WITH 1578 SABERMASTER NOZZLE 15-21/32 +170 ~ 39-7/8 -170~ +225 ~ -45~ 24-7/32 15-21/32 13-5/32 DEPLOYED (TOP VIEW) 7-1/2 DEPLOYED (LEFT SIDE VIEW) 19-1/4 11-9/32 18-11/32 16-5/8 5-5/16 14-3/8 4-7/16 STOWED (LEFT SIDE VIEW - NOZZLE AT +90~) 18-27/32 18-25/32 STOWED...
  • Page 6 Bolt Spec and Tightening Procedure Use four 5/8” bolts and nuts of grade five minimum and suitable washers. There must be a minimum of six threads of engagement. Use a ring gasket conforming to ASME 16.21. The notch that is cut into the side of the inlet flange is the front of the monitor (see Figure 2).
  • Page 7 FIGURE: 4 - Boundary Areas Set by Rotational Hard Stops Page 7...

  • Page 8: Nozzle Installation

    Nozzle Installation The nozzle should be threaded onto the outlet of the monitor. Place the pattern actuator in a position that does not stretch the power cord, and then tighten the swivel. Verify that the actuator orientation does not interfere with the monitor.
  • Page 9 The DeckMaster comes fitted with a harness and connector ready for direct plug-in to the Universal II controller. While this is configured for “plug and play” installation, removal of the connector to run through a bulkhead may be necessary from time to time. In that event, or in the event of troubleshooting, the following table is provided for reference. Deutsch Plug for J2 Connector on Controller (Part No.
  • Page 10 All setup functions except the Stow and Deploy Positions can be scrolled through by pressing the Stream switch. Each time the Stream switch is pressed, another function is active for configuration. If a function is configured and saved using the Fog switch, the next function will be automatically selected. Activating the Stream command will abort this function without storing the position and the next function will be selected.

  • Page 11: Position Sensors

    (Setup Continued) 1. If further programming is needed, turn system power off, press and hold the “Stream” switch and turn system power back on. Within a few seconds, the LED on the control panel will begin to blink once approximately every three seconds.

  • Page 12: Operating Instructions

    OPERATING INSTRUCTIONS A. PANEL CONTROLLER OPERATION The panel controller is used to control the monitor and nozzle. 1. To deploy the monitor for use: 2. Locate the STOW/DEPLOY switch and push the toggle switch up for three seconds and release. 3.

  • Page 13: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS Your DeckMaster monitor and nozzle should be inspected prior to and after each use to ensure it is in good operating condition. Periodically, an unanticipated incident occurs where the unit is misused in a manner that is inconsistent with standard operating practices.

  • Page 14: Error Codes

    05/18 WARRANTY AND DISCLAIMER: We warrant Akron Brass products for a period of five (5) years after purchase against defects in materials or workmanship. Akron Brass will repair or replace product which fails to satisfy this warranty. Repair or replacement shall be at the discretion of Akron Brass. Products must be promptly returned to Akron Brass for warranty service.
