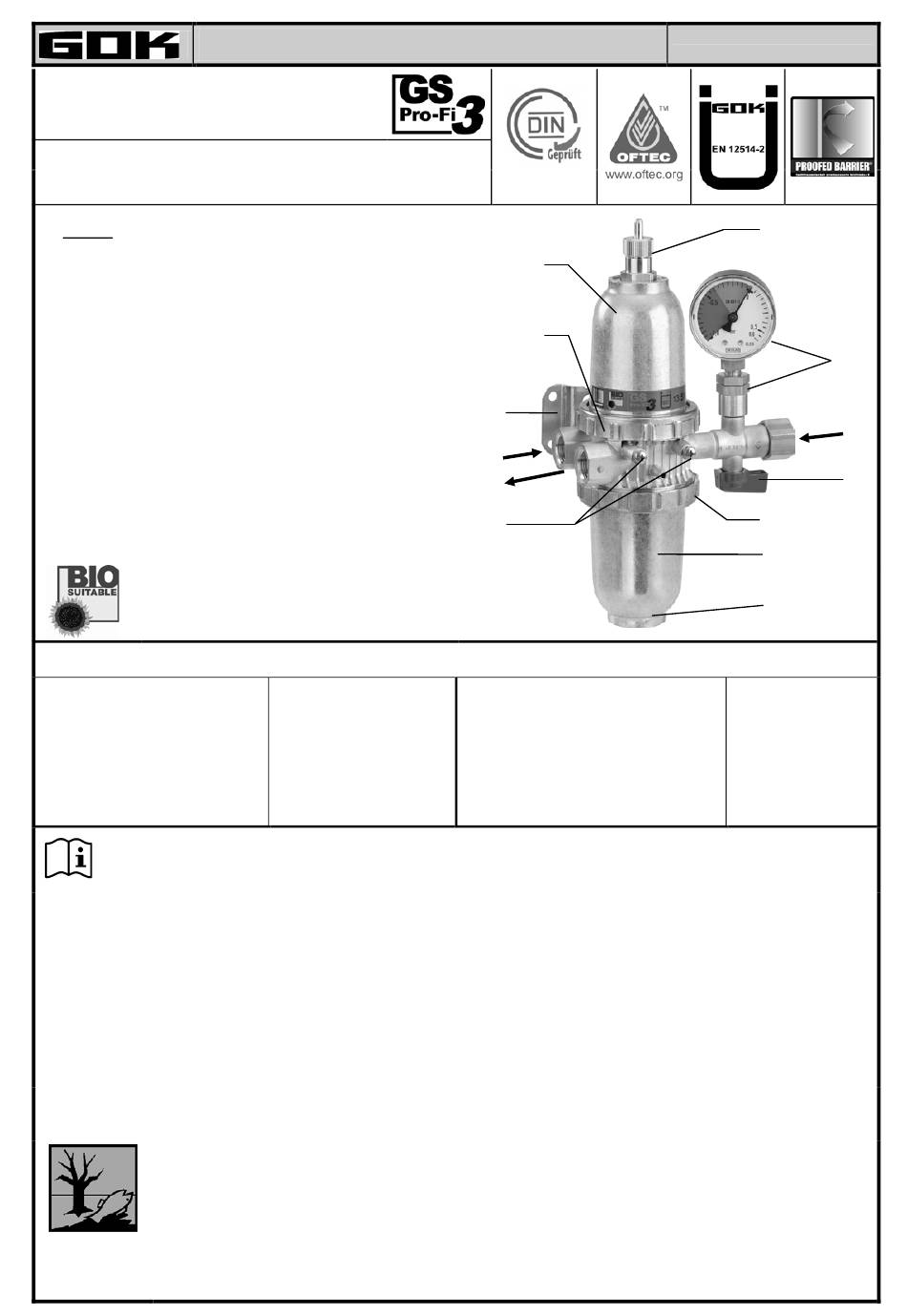

Installation and Operating Manual
Fuel Oil Filter and Deaerator
Combination
Deaeration Device with Filter and
Quick-Acting Valve acc. to EN 12514-2
Legend
① - Deaerator screw
② - Deaerator cover
③ - Retaining ring
④ - With or without Vacuum gauge (as a special version,
optionally also available with rotating connection),
⑤ - Connection for tank line (suction line)
⑥ - Quick-acting valve
⑦ - Filter element
⑧ - Filter cover
⑨ - Fixing plate for wall installation
⑩ - Connection of burner return line
⑪ - Connection of burner flow line
⑫ - Screw heads for mounting the fixing panel
⑩ + ⑪ - optionally available with female thread
This deaerator can be used with fuel oil
with bio-components (see OPERATING
MEDIA)
GENERAL
The fuel oil filter-and-deaerator combination GS Pro-Fi 3 is a Professional Filter deaeration system of the 3.
generation. It is designed as a closed system ("Geschlossenes System" - GS). It corresponds to the
requirements of EN 12514-2:2000 the code of practice for oil firing according to BS 5410-1 and 'OFTEC
Technical Book 3 chapter 2.2.
In the GS Pro-Fi 3, a deaeration device is combined with a filter and a quick-acting valve connected upstream. It
filters the fuel oil while simultaneously discharging the gases released during the suction process. The gases are
not "deaerated" into the environment but within the "Closed System" via the burner nozzle into the combustion
chamber. Thus, the system works odour-free.
It is intended only for installation into the suction line of supplying units which are designed in single-pipe system
with return feed for suction drain operation.
For usage to the intended purpose and ensuring the warranty, please observe this Installation and Operating
Manual and give it to the operator.
SAFETY NOTE:
Operating media as for example fuel oil pollute water! Any material leakage occurring during
maintenance must be collected. Observe the respective legal regulations on water pollution
control! The GS Pro-Fi 3 must be installed, commissioned, serviced and repaired by skilled
craftsmen. It is imperative that you observe the following notes on installation and operation!
CONTENT
Page 1
Page 1
Page 2
Page 2
Page 2
Page 2
Page 3
2Y115/05
②
③
⑨
⑩
⑪
⑫
Art. No. 13512-.../13513-...
Version 10.2012
Page 1
①
④
③
⑦
⑧
Page 5
Page 5
Page 6
Page 6
Page 6
Page 7
Page 7
⑤
⑥
