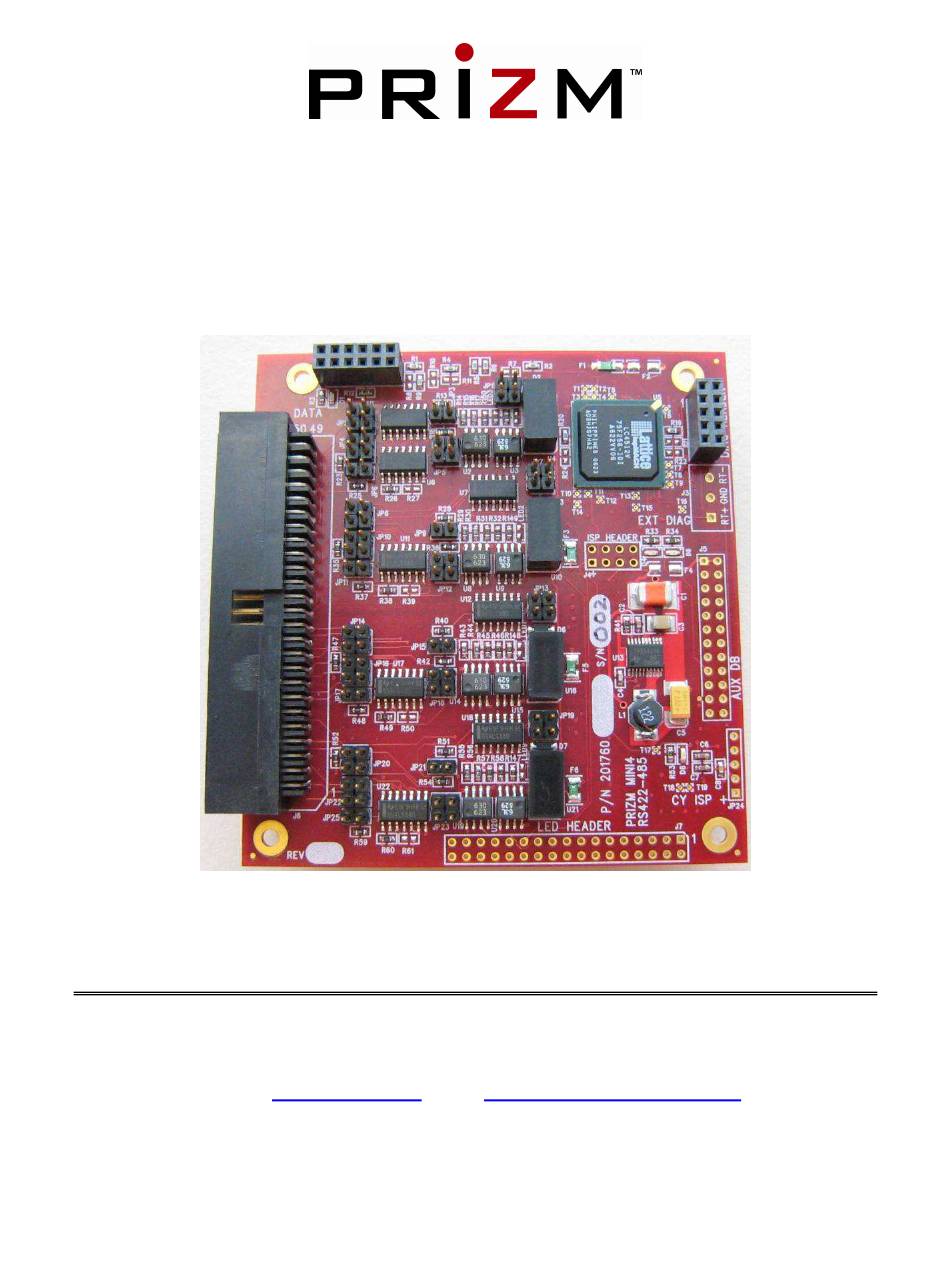

8-Port RS-422/485 Daughterboard (P/N 201760-xxx)
User's Manual
And
Troubleshooting Guide
February 24, 2009
Rev. B
Moog Components Group
Springfield Operations
750 West Sproul Road
Springfield, PA 19064
E-Mail:
mcg@moog.com
URL:
www.moog.com/components
Tel: 610-328-4000 Fax 610-605-6216
24/7 Technical Customer Support Hotline: 610-605-6101
Advertisement
Table of Contents
Related Manuals for PRIZM 201760 Series
Summary of Contents for PRIZM 201760 Series
- Page 1 8-Port RS-422/485 Daughterboard (P/N 201760-xxx) User’s Manual Troubleshooting Guide February 24, 2009 Rev. B Moog Components Group Springfield Operations 750 West Sproul Road Springfield, PA 19064 E-Mail: mcg@moog.com URL: www.moog.com/components Tel: 610-328-4000 Fax 610-605-6216 24/7 Technical Customer Support Hotline: 610-605-6101...
-
Page 2: Table Of Contents
Moog Components Group 201760 - RS-422/485 Daughterboard 2/24/2009 TABLE OF CONTENTS RS-422/485 Daughterboard, Part Number 201760-xxx................. 3 RS-422/485 Daughterboard Revision History:................3 RS-422/485 Daughterboard Dash (-) Number Definitions ............. 3 Manual Revision History:....................... 3 RS-422/485 Daughterboard Operation: ..................4 Connectors.............................. -
Page 3: Rs-422/485 Daughterboard, Part Number 201760-Xxx
1 RS-422/485 Daughterboard, Part Number 201760-xxx. The Prizm RS-422/485 daughterboard provides eight (8) RS-422 or RS-485 pair-wise isolated data channels that are multiplexed onto a single Prizm high-speed serial data channel onto Mini4 or MiniMux2 Motherboard. Daughterboard channel selection of RS-422 or RS-485 can be simply done by selecting a few jumper posts and can be accomplished on a channel-by-channel basis for mixed data applications. -
Page 4: Rs-422/485 Daughterboard Operation
There is 50-pin dual-row rectangular Amp connector on the on the front of the daughterboard. Mfg p/n – 2-103167-2 Mating Connectors AMP p/n - 4-87631-1 (Prizm p/n CN0314) type- unstamped AMP p/n – 4-87631-2 (Stamped) AMP p/n – 4-87631-2 (Stamped with strain relief) Signal Name... - Page 5 Moog Components Group 201760 - RS-422/485 Daughterboard 2/24/2009 Motherboard Connector VDC Supply o o 2 VDC Supply RXD_DB o o 4 TXD_DB o o 6 RXC_DB o o 8 TXC_DB RCV LINK o o 10 Future RXC_DB2 o o 12 TXC_DB2 Diagnostics Header...
-
Page 6: Rs-422/485 Daughterboard Troubleshooting
Moog Components Group 201760 - RS-422/485 Daughterboard 2/24/2009 J7 – LED Header Signal Name Signal Name +5V (optional) 3 RS-422/485 Daughterboard Troubleshooting In normal operation the following board mounted LED status should be observed: +5VDC power LED Lit green RLINK LED - Lit green if receiving link from Modem TLINK LED - Lit green if receiving link from Modem +3.3VDC power LED Lit green LED9 Channels 1&2 Isolated +5VDC power - LED Lit green... -
Page 7: Rs-422/485 Daughterboard Board Level Testing
Moog Components Group 201760 - RS-422/485 Daughterboard 2/24/2009 RS-422/485 Data Activity LEDs In normal operation with data traffic the following right angle bi-color LEDs, mounted on the edge of the board (under the data connector) should be observed: Channel 1 lit RED for Tx, lit GREEN for Rx Channel 2 lit RED for Tx, lit GREEN for Rx Channel 3 lit RED for Tx, lit GREEN for Rx Channel 4 lit RED for Tx, lit GREEN for Rx... -
Page 8: Rs-422/485 Daughterboard - Auxiliary Daughterboard Options
The maximum data rate that this board supports is 115Kbaud. 201760 daughterboard can be intermixed with the 16-channel RS-232 daughterboard (Prizm p/n - 210610) or used with a Tritech Trigger/Responder (Prizm p/n – 201600) board as its auxiliary daughterboard. Custom boards auxiliary boards for this daughterboard would be designed in the future per customer requirements. -
Page 9: Jumper Configuration Table
Moog Components Group 201760 - RS-422/485 Daughterboard 2/24/2009 6 Jumper Configuration Table RS-485 RS-422 RS-485 with 100 termination No Jumpers JP 22 & JP 23 JP 25 Placed No Jumpers JP 20 & JP 19 JP 21 Placed No Jumpers JP 16 &...
