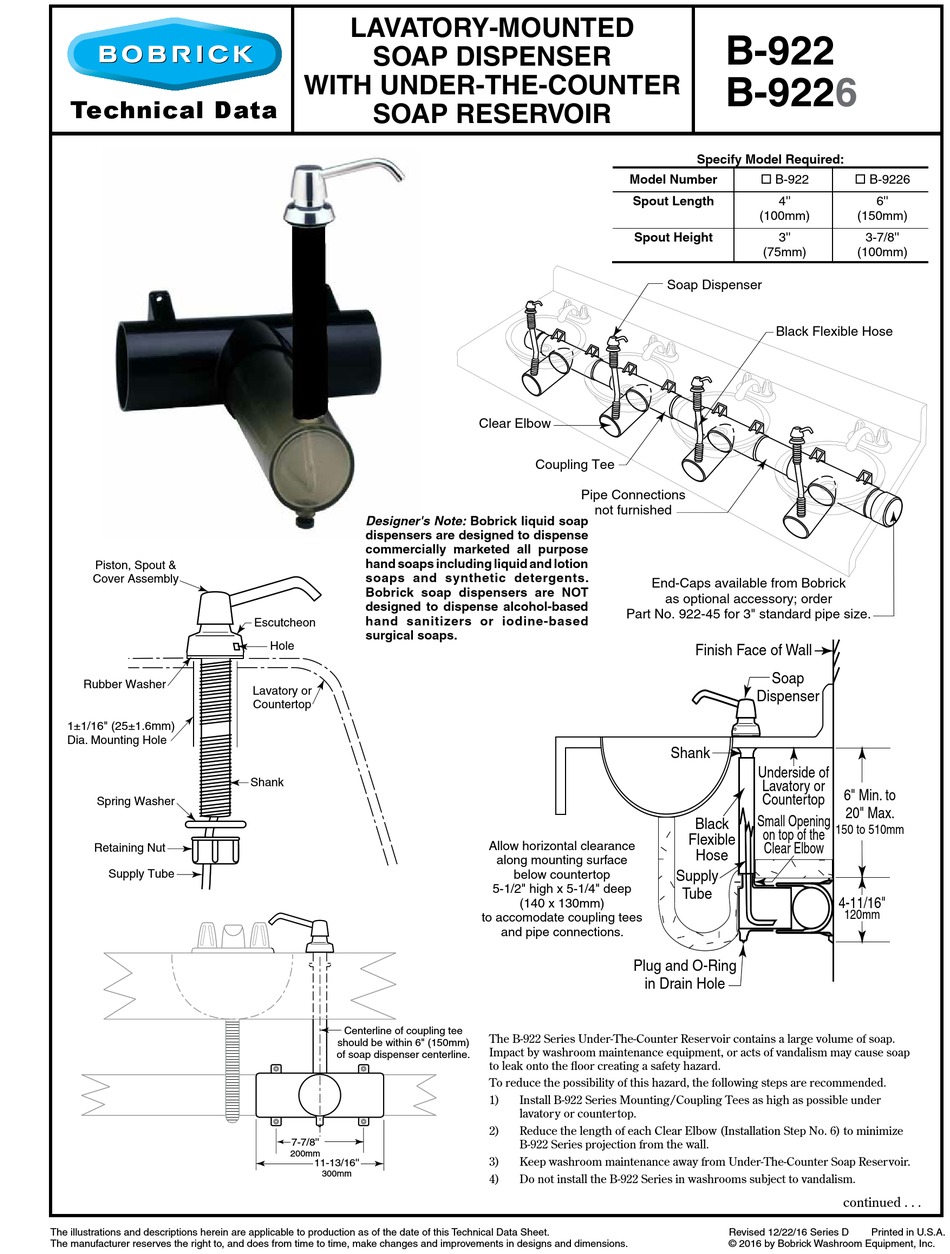

Bobrick B-922 Technical Data

Technical Data

Piston, Spout &
Cover Assembly
Rubber Washer
1±1/16" (25±1.6mm)
Dia. Mounting Hole
Spring Washer
Retaining Nut
Supply Tube
The illustrations and descriptions herein are applicable to production as of the date of this Technical Data Sheet.
The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions.
LAVATORY-MOUNTED
SOAP DISPENSER
WITH UNDER-THE-COUNTER
SOAP RESERVOIR
Designer's Note: Bobrick liquid soap
dispensers are designed to dispense
commercially marketed all purpose
hand soaps including liquid and lotion
soaps and synthetic detergents.
Bobrick soap dispensers are NOT
designed to dispense alcohol-based
hand sanitizers or iodine-based
Escutcheon
surgical soaps.
Hole
Lavatory or
Countertop
Shank
Centerline of coupling tee
should be within 6" (150mm)
of soap dispenser centerline.
7-7/8''
200mm
11-13/16''
300mm
Model Number
Spout Length
Spout Height
Clear Elbow
Coupling Tee
Pipe Connections
not furnished
End-Caps available from Bobrick
Part No. 922-45 for 3" standard pipe size.
Allow horizontal clearance
along mounting surface
below countertop
5-1/2" high x 5-1/4" deep
(140 x 130mm)
to accomodate coupling tees
and pipe connections.
Plug and O-Ring
in Drain Hole
The B-922 Series Under-The-Counter Reservoir contains a large volume of soap.
Impact by washroom maintenance equipment, or acts of vandalism may cause soap
to leak onto the floor creating a safety hazard.
To reduce the possibility of this hazard, the following steps are recommended.
1) Install B-922 Series Mounting/Coupling Tees as high as possible under
lavatory or countertop.
2) Reduce the length of each Clear Elbow (Installation Step No. 6) to minimize
B-922 Series projection from the wall.
3) Keep washroom maintenance away from Under-The-Counter Soap Reservoir.
4) Do not install the B-922 Series in washrooms subject to vandalism.
B-922
B-9226
Specify Model Required:
 B-922
4''
(100mm)
3''
(75mm)
Soap Dispenser
Black Flexible Hose
as optional accessory; order
Finish Face of Wall
Soap
Dispenser
Shank
Underside of
Lavatory or
6" Min. to
Countertop
Small Opening
Black
150 to 510mm
on top of the
Flexible
Clear Elbow
Hose
Supply
Tube
4-11/16"
120mm
continued . . .
Revised 12/22/16 Series D
© 2016 by Bobrick Washroom Equipment, Inc.
 B-9226
6''
(150mm)
3-7/8''
(100mm)
20" Max.
Printed in U.S.A.
