MOUNTING INSTRUCTIONS 172.0090
INSTALLATIE INSTRUCTIES 172.0090
1
TOP
SmartMetals Mounting Solutions B.V. • Handelsweg 4 • 4231 EZ Meerkerk • The Netherlands • T +31(0)183352942 • F +31(0)183352909 • E info@SmartMetals.eu
2
Indicates middle
of the screen
(Only when VESA
is in middle)
VideoWall – Stand head for 2 aluminium profiles
VideoWall – Statiefkop voor 2 aluminium profielen
a
English

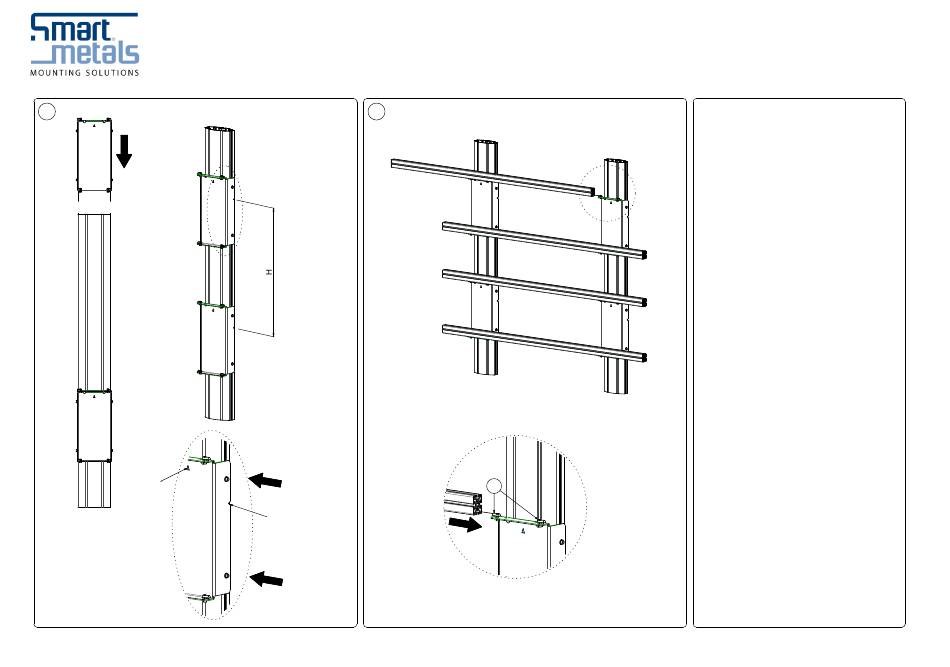

1. Place the aluminium columns on a flat surface.
Slide the stand heads in the t-duct of the columns.
Calculate for the distance between the heads (H)
as follows: H = height + screen desired clearance
between the scenes (usually 1mm). Fasten the bolts
on both sides of the head.
2. Mount the two aluminium profiles to the stand
heads. Slide the slot nut (a) in the slot of the alu-
minum profile.
Nederlands
1. Plaats de aluminium zuilen op een vlakke on-
dergrond. Schuif de statiefkoppen over de zuilen.
Bereken voor de onderlinge afstand tussen de
koppen (H) als volgt: H = schermhoogte + gewenste
speling tussen de schermen (meestal 1mm). Draai
de bouten aan beide zijde van de kop vast.
2. Monteer nu de 2 aluminium profielen aan de
koppen. Schuif de sleufmoer (a) in de sleuf van het
aluminium profiel.
