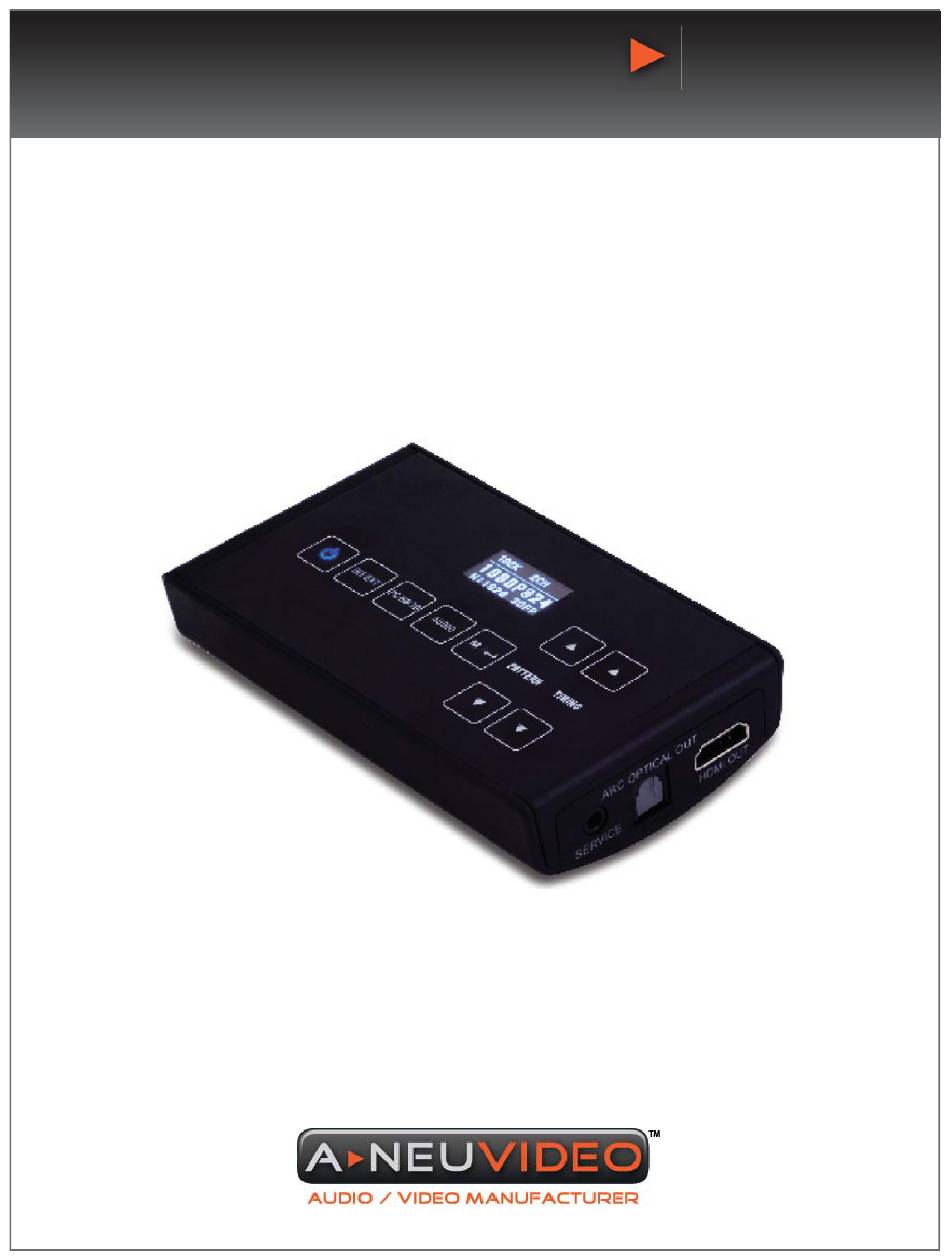

- Page 1 ANI-1AHC 3D Mini HDMI Analyzer HDMI Analyzer & Signal Generator 1080p and 3D Support INSTRUCTION MANUAL A-NeuVideo.com | Frisco, Texas 75034 (317) 456-2461 V.1.2...
-
Page 2: Introduction & Package Contents
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
TABLE OF CONTENTS CONTENTS SAFETY PRECAUTIONS Introduction & Package Contents ..........1 Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Features & Specifi cations ........... 2 Please keep the following in mind as you unpack and install this Operation Controls and Functions ........ -
Page 4: Features & Specifi Cations
FEATURES & SPECIFICATIONS FEATURES • Supports Timing include SD, HD up to 1080p, PC up to WUXGA and 3D • Provides 25 timings, 6 patterns and 1 pattern for 3D timing • ‘Deep color’ video support (up to 12-bit, 1080p@60 Hz) •... -
Page 5: Operation Controls And Functions
OPERATION CONTROLS AND FUNCTIONS FRONT PANEL Connect the HDMI input port to the HDMI output port of the source device for testing and displaying the EDID information. HDMI IN: Plug the DC 5 V power supply into the Mini-HDMI Analyzer and connect the adaptor to an AC wall outlet. DC 5V: REAR PANEL ... -
Page 6: Top Panel
OPERATION CONTROLS AND FUNCTIONS CONTINUED TOP PANEL Note: Please remove the protective plastic fi lm from the top panel before using the touch key function. Press this button to turn on the device, the LED will turn blue. Press again to switch the unit to standby mode, the LED will POWER: turn red. -
Page 7: Osd Menu
OSD MENU OSD MENU Press the M/ button from the device to bring up the OSD on the display. • Press pattern’s [▲/▼] to highlight on option • Press [M / ] to confi rm the selection 5. SYSTEM INFO Press this button to show the EDID information for any connected device. -
Page 8: Sink Edid
SINK EDID, SOURCE INFOFRAME, CEC COMMAND, AUDIO RETURN, DEEP COLOR SET & EXIT OPTIONS SINK EDID OPTION DESCRIPTION Block Data To check the sink Block0 and Block1’s EDID table Description To check the sink description of EDID SOURCE INFOFRAME OPTION DESCRIPTION AVI (AVI infoframe data) To check the sink Block0 and Block1’s EDID table... -
Page 9: Oled Display
OLED DISPLAY OLED DISPLAY The Analyzer supports audio sampling rates of 48/96/192 kHz, display will show the signals current sample rate. If Sampling Rate: external audio is selected the OLED will display ‘BYPASS’. The device supports audio channels from LPCM 2, 5.1 and 7.1CH. If external audio is selected the OLED will Audio Channels: display ‘BYPASS’. -
Page 10: Timing Table (Pattern Mode)
TIMING TABLE TIMING TABLE (PATTERN MODE) GROUP PATTERN DESCRIPTION Primary colors: Red, Green, Blue P1: Red P2: Green P3: Blue P4: Horizontal RGB Bar P5: H Grey Scale P6: HDCP handshaking and link-integrity test... -
Page 11: Support Pattern Table
SUPPORT PATTERN TABLE SUPPORT PATTERN TABLE GROUP PATTERN DESCRIPTION P7(FP): Frame Packing Non-3D Display (FP) P7(FP): Frame Packing 3D Display P7(SH): Side-by-Side (Half) Non-3D Display (SH) P7(SH): Side-by-Side (Half) 3D Display P7 (TB): Top-and-Bottom Non-3D Display (TB) P7 (TB): Top-and-Bottom 3D Display... -
Page 12: Connection Diagram
CONNECTION DIAGRAM CONNECTION DIAGRAM For checking both the source and display device’s information, press M / to display the System Information. For checking only the display device’s supported timings, connect the HDMI output only to the display device and press the PATTERN and TIMING buttons. - Page 13 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
