2. Installation

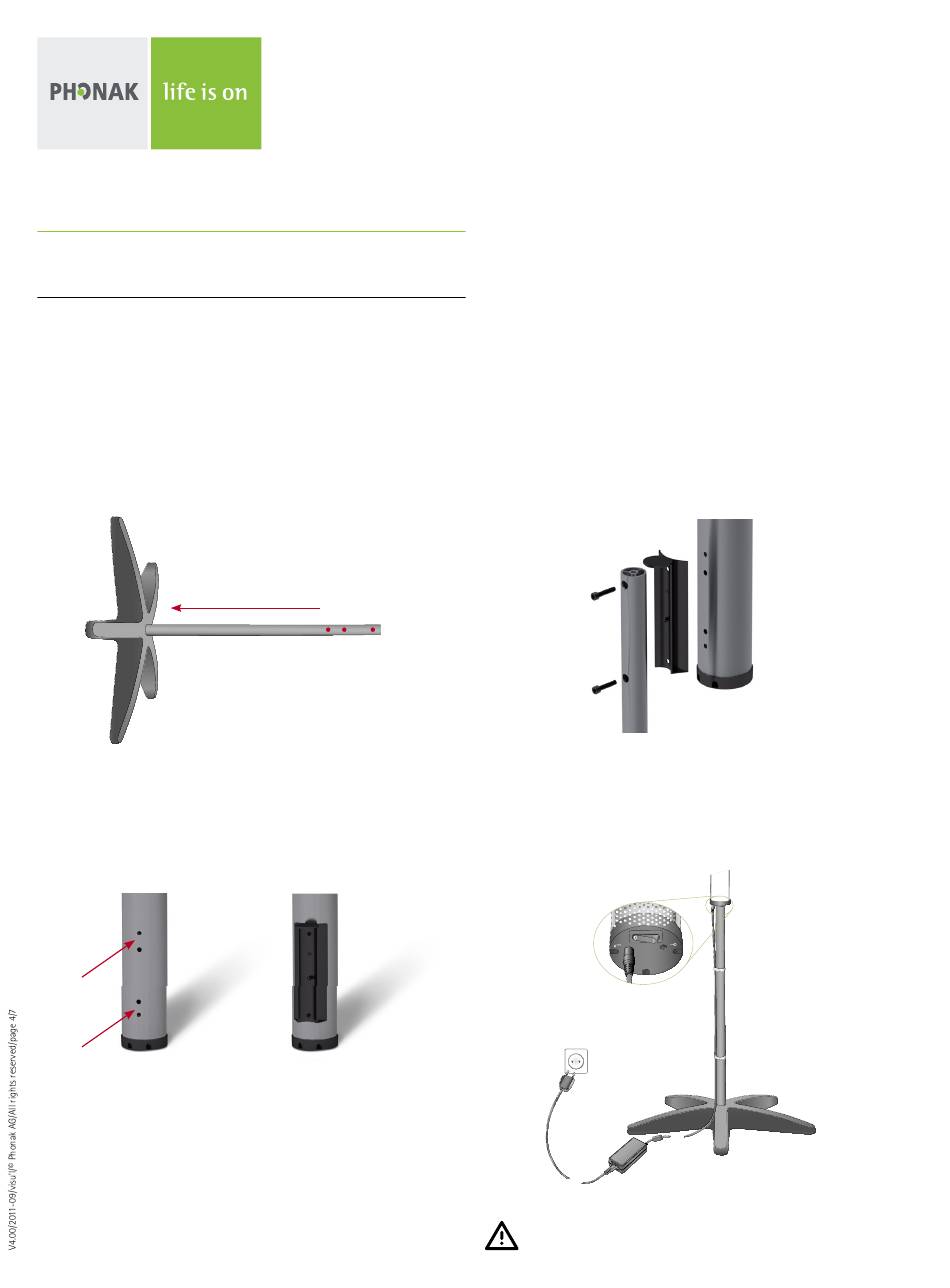

2.1 Mounting the DigiMaster on its stand
1) Take the plate [F], stand tube [I], black M8 screw [H] and M8
washer [H].
2) Gently place the 'screw thread' end of the tube stand in the center of
the plate (see picture below). The three holes are on the upper side
of the stand. Fix the tube from the underside of the plate, using the
screw M8, washer and hex wrench 6. Place the stand on the floor.
3) Take the DigiMaster and the tube connection [G]. Hold the tube
connection behind the DigiMaster, where the 4 holes are situated.
The two fingers of the tube connection should fit into the two
inner holes.
4
Installation instructions
Dynamic SoundField
4) Take the two black hex screws [D] from the wall mount kit and
push these through the two holes in the upper part of the stand
tube. Screw the DigiMaster featuring the tube connection to the
tube using hex wrench 5.
5) Attach the power cable to the power adapter [OPTION]. Plug the power
cable into the mains and the 19 Volt jack into the socket on the
bottom of the DigiMaster. Your DigiMaster is now ready to be paired
with inspiro.
19V
3.2A AUDIO
Make sure the power cable is safely positioned!
Do not place the power adaptor near a heater.
