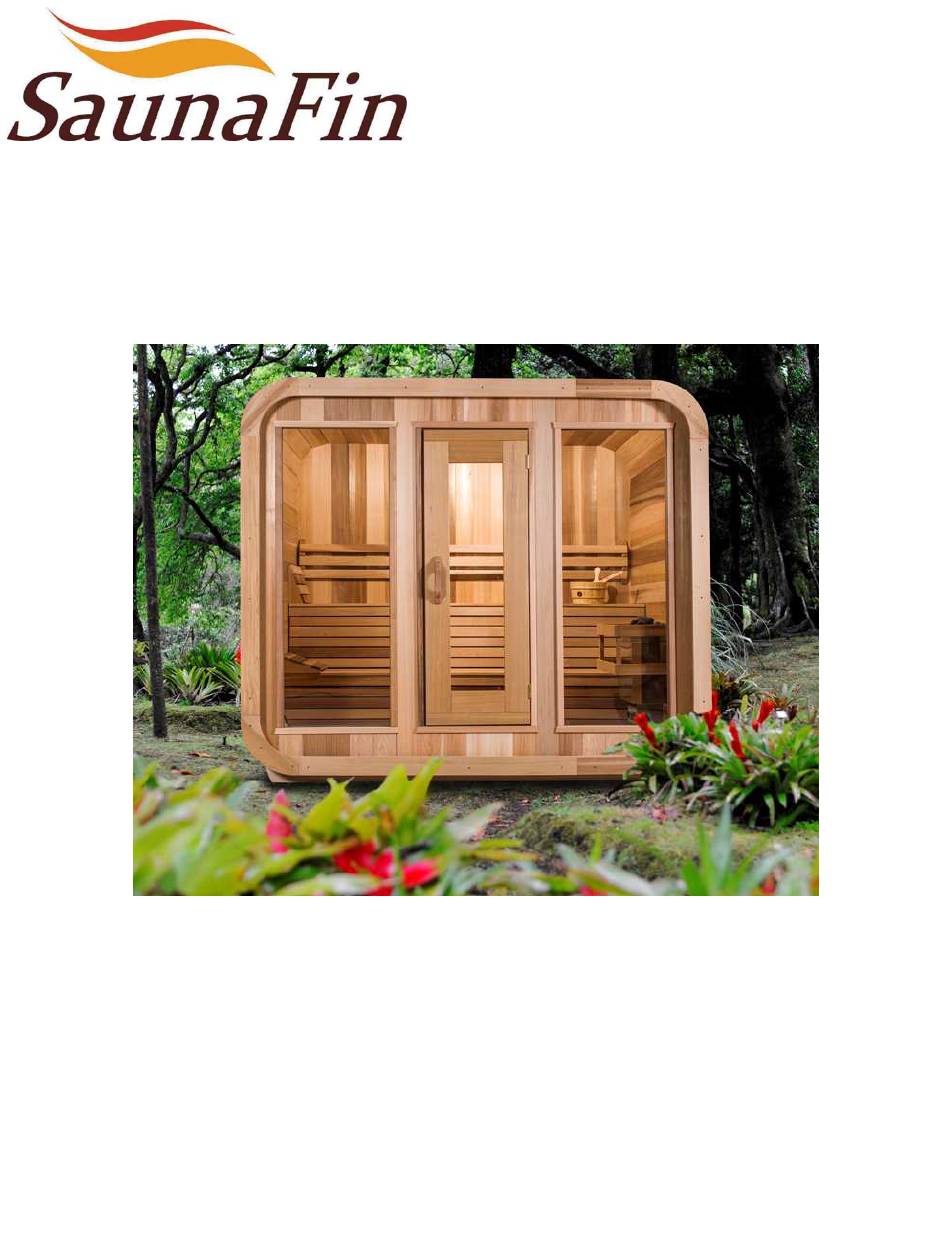

- Page 1 Luna Cedar Sauna Assembly Instructions Requirements: * 2 People (recommended) * Step or Extension Ladder * Cordless Drill (we supply the bit) * Tape Measure * Staple Gun * Utility Knife...
- Page 2 Luna Cedar Sauna Assembly Instructions Lay out the 3 Bottom Supports like in Picture. Make sure you have a solid, level Foundation. (Wood Deck, Patio Stones, Concrete Pad etc.) Lay the center stave across the supports. Center Stave should stick out 7” past front (The center stave will be rounded on both sides) support.
- Page 3 Luna Cedar Sauna Assembly Instructions Use a tape measure to center the middle support Start Laying out bottom staves as shown. and secure center Stave to it with 2 ½” screws When finished laying out bottom staves, line Use a tape measure to make sure they are all them up flush with each other.
- Page 4 Luna Cedar Sauna Assembly Instructions To make the next steps easier, line up the back Unpackage threaded rods. wall staves as best you can. Thread the rods through the holes. Make sure the holes in the back wall staves line (This will take some finessing) up with each other.
- Page 5 Luna Cedar Sauna Assembly Instructions Use vice grips to safely snap off the cut piece of With help, Lift the back wall and insert into threaded rod groove of bottom staves. Make sure both sides are sticking out equally to Gather all the front wall pieces and lay out like ensure wall is centered.
- Page 6 Luna Cedar Sauna Assembly Instructions Using a helper, slide window into place. After adding 5 more small staves at the top, slide door in same manner as window. Repeat the same process for the other side Make the nut and washer flush on 1 side window.
- Page 7 Luna Cedar Sauna Assembly Instructions Use a mallet and tape measure to ensure front Gather side staves and place on either side of wall is centered. the sauna. Use any stave to brace the front and back walls. Start inserting the wall staves on both sides, starting from the bottom.
- Page 8 Luna Cedar Sauna Assembly Instructions Continue to attach staves using a 2 ½” screw on Before both walls are finished, bring in all each end of stave, benches and brackets for easier installation. Assemble benches as best you can without Continue adding staves in same manner as securing them.
- Page 9 Continue to attach staves using a 2 ½” screw on Before screwing in top corners, bang staves each end of stave, snugly in place. After staves are snug, screw in middle stave then Continue adding staves using only the mallet, no the outside ones.
- Page 10 With two people, drape rubber membrane over Using the staple gun, secure the rubber sauna as shown. membrane to the front of sauna as shown. On the back, secure it as shown with the roofing Using a utility knife, cut off the excess rubber membrane draping down.
- Page 11 To prevent the trim pieces from splitting, pre drill Secure trim with 2” screws. the pieces first To install the siding, start at the bottom with the Start the next piece of siding 4” from the bottom top of the siding flush with the bottom wall of the previous piece.
- Page 12 When you reach the rubber membrane, secure a This protects the sauna from getting water shingle underneath. between the siding and the staves. Cut off the excess at the bottom with a utility Now secure a shingle over the membrane as knife as shown.
- Page 13 To install the inside benches, line up brackets to Secure the bench brackets to the wall and the bench supports on top & bottom benches. bench supports using 2 ½” screws. Screw bench brackets to floor using 2 ½” screws. Secure the bench brackets to the bottom bench covers as shown using 2 ½”...
- Page 14 Assembly Instructions (For 8’x7’ and 8’x8’ models with L shaped Benches) (If no L shaped bench, please proceed to next page.) Place small bench bracket and large brackets as Secure Window side bracket to back wall and shown. Secure to floor and wall with 2 ½” floor in same manner as other brackets.
- Page 15 Position back support at desired height, Secure I Secure the door to the frame 6” from the top between slats using 2 ½” screws. and bottom of door using 2 ½” screws. Repeat on other side through middle holes on To install outside handle, pre place 2”...
- Page 16 Place heater on top of the included box of Mark the placement of the heater brackets. rocks to get correct height for installation. Place Heater on wall brackets. Attach heater brackets to the back wall of sauna using 1 ½” screws. Space rocks out evenly in top of heater.
- Page 17 Stand the 2 sides of the heater guard on Assemble remaining front support to the 2 edge with predilled holes on the bottom. ends in the same manner as the previous step. Screw front guard support to either side using 2 1/2”...
- Page 18 Congratulations on the assembly of your new Luna Cedar Sauna!
-
Page 19: How To Take A Sauna
HOW TO TAKE A SAUNA 1. Pre-heat your sauna to the desired temperature (usually between 80-100°C) 2. While it’s warming up, take a nice hot shower. 3. Enter the pre-heated sauna, relax and allow your body to perspire in the soft dry heat. Do not throw water on the rocks during the first part of the session.
