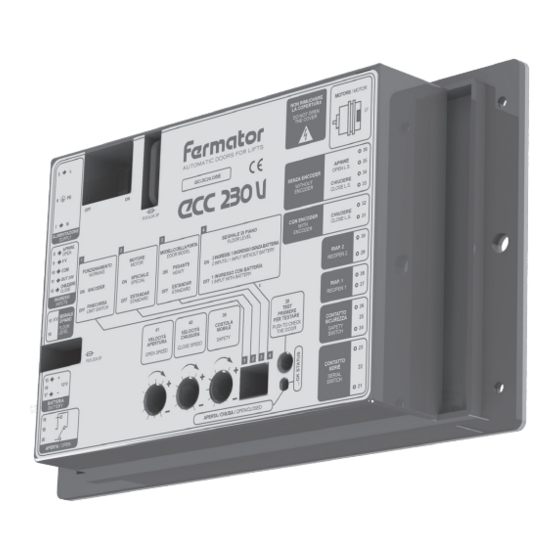

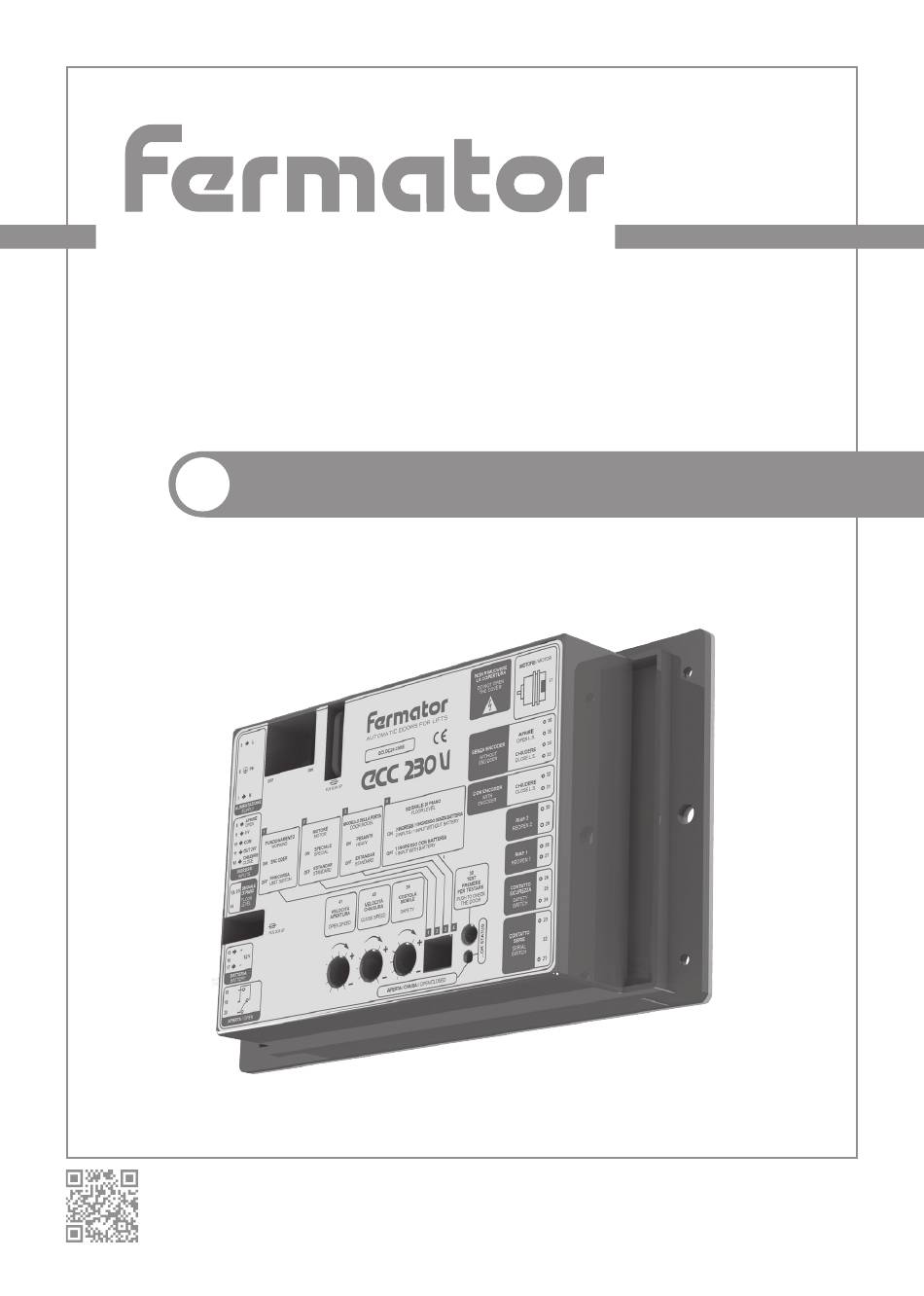

- Page 1 AUTOMATIC DOORS FOR LIFTS Assembly manual. Automatic horizontal sliding car door. Component: ECC 230 V Electronic Module. MAN-MUEC00000ENGTC-05.2016...
- Page 2 CONNECTIONS AUTOMATIC DOORS FOR LIFTS ECC 230 V...
- Page 3 And between terminals 8 & 10 will cause the doors to open. In the absence of a signal, the doors will remain static. If both inputs are applied then the open signal has priority. ECC 230 V...
- Page 4 This input activates the open movement in emergency rescue mode in case of power failure, through a 12 V battery to rescue the passengers from the lift. The door only will open if this signal is bridged (Normally Open). ECC 230 V...
-
Page 5: Led Indicators
It does not activate when the door is closed. As it is a serial connection it is necessary to over-bridge the free one. ECC 230 V... -
Page 6: Reference Data
0...24 V DC III. • Maximum output current 2 A. • Positional control: Quadrature encoder. MOTOR • Brushed DC motor • Voltage supply 24 V. • Power 7 W. • Enclosure class IP 20. • Nominal speed 17 rpm. ECC 230 V... -
Page 7: Declaration Of Conformity
Herewith declares that the products mentioned below conform with the following E.U. council directives: Norm EN 81-1/2 DIRECTIVE 2006/42/EC (Machinery directive), DIRECTIVE 2014/30/UE (Electromagnetic compatibility), of the European Parliament and of the Council. ECC 230 V Electronic Module (10/31700971_M1) Tecnolama, S.A., 2016 Josep Vilà Gomis Amministrator... - Page 8 TECNOLAMA reserves the rights to modify the products specifications of this technical brochure without any previous advise. Tecnolama, S.A. Ctra. Constantí, Km 3 43206 REUS (Spain) Tel.: +34 977 774 065 ● ● ● Fax: +34 977 771 615 www.fermator.com e-mail: info.es@fermator.com ● ●...
