TM

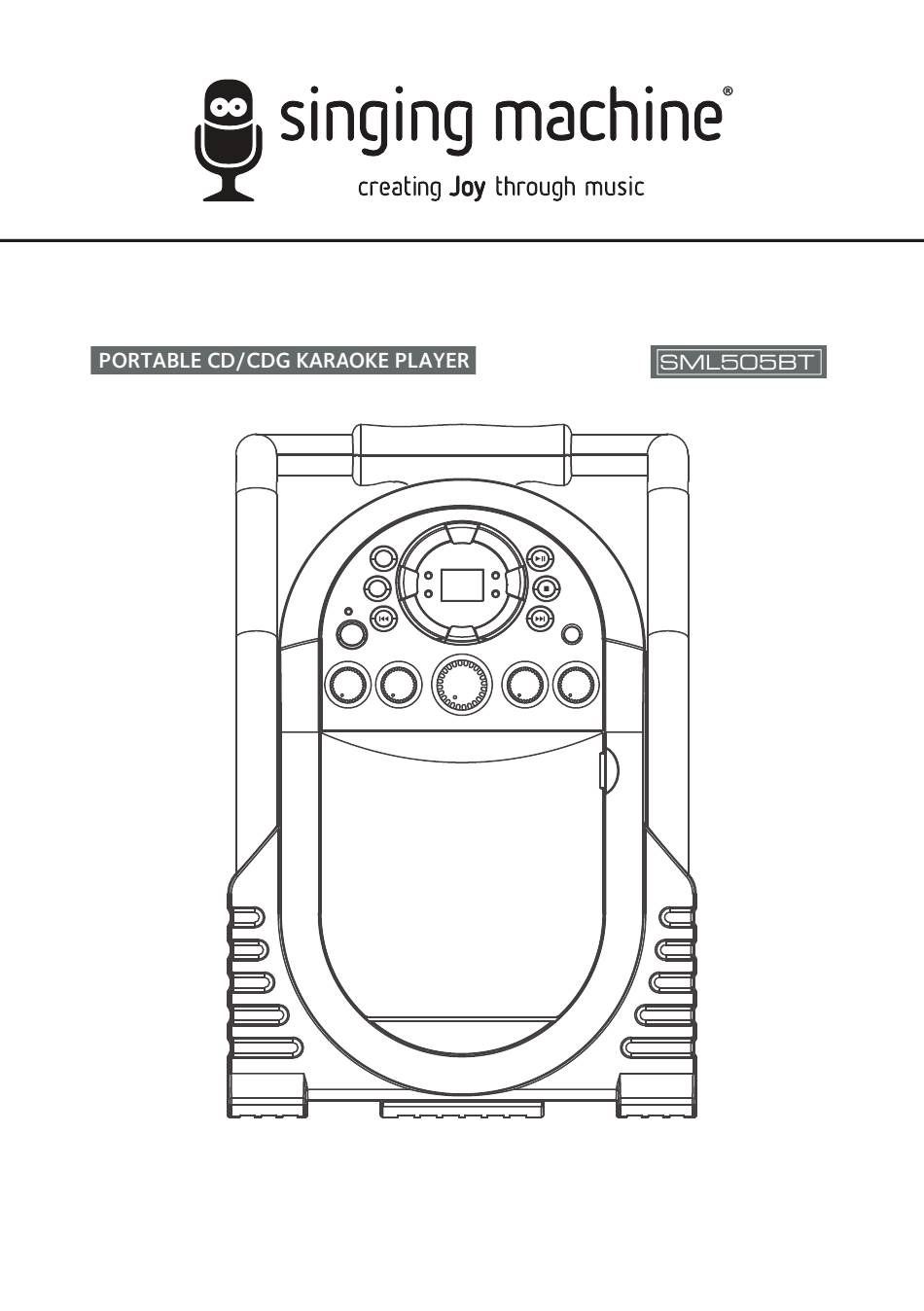

SML505BTBK/SML505BTP
INSTRUCTION MANUAL / MANUAL DE INSTRUCCIONES/
MODE D'EMPLOI
www.singingmachine.com
The Singing Machine® is a registered trademark of The Singing Machine Co., Inc.
The Singing Machine® es marca registrada de The Singing Machine Co., Inc.
The Singing Machine® est une marque déposée de The Singing Machine Co., Inc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for The Singing Machine SML505BTBK
Summary of Contents for The Singing Machine SML505BTBK
- Page 1 MODE D’EMPLOI www.singingmachine.com The Singing Machine® is a registered trademark of The Singing Machine Co., Inc. The Singing Machine® es marca registrada de The Singing Machine Co., Inc. The Singing Machine® est une marque déposée de The Singing Machine Co., Inc.
-
Page 2: Important Safety Information
Warnings WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE CAUTION THIS UNIT TO RAIN OR MOISTURE. RISK OF ELECTRIC SHOCK FCC WARNING: This equipment may generate or use radio frequency DO NOT OPEN energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT instruction manual. - Page 3 Included Please make sure that the following items are included. Main Unit Demo Disc Wired Microphone AC Adapter Manual Welcome Kit Audio/Video Cables — E2 —...
-
Page 4: Location Of Controls (Front)
Location of Controls (Front) 1. Handle 12. MASTER VOLUME Control 2. LED display 13. Disco Lights 3. PROGRAM indicator 14. Play indicator 4. CD/Bluetooth Button 15. Play/Pause Button 5. REPEAT/PROGRAM Button 16. CDG/BT indicator 6. ON/OFF indicator 17. Stop < /PAIR Button 7. -
Page 5: Location Of Controls (Rear)
Location of Controls (Rear) 23. Speaker 28. AUX OUT Jack (R) 24. Battery Door 29. AUX OUT Jack (L) 25. MIC 2 Jack 30. DC Jack (DC 5.8V) 26. MIC 1 Jack 31. line in Jack 27. VIDEO OUT Jack —... -
Page 6: Connecting The Microphone(S)
Connection Connecting the Microphone(s) Microphones: Connect a microphone into Mic jack 1 u as well as Mic jack 2 v (when desired). Note: Do not drop or tap the Mic as damage to the Mic or speakers may occur. Do not twirl the microphone cord as it will cause damage to the encased wiring. -
Page 7: Inserting Batteries
Connection Connecting to AC Power Insert the small end of the AC adapter into the DC IN jack on the rear of the unit. Insert the other end (with the 2 blades) into a conveniently located AC outlet having 120V AC, 60Hz. Note: Make all connections before connecting to AC power. -
Page 8: Operation
Operation Playing a CD Connect the unit as described previously; if using a CD+G, it is recommended to connect to a TV. Press the ON/OFF button to turn the unit on. The ON/OFF indication will light up. Lift open the CD door and insert a CD (with standard files) or a CD+G by gently pressing it on the center spindle. - Page 9 Operation Playing a CD (Continued) Press the PLAY/PAUSE button to start playback; if listening to a CD+G file, the image and lyrics will appear on the TV screen (if connected) and the CDG/BT Indicator will light red. Adjust the volume to a comfortable level using the MASTER VOLUME control.
- Page 10 Operation Playing a CD (Continued) Rotate the BALANCE control clockwise to hear the recorded vocals with some music in the background or counter-clockwise to hear the music only from a multiplex recording. Note: To use the BALANCE control, a CD+G disc must be used, otherwise it will operate as a standard Balance control.
- Page 11 Operation Playing a CD (Continued) PROGRAM: You can program up to 20 tracks on any disc for playback in any desired order. While in the Stop mode, press the PROGRAM button; the Program indicator will blink and “01” will appear on the display indicating the first program is ready to program.
- Page 12 Operation Using a Bluetooth Device Connect the unit as described previously. Press the ON/OFF button to turn the unit on. Repeatedly press the CD/BT button to select the Bluetooth; the CDG/ BT indicator will flashing in blue; “bt” will appear in the display. The unit automatically searches for and pairs a previously paired Bluetooth device (if previously paired).
- Page 13 Operation Using a Bluetooth Device (Continued) Start playback of your bluetooth device. Press the PLAY/PAUSE button during playback to pause the song. Adjust the volume to a comfortable level using the MASTER VOLUME control on this unit as well as the volume on your Bluetooth device.
- Page 14 Operation Using the LINE IN Jack Connect the unit as described previously. Press the ON/OFF button to turn the unit on. The ON/OFF indication will light up. Connect the external unit to the LINE IN Jack on the rear of this unit. Connecting an external unit will allow the audio to be played through your Singing Machine.
- Page 15 Operation Using the LINE IN Jack (Continued) Connect microphone(s) and slide the ON/OFF switch on the microphone to the ON position. Adjust the MIC VOLUME control as desired. Increasing this control will increase the volume of both microphones. Rotate the ECHO control to add an echo effect to your voice.
-
Page 16: Troubleshooting Guide
• Make sure the MIC VOLUME control is not set too low. • MASTER VOLUME control is set to minimum; raise volume. • Adjust the ECHO control past the mid point on the Singing Machine. The Bluetooth device cannot be paired or connected with the unit •... -
Page 17: Specifications
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by The Singing Machine Company, Inc. is under license. Other trademarks and trade names are those of their respective owners.
