TP880 Nagano
TP877 Himalayan
TP883 Woburn
Instructions for assembly, maintenance and safe use.
Please retain for future reference.
TP880 Nagano
WARNING!
THIS PRODUCT CONTAINS SMALL PARTS AND IS NOT SUITABLE FOR CHILDREN UNDER 36 MONTHS.
CONTAINS SMALL PARTS. CHOKING HAZARD.
ONLY FOR DOMESTIC USE. FOR OUTDOOR USE.
TOY MUST BE ASSEMBLED BY AN ADULT BEFORE USE.
ADULT SUPERVISION IS REQUIRED
CHILDREN MUST NOT USE THE EQUIPMENT UNTIL PROPERLY INSTALLED.
REMOVE ALL PACKAGING BEFORE GIVING TO YOUR CHILDREN.
THIS PRODUCT IS INTENDED FOR USE BY CHILDREN FROM AGES 3 TO 12 YEARS.
ANCHORS THAT ARE SUPPLIED WITH THIS PRODUCT MUST BE FITTED BEFORE USE.
MAXIMUM COMBINED USER WEIGHT FOR SWING FRAMES 200KGS
TP880 NAGANO

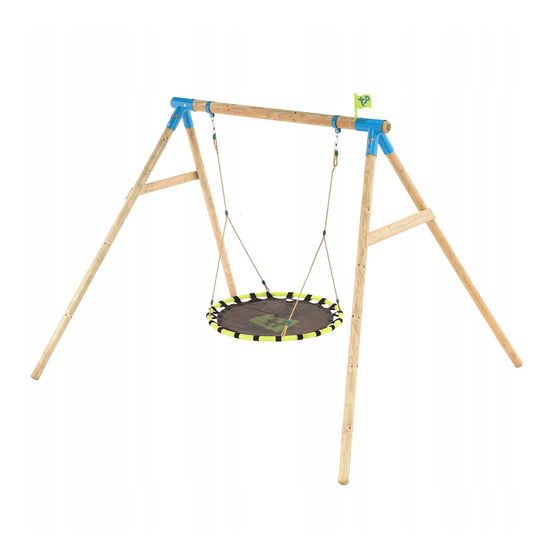

TP877 HIMALAYAN
TP883 WOBURN
TP880 TP883 TP877 Roundwood Swings New In8001-A 23.02.18.indd 1
TP877 Himalayan
SINGLE SEAT USER WEIGHT - 60KGS
NEST SWING USER WEIGHT - 120KGS
SINGLE SEAT USER WEIGHT - 60KGS
2 Hrs
Build Time
x2
Robovision Ltd t/a TP Toys
Unit 11, Enterprise Way, Flitwick, Bedfordshire, MK45 5BX England
www.tptoys.com
TP883 Woburn
GLIDE RIDE USER WEIGHT - 35KGS PER SEAT
GLIDE RIDE USER WEIGHT - 35KGS PER SEAT
23/02/2018 12:18
Advertisement
Related Manuals for TP Toys TP880 Nagano
Summary of Contents for TP Toys TP880 Nagano
- Page 1 SINGLE SEAT USER WEIGHT - 60KGS GLIDE RIDE USER WEIGHT - 35KGS PER SEAT 2 Hrs Build Time Robovision Ltd t/a TP Toys Unit 11, Enterprise Way, Flitwick, Bedfordshire, MK45 5BX England www.tptoys.com TP880 TP883 TP877 Roundwood Swings New In8001-A 23.02.18.indd 1...
- Page 2 The safe play area refers to the zone extending 200cm around the toys on all sides and 250cm above the toy. The safe play area must be free from all obstacles. Dimensions TP880 Nagano TP877 Himayalan TP883 Woburn 240cm 276cm...
- Page 3 Know Your TP Round Wood. Timber is a very popular choice for active outdoor toys. For reasons of affordability and the environment, all wood playset manufacturers use softwood rather than hardwood. Each piece of timber is unique, bearing its own knots, cracks and variations in colour.
- Page 4 TP880 TP877 TP883 Contents - Please check Tools - You will need: Also Required: Mallet Tape Measure Step Ladder Spirit Level Drill Bit Not Supplied Shovel Screwdriver Spanner Sockets Wrench Pozi #2 Combi Drill 10 & 13mm 10 & 13mm Pozi #3 880- 2 Nagano / 877-2 Himalayan / 883-2 Woburn MW0200 2700mm...
-
Page 5: Swing Arm Assembly
Swing Arm Assembly MW0203 2250mm FA9598 TP880 x2 MW0201 3000mm TP877 x2 TP883 x4 FB6038 ASSEMBLY TIP Make sure you thread the metal collars (FA9598) onto your top bar before the securing the brackets to each end of the wood MW0201 MW0203 M8 x25mm... - Page 6 Locate your swing seats correctly: 40mm FA8380 TP880 x2 TP877 x2 TP880 TP883 x4 MW0203 - Double Top Bar 573mm 550mm 445mm TP940 Glide Ride Position Swing Seat Position TP877 MW0203 - Double Top Bar 385mm 385mm 1410mm Nest Swing Position TP883 MW0201 - Triple Top Bar 277mm...
- Page 7 MW0200 2700mm M8 x25mm FA8440 70mm FA8439 MW0200 2700mm M8 x25mm FA8440 70mm FA8439 ASSEMBLY TIP Step ladders required. TP880 TP877 & TP883 TP880 TP883 TP877 Roundwood Swings New In8001-A 23.02.18.indd 7 23/02/2018 12:19...
- Page 8 MW0202 900mm M8 x25mm FA8440 70mm FA8439 ASSEMBLY TIP Generic view of Top Bar only. Actual Top Bar will vary depending on product purchased. ASSEMBLY TIP Make sure that the fixing points are centred on the legs. TP880 TP877 & TP883 TP880 TP883 TP877 Roundwood Swings New In8001-A 23.02.18.indd 8 23/02/2018 12:19...
- Page 9 TP880 TP877 TP883 - Attaching Swing Accessories IMPORTANT ASSEMBLY TIP Glide Ride and Nest Swing TP940 TP932 need to be built before Glide Ride Nest Swing attaching to the Top Bar. Please refer to product instruction manuals supplied TP928 with these products. Lime Seat 550mm TP880...
- Page 10 Swing seat height adjustment 350mm PM1968 PM1007 Flag 4 x 16mm Woodscrew FA4527 135mm TP880 TP877 & TP883 TP880 TP883 TP877 Roundwood Swings New In8001-A 23.02.18.indd 10 23/02/2018 12:19...
- Page 11 M8 x25mm FA8440 70mm FA8439 PR5069 45° TP814 300mm 300mm Dig holes: 300mm x 300mm 300mm x Mark leg/hole position. 300mm deep. Ensure the stakes are positioned into the setting Post-Mix concrete. Warning: Never set the legs of the Supplied. playset in concrete.
- Page 12 Thank you Thank you for purchasing this product. Please register your new product on line at tptoys.com www.tptoys.com/productregistration Find out about the guarantee for this product, visit www.tptoys.com/guarantee For customer services and help with your product, visit www.tptoys.com/customer/help Your TP Guarantee Number/Product Batch No is TP880 TP883 TP877 Roundwood Swings New In8001-A 23.02.18.indd 12 23/02/2018 12:19...
