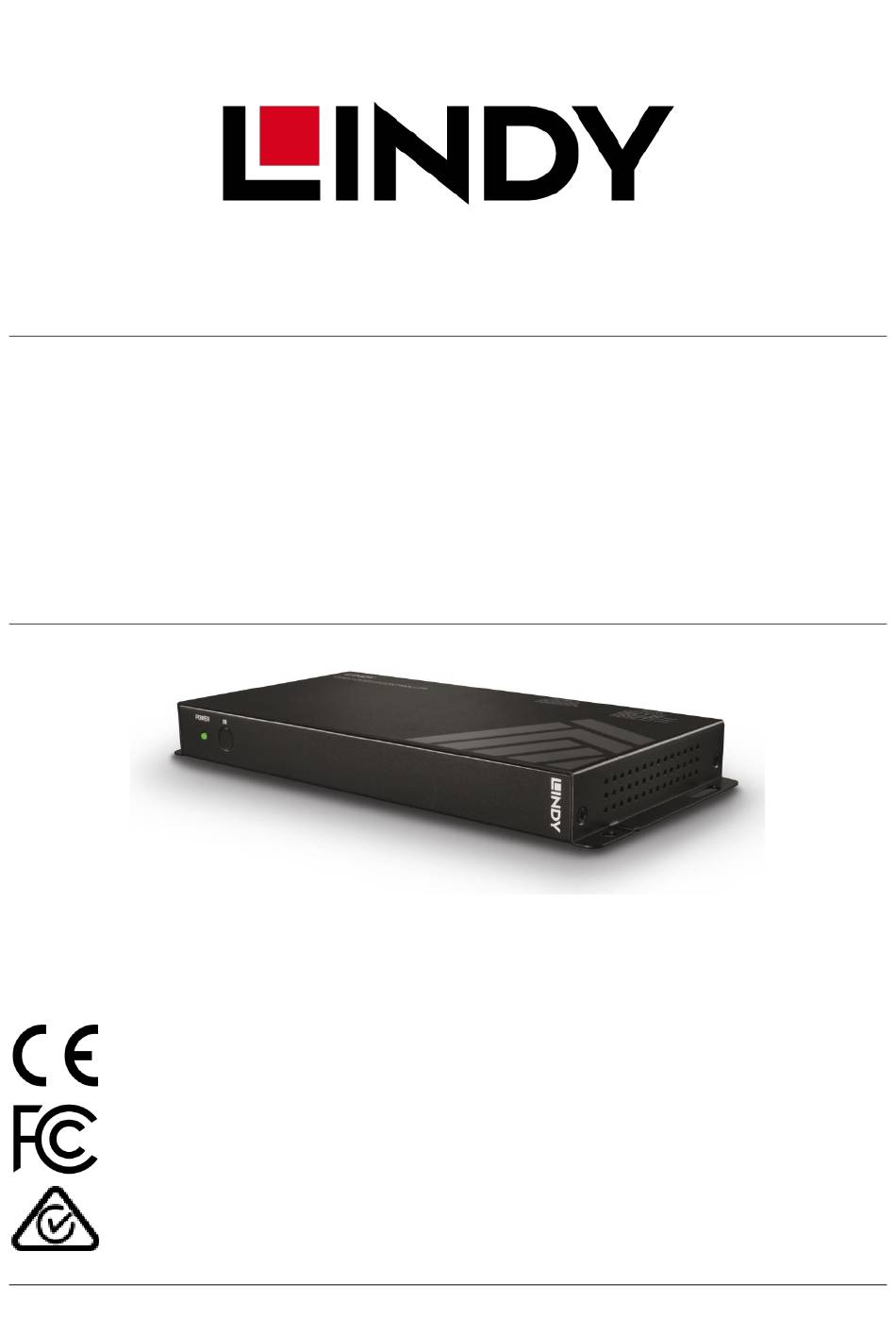

- Page 1 Video Over IP Controller Manual Eng lis h No. 38263 lindy.com Tested to comply with FCC Standards For Commercial Use Only!! © LINDY Group - SECOND EDITION (MARCH 2019)
- Page 2 © LINDY Group - SECOND EDITION (MARCH 2019)
- Page 3 © LINDY Group - SECOND EDITION (MARCH 2019)
-
Page 4: Table Of Contents
Index English …………………………………………………………………………… 1 Introduction …………………………………………………………………………… 1 Package contents …………………………………………………………………………… 1 Features …………………………………………………………………………… 1 Specifications …………………………………………………………………………… 2 Overview FRONT PANEL ………..………………………………………………………………… 2 ..…..………………..…………………………………………………… 2 REAR PANEL ….……………….………………………………………………………… 3 IR EXTENDER IR REMOTE CONTROL ..………….………………………………………………………… 3 …………………………………………………………………………… 3 Installation …………………………………………………………………………… 3 Operation DISCOVERY TOOL …………………………………………………………………………... -
Page 5: Introduction
Thank you for purchasing the Video Over IP Controller. This product has been designed to provide trouble free, reliable operation. It benefits from both a LINDY 2 year warranty and free lifetime technical support. To ensure correct use, please read this manual carefully and retain it for future reference. -
Page 6: Overview
User Manual English Overview Front Panel 1. Power LED – Flashes during power up and stays illuminated whilst the unit is operating. IR Eye – Receives the IR signal from the included IR remote control Rear Panel 1. IR Ext - Connects to the provided IR extender to extend the IR control range of the unit. 2. -
Page 7: Ir Extender
7. Turn on all the connected devices. Now all the connections are made and the system is ready to be configured and distribute the managed signals. Please refer to the full manual published on the product’s page (www.lindy.com) to proceed with a detailed configuration... -
Page 8: Webgui Control Page
User Manual English By clicking on one of the listed devices you will be presented with the network details of that particular device. IP Mode: If you choose, you can alter the static IP network settings for the device, or switch the unit into DHCP mode to automatically obtain proper network settings from a local DHCP server. - Page 9 User Manual English If you are unsure of the unit’s current LAN 2 IP address, please check the unit’s HDMI status display. Monitor & Control Tab This tab provides a graphical representation of all current Transmitters, Receivers and video groups. It also provides a simple way to change video routing by using drag and drop.
- Page 10 User Manual English Preset Recall Tab This tab lists all currently defined Presets and provides a simple way to activate them. To activate a saved Preset, simply click on the appropriately named button. Presets are defined within the Setting tab. This tab is fully functional even when the user is logged out.
- Page 11 User Manual English the 169.254.XXX.XXX range. When a LAN port is set to “DHCP” mode, it will automatically attempt to obtain proper configuration information from the local DHCP server. If no DHCP server is available, or the user wishes to configure the network settings manually, please set the LAN port to “Static IP” mode and enter the information as appropriate for the connected network.
- Page 12 User Manual English • Firmware Upgrade It is possible to update the firmware of this unit as well as to update the firmware of detected Transmitters (No.38266) and Receivers (No.38267). The number of currently detected Transmitters and Receivers is also listed here. To update the unit's firmware, or the firmware of detected Transmitters or Receivers, click the “Choose File”...
- Page 13 User Manual English After all desired Presets have been defined, press the “Finish” button to complete the Setup Wizard and commit all setup changes. All involved units will reboot. Setting Tab This tab allows for the assignment and configuration of routing Presets and Display Groups. Pressing the “Add”...
- Page 14 User Manual English Horizontal (Video Wall): Use the dropdown to define the number of displays in the video wall, measured horizontally. (Maximum is 8 displays.) If this route is not part of a video wall, leave the value at Row (Video Wall): Set the vertical position of the currently selected display. (Counts top to bottom, from 0 to 7.) If this route is not part of a video wall, leave the value at 0.
- Page 15 User Manual English MAC Address: Displays the unit's detected MAC address. Hovering the mouse over the MAC address will display the unit's current firmware revision. Name: The unit’s assigned name can be changed here. Up to 12 alpha-numeric characters are allowed.
- Page 16 User Manual English Receiver Tab This tab provides a way to control the detailed settings of each detected Receiver. After all desired changes have been completed, press the “Apply” button to send the changes to the appropriate Receivers and activate them. After receiving the new settings, each Receiver will reboot. This tab is not available when the user is logged out.
- Page 17 User Manual English IP Mode & IP Settings: The IP mode of each unit may be switched between “Auto IP”, “DHCP” or “Static IP”. When the unit is set to Auto IP mode it will automatically assign itself an APIPA address from the 169.254.XXX.XXX range. When the unit is set to DHCP mode it will attempt to automatically obtain an IP address from a DHCP server.
-
Page 18: Telnet Control
User Manual English TELNET CONTROL Please refer to the following Telnet command list to setup your configuration through an IP or Serial RS- 232 connection. Before attempting to use Telnet control, please ensure that both the unit’s LAN 2 port and the PC/laptop are connected to the same active networks. - Page 19 User Manual English N2 = X.X.X.X [X = 0~255] GET_IP_ADDRESS N1 Show the current IP address of the selected LAN port Available values for N1: [LAN Port 1] [LAN Port 2] SET_NETMASK N1 N2 Set the Ethernet netmask for the selected LAN port Available values for N1: [LAN Port 1]...
- Page 20 User Manual English N2 = 0 ~ 255 [Channel Number] GET_GROUP_MEMBER N1 List all Receivers in Group N1 N1 = 1 ~ 255 [Group Number] INDIVIDUAL SET_CHANNEL N1 N2 Set the Channel for the Tx or Rx at IP VoIP UNIT address N1.
-
Page 21: Rs232 Interfaces Description
User Manual English N1 = X.X.X.X [X = 0 ~ 255, IP of Target Unit] N2 = 0 ~ 15 [Horizontal Position] N3 = 0 ~ 15 [Vertical Position] Note: Cannot exceed the dimensions defined by VW_LAYOUT GET_VW_POS N1 Show the horizontal and vertical position of the Rx at IP address N1 within the defined video wall. - Page 22 LINDY Herstellergarantie – Hinweis für Kunden in Deutschland LINDY gewährt für dieses Produkt über die gesetzliche Regelung in Deutschland hinaus eine zweijährige Hersteller- garantie ab Kaufdatum. Die detaillierten Bedingungen dieser Garantie finden Sie auf der LINDY Website aufgelistet bei den AGBs.
- Page 23 Geräte müssen den Sammel- und Rückgabesystemen zugeführt werden! Dort werden sie kostenlos entgegen genommen. Die Kosten für den weiteren Recyclingprozess übernehmen die Gerätehersteller. LINDY bietet deutschen Endverbrauchern ein kostenloses Rücknahmesystem an, beachten Sie bitte, dass Batterien und Akkus den Produkten vor der Rückgabe an das Rücknahmesystem entnommen werden müssen und über die Sammel- und Rückgabesysteme für Batterien separat entsorgt werden müssen.
