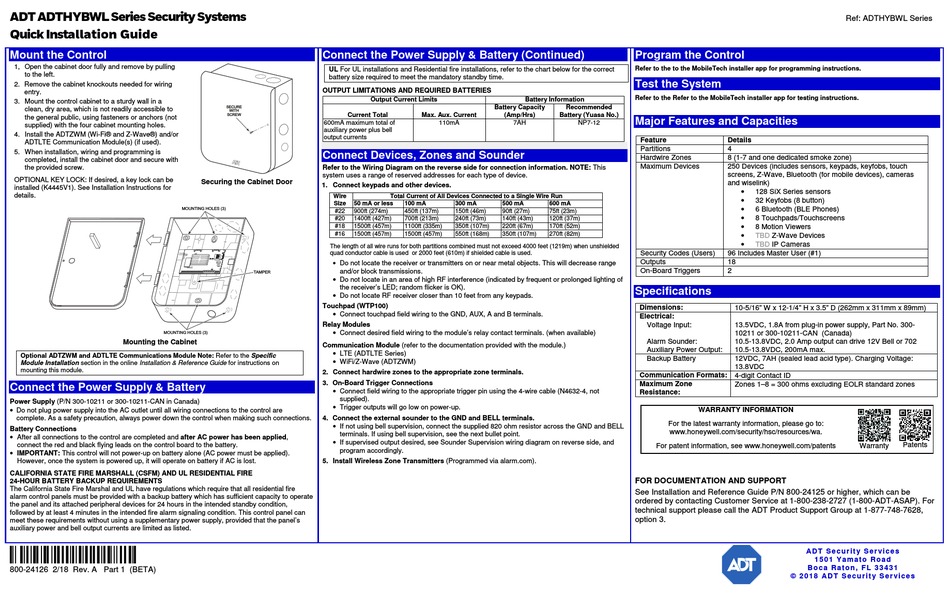

ADT ADTHYBWL Series Quick Installation Manual

ADT ADTHYBWL Series Security Systems

Quick Installation Guide

Mount the Control
1, Open the cabinet door fully and remove by pulling
to the left.
2. Remove the cabinet knockouts needed for wiring
entry.
3. Mount the control cabinet to a sturdy wall in a
clean, dry area, which is not readily accessible to
the general public, using fasteners or anchors (not
supplied) with the four cabinet mounting holes.
4. Install the ADTZWM (Wi-Fi® and Z-Wave®) and/or
ADTLTE Communication Module(s) (if used).
5. When installation, wiring and programming is
completed, install the cabinet door and secure with
the provided screw.
OPTIONAL KEY LOCK: If desired, a key lock can be
installed (K4445V1). See Installation Instructions for
details.
MOUNTING HOLES (3)
MOUNTING HOLES (3)
Mounting the Cabinet
Optional ADTZWM and ADTLTE Communications Module Note: Refer to the Specific
Module Installation section in the online Installation & Reference Guide for instructions on
mounting this module.
Connect the Power Supply & Battery
Power Supply (P/N 300-10211 or 300-10211-CAN in Canada)
• Do not plug power supply into the AC outlet until all wiring connections to the control are
complete. As a safety precaution, always power down the control when making such connections.
Battery Connections
• After all connections to the control are completed and after AC power has been applied,
connect the red and black flying leads on the control board to the battery.
• IMPORTANT: This control will not power-up on battery alone (AC power must be applied).
However, once the system is powered up, it will operate on battery if AC is lost.
CALIFORNIA STATE FIRE MARSHALL (CSFM) AND UL RESIDENTIAL FIRE
24-HOUR BATTERY BACKUP REQUIREMENTS
The California State Fire Marshal and UL have regulations which require that all residential fire
alarm control panels must be provided with a backup battery which has sufficient capacity to operate
the panel and its attached peripheral devices for 24 hours in the intended standby condition,
followed by at least 4 minutes in the intended fire alarm signaling condition. This control panel can
meet these requirements without using a supplementary power supply, provided that the panel's
auxiliary power and bell output currents are limited as listed.
Ê800-24126$Š
800-24126 2/18 Rev. A Part 1 (BETA)
Connect the Power Supply & Battery (Continued)
UL For UL installations and Residential fire installations, refer to the chart below for the correct
battery size required to meet the mandatory standby time.
OUTPUT LIMITATIONS AND REQUIRED BATTERIES
SECURE
WITH
Current Total
SCREW
600mA maximum total of
auxiliary power plus bell
output currents
Connect Devices, Zones and Sounder
Refer to the Wiring Diagram on the reverse side for connection information. NOTE: This
system uses a range of reserved addresses for each type of device.
Securing the Cabinet Door
1. Connect keypads and other devices.
Wire
Size 50 mA or less
#22 900ft (274m)
#20 1400ft (427m)
#18 1500ft (457m)
#16 1500ft (457m)
The length of all wire runs for both partitions combined must not exceed 4000 feet (1219m) when unshielded
LTE WiFi quad conductor cable is used or 2000 feet (610m) if shielded cable is used.
TX RX GND
Do not locate the receiver or transmitters on or near metal objects. This will decrease range
•
TX RX GND BATT+ GND
and/or block transmissions.
TAMPER
• Do not locate in an area of high RF interference (indicated by frequent or prolonged lighting of
the receiver's LED; random flicker is OK).
• Do not locate RF receiver closer than 10 feet from any keypads.
Touchpad (WTP100)
• Connect touchpad field wiring to the GND, AUX, A and B terminals.
Relay Modules
• Connect desired field wiring to the module's relay contact terminals. (when available)
Communication Module (refer to the documentation provided with the module.)
• LTE (ADTLTE Series)
• WiFi/Z-Wave (ADTZWM)
2. Connect hardwire zones to the appropriate zone terminals.
3. On-Board Trigger Connections
• Connect field wiring to the appropriate trigger pin using the 4-wire cable (N4632-4, not
supplied).
• Trigger outputs will go low on power-up.
4. Connect the external sounder to the GND and BELL terminals.
• If not using bell supervision, connect the supplied 820 ohm resistor across the GND and BELL
terminals. If using bell supervision, see the next bullet point.
• If supervised output desired, see Sounder Supervision wiring diagram on reverse side, and
program accordingly.
5. Install Wireless Zone Transmitters (Programmed via alarm.com).
Output Current Limits Battery Information
Battery Capacity
Max. Aux. Current (Amp/Hrs)
110mA 7AH
Total Current of All Devices Connected to a Single Wire Run
100 mA 300 mA 500 mA
450ft (137m) 150ft (46m) 90ft (27m)
700ft (213m) 240ft (73m) 140ft (43m)
1100ft (335m) 350ft (107m) 220ft (67m)
1500ft (457m) 550ft (168m) 350ft (107m)
Program the Control
Refer to the to the MobileTech installer app for programming instructions.
Test the System
Refer to the Refer to the MobileTech installer app for testing instructions.
Recommended
Battery (Yuasa No.)
Major Features and Capacities
NP7-12
Feature Details
Partitions 4
Hardwire Zones 8 (1-7 and one dedicated smoke zone)
Maximum Devices 250 Devices (includes sensors, keypads, keyfobs, touch
screens, Z-Wave, Bluetooth (for mobile devices), cameras
and wiselink)
600 mA
75ft (23m)
120ft (37m)
170ft (52m)
270ft (82m)
Security Codes (Users) 96 Includes Master User (#1)
Outputs 18
On-Board Triggers 2
Specifications
Dimensions:
Electrical:
Voltage Input:
Alarm Sounder:
Auxiliary Power Output:
Backup Battery
Communication Formats: 4-digit Contact ID
Maximum Zone
Resistance:
WARRANTY INFORMATION
For the latest warranty information, please go to:
www.honeywell.com/security/hsc/resources/wa.
For patent information, see www.honeywell.com/patents
FOR DOCUMENTATION AND SUPPORT
See Installation and Reference Guide P/N 800-24125 or higher, which can be
ordered by contacting Customer Service at 1-800-238-2727 (1-800-ADT-ASAP). For
technical support please call the ADT Product Support Group at 1-877-748-7628,
option 3.
Ref: ADTHYBWL Series
128 SiX Series sensors
•
32 Keyfobs (8 button)
•
6 Bluetooth (BLE Phones)
•
8 Touchpads/Touchscreens
•
8 Motion Viewers
•
TBD Z-Wave Devices
•
TBD IP Cameras
•
10-5/16" W x 12-1/4" H x 3.5" D (262mm x 311mm x 89mm)
13.5VDC, 1.8A from plug-in power supply, Part No. 300-
10211 or 300-10211-CAN (Canada)
10.5-13.8VDC, 2.0 Amp output can drive 12V Bell or 702
10.5-13.8VDC, 200mA max.
12VDC, 7AH (sealed lead acid type). Charging Voltage:
13.8VDC
Zones 1–8 = 300 ohms excluding EOLR standard zones
Patents
