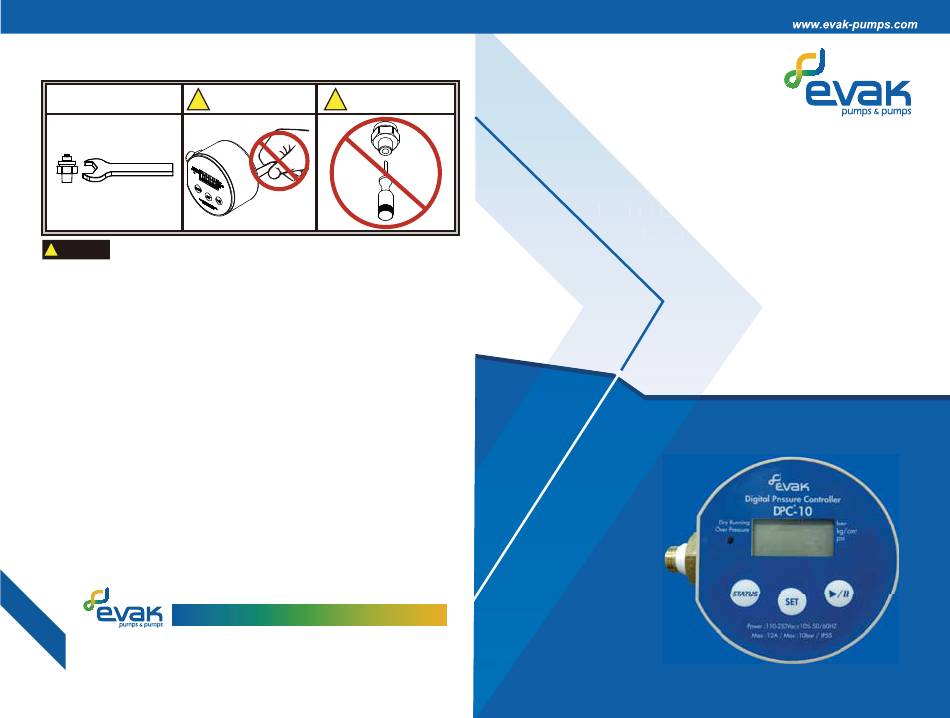

11.Warning
Assemble tool
!
Do not pull the cable
WARNING
!
Wire conductors must not be exposed to avoid any shortage from the conductor end.
EVAK PUMP TECHNOLOGY CORP.
No. 551, Zhongshan Rd., Qingshui Dist., Taichung City 436, Taiwan.
TEL: +886-4-26233556 Fax: +886-4-26235559
Vol.PMDPC-18091-1.2R2-2IN2OUT
!
Do not poke the port

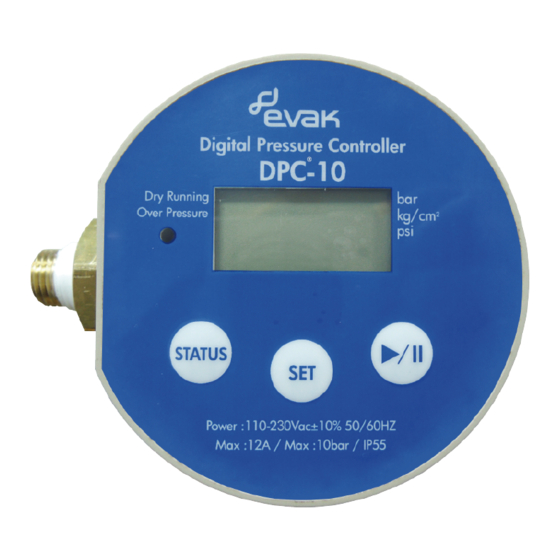

DPC-10
Water
Pu
u
m
m
p Digital Pressure Controller
Installa lation and Operation Manual
www.evak-pumps.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Evak DPC-10
Summary of Contents for Evak DPC-10
- Page 1 Digital Pressure Controller Installa lation and Operation Manual WARNING Wire conductors must not be exposed to avoid any shortage from the conductor end. EVAK PUMP TECHNOLOGY CORP. No. 551, Zhongshan Rd., Qingshui Dist., Taichung City 436, Taiwan. TEL: +886-4-26233556 Fax: +886-4-26235559 Vol.PMDPC-18091-1.2R2-2IN2OUT...
-
Page 2: Technical Data
1.DPC-10 Panel introduction Digital Pressure Controller Model Number DPC-10 Dry Running Pressure Unit kg/cm Over Pressure LED Light LCD Display Button Technical Data Power :110-230Vac±10% 50/60HZ Max :12A / Max :10bar / IP55 2.Technical data » Supply voltage: 110~230Vac ± 10% 50/60HZ Maximum ambient temperature: +40℃... -
Page 3: Wiring Diagram
If connecting to a pump driven by 3ph/380V pump (Please note the power voltage must not exceed 400V.), the blue wire must not Black Gray connect to R or S wire, otherwise the DPC-10 controller will be burned out. 4.Button Function Introduction 1 phase PUMP Button Icon... - Page 4 5.The status of LED lights “ ” (Short press once to enter Basic Setting Mode) Item Light Message indication Pump status Setting procedure : Max. pressure → Min. start pressure → Time-Delay Control loop off from the system Pump off Green Control loop is loaded into the system Pump standby...
- Page 5 “ ” Hold down for 3 seconds (Advanced setting Mode) Item Parameters Display Default Data Item Parameters Display Default Data Description Description Range Range Code Unit Code Unit a.Select to modify automatic re-start time, a.Select to switch the Unit of working press the left or right button to adjust the pressure, press the right button to change value, after finishing the setting, press the SET...
- Page 6 9.The current operating parameters display Item Parameters Display Default Data Description Range Code Unit a.Select to restore default value settings a-1. Press once to browse original pressure value (dF-y), press the right button and adjust the parameter value from dF-n to dF-y. 1).Max.
- Page 7 a-2. Long Press for 6 seconds to Lock/Unlock the SET button b. Press once to enter basic setting 1).Max. pressure setting (high pressure) (Show code P-max) 1).Lock the SET button after long press for 6 seconds (Show code Press to adjust the value upward Press to adjust the value downward ↓...
- Page 8 3).Time-Delay setting after reaching the Max. Pressure 5).After finishing above setting, 3 seconds later will return to the current pressure status display automatically. (Show code Delay) Press to adjust the value upward Press to adjust the value downward ↓ Press once c.
- Page 9 2).Detection time setting of water shortage 4).Time setting of automatic re-start running after warning shutdown (Show code P-Dry & sec) (Dry running or Over pressure) (α value) (Show code Auto reset) Press Press to adjust the value upward to adjust the value upward Press Press to adjust the value downward...
-
Page 10: Fault Display
10.Fault Display 6).Restore to default value setting or not » To restore default value settings (show code dF-y) a).EEEE When the pressure controller displays "EEEE" the pressure sensor has failed. b).FFFF Press to adjust the value to dF-y Press once and restore to default value (Show code ----) When the pressure controller »...
