ecordInG

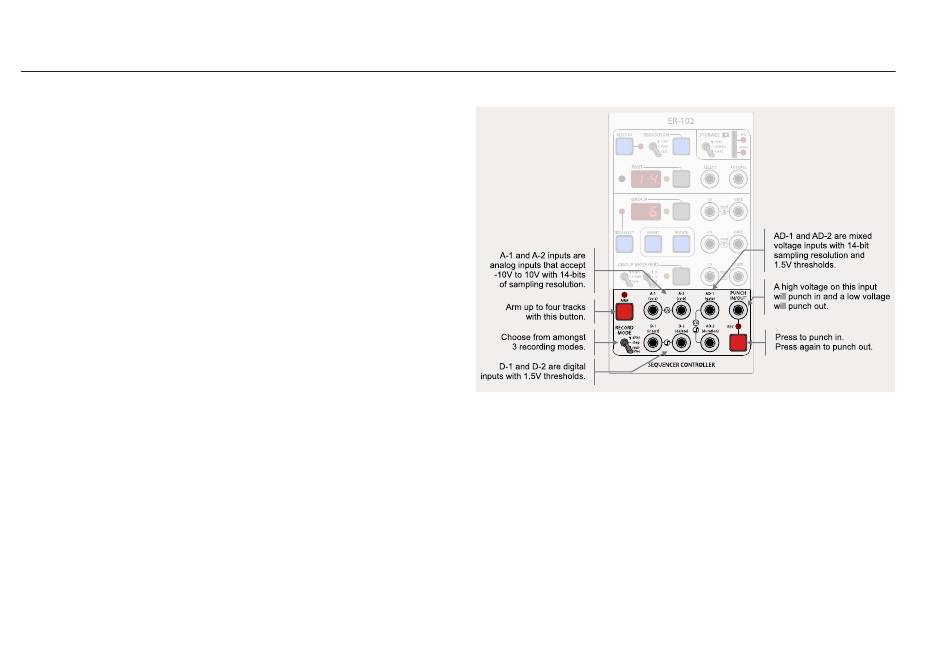

The lower section of the ER-102 is dedicated to recording and remote control of the
ER-102 editing functions. In addition to the PUNCH IN/OUT gate input, there are 6
multi-purpose inputs:
A-1 and A-2: analog inputs that accept -10V to 10V
D-1 and D-2: digital inputs with a trigger threshold of 1.5V.
AD-1 and AD-2: can be used either as analog or digital inputs.
The role of each of these inputs depends on the record mode.
The ARM button and the PUNCH IN/OUT section are common to all of the recording
modes. Recording is enabled for one or more tracks by toggling the ARM button
while the desired track is focused. A track is armed when the ARM LED is lit. Assum-
ing the ER-101 is not paused, actual recording begins when you punch in via the
PUNCH IN/OUT button, or, via a high gate signal on the PUNCH IN/OUT gate input.
Recording stops again when you press the PUNCH IN/OUT button again, or, when
the PUNCH IN/OUT gate goes low. The ER-102 is actively recording when the REC
LED is lit.
