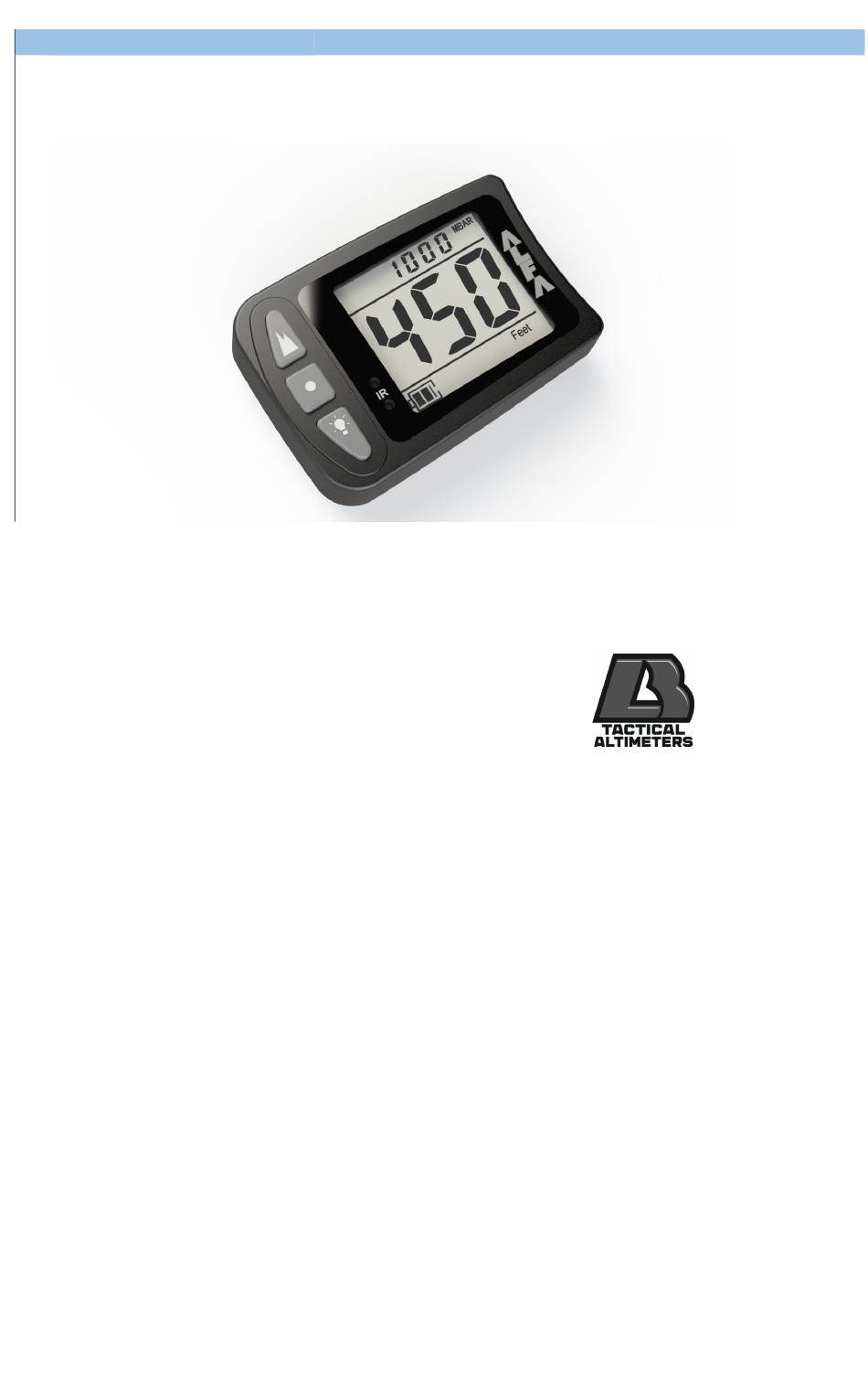

ALFA MANUAL
ALFA is a trademark of LB Altimeters, Denmark
LB Altimeters operates a policy of continuous development
Therefore, we reserve the right to make changes and improvements to any of the
products described in this guide without prior notice
WARNING
The ALFA is intended to be a backup device and must not be relied upon as your primary means of maintaining altitude awareness. Use the ALFA at your own risk
Altimeters may give erroneous readings if you are tumbling or the altimeter is in a burble (wake). Chest mount altimeters are more vulnerable to this problem
compared to hand/wrist mounted altimeters. If you are in doubt about how this limitation affects your skydiving, consult a licensed instructor
DO NOT use this equipment unless you are currently participating in, or have successfully passed, an approved skydiving course
Please read ALL instructions carefully prior to use
The ALFA must be switched ON prior to entering the airplane
ALFA - Rev. 1.15
Page 1 of 18
www.LBAltimeters.com
L B A ltim e te rs
Advertisement
Table of Contents
Related Manuals for LB Altimeters ALFA
Summary of Contents for LB Altimeters ALFA
- Page 1 WARNING The ALFA is intended to be a backup device and must not be relied upon as your primary means of maintaining altitude awareness. Use the ALFA at your own risk Altimeters may give erroneous readings if you are tumbling or the altimeter is in a burble (wake). Chest mount altimeters are more vulnerable to this problem compared to hand/wrist mounted altimeters.
-
Page 2: Table Of Contents
Automatic Calibration / Flight Mode ..............................13 Altitute Offset ....................................13 Manual Zeroing ....................................13 Automatic OFF ....................................13 MAINTENANCE ....................................14 Reset ALFA ..................................... 14 Battery Change ....................................14 Air Filter Change ..................................... 14 Trouble Shooting .................................... 14 SPECIFICATIONS ....................................15 WARRANTY ...................................... -
Page 3: Introduction
INTRODUCTION The ALFA is the most high-end, accurate, and reliable visual digital altimeter to be developed by LB Altimeters to date. The ALFA software includes second-to-none error correction to ensure correct live altitude readings in any application F e a tu re s... -
Page 4: Altitude Window
Empty: The battery symbol is flashing. Do not continue jumping. Replace batteries immediately Warning: Do not perform night jumps, or jumps in sub-zero temperatures (Celsius) when the battery symbol shows low capacity ALFA - Rev. 1.15 Page 4 of 18... -
Page 5: Menu Overview
MENU OVERVIEW The ALFA menu system consists of 3 separate areas, which include the following (use road map for reference) Q u ic k B u tto n s L o g b o o k a n d J u m p In fo... -
Page 6: Quick Buttons
T u rn O N u n it Turn ON ALFA on the ground before use. The unit runs a self-test and calibrates to the current ground level The ALFA will stay turned ON for 14 hours after the last jump or after last ACCESS performed... -
Page 7: Backlight
ALFA stores the last setting Press to continue Backlight will turn OFF automatically after 30 seconds, if ALFA is not in Flight Mode Backlight will remain ON while ALFA is in Flight Mode ALFA - Rev. 1.15 Page 7 of 18... -
Page 8: Logbook And Jump Info
F re e fa ll Tim e Displays freefall time registered for selected jump Press to select next jump Press to select previous jump Selected jump number is shown at the top of the screen Press to continue ALFA - Rev. 1.15 Page 8 of 18... -
Page 9: Average Freefall Speed
E x it L o g b o o k a n d J u m p In fo is flashing Allows manual exit from menu Press to exit from menu Press to start from the beginning ALFA - Rev. 1.15 Page 9 of 18... -
Page 10: Settings
Sets current date Press to select next date Press to select previous date To change month: Scroll DAY until reaching 31 or 1, then ALFA will scroll MONTH up/down Press to continue T im e Sets current time in 24-hour format Press... -
Page 11: Units - Altitude
WARNING: If the counter is set at ‘19’, cannot be used to scroll through settings and will delete the entire logbook. Once deleted, the logbook data is lost Press to continue ALFA - Rev. 1.15 Page 11 of 18... -
Page 12: Turn Off
T u rn O F F Turns ALFA OFF To avoid unintentionally turning the ALFA OFF, the counter at the top of the screen must be set to ‘5’ Press to match counter to ‘5’ Press to accept deletion of last jump Warning: If the counter is set at ‘5’,... -
Page 13: Functionality
A u to m a tic C a lib ra tio n / F lig h t M o d e After the ALFA is turned ON, it will continue to automatically calibrate itself to the field elevation where it is currently located. This will continue after each jump / landing, to ensure the unit is always zeroed before jumps are made and will take into account weather related pressure changes. -
Page 14: Maintenance
The ALFA is waterproof to a depth of 5 feet, for 24 hours If the ALFA is submerged into water, allow the unit and air filter to dry in a warm place for 48 hours The air filter must be replaced if jumping is to be resumed immediately, or if the air filter is suspected to be contaminated... -
Page 15: Specifications
5 feet for 24 hours Function Period: 14 hours Maintenance: 4, 8 and 12 years, from date of manufacture Battery type: 2 x Renata CR 2325 L&B part no.: 285828 NATO Stock no. 6675-22-630-2342 ALFA - Rev. 1.15 Page 15 of 18... -
Page 16: Warranty
The following conditions apply to the ALFA warranty: If within 12 months of the purchase of ALFA a defect or damage is identified by faulty manufacture, LB ALTIMETERS will repair the unit at no cost to the end user To make a claim under this warranty, send the unit to an authorized dealer or directly to LB ALTIMETERS together with the dated purchase invoice or receipt. -
Page 17: Quick Start & Road Map
Press and release Press Release Logbook and Jump -------- hold button down------- Info window Performing ACCESS to Settings Press Release Perform ACCESS to Settings --- hold for 5 seconds--- Logbook and Jump Info Window ALFA - Rev. 1.15 Page 17 of 18... - Page 18 Exit Press Last Jump Altitude Press to change settings for information Delete Jump Last Counter Maximum Jump Opening Freefall Altitude Speed Dive Altitude Average Freefall Type Units Freefall Speed Time Speed Units ALFA - Rev. 1.15 Page 18 of 18...
