Apogee DDX-2050 Manual

All-digital high efficiency power amplifier

Advertisement

Quick Links

FEATURES
HIGH OUTPUT CAPABILITY
2 x 30W into 8Ω or 1 x 60W into 4 Ω
@ <1% THD
SINGLE SUPPLY (+9V to +30V)
COMPACT SURFACE MOUNT PACKAGE
HIGH EFFICIENCY, >88%
THERMAL OVERLOAD AND SHORT
CIRCUIT PROTECTION
BENEFITS
COMPLETE SURFACE MOUNT DESIGN
POWER SUPPLY SAVINGS
APPLICATIONS
DIGITAL POWERED SPEAKERS
PC SOUND CARDS
CAR AUDIO
SURROUND SOUND SYSTEMS
DIGITAL AUDIO COMPONENTS
INLA
BIAS
CONFIG
PWRDN
FAULT
TRISTATE
TWARN
GNDREF
INLB
INRA
VSIG
VREG2
VREG2
VREG1
VREG1
GNDR1
INRB
129 Morgan Drive, Norwood, MA 02062
CONTROLLED DOCUMENT:
All-Digital High Efficiency Power Amplifier
PROTECTION
AND
DRIVER
LOGIC
REGULATORS

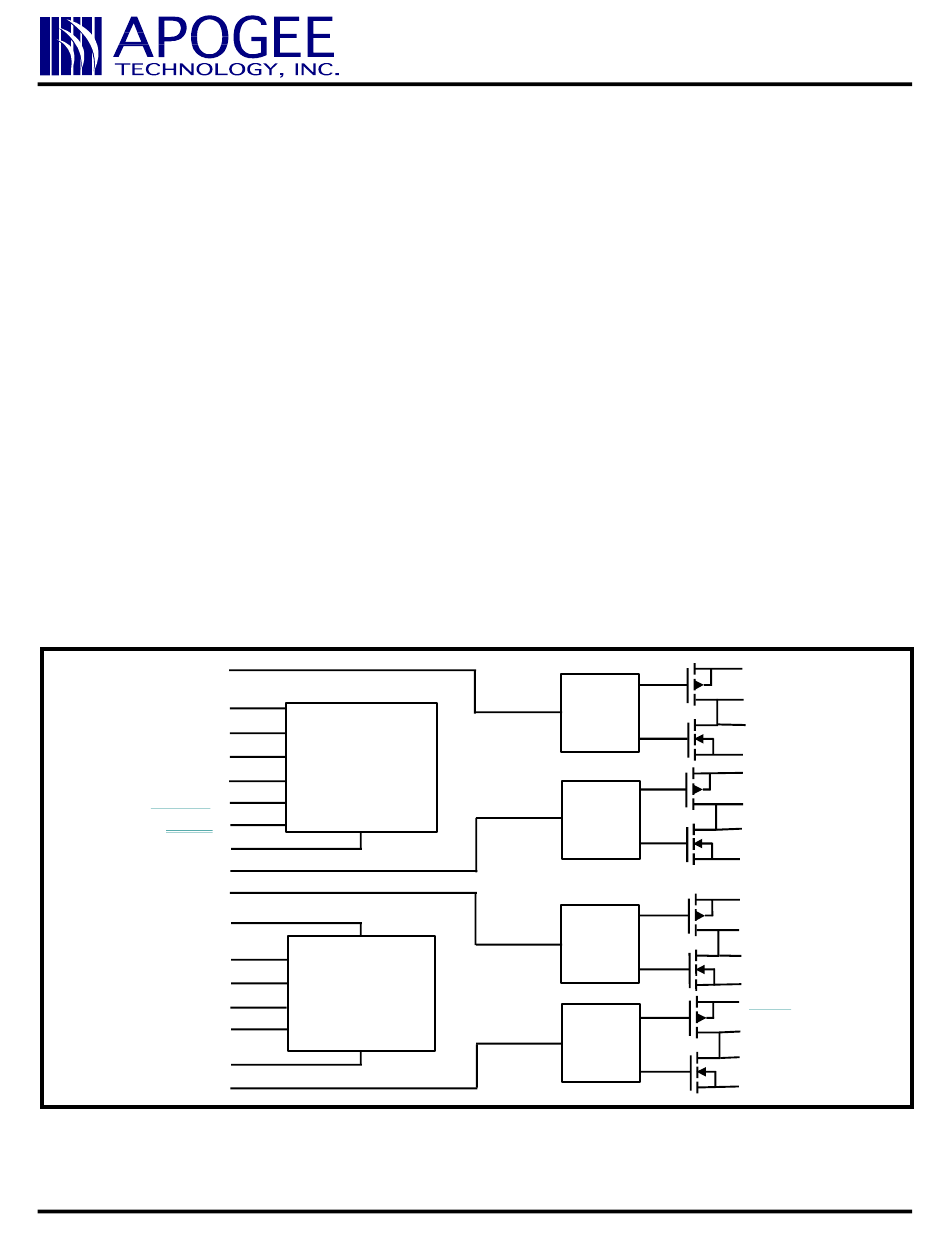

Figure 1. Block Diagram
Specifications are subject to change without notice.
voice: (781) 551-9450
DRN: PRELIMINARY
GENERAL DESCRIPTION
The DDX-2050 power device is a monolithic dual
channel H-Bridge that can provide up to 30 watts
per channel of audio power at very high
efficiency.
The DDX-2050 power device
contains a logic interface, integrated bridge
drivers,
high
efficiency
transistors and protection circuitry. The device
may be used as a dual bridge or reconfigured as
a single bridge with double the output current
capability.
The benefits of the DDX amplification system are
an all-digital design that eliminates the need for a
digital to analog converter (DAC) and the high
efficiency operation derived from the use of
Apogee's patented damped ternary pulse width
modulation (PWM). This approach provides an
efficiency advantage over conventional Class-D
designs and up to three times the efficiency of
typical Class A/B amplifiers with music input
signals.
FET
DRIVE
FET
DRIVE
FET
DRIVE
FET
DRIVE
fax: (781) 440-9528
DDX-2050
MOSFET
output
VCC1P
OUTPL
OUTPL
PGND1P
VCC1N
OUTNL
OUTNL
PGND1N
VCC2P
OUTPR
OUTPR
PGND2P
VCC2N
OUTNR
OUTNR
PGND2N
email: apogee@apogeeddx.com
Page 1 of 13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DDX-2050 and is the answer not in the manual?

Questions and answers

Summary of Contents for Apogee DDX-2050

  • Page 1 All-Digital High Efficiency Power Amplifier FEATURES GENERAL DESCRIPTION • The DDX-2050 power device is a monolithic dual HIGH OUTPUT CAPABILITY channel H-Bridge that can provide up to 30 watts • 2 x 30W into 8Ω or 1 x 60W into 4 Ω...
  • Page 2 TRISTATE pins = 5.0V 0.85 PRELIMINARY Specifications are subject to change without notice. PRELIMINARY 129 Morgan Drive, Norwood, MA 02062 voice: (781) 551-9450 fax: (781) 440-9528 email: apogee@apogeeddx.com CONTROLLED DOCUMENT: P_903-000030_Rev00 Data Sheet, DDX-2050.doc DRN: PRELIMINARY Page 2 of 13...
  • Page 3: Table Of Contents

    Minimum output pulse width No load Note 4: Characteristics are for the DDX-2050 power device driven by either the DDX-2000 or DDX-4100(A) processor. Note 5: Characteristics are for the DDX-2050 power device driven by DDX-8000 processor. Logic Truth Table...
  • Page 4: Pin Name Pin No

    Substrate ground. GNDR1 Internal regulator ground. PRELIMINARY Specifications are subject to change without notice. PRELIMINARY 129 Morgan Drive, Norwood, MA 02062 voice: (781) 551-9450 fax: (781) 440-9528 email: apogee@apogeeddx.com CONTROLLED DOCUMENT: P_903-000030_Rev00 Data Sheet, DDX-2050.doc DRN: PRELIMINARY Page 4 of 13...
  • Page 5 Power Supply Voltage for 4, 6, and 8 Ohm loads. Output power is constrained for higher impedance loads by the over-voltage protection limit of the DDX-2050 IC and by the over-current protection limit for lower impedance loads. The minimum threshold for the over-current protection circuit is 3.0A (at 25 ºC) but the typical threshold is 5A.
  • Page 6 Solid curves depict the worst case minimum and dashed curves depict typical performance. PRELIMINARY Specifications are subject to change without notice. PRELIMINARY 129 Morgan Drive, Norwood, MA 02062 voice: (781) 551-9450 fax: (781) 440-9528 email: apogee@apogeeddx.com CONTROLLED DOCUMENT: P_903-000030_Rev00 Data Sheet, DDX-2050.doc DRN: PRELIMINARY Page 6 of 13...
  • Page 7: Inla

    Figure 5. Mono Audio Application Circuit PRELIMINARY Specifications are subject to change without notice. PRELIMINARY 129 Morgan Drive, Norwood, MA 02062 voice: (781) 551-9450 fax: (781) 440-9528 email: apogee@apogeeddx.com CONTROLLED DOCUMENT: P_903-000030_Rev00 Data Sheet, DDX-2050.doc DRN: PRELIMINARY Page 7 of 13...
  • Page 8 DDX-2050 Figure 6. Silkscreen Layer PRELIMINARY Specifications are subject to change without notice. PRELIMINARY 129 Morgan Drive, Norwood, MA 02062 voice: (781) 551-9450 fax: (781) 440-9528 email: apogee@apogeeddx.com CONTROLLED DOCUMENT: P_903-000030_Rev00 Data Sheet, DDX-2050.doc DRN: PRELIMINARY Page 8 of 13...
  • Page 9 Figure 8. P. C. Board, Bottom (Solder Side) PRELIMINARY Specifications are subject to change without notice. PRELIMINARY 129 Morgan Drive, Norwood, MA 02062 voice: (781) 551-9450 fax: (781) 440-9528 email: apogee@apogeeddx.com CONTROLLED DOCUMENT: P_903-000030_Rev00 Data Sheet, DDX-2050.doc DRN: PRELIMINARY Page 9 of 13...
  • Page 10 Figure 9. Drill Diagram Figure 10. Solder Mask PRELIMINARY Specifications are subject to change without notice. PRELIMINARY 129 Morgan Drive, Norwood, MA 02062 voice: (781) 551-9450 fax: (781) 440-9528 email: apogee@apogeeddx.com CONTROLLED DOCUMENT: P_903-000030_Rev00 Data Sheet, DDX-2050.doc DRN: PRELIMINARY Page 10 of 13...
  • Page 11: Twarn [Note 6]

    DDX-2050 POWER DEVICE signal acts to immediately disable the output The DDX-2050 Power Device is a dual channel power MOSFETs, placing both H-bridges in a H-Bridge that can deliver over 30 watts per high impedance state.
  • Page 12 For additional thermal design considerations, http://www.apogeeddx.com/DDX_Themal_Cons iderations.PDF PRELIMINARY Specifications are subject to change without notice. PRELIMINARY 129 Morgan Drive, Norwood, MA 02062 voice: (781) 551-9450 fax: (781) 440-9528 email: apogee@apogeeddx.com CONTROLLED DOCUMENT: P_903-000030_Rev00 Data Sheet, DDX-2050.doc DRN: PRELIMINARY Page 12 of 13...
  • Page 13 - Critical dimensions are "a3", "E" and "G". Information furnished in this publication is believed to be accurate and reliable. However, Apogee Technology, Inc. assumes no responsibility for its use, or for any infringements of patents or other rights of third parties that may result form its use. Specifications in this publication are subject to change without notice.
