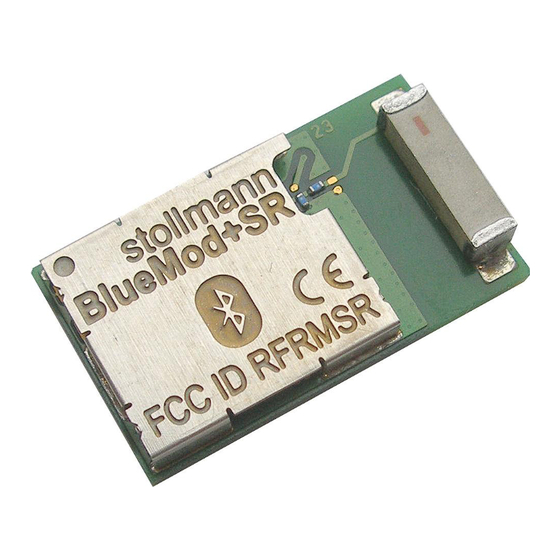

Summary of Contents for Stollmann BlueMod+SR/AP

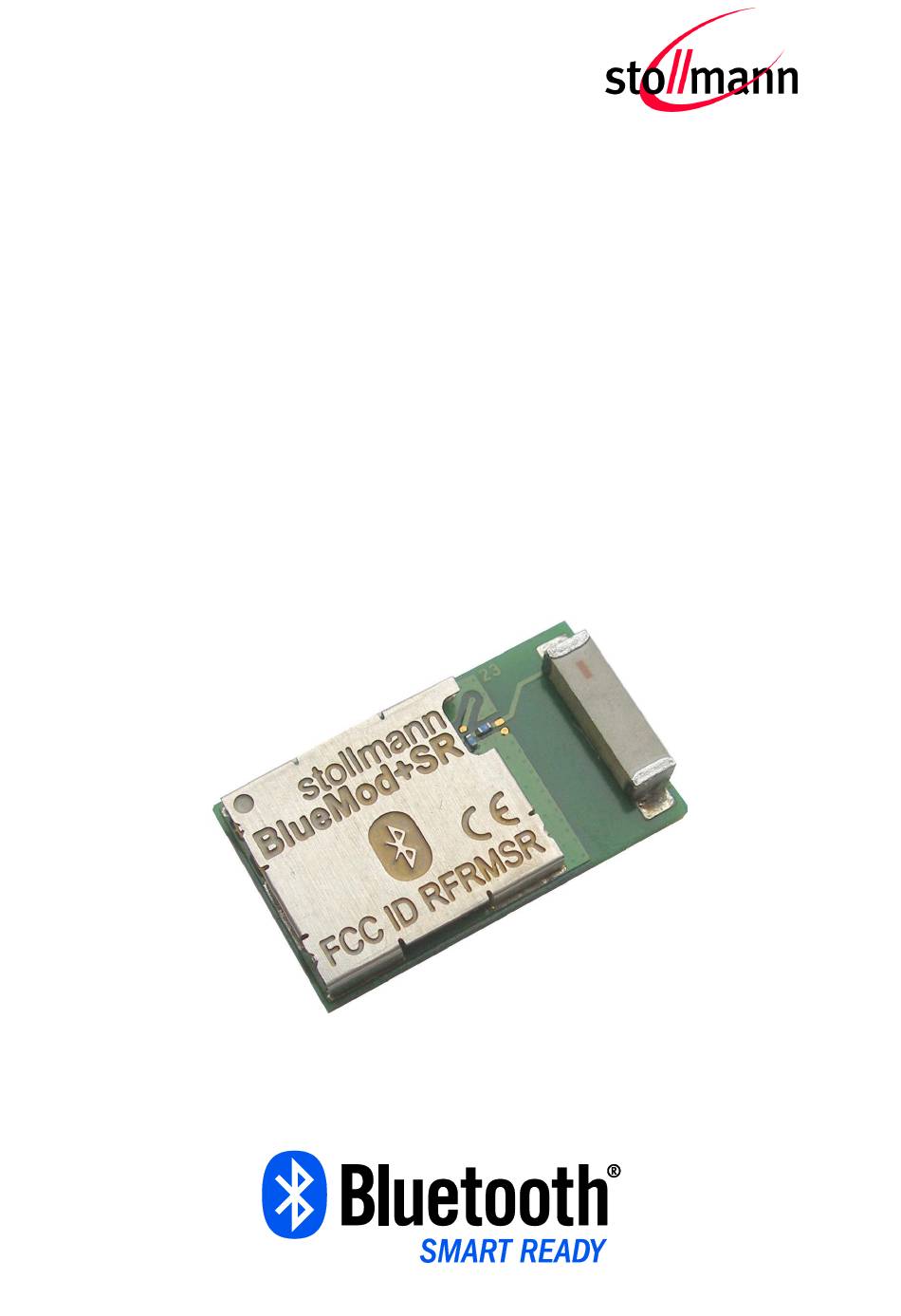

- Page 1 BlueMod+SR/AI BlueMod+SR/AP Hardware Reference Release r09...
- Page 2 ® The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Stollmann E+V GmbH is under license. Other trademarks and trade names are those of their respective owners. Release r09 www.stollmann.de...
-
Page 3: Table Of Contents
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference Table of contents Introduction ..........................8 Feature Summary ......................8 Applications ........................9 1.2.1 General Cable Replacement ..................9 1.2.2 Industry ........................9 1.2.3 Automotive ......................... 9 1.2.4 Healthcare and Medical ..................... 9 1.2.5 Sports and Fitness ....................10 1.2.6... - Page 4 BlueMod+SR/AI BlueMod+SR/AP Hardware Reference Pin Numbering ........................ 25 Pin Description........................ 26 4.2.1 General Pin Description ................... 26 4.2.2 Application Specific Pin Description ................. 27 4.2.2.1 SPP Pin Configuration ..................27 Handling of Unused Signals .................... 28 Electrical Characteristics ......................29 Absolute Maximum Ratings ....................
- Page 5 BlueMod+SR/AI BlueMod+SR/AP Hardware Reference Cleaning ......................... 53 Application Diagram ....................... 54 Approvals/Certifications ......................55 Declaration of Conformity CE ..................55 FCC Compliance ......................55 8.2.1 FCC Grant ....................... 56 8.2.2 FCC Statement ......................58 8.2.3 FCC Caution ......................58 8.2.4 FCC Warning ......................
- Page 6 Figure 13: Typical Antenna Radiation Pattern at 2441MHz ............47 Figure 14: Typical Antenna Radiation Pattern at 2480MHz ............47 Figure 15: BlueMod+SR/AI dimensions..................49 Figure 16: BlueMod+SR/AP dimensions ..................49 Figure 17: BlueMod+SR Land Pattern ..................50 Figure 18: Soldering Temperature-Time Profile (For Reflow Soldering) ........51 Figure 19: BlueMod+SR/AI Placement Recommendation .............
- Page 7 BlueMod+SR/AI BlueMod+SR/AP Hardware Reference Table 7: Electrical Requirements ....................29 Table 8: DC Operating Conditions ....................29 Table 9: Environmental Requirements ..................30 Table 10: DC Characteristics, Digital IO (STM32-related) ............. 31 Table 11: DC Characteristics, SLCK (STM32 Backup Domain) ............. 31 Table 12: DC Characteristics, Digital IO (CSR8811 Related) ............
-
Page 8: Introduction
This Hardware Reference documents how the BlueMod+SR/AI and BlueMod+SR/AP can be integrated into customer systems. It addresses hardware specifications of the BlueMod+SR/AI and /AP and requirements of the hardware environments for the BlueMod+SR/AI and BlueMod+SR/AP. Notation: The term BlueMod+SR refers to both the BlueMod+SR/AI and the BlueMod+SR/AP. -
Page 9: Applications
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 1.2 Applications The BlueMod+SR can be used in different applications. Regardless if the application requires high throughput or low energy consumption, BlueMod+SR offers the best of both worlds. Some typical applications are described in this chapter. -
Page 10: Sports And Fitness
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 1.2.5 Sports and Fitness In the sports and fitness segment Bluetooth is used in devices for positioning as well as monitoring vital data. Typical devices in this market are heart rate monitors, body temperature thermometers, pedometers, cadence meters, altimeter, positioning / GPS tracking and watches displaying information from sensors. -
Page 11: Block Diagram
TRACE 26MHz CSR8811 DEBUG 3.3V VSUP Filter 1) BlueMod+SR/AI only 2) BlueMod+SR/AP only Figure 1: BlueMod+SR Block Diagram Note: BlueMod+SR/AI has an internal ceramic antenna whereas BlueMod+SR/AP provides for an 50Ω RF interface Release r09 www.stollmann.de Page 11 of 76... -
Page 12: Application Interface
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 3 Application Interface 3.1 Power Supply BlueMod+SR require a power supply with the following characteristics: Typical: 3,3V , min.: 2,5V , max.: 3.6V , > 80mA peak For optimal performance a stable supply is recommended. If a regulator is to be used, it should be a fast linear regulator placed as close as possible to the VSUP pins (E-6, F-6). -
Page 13: Figure 3: Bluemod+Sr Example Reset
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference By holding pin B-1 (EXT-RES#) at ≤ 0,5V for ≥ 5ms, an external reset is generated. This pin has a fixed internal pull-up resistor (R = 30kΩ ... 50kΩ) and a capacitor to GND (100n) which acts as debounce filter. -
Page 14: Supply Voltage Monitor
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference The following table shows the pin states of BlueMod+SR during reset active. Pin Name State: BlueMod+SR and 100n to GND – use open drain EXT-RES# I/O with pull-up SLCK Input with weak pull-down UART-TXD Input floating... -
Page 15: Serial Interface
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 3.5 Serial Interface The serial interface of BlueMod+SR is a high-speed UART interface supporting RTS/CTS flow control and interface-up/down mechanism according to the UICP+ protocol (refer to [3] ). Electrical interfacing is at CMOS levels (defined by VSUP). -
Page 16: 3-Wire Serial Interface
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 3.5.1 3-Wire Serial Interface When using only GND and UART-RXD, UART-TXD serial lines, leave UART-RTS# and UART- CTS# open. Note: It is strongly recommended to use hardware flow control. Not using flow control can cause a loss of data. When RTS/CTS is not used (3-wire interface) the DTE may sent a limited number of Bytes (depending on buffer size) to the UART interface of the BlueMod+SR without losing data (e.g. -
Page 17: Figure 6: Bluemod+Sr Example Serial Interface (Mixed Signal Level)
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference XC6204-3.3 +3V3_switched VOUT +5VDC 1µ User Host System 10µ+100n+1n (GPIO, Out, BT_ENABLE no pu/pd) BlueMod+SR SN74AVC4T245 VDD_HOST (+1.2 .. +3.6V) VDDIO VCCA VSUP VCCB (+1.2V .. +3.6V) 100k 1DIR OE_DRV# (GPIO, Out, no pu/pd) UART_RXD UART_TXD... -
Page 18: Baud Rate Deviation
Hardware Reference 3.5.2 Baud Rate Deviation The information on how to set standard or custom baud rates can be found in [5] Stollmann: BlueMod+SR AT Command Reference. Assumed that on both sides the TX and RX baud rates are nominally equal, the total baud rate deviation is the sum of the host baud rate deviation and the BlueMod+SR baud rate deviation. - Page 19 BlueMod+SR/AI BlueMod+SR/AP Hardware Reference Therefore the baud rate deviation can be calculated by the following procedure, for which Stollmann provides a tool at http://www.stollmann.de/uploads/media/BlueMod_SR_uart_baudrate_calculator.html 14.745.600 ������ = 16 ������ ���������������� = ������ℎ. ���������� ( ������ ) ���������������� = ������ℎ. ���������� [16(������ − ����������������) If FRACTION >...
-
Page 20: Gpio Interface
C SDA GPIO[7] NFC_FD I-PU NFC TAG NXP: NT3H1101 Field Detect subject to firmware support, contact Stollmann for current status. SPP FW version V1.500 and higher will use this interface to support NFC TAG NXP: NT3H1101 I interface. Release r09 www.stollmann.de... -
Page 21: Spi Serial Peripheral Interface
CRC checking. Module pins are used as follows: GPIO[2]: SPI-MOSI GPIO[5]: SPI-MISO GPIO[8]: SPI-SCK subject to firmware support, contact Stollmann for current status Release r09 www.stollmann.de Page 21 of 76... -
Page 22: Bluetooth Radio Interface
The BlueMod+SR/AP presents no integrated ceramic antenna whereas provides a 50 RF interface. It is highly recommended that you follow the design rule given in the Stollmann Application Note on Antenna design [4]. 3.11 WLAN Coexistence Interface For implementing WLAN Coexistence with CSR’s Wi-Fi solution the Unity 3e scheme could be implemented on request. -
Page 23: Slow Clock Interface
A communication protocol is defined with a specific command set and sequences. The firmware upgrade will be done by either a Stollmann provided firmware update tool. This is a Windows™ program that contains the firmware and uses a PC with a serial port for the update implementing the system memory boot mode protocol on the host system. -
Page 24: Operating In A Power-Switched Environment
The Trace UART TXD interface provides firmware internal trace information and is normally not used in a customer’s product. In cases where customer support by Stollmann is requested it may provide useful information about BlueMod+SR internal states and processes while in operation. -
Page 25: Module Pins
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 4 Module Pins 4.1 Pin Numbering Figure 11: BlueMod+SR Pin Numbering (Top View) Release r09 www.stollmann.de Page 25 of 76... -
Page 26: Pin Description
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 4.2 Pin Description 4.2.1 General Pin Description Type: PU - pull-up; PD – pull-down; PWR – Power; I – Input; O – Output; I/O – bidir.; OD – open drain; PP – push/pull; RF: RadioFreq Pin Name... -
Page 27: Application Specific Pin Description
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 4.2.2 Application Specific Pin Description 4.2.2.1 SPP Pin Configuration Type: PU – Pull-up; PD – pull-down; PWR – Power; I – Input; O – Output; I/O – bidir.; OD – open drain: PP – push/pull; RF: RadioFreq... -
Page 28: Handling Of Unused Signals
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference Notes: a discrete pull-up resistor is used a discrete pull-down resistor is used function depends on firmware DNU: Do Not Use, Do Not Connect If TRACE feature should be used, this signal has to be made accessible in customer hardware NFC support will be available with SPP FW version V1.500 and higher. -
Page 29: Electrical Characteristics
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 5 Electrical Characteristics 5.1 Absolute Maximum Ratings Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “Electrical Requirements”... -
Page 30: Environmental Requirements
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 5.4 Environmental Requirements Item Symbol Absolute Maximum Ratings Unit Storage temperature range -40 to +85 °C Operating temperature range -30 to +85 °C Table 9: Environmental Requirements 5.5 Digital I/O Including EXT-RES# STM32 MCU and CSR8811 do have different electrical I/O characteristics. -
Page 31: Table 10: Dc Characteristics, Digital Io (Stm32-Related)
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference = 25°C Symbol Item Condition Limit Unit Low-Level Input Voltage VSUP = 2,5 to 3,6V -0,3 High-Level Input Voltage VSUP = 2,5 to 3,6V VSUP+0,3 Low-Level Output = 4mA Voltage High-Level Output = -4mA VSUP-0,4 Voltage... -
Page 32: Table 12: Dc Characteristics, Digital Io (Csr8811 Related)
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference CSR8811 Related Signals: BT-ACT, BT-STAT, WLAN-DNY, BT-PER SLCK (caution: also connected to STM-32) = 25°C Symbol Item Condition Limit Unit Low-Level Input Voltage VSUP = 3,3V - 0,4 High-Level Input Voltage 0,7xVSUP VSUP+0,4 Low-Level Output... -
Page 33: Power Consumption And Power Down Modes
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 5.6 Power Consumption and Power Down Modes 5.6.1 Classic Bluetooth The following values are typical power consumption values in the different states. VSUP = 3,3V, T = 25°C, all GPIOs and UART lines open, SLCK: 32,768 kHz... -
Page 34: Le Configurations
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference (1) IUR-IN# and UART-CTS# signals connected to CMOS high level (2) about 2 meters through the air (3) same current consumption w. internal or external slow clock 5.6.2 LE Configurations 5.6.2.1 LE Operating in Peripheral Device Role The following tables show the average power consumption of BlueMod+SR in LE-mode operating in the peripheral device role. -
Page 35: Le Operating In Central Device Role
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference Notes: UART-CTS#, IUR-IN# driven to CMOS high level, all other UART-lines left open connection parameters are setup by the central device when connection is established no data to be transmitted, central device sends an empty packet (80 bit) then peripheral device answers (empty... -
Page 36: Table 20: Supply Current Ble Terminal I/O Profile, Central Device Role, Ci 37,5Ms
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference Condition Note Slow Current Unit clock Consumption SLCK Tx power (dBm) max (+7) min (-23) Connected, connection interval: 37,5ms, no data traffic (2,4) Connected, connection interval: 37,5ms, data traffic 115 kbit/s at the (2,4) 16,5 serial port; central to peripheral... -
Page 37: Rf Performance
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 5.7 RF Performance 5.7.1 GFSK, PI/4 DQPSK, 8DPSK Receiver VSUP = 2,5V to 3,6V, Tamb = 20°C Measured conducted according to BT specification v1.2/2.0/2.0 + EDR/2.1/2.1 + EDR/3.0/3.0 + HS/4.0 Receiver Unit Frequency [GHz] Limit Spec 2.402... -
Page 38: Release R09
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference Unit Receiver Frequency [GHz] Limit Spec Adj. channel selectivity C/I f f0 - 2MHz 8DPSK -13 Adj. channel selectivity C/I f f0 + 3MHz 8DPSK -33 Adj. channel selectivity C/I f f0 - 5MHz 8DPSK ... -
Page 39: Table 21: Rf Performance Gfsk, Pi/4 Dqpsk, 8Dpsk Receiver
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference VSUP = 2,5V to 3,6V, T = +85°C Measured conducted according to BT specification v1.2/2.0/2.0 + EDR/2.1/2.1 + EDR/3.0/3.0 + HS/4.0 Unit Receiver Frequency [GHz] Limit Spec. 2.402 Sensitivity at 0.1% BER -70 2.441 2.480 2.402 Sensitivity at 0.1% BER... -
Page 40: Gfsk, Pi/4 Dqpsk, 8Dpsk Transmitter
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 5.7.2 GFSK, PI/4 DQPSK, 8DPSK Transmitter VSUP = 2,5V to 3,6V, T = +20°C Measured conducted according to BT specification v1.2/2.0/2.0 + EDR/2.1/2.1 + EDR/3.0/3.0 + HS/4.0 Unit Transmitter Frequency [GHz] Limit Spec. 2.402 RF transmit power 50 Ω... -
Page 41: Release R09
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference VSUP = 2,5V to 3,6V, T = -30°C Measured conducted according to BT specification v1.2/2.0/2.0 + EDR/2.1/2.1 + EDR/3.0/3.0 + HS/4.0 Unit Transmitter Frequency [GHz] Limit Spec 2.402 RF transmit power 50 Ω load, at antenna 2.441... -
Page 42: Table 22: Rf Performance Gfsk, Pi/4 Dqpsk, 8Dpsk Transmitter
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference VSUP = 2,5V to 3,6V, Tamb = +85°C Measured conducted according to BT specification v1.2/2.0/2.0 + EDR/2.1/2.1 + EDR/3.0/3.0 + HS/4.0 Unit Transmitter Frequency [GHz] Limit 2.402 RF transmit power 50 Ω load, at antenna 2.441... -
Page 43: Ble Receiver
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 5.7.3 BLE Receiver VSUP = 2,5V to 3,6V, T = +20°C Measured conducted according to BT specification RF-PHY.TS/4.0.1 Receiver Frequency Unit [GHz] Spec Sensitivity at 30,8% PER 2,402 ≤ -70 2,440 2,480 Reported PER during PER... -
Page 44: Ble Transmitter
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 5.7.4 BLE Transmitter VSUP = 2,5V to 3,6V, T = +20°C Measured conducted according to BT specification RF-PHY.TS/4.0.1 Frequency [GHz] Unit Transmitter Spec RF Transmit Power 2,402 -20 to 2,440 2,480 ≤ -30 F = F ±... -
Page 45: Table 24: Rf Performance Ble Transmitter
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference VSUP = 2,5V to 3,6V, T = +85°C Measured conducted according to BT specification RF-PHY.TS/4.0.1 Frequency [GHz] Unit Transmitter Spec RF transmit Power 2,402 -20 to 2,440 2,480 F = F ± 2MHz ≤ -30 F = F ±... -
Page 46: Antenna-Gain And Radiation Pattern
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 5.7.5 Antenna-Gain and Radiation Pattern If BlueMod+SR/AI is integrated into an end product while the recommendations depicted in 6.4 Placement Recommendation are maintained, the following typical antenna radiation patterns can be expected. Radiation Pattern will depend on the end products PCB size, masses in the antenna environment, housing material and geometrics. -
Page 47: Figure 13: Typical Antenna Radiation Pattern At 2441Mhz
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference Figure 13: Typical Antenna Radiation Pattern at 2441MHz Figure 14: Typical Antenna Radiation Pattern at 2480MHz Release r09 www.stollmann.de Page 47 of 76... -
Page 48: Power-Up Time
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 5.8 Power-Up Time The time until the BlueMod+SR is able to accept link requests or serial data depends on the firmware version. In the SPP firmware the module is command ready and Bluetooth links are accepted at least 1,1 s after signal EXT-RES# is de-asserted or VSUPx is in a valid range.. -
Page 49: Mechanical Characteristics
Figure 15: BlueMod+SR/AI dimensions +0,1 +0,2 +0,1 17,0 -0,1 -0,0 -0,1 stollmann BlueMod+SR FCC ID RFRMSR Verbleibende Stege nach Nutzentrennung/ remaining break tabs after separation Figure 16: BlueMod+SR/AP dimensions Release r09 www.stollmann.de Page 49 of 76... -
Page 50: Recommended Land Pattern
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 6.2 Recommended Land Pattern 7x1,5=10,5 1,25 17,0 TOP VIEW Figure 17: BlueMod+SR Land Pattern Release r09 www.stollmann.de Page 50 of 76... -
Page 51: Re-Flow Temperature-Time Profile
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 6.3 Re-flow Temperature-Time Profile The data here is given only for guidance on solder and has to be adapted to your process and other re-flow parameters for example the used solder paste. The paste manufacturer provides a re- flow profile recommendation for his product. -
Page 52: Placement Recommendation
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 6.4 Placement Recommendation To achieve best radio performance for BlueMod+SR/AI, it is recommended to use the placement shown in Figure 19. This is a “corner placement” meaning the BlueMod+SR is placed such that the antenna comes close to the corner of the application PCB (red area). So, the yellow area is outside the PCB and regards to the housing, too (refer to 6.5). -
Page 53: Safety Guidelines
BlueMod+SR/AP Hardware Reference BlueMod+SR/AP routes the antenna signal to pin A-8 The gain of the external antenna shall not exceed +2dBi. When using an external Antenna the antenna must be fixed and shall not be removable or replaceable by the end user. In any case, the performance of the antenna (whether it is internal or external) has to be checked within the final integration environment. -
Page 54: Application Diagram
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 7 Application Diagram The following schematic shows a typical application of BlueMod+SR. The module is connected to some MCU running the application layer. MCU and BlueMod+SR use the same 3,3V power supply. Provisions are made for upgrading the firmware (BOOT0 and EXT-RES# are managed by the MCU). -
Page 55: Approvals/Certifications
Grants of the Full Modular Approval will be shown below. BlueMod+SR/AP only: For selling products implementing the BlueMod+SR/AP in the USA you’ll have to apply for a Class II Permissive Change from the FCC authorities. Depending on antenna gain and other factors the FCC TCB will issue a reduced test plan for re-testing. -
Page 56: Fcc Grant
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 8.2.1 FCC Grant Release r09 www.stollmann.de Page 56 of 76... -
Page 57: Release R09
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference Release r09 www.stollmann.de Page 57 of 76... -
Page 58: Fcc Statement
< 5mm an FCC TCB should be asked for a Class II Permissive Change. RF exposure evaluation of devices implementing the BlueMod+SR/AP should be done with the collaboration of the FCC TCB working on the Class II Permissive Change Request. -
Page 59: Fcc Labeling Requirements For The End Product
Industry Canada are available on request. Grants of the Full Modular Approval will be shown below. For selling products implementing the BlueMod+SR/AP in Canada you’ll have to apply for a Class II Permissive Change from the IC authorities. Depending on antenna gain and other factors the IC TCB will issue a reduced test plan for re-testing. -
Page 60: Ic Grant
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 8.3.1 IC Grant Release r09 www.stollmann.de Page 60 of 76... -
Page 61: Ic Statement
This equipment is portable device. The output power of this device is less than 20mW. The SAR test is not required. RF exposure evaluation of devices implementing the BlueMod+SR/AP should be done with the collaboration of the IC TCB working on the Class II Permissive Change Request. -
Page 62: Ic Labeling Requirements For The End Product
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 8.3.5 IC Labeling Requirements for the End Product Any end product integrating the BlueMod+SR/AI or /AP must be labeled with at least the following information: This device contains transmitter with FCC ID: RFRMSR IC-ID: 4957A-MSR 8.3.6 IC Label Information BlueMod+SR The BlueMod+SR shows no IC-ID on the product label, because there is no space available. -
Page 63: Kcc Certification Grant
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 8.4 KCC Certification Grant Release r09 www.stollmann.de Page 63 of 76... -
Page 64: Mic Certification
Approved External Antennas is intended to be used. Every new antenna configuration requires an administrative Japanese Re-certification with reduced costs. For using another antenna with variant BlueMod+SR/AP, please contact Stollmann E+V GmbH for starting the Japanese administrative process. Costs for re-measurements and certification should be considered. -
Page 65: Release R09
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference Release r09 www.stollmann.de Page 65 of 76... -
Page 66: Release R09
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference Release r09 www.stollmann.de Page 66 of 76... -
Page 67: Release R09
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference Release r09 www.stollmann.de Page 67 of 76... -
Page 68: Bluetooth Qualification
According to the Bluetooth SIG rules (Bluetooth Declaration Process Document - DPD) you must complete a Product Listing and Declaration of Compliance (DoC) referencing the Qualified Design (QDID) for your product. For further information see www.Bluetooth.org or contact Stollmann. Release r09 www.stollmann.de Page 68 of 76... -
Page 69: Rohs Declaration
9 Related Documents [1] CD00171190.pdf Oct. 2011 Rev 14 (STM32_Reference) [2] CD00191185.pdf April 2011 Rev 8 (STM32_datasheet) [3] Stollmann: UICP_UART_Interface_Control_Protocol_r01.pdf [4] Stollmann: AppNote_B0601_Antenna_Design_V1_0.pdf [5] Stollmann: BlueMod+SR AT Command Reference [6] Stollmann: BlueMod+SR_Startup_Timing.pdf Release r09 www.stollmann.de Page 69 of 76... -
Page 70: Packing
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 10 Packing The BlueMod+SR modules are packed using carrier tape. 15 Leertaschen Nachspann pro Verpackungseinheit/ 15 empty pockets as trailer per packing unit stollmann BlueMod+SR FCC ID RFRMSR stollmann BlueMod+SR FCC ID RFRMSR stollmann BlueMod+SR FCC ID RFRMSR... -
Page 71: Tape
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 10.1 Tape The dimensions of the tape are shown in the drawing below (values in mm): +0,1 12,0 -0,0 +0,1 +0,2 10x4,0=40,0 -0,1 -0,2 +0,1 10,9 -0,1 10.2 Reel Release r09 www.stollmann.de Page 71 of 76... -
Page 72: Package Label
Product number of firmware trace [Manufacturer M (optional)]Date (YearCalendarWeek) YYWW quantity Number of contained modules If the label on the package box is different to the label described please contact Stollmann for detailed information. Release r09 www.stollmann.de Page 72 of 76... -
Page 73: Ordering Information
BlueEva+SR Internal 53249-xx 1 Evaluation Kits Other variants on request, please contact Stollmann sales department. 11.2 Standard Packing Unit The standard packing unit is 400 or 1000 pieces on Tape and Reel. 11.3 Evaluation Kit The kit BlueEva+SR is available to evaluate functionality and start your firmware implementation. -
Page 74: History
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 12 History Version Release Date Change description 04.02.2013 MW/JW First preliminary release 21.02.2013 MW/GJ signal naming conventions harmonized signals in tables re-sorted corrected some typos updated dimension drawing (with new antenna) added land pattern drawing renamed chapter “Restricted Area” into “Placement Recommendation” and... -
Page 75: Release R09
BlueMod+SR/AI BlueMod+SR/AP Hardware Reference 19.12.2014 3.11 WLAN Coexistence Interface implementation info corrected 3.8 NFC Support chapter added 11.2 Standard Packing Unit 1000 pieces tape and reel added 6.2 Recommended Land Pattern hint “TOP VIEW” added 3.5.1 3-Wire Serial Interface Note on data loss extended 5.6 Power Consumption and Power Down Modes... - Page 76 BlueMod+SR/AI BlueMod+SR/AP Hardware Reference Stollmann Entwicklungs- und Vertriebs-GmbH Phone: +49 (0)40 890 88-0 Mendelssohnstraße 15 D Fax: +49 (0)40 890 88-444 22761 Hamburg E-mail: info@stollmann.de Germany www.stollmann.de Release r09 www.stollmann.de Page 76 of 76...
