Summary of Contents for Stollmann BlueMod+S/AI

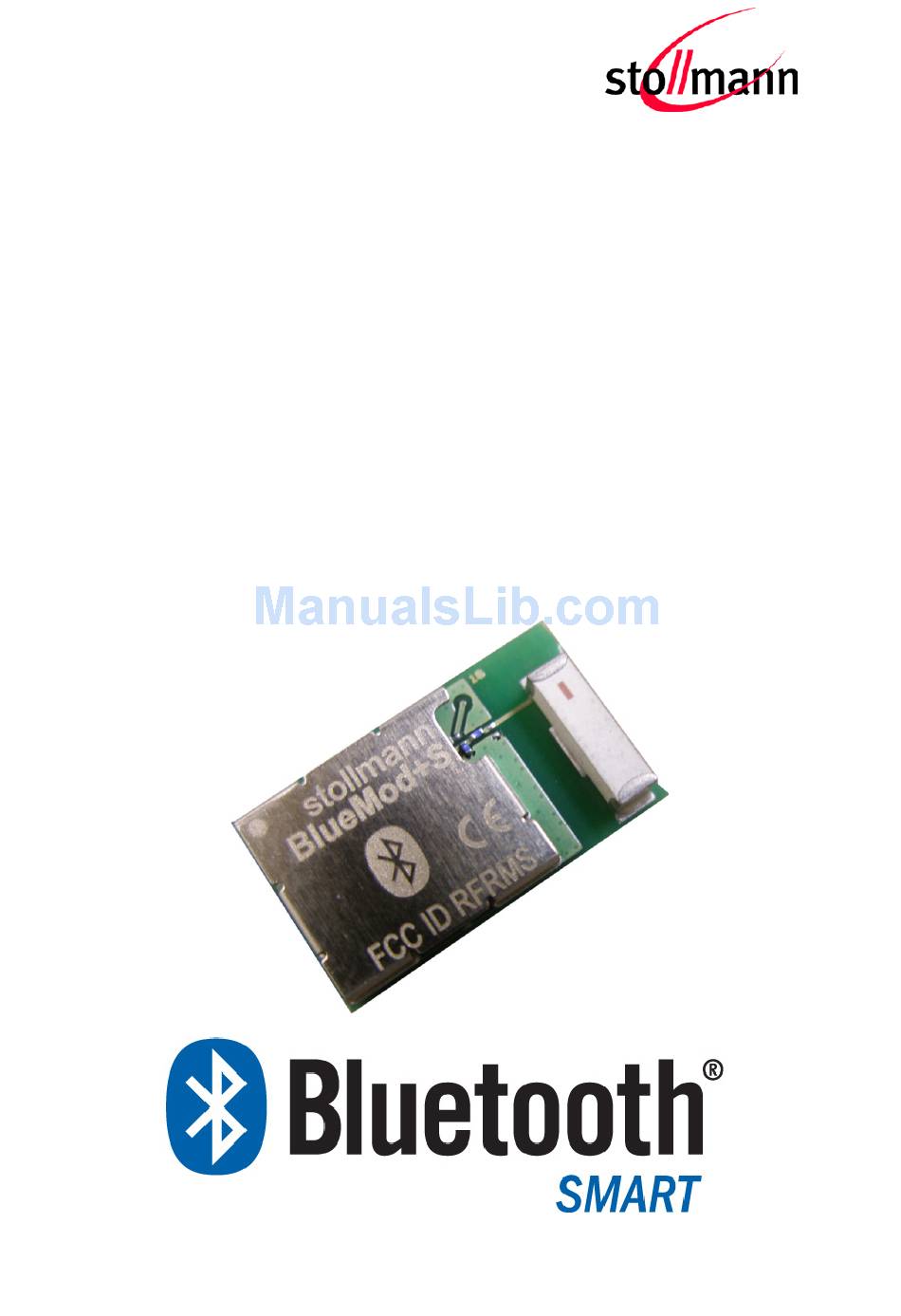

- Page 1 BlueMod+S/AI Hardware Reference Release r00d01...
- Page 2 ® The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Stollmann E+V GmbH is under license. Other trademarks and trade names are those of their respective owners. www.stollmann.de Page 2 of 52...
-
Page 3: Table Of Contents
BlueMod+S/AI Hardware Reference Table of contents Introduction ..........................8 Feature Summary ......................8 Applications ........................9 Support for any additional profile is possible on request............9 1.2.1 General Cable Replacement ..................9 1.2.2 Industry ........................9 1.2.3 POS/Advertising ......................9 1.2.4... - Page 4 BlueMod+S/AI Hardware Reference Pin Description........................ 23 4.2.1 General Pin Description ................... 23 4.2.2 Application Specific Pin Description ................. 24 4.2.2.1 TIO Pin Configuration ................... 24 Handling of Unused Signals .................... 25 Electrical Characteristics ......................26 Absolute Maximum Ratings .................... 26 Electrical Requirements ....................
- Page 5 11.3 Evaluation Kit ........................51 History ..........................51 List of Figures Figure 1: BlueMod+S/AI Block Diagram ..................10 Figure 2: BlueMod+S Example Power Supply with LDO ............... 11 Figure 3: BlueMod+S Example Reset ................... 12 Figure 4: Serial Interface Signals ....................14 www.stollmann.de...
- Page 6 Figure 14: BlueMod+S/AI Dimensions ..................35 Figure 15: BlueMod+S Land Pattern ..................... 35 Figure 16: Soldering Temperature-Time Profile (For Reflow Soldering) ........36 Figure 17: BlueMod+S/AI Placement Recommendation ..............37 Figure 18: Typical Application Schematics ..................39 List of Tables Table 1: Power up Rise Time Requirements .................
- Page 7 BlueMod+S/AI Hardware Reference Table 15: Supply Current BLE Terminal I/O Profile, Peripheral Device Role ......... 30 Table 16: RF Performance BLE Receiver ..................31 Table 17: RF Performance BLE Transmitter ................. 33 www.stollmann.de Page 7 of 52...
-
Page 8: Introduction
It addresses hardware specifications of the BlueMod+S/AI and requirements of the hardware environments for the BlueMod+S/AI. Notation: The term BlueMod+S refers to the BlueMod+S/AI and is used as an abbreviation. For detailed information about software interfaces refer to [5]. -
Page 9: Applications
Stollmann’s Terminal I/O profile, which allows transparent data transfer over UART and supports Secure Simple Pairing, making the pairing process easy and the connection secure. Terminal I/O is available for iOS and Android as well as implemented in Stollmann’s dual mode module BlueMod+SR. -
Page 10: Block Diagram
BlueMod+S/AI Hardware Reference 2 Block Diagram BlueMod+S/AI onboard antenna 16MHz Serial Wire (DEBUG) nRF51822 3.0V Balun+ VSUP Filter Figure 1: BlueMod+S/AI Block Diagram www.stollmann.de Page 10 of 52... -
Page 11: Application Interface
BlueMod+S/AI Hardware Reference 3 Application Interface 3.1 Power Supply BlueMod+S require a power supply with the following characteristics: Typical: 3,0V , min.: 1,8V , max.: 3,6V , thereby delivering > 25 mA peak BlueMod+S is designed to be powered from 3V coin cell batteries e.g. CR2032 directly, or any other power source complying with the given requirements. -
Page 12: Reset
BlueMod+S/AI Hardware Reference 3.3 Reset BlueMod+S are equipped with circuitry for generating power-up reset from the supply voltage VSUP, as well as brownout detection. During power-up, reset is kept until the supply voltage VSUP has reached the minimal operating voltage. VSUP risetime has to comply with Table 1 for power-up reset to function properly. A reset is also generated when VSUP falls below the threshold of the brownout detector (1,6V .. -
Page 13: Table 2: Pin States During Reset
BlueMod+S/AI Hardware Reference The following table shows the pin states of BlueMod+S during reset active. Pin Name State: BlueMod+S EXT-RES# Input with pull-up XL-IN/SLCK Input floating (disconnected) XL-OUT Input floating (disconnected) UART-TXD Input floating (disconnected) UART-RXD Input floating (disconnected) UART-RTS# Input floating (disconnected) with pull-up resistor 470kΩ... -
Page 14: Serial Interface
BlueMod+S/AI Hardware Reference 3.4 Serial Interface The serial interface of BlueMod+S is a high-speed UART interface supporting RTS/CTS flow control and interface-up/down mechanism according to the UICP+ protocol (refer to [3] ). Electrical interfacing is at CMOS levels (defined by VSUP; see chapter 5.5.1). -
Page 15: 3-Wire Serial Interface
BlueMod+S/AI Hardware Reference 3.4.1 3-Wire Serial Interface When using only GND and UART-RXD, UART-TXD serial lines, leave UART-RTS# and UART- CTS# open. Note: It is strongly recommended to use hardware flow control. Not using flow control can cause a loss of data. -
Page 16: Baudrate Deviation
BlueMod+S/AI Hardware Reference XC6204B-3.3 +3V3_switched VOUT +5VDC 1µ User Host System 10µ+100n+1n (GPIO, Out, BT_ENABLE no pu/pd) SN74AVC4T245 BlueMod+S VDD_HOST (+1.2 .. +3.6V) VDDIO VCCA VSUP VCCB (+1.2V .. +3.6V) 100k 1DIR OE_DRV# (GPIO, Out, no pu/pd) UART_RXD UART_TXD RTS#... -
Page 17: Gpio Interface
4k7 pull-up resistors on I2C-SCL and I2C-SDA when this interface is used. BlueMod+S +3.3V +3.3V GPIO[0]/I2C-SCL I2C-SCL GPIO[1]/I2C-SDA I2C-SDA +3.3V E-6,F-6 VSUP Figure 7: BlueMod+S I C Interface subject to firmware support, contact Stollmann for current status www.stollmann.de Page 17 of 52... -
Page 18: Spi Serial Peripheral Interface
3.8 Bluetooth Radio Interface The BlueMod+S/AI presents an integrated ceramic antenna. It is highly recommended that you follow the design rule given in the Stollmann Application Note on Antenna design [4]. subject to firmware support, contact Stollmann for current status www.stollmann.de... -
Page 19: Slow Clock Interface
BlueMod+S/AI Hardware Reference 3.9 Slow Clock Interface Even though an external slow clock is not required for BLE operation, consumption of power during power-down modes can be reduced by feeding the module with an optional 32,768 kHz slow clock at pin XL-IN/SLCK, or connecting an XTAL (32,768kHz) and two capacitors C1, C2 at pins XL-IN and XL-OUT. -
Page 20: Connection Of An External 32,768 Khz Crystal
BlueMod+S/AI Hardware Reference 3.9.3 Connection of an External 32,768 kHz Crystal Connect the 32,768 kHz crystal and two capacitors C1, C2 at pins A-6 (XL-IN/SLCK) and A-5 (XL- OUT). The crystal has to comply with specifications given in Table 1. The exact value of C1 and C2 depends on the crystal and the stray capacitance of the layout. -
Page 21: Operating In A Power-Switched Environment
BlueMod+S/AI 3.11 Operating in a Power-Switched Environment A potential "back feeding" problem may arise, if the module is operated in an environment where its power supply (VSUP) is switched off by the application. This might be done to save some power in times Bluetooth is not needed. -
Page 22: Module Pins
BlueMod+S/AI 4 Module Pins 4.1 Pin Numbering Figure 10: BlueMod+S Pin Numbering (Top View) www.stollmann.de Page 22 of 52... -
Page 23: Pin Description
BlueMod+S/AI 4.2 Pin Description 4.2.1 General Pin Description Type: PU - pull-up; PD – pull-down; PWR – Power; I – Input; O – Output; I/O – bidir.; OD – open drain; PP – push/pull; RF: RadioFreq; I-DIS – Input Buffer Disconnected... -
Page 24: Application Specific Pin Description
BlueMod+S/AI 4.2.2 Application Specific Pin Description 4.2.2.1 TIO Pin Configuration Type: PU – Pull-up; PD – pull-down; PWR – Power; I – Input; O – Output; I/O – bidir.; OD – open drain: PP – push/pull; RF: RadioFreq; I-DIS – Input Buffer Disconnected... -
Page 25: Handling Of Unused Signals
BlueMod+S/AI 4.3 Handling of Unused Signals Depending on the application, not all signals of BlueMod+S may be needed. The following list gives some hints how to handle unused signals. • EXT-RES# If no external Reset is needed: Leave open •... -
Page 26: Electrical Characteristics
BlueMod+S/AI 5 Electrical Characteristics 5.1 Absolute Maximum Ratings Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “Electrical Requirements” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. -
Page 27: Environmental Requirements
BlueMod+S/AI 5.4 Environmental Requirements Item Symbol Absolute Maximum Ratings Unit Storage temperature range -40 to +85 °C Operating temperature range -25 to +75 °C Table 10: Environmental Requirements 5.5 DC Parameter All Module I/O pins are connected directly to the Nordic nRF51822 chip without signal conditioning except for some pull-up/pull-down resistors (as indicated). -
Page 28: Ext-Res
BlueMod+S/AI 5.5.2 EXT-RES# Input EXT-RES# has a Schmitt-Trigger characteristic and an internal pull-up resistor. = 25°C Symbol Item Condition Limit Unit Low-Level Threshold VSUP = 1,8 to 3,6V 0,34*VSUP High-Level Threshold VSUP = 1,8 to 3,6V 0,62*VSUP Hysteresis VSUP = 3,0V... -
Page 29: Power Consumption And Power Down Modes
BlueMod+S/AI 5.6 Power Consumption and Power Down Modes 5.6.1 Terminal I/O Configuration The following values are typical power consumption values in the different states. VSUP = 3,0V, T = 25°C, all GPIOs open, UART inputs at VSUP or GND, SLCK: 32,768 kHz... -
Page 30: Table 15: Supply Current Ble Terminal I/O Profile, Peripheral Device Role
BlueMod+S/AI The following table shows the average power consumption of BlueMod+S operating in the peripheral device role. VSUP = 3,0V, T = 25°C, all GPIO lines left open, SLCK: 32,768 kHz Condition Note Slow Current Unit clock Consumption SLCK Tx power (dBm) -
Page 31: Rf Performance
BlueMod+S/AI 5.7 RF Performance 5.7.1 BLE Receiver VSUP = 1,8V to 3,6V, T = +20°C Measured conducted according to BT specification RF-PHY.TS/4.0.1 Receiver Frequ Unit /GHz Spec Sensitivity at 30,8% PER 2,402 -88,5 ≤ -70 2,440 -88,5 2,480 -88,5 Reported PER during PER... -
Page 32: Ble Transmitter
BlueMod+S/AI 5.7.2 BLE Transmitter VSUP = 1,8V to 3,6V, T = +20°C Measured conducted according to BT specification RF-PHY.TS/4.0.1 Frequ Unit Transmitter /GHz Spec RF Transmit Power 2,402 -20 to 2,440 2,480 ≤ -30 F = F ± 2MHz ≤ -30 F = F ±... -
Page 33: Table 17: Rf Performance Ble Transmitter
BlueMod+S/AI VSUP = 1,8V to 3,6V, T = -25°C Measured conducted according to BT specification RF-PHY.TS/4.0.1 Transmitter Frequ Unit /GHz Spec RF transmit Power 2,402 -20 to 2,440 2,480 ≤ -30 F = F ± 2MHz ≤ -30 F = F ±... -
Page 34: Antenna-Gain And Radiation Pattern
BlueMod+S/AI 5.7.3 Antenna-Gain and Radiation Pattern If BlueMod+S/AI is integrated into an end product while the recommendations depicted in 6.4 Placement Recommendation are maintained, the following typical antenna radiation patterns can be expected. Radiation Pattern will depend on the end products PCB size, masses in the antenna environment, housing material and geometrics. -
Page 35: Mechanical Characteristics
-0,1 -0,0 -0,1 stollmann BlueMod+S FCC ID RFRMS Verbleibende Stege nach Nutzentrennung/ remaining break tabs after separation Figure 14: BlueMod+S/AI Dimensions 6.2 Recommended Land Pattern 7x1,5=10,5 1,25 17,0 Figure 15: BlueMod+S Land Pattern Note: All dimensions are in mm. www.stollmann.de... -
Page 36: Re-Flow Temperature-Time Profile
BlueMod+S/AI 6.3 Re-flow Temperature-Time Profile The data here is given only for guidance on solder and has to be adapted to your process and other re-flow parameters for example the used solder paste. The paste manufacturer provides a re- flow profile recommendation for his product. -
Page 37: Placement Recommendation
To achieve best radio performance for BlueMod+S/AI, it is recommended to use the placement shown in Figure 17. This is a “corner placement” meaning the BlueMod+S/AI is placed such that the antenna comes close to the corner of the application PCB (red area). So, the yellow area is outside the PCB and regards to the housing, too (refer to 6.5). -
Page 38: Safety Guidelines
BlueMod+S/AI 6.7 Safety Guidelines tbd. www.stollmann.de Page 38 of 52... -
Page 39: Application Diagram
BlueMod+S/AI 7 Application Diagram The following schematic shows a typical application of BlueMod+S. The module is connected to some MCU running the application layer. MCU and BlueMod+S use the same 3,3V power supply. The serial interface has RTS/CTS flow control and UICP support in this example. The optional hangup feature to close down the link is provided. -
Page 40: Approvals/Certifications
BlueMod+S/AI 8 Approvals/Certifications The BlueMod+S/AI has been tested to comply to the appropriate EU, FCC and IC directives. CE testing is intended for end products only. Therefore CE testing is not mandatory for a Bluetooth Module sold to OEM’s. However Stollmann E+V GmbH provides CE tested Modules for customers in order to ease CE compliance assessment of end products and to minimize test effort. -
Page 41: Fcc Grant
BlueMod+S/AI 8.2.1 FCC Grant www.stollmann.de Page 41 of 52... -
Page 42: Fcc Statement
Consult the dealer or an experienced radio/TV technician for help. 8.2.5 FCC RF-exposure Statement The BlueMod+S/AI complies with the FCC/IC RF radiation exposure limits set forth for an uncontrolled environment. The output power is < 10mW EIRP and therefore according to “FCC KDB 447498 D01 General RF Exposure Guidance v05”... -
Page 43: Fcc Labeling Requirements For The End Product
BlueMod+S/AI 8.2.6 FCC Labeling Requirements for the End Product Any End Product integrating the BlueMod+S/AI must be labeled with at least the following information: This device contains transmitter with FCC ID: RFRMS 4957A-MS www.stollmann.de Page 43 of 52... -
Page 44: Ic Compliance
BlueMod+S/AI 8.3 IC Compliance The BlueMod+S/AI has been tested to fulfill the IC requirements. Test reports RSS-210 of Industry Canada are available on request. Grants of the Full Modular Approval will be shown below. 8.3.1 IC Grant 8.3.2 IC Statement Cet appareil est conforme avec Industrie Canada RSS exemptes de licence standard(s). -
Page 45: Ic Rf-Exposure Statement
This equipment is portable device. The output power of this device is less than 20mW. The SAR test is not required. 8.3.5 IC Labeling Requirements for the End Product Any end product integrating the BlueMod+S/AI must be labeled with at least the following information: This device contains transmitter with... -
Page 46: Rohs Declaration
BlueMod+S/AI 8.5 RoHS Declaration The actual version of RoHS Supplier Declaration according to the EU Directive 2011/65/EC can be downloaded from the qualification section on product web site via the following link: http://www.stollmann.de/en/support/downloads/bluetooth-adapter/bluemod-s.html www.stollmann.de Page 46 of 52... -
Page 47: Related Documents
9 Related Documents [1] nordic: nRF51_Series_Reference_Manual_v2.1.pdf 2013-11-20 (nRF51822_Reference) [2] nordic: nRF51822_PS v2.0.pdf (nRF51822_Datasheet) [3] Stollmann: UICP_UART_Interface_Control_Protocol_r01.pdf [4] Stollmann: AppNote_B0601_Antenna_Design_V1_0.pdf [5] Stollmann: BlueMod+S AT Command Reference [6] Stollmann: BlueMod+S_Startup_Timing.pdf [7] Stollmann: BlueMod+S_Testmode_Reference [8] Bluetooth SIG: Core_v4.1.pdf www.stollmann.de Page 47 of 52... -
Page 48: Packing
BlueMod+S/AI 10 Packing The BlueMod+S modules are packed using carrier tape. 15 Leertaschen Nachspann pro Verpackungseinheit/ 15 empty pockets as trailer per packing unit stollmann BlueMod+S FCC ID RFRMS stollmann BlueMod+S FCC ID RFRMS stollmann BlueMod+S FCC ID RFRMS stollmann... -
Page 49: Tape
BlueMod+S/AI 10.1 Tape The dimensions of the tape are shown in the drawing below (values in mm): +0,1 12,0 -0,0 +0,1 +0,2 10x4,0=40,0 -0,1 -0,2 +0,1 10,9 -0,1 10.2 Reel www.stollmann.de Page 49 of 52... -
Page 50: Package Label
Product number of firmware trace [Manufacturer m (optional)]Date (CalendarWeekYear) wwyy quantity Number of contained modules If the label on the package box is different to the label described please contact Stollmann for detailed information. www.stollmann.de Page 50 of 52... -
Page 51: Ordering Information
BlueEva+S Internal 53276-xx 1 Evaluation Kits Other variants on request, please contact Stollmann sales department. 11.2 Standard Packing Unit The standard packing unit is 400 pieces Tape and Reel 11.3 Evaluation Kit The kit BlueEva+S is available to evaluate functionality and start your firmware implementation. - Page 52 BlueMod+S/AI Stollmann Entwicklungs- und Vertriebs-GmbH Phone: +49 (0)40 890 88-0 Mendelssohnstraße 15 D Fax: +49 (0)40 890 88-444 22761 Hamburg E-mail: info@stollmann.de Germany www.stollmann.de www.stollmann.de Page 52 of 52...
