Summary of Contents for Westell CSI-DSP85-252-P

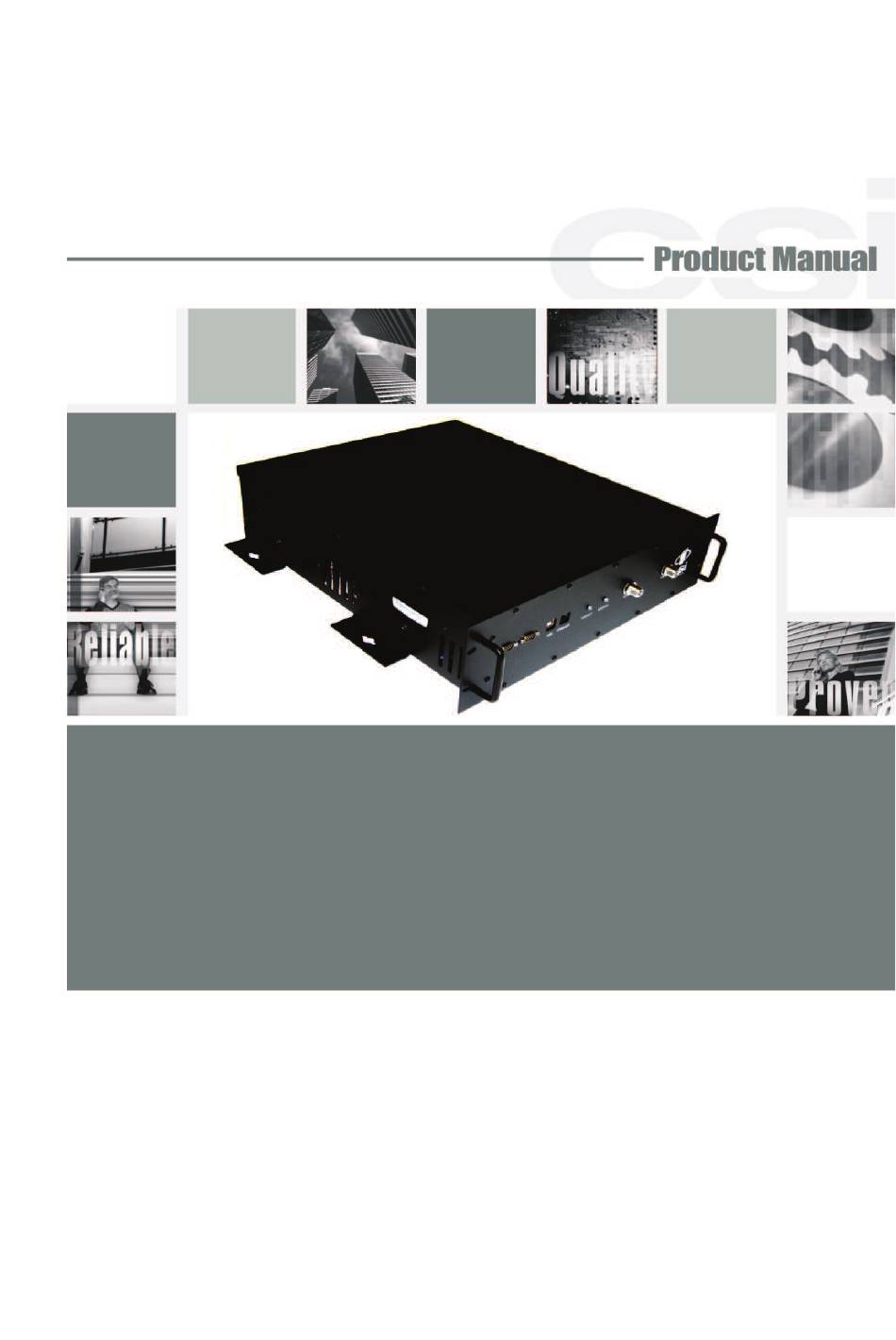

- Page 1 CSI-DSP85-252-C/P & CSI-DSP85I-255-C/P Installation Manual...
-
Page 2: Table Of Contents
Table of Contents Document Purpose / Intended Users ............4 Product Registration Information ............... 4 Application ..................... 4 Safety Guidelines ..................4 Important Safety Information ..............5 Terms used in this manual ................ 5 Product Introduction ................5 Band Plans ..................... 6 File Naming Conventions ................ -
Page 3: Document Purpose / Intended Users
Product Registration Information The serial number may be found on the label on the bottom panel, near the power connectors . Note this number below. Retain this manual, along with proof of purchase, to serve as a permanent record of your purchase. MODEL NUMBER SERIAL NUMBER PURCHASE DATE... -
Page 4: Important Safety Information
Important Safety Information Antennas used for the purpose of radiating signals indoors are limited to a maximum gain of 3dBi. The outdoor antenna used for the purpose of communicating to the wireless infrastructure is limited to 14dBi gain, or any combination of gain and loss that equates to 14dB at input. -
Page 5: Band Plans
Band Plans Note: All frequencies are shown in MHz -6 -... -
Page 6: File Naming Conventions
File Naming Conventions Note: Filter fi le names will be from six to twelve characters long. Each character position in the fi lter fi le name is used to defi ne the characteristics of the fi lter as shown above. All frequencies are shown in MHz - 7-... -
Page 7: Led Indicator
Functional Overview CSI digital repeaters incorporates the following features for convenient operation, access, protection, and control. • Network Confi guration and Control using either a webpage style GUI through any standard browser or a menu driven user interface using the serial port. Note: GUI does not require Internet access. -
Page 8: Ethernet
Local Communication Interface Ports To allow monitoring and control, the repeater is equipped with four ports that provide external communication access (1 Ethernet CAT-5, 2 DB-9 serial, and 1 USB). The Ethernet, CAT-5 port is provided as a primary communications port to the PC. One serial interface provides communications to local PC and the second to an external modem when provided. -
Page 9: System Set-Up Considerations
System Set-Up Considerations All cables should be checked for shorts and opens. Also verify that there are no cables with loose or poor connec- tions. RF leakage could cause oscillation to occur under some conditions. The rooftop antenna (Donor Antenna), if directional, should be checked for proper alignment along the calculated compass heading. - Page 10 SERVER PORT Server port attenuation may also be necessary, particularly where a powered DAS is present. The selection guidelines below apply to both server and donor ports. In order to properly measure uplink signal strength, a signal generator should be used. If a signal generator is not available, placing a test call while under the server antenna with the least path loss to the repeater should provide reasonable data.
-
Page 11: Mounting The Digital Repeater
Mounting the Digital Repeater The following diagrams illustrate the methods for mounting the repeater in a typical wall or rack installation. Brackets provided serve for both options. Wall Mounting Step 1: Install the wall mount brackets as shown in the drawing to the right. Step 2: Mark the location of the wall anchoring holes and drill. -
Page 12: Optional Accessories
Optional Accessories A complete line of accessories is available from Cellular Specialties, Inc. Check with your CSI distributor for any additional items needed. Below are just a few examples suitable for most in-building needs. •Outside Donor Antenna •UPS PCS - model number: CSI-AY/1.85-1.99/10 Battery backup, 2 hr Single band Cellular - model number: CSI-AY/806-960/14 1 hour dual band - model number: CS48-985-600... -
Page 13: Functional Block Diagram
Functional Block Diagram -14 -... -
Page 14: Mechanical Specifi Cations
Mechanical Specifi cations Parameter Specifi cation Notes Repeater Size Height 5.25 in. Width 19.00 in. Depth 20.00 in. Weight 31.0 lbs / 14.1 kg Thermal Management Fan Cooled Surface Coating Powder Coat Color Satin Black AC Power Specifi cations Parameter Specifi... -
Page 15: Dual Band Operating Power Parameters
Dual Band Operating Power Parameters Parameter Specifi cation Notes Maximum RF input Power +10 dBm without damage Linear Gain 85 dB Factory Calibrated Gain Pass Band Ripple +/-1.5 dB Automatic Gain Control 30dBmax range In 0.5 dB steps Manual Gain Control 53.5-85 dB In 0.5 dB steps Linear Output Power... -
Page 16: Mechanical Drawing
Mechanical Drawing ETHERNET STATUS 1 STATUS 2 SERVER-OUTDOOR DONER-INDOOR - 17 -... -
Page 17: System Status
Web based GUI Session Primary access to the repeater is gained using a LAN connection and a web browser pro- gram such as Firefox by Mozilla, or Internet Explorer from Microsoft. The repeater ships with the default IP address of 192.168.1.100, but it can be changed later if required. If connecting directly to the repeater from a laptop or PC with a crossover CAT-5E cable... -
Page 18: Local Network
Local Network: If the user selects Local Network from the System Status page, the following screen is displayed and from here network confi guration can be modifi ed as required. The default is set to Static. Check with your IT department for explanation and approval of the DHCP and DHCP Server options you plan to use before you select them. -
Page 19: Rf Confi Guration
RF Confi guration: If the user would like to modify RF confi guration, click on the words RF Confi guration in the navigation box and the screen below is displayed. To change gain settings the user will select the Uplink only or Uplink and downlink radio buttons. -
Page 20: Program A Filter
Program a Filter: When a new fi lter set is required, it may be selected by clicking Program a Filter in the navigation box. The user may select the desired fi lter by pressing the band/sub- band and modulation selection buttons. Undesired bands/sub-bands, if lit, will require the user to manually “deselect”... -
Page 21: Remote Network
Remote Network: If the repeater includes a USB modem kit, click on Remote Network in the navigation box and the screen below is displayed. Highlight the carrier on whose network the repeater and modem will be confi gured and click the Change Settings button. Refer to the docu- mentation included with the modem kit for additional information on confi... -
Page 22: Install & Upload
System Health: By clicking System Health the current state of the repeater can be reviewed. **** ***The user may clear LED indicators, alarms and the Event Log by clicking the Clear Log button. **** If required in your market, visit the “System Health” screen and click on “Trigger Test Alarm”... - Page 23 Reboot: If a reboot of the repeater becomes necessary click on the Reboot option in the navigation box and the Reboot page is displayed. Note: a reboot will take 3-5 minutes to complete. Alarm Confi guration: The Alarm Confi guration page allows the user to specify what events will trigger an alarm. *NOTE: Letters, numbers &...
- Page 24 E-mail Confi guration: E-mail Confi guration page allows the user to enter up to fi ve E-mail addresses to which the repeater can send specifi ed alarm messages when the repeater is connected via ethernet or wireless modem and E-mail Alarm Notifi cation or Remote Networking are enabled. *NOTE: In all fi...
-
Page 25: Change Password
Change Password: By clicking on the Change Password link the user is brought to the Change Password page. From here he or she can quickly and easily reset the password for the unit. A word of warning here be careful when setting the new password. - Page 26 Many terminal emulation programs will work if properly confi gured. In the following description, “TeraTerm” is used to establish the TMI session. This program is readily available via the Internet http://www.ayera.com/teraterm/ and is free from Ayera Technologies at: TeraTerm Pro Web works on Windows 95/98, 2000, XP. Here is the latest TeraTerm Pro Web release: Version 3.1.3, October 8, 2002.
- Page 27 After completing the serial port changes (pressing the enter key will be required to complete the action) the user will be prompted for a user name and password. In dual band units each band is changed independently and requires an independent login. To make changes to the cellular band, the default user name is “cellband”.
- Page 28 Each “Set Parameter” selection, when chosen will be expanded to allow changing or set- ting of that parameter. For example from the Link Confi guration menu on the previous page, selecting 1 - Adjust Gain will display the menu shown below. After selecting option 1, downlink, the current user gain is displayed and the option to change it is accomplished by typing the desired gain at the prompt.
-
Page 29: Telnet Session (Remote Access)
All the other options operate in much the same way. Some of the options will offer the user additional selections and will be self-explanatory. Below is one example of these ad- ditional options, the one shown below is the result of selecting (3) Filter Programming. Note: Graceful session termination is important. - Page 30 Pressing the “OK” button will bring the user to the following screen, which will re- quire the user to log in. In dual band units, each band is changed independently and requires an independent login. To make changes to the cellular band the default user name is “cellband”.
-
Page 31: Modem Interface (Remote Access With Login)
Telnet and serial sessions both provide access to the same Text Menu Interface. This manual has already discussed many of the options available, those as well as the options not covered are self explanatory, so they will not be repeated in the Modem Interface section. - Page 32 Right click on Local Area Connection - and select “Properties”. Scroll down and highlight “Internet Protocol (TCP/IP) and click on the “Properties” button. If you are set up to use DHCP, the window shown below will be displayed. Select “Use the following IP address:” and enter “192.168.1.2.” The subnet mask should automatically populate to “255.255.255.0.
- Page 33 Nothing else will need to be chosen or entered. Click “OK”, then “OK” again and retry connection. A crossover Ethernet cable (supplied) must be used for Web Interface access. As a reminder, you must verify the Ethernet port on your laptop is powered. If your laptop is on battery power, the Eth- ernet port may be inactive by default.
- Page 34 One Year Limited Warranty Seller warrants that its products are transferred rightfully and with good title; that its products are free from any lawful security interest or other lien or encumbrance unknown to Buyer; and that for a period of one year from the date of installation or fi...
-
Page 35: Index
Index Important Safety Information 5, 13 Safety Guidelines 4 Industrial Dust 15 SBC 5 Industry Certifi cations/Registra- SNMP 5 tion Numbers 35 SNMP Confi guration 22 Input VSWR 16 AC Current 15 Spurious Emissions & Applicable Install & Upload 23 AC Power Frequency 15 Documents 16 Install Software 23... - Page 36 Notes - 37 -...
- Page 37 Notes - 38 -...
- Page 38 Notes - 39 -...
- Page 39 960-1049-001 rev 002...
