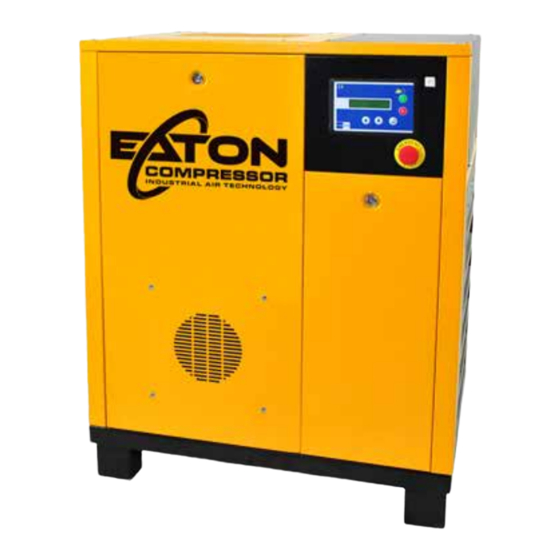

Eaton PRS0100001 User Manual

Rotary screw compressor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Operating Instructions
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRS0100001 and is the answer not in the manual?

Questions and answers

Summary of Contents for Eaton PRS0100001

  • Page 1 Operating Instructions...
  • Page 2 Eaton Compressor Rotary Screw Compressor Operating Instructions ROTARY SCREW COMPRESSORS Eaton Compressor designs and manufactures products for safe operation. However, operators and maintenance persons are responsible for maintaining safety. All safety precautions are included to provide a guideline for minimizing the possibility of accidents and property damage while equipment is in operation.

  • Page 3: Table Of Contents

    Warranty ............43 Variable Speed Drive The variable speed drive is an auxiliary feature available on all Eaton Compressor. A variable speed drive or VSD regulates amp draw during start-up and motor speed during operation according to air demand. All Eaton Compressor are equipped with a VSD compliant motor, ventilated electrical box & adequate space in compressor cabinet for easy installation.

  • Page 4: Model Specification Charts

    1-1/2 gal (6 L) L•W•H Dimensions 26”x34”x43” 26”x34”x43” 26”x34”x43” 34”x24”x43” 32”x37”x50” 32”x37”x50” (inches) Weight (lbs.) Eaton Compressor Rotary Screw Systems: 25 Hp - 60 Hp (VSD Compliant) PRS0250003 PRS0300003 PRS0400003 PRS0500003 PRS0600003 Model No. Three Phase Three Phase Three Phase Three Phase...

  • Page 5: Safety Information

    Operating Instructions Eaton Compressor Rotary Screw Systems: 75 Hp - 200 Hp (VSD Compliant) PRS0750003 PRS1000003 PRS1250003 PRS1500003 PRS1750003 PRS2000003 Model No. Three Phase Three Phase Three Phase Three Phase Three Phase Three Phase Description Dual Voltage Dual Voltage Dual Voltage...

  • Page 6: Basic Guidelines

    Eaton Compressor Rotary Screw Compressor Basic Guidelines CALIFORNIA PROPOSITION 65 This product or its power cord may contain chemicals known to the State WARNING of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

  • Page 7: Inspection

    NEVER attempt to move a compressor that is not secure as serious injury or property damage could occur. A forklift may be necessary for unloading the Eaton Compressor. and requires a certified forklift operator, using all forklift safety measures. Refer to figure 1 for safe unloading procedures.

  • Page 8: Installation

    Eaton Compressor Rotary Screw Compressor Installation Area Exhaust air from this unit can be used to supplement environment heat. Install unit in separate room then create duct system as shown in figure 3. Install compressor in a clean, well ventilated and well lit area. Make sure air inlet is away from exhaust fumes or other toxic, noxious or corrosive fumes or substances.

  • Page 9: Installing

    Operating Instructions Installing Install piping as shown in Figure 4. Refer to Figure 5 for recommended, closed loop installation. Make sure any tube, pipe or hose connected to the unit can withstand operating temperatures and retain pressure. Never use plastic (PVC) pipe for compressed air. Serious injury or WARNING death could result.

  • Page 10: Oil Check

    Eaton Compressor Rotary Screw Compressor For permanent installations of compressed air systems, determine total length of system and select correct pipe size. Bury underground lines below frost line and avoid areas where condensation could build-up and freeze. Test entire piping system before underground lines are buried, and find and repair all leaks before using compressor.

  • Page 11: Motor Rotation

    Operating Instructions Follow all NEC and local codes for electrical wiring. Wiring for Variable Speed Drive or typical Wye- Allow only authorized Eaton Compressor Delta Start. See page 1 for advantages of VSD. service person or certified electrician to install electrical components.

  • Page 12: System Description

    PLC can be divided into two systems. One is for the starting panel to configure Y Delta starting. The other is for internal computer controls and is explained in more detail in the PLC manual. If there is any failure, contact Eaton Compressor service department.
  • Page 13 Operating Instructions Setting:oC/ oF; BAR/PSI; Language; Time/Date Press the Up arrow for setting temperature scale, gauge pressure, language, time & Main screen starting point. date. Now the current flashing gauge pressure Press the Enter button to see the current setting, BAR (metric) or PSI (Am. Std) flashing temperatures scale, oC (Celcius) or shows in display.

  • Page 14: Working Pressures

    Eaton Compressor Rotary Screw Compressor The current date, day of week and time The current language setting now shows in now shows in the display. Starting with the the display. Use the Up & Down arrows to flashing date, use the Up & Down Arrows...

  • Page 15: Clock Timer Settings

    Operating Instructions Enter in the 6 Digit Password 6 6 6 6 6 6, by using the Up Arrow to set the digit to 6 then press Enter to move to the next digit, and press the Up Arrow to set to 6, repeat until last digit is Arrow down to 0)WORKING PRESSURES set to 6, then press Enter.

  • Page 16: Working Timer - Unloading Delay

    Eaton Compressor Rotary Screw Compressor Working Timer - Unloading Delay To reduce wear & tear of the compressor components, an unloading delay time is set in the controls that shuts-down the compressor after the unloading delay time has counted down.

  • Page 17: Maintenance Notifications

    Operating Instructions Arrow down to Wt4 (Unload delay time). Press Enter and the time flashes and can be changed by using the Up & Down Arrows. Press Enter Once satisfied with all settings, press Down again to confirm the setting. (See chart on page Arrow until you are back to the Main Screen. 17 of PLC manual.) Maintenance Notifications Component...
  • Page 18 Eaton Compressor Rotary Screw Compressor Resetting Maintenance Alarms (Continued) Arrow down to 6)OIL/FILTER-HOURS and Enter in the 6 Digit Password 6 6 6 6 6 6, by press Enter using the Up Arrow to set the digit to 6 then press Enter to move to the next digit, and press the Up Arrow to set to 6, repeat until last digit is set to 6, then press Enter.
  • Page 19 Operating Instructions Resetting Maintenance Alarms (Continued) Using Enter move over to NO and use the Up Arrow to change it to YES then hit Enter and it Press Down Arrow and CHANGE SEP. resets the hours. Separator filter should be set (Separator) FILTER shows in the display. at 4000 hours.
  • Page 20 Eaton Compressor Rotary Screw Compressor Resetting Maintenance Alarms (Continued) Press Down Arrow and BEARING LUBRICATE Using Enter move over to NO and use the Up shows in the display. Press Enter. Arrow to change it to YES then hit Enter and it resets the hours.

  • Page 21: Mechanical Components

    Operator error: Improper regulation of air exhaust pressure or other parts of the system. Branch circuit not sized correctly Mechanical failures: • Internal motor failure • Improper motor phasing • System setting error • Blocked air/oil separator filte If motor overload protection is caused by any other reason, contact Eaton Compressor immediately.

  • Page 22: Resetting Overload Protection

    Locate BLUE reset button on relay from unit attached to K1 contactor. Once motor has cooled, press-in on BLUE Example of relay on larger units. button If motor overload protection is caused by any other reason, contact Eaton Compressor immediately!
  • Page 23 Operating Instructions variable speed drive (Energy saving device) Ready Cabinet This cabinet has allocated space and cooling fan to house variable speed drive components. To convert to variable speed drive, contact Polar Air customer service for more information, 1-877-283-7614. Air Suction Filter (Air Intake) A dry type paper filter with filtration of 5 ppm, replace after first 600 hours of operation;...
  • Page 24 Eaton Compressor Rotary Screw Compressor Exhaust Probe The probe is temperature sensitive and located at the air outlet of the rotary screw casing. When exhaust temperature exceeds 210°F (98.8°C), the system automatically powers OFF. The temperature of the air exhaust can be read on a display panel located on the PLC. Common reasons for excessive exhaust temperatures: • low oil level • inoperable exhaust fan...
  • Page 25 Operating Instructions Air/Oil Separator Filter During the process of air compression from pump, air and oil are mixed together to lubricate, seal and cool compressor rotors. This air and oil is transferred to air/ oil separator tank and then the air/oil separator filter removes oil mist from the compressed air.

  • Page 26: Operation

    Eaton Compressor Rotary Screw Compressor Refrigerated Dryer/Coalescing Filter (optional, not shown) The refrigerated dryer removes moisture content. The coalescing filter removes oil droplets and impurities in the compressed air. The refrigerated dyer/coalescing filter operates best with an automatic drain that removes water condensation collected during the airdrying process.

  • Page 27: Initial Checks

    10 minutes. If oil needs to be added, make sure all pressure is relieved before opening fill port. Use only Eaton Compressor lubricating oil. Also make sure oil level does not drop below low level line on site glass during operation.

  • Page 28: Start-Up

    Be sure to close valve after draining water. Check “Emergency Stop” function by pressing the button shortly after pressing ON button. Do not operate the machine if there is any abnormal noise or vibration during operation. Call Eaton Compressor service for assistance.

  • Page 29: Storage

    Operating Instructions Storage If the machine is stopped for over three weeks: a) Wrap electrical equipment such as the control panel with plastic or oil paper to avoid condensation. Completely drain water in the oil cooler, the back cooler and the oil/air separator tank. Make sure any unsafe conditions are clearly stated or repaired. If the machine is not run for more than two months: Seal all ports to prevent moisture or dust accumulation.

  • Page 30: Lubricating Oil

    Lubricating Oil To avoid water condensation during operation, keep oil temperature between 160° - 190° F (70° - 88° C). Failure to do so causes pump damage. Contact Eaton Compressor service if temperature drops below 160° F (70° C). Changing Oil Shut down compressor and allow machine to set for 5-10 minutes.

  • Page 31: Oil Capacities

    Operating Instructions Drain oil completely. Be sure to include oil in system piping, cooler and air/oil separator tank. Close drain valve. Remember to remove and change oil filter, taking care to avoid hot oil during replacement. Open oil fill port and add new oil. Oil Capacities: CAUTION 7.5–...

  • Page 32: System Pressure

    Eaton Compressor Rotary Screw Compressor System Pressure System pressure is factory set but can be regulated depending on operating conditions. Refer to computer control specifications for setting adjustments or PLC operating manual. Safety Valve TO AVOID SERIOUS INJURY OR DEATH, NEVER ATTEMPT TO REGULATE OR TAMPER WITH SAFETY VALVE.

  • Page 33: Maintenance Schedule

    Operating Instructions Maintenance Schedule   Daily Check oil level Check safety valve   Check coolant level Drain condensed water   Weekly Clean air filter General unit cleaning  Check belt tension   500 hrs. Change lubricating oil (after first 500 hrs.) Grease electric motor bearings ...

  • Page 34: Troubleshooting

    Eaton Compressor Rotary Screw Compressor Troubleshooting Chart Problem Possible Causes Resolutions Compressor will not start Power supply problem Check complete circuit for proper (Electric failure light is on) voltage, ensure all electrical connections are secure; once power is restored, press Enter button on controls.
  • Page 35 Operating Instructions Problem Possible Causes Resolutions Compressor shuts down under Loss of Control Voltage Reset-Press Enter button on controls. If compression mode/while load- trouble persists, check line pressure ing (Continued) does not exceed maximum operating pressure of the compressor (specified on nameplate) 3. Wire size for power supply too small.
  • Page 36 Eaton Compressor Rotary Screw Compressor Problem Possible Causes Resolutions Line pressure exceeds upper 2. High pressure shut-down preset Reset to proper setting. Refer to PLC preset safety limit (Continued) manual. is incorrectly programmed Additional compressor piped into Reset additional compressor pressure settings to 145 psi or lower...
  • Page 37 Contact Eaton Compressor dryer in air system Excessive noise level V-belts slipping Adjust belt tension or replace belts Compressor defective (Bearing Replace bearing; Contact Eaton failure or rotor contact) Compressor Enclosure panels not in place Install enclosure panels Loose component mounting Inspect &...
  • Page 38 Eaton Compressor Rotary Screw Compressor Problem Possible Causes Resolutions Excessive vibration Loose component mounting Inspect & tighten Motor or compressor bearing Replace bearing; Contact Eaton failure Compressor External sources Check for other sources of vibration, other than the compressor V-belts slipping...

  • Page 39: Wiring Diagrams

    Operating Instructions...
  • Page 40 Eaton Compressor Rotary Screw Compressor...
  • Page 41 Operating Instructions...
  • Page 42 Eaton Compressor Rotary Screw Compressor...

  • Page 43: Warranty

    If downtime is necessary, it is the Purchaser’s discretion and obligation (at Purchaser’s expense) to have a redundant UNIT. This warranty applies to rotary screw rotors and bearings. The electric motor carries a five year warranty and a 2 year warranty on the rest of the compressor unit. The screw compressor MUST have Eaton Compressor and Fabrication Co., Inc.
