IVC3 Series No-power I/O Extension Module
User Manual
Thanks for choosing the programmable logic controllers (PLCs)
developed and produced by INVT Auto-Control Technology
(Shenzhen) Co., Ltd. Before using the PLC, read this manual
carefully to understand the product features, so that you can
install and use the product properly and make full use of its
functions.
Note:
Before using the product, read the operation instructions and
precautions carefully to prevent accidents. Only trained personnel
can install and operate the product, and when installing and
operating the product, the operators must strictly follow the
related industrial safety specifications and the precautions and
special safety guide provided in this manual to perform proper
operations.
1
Product introduction
1.1
Appearance and structure

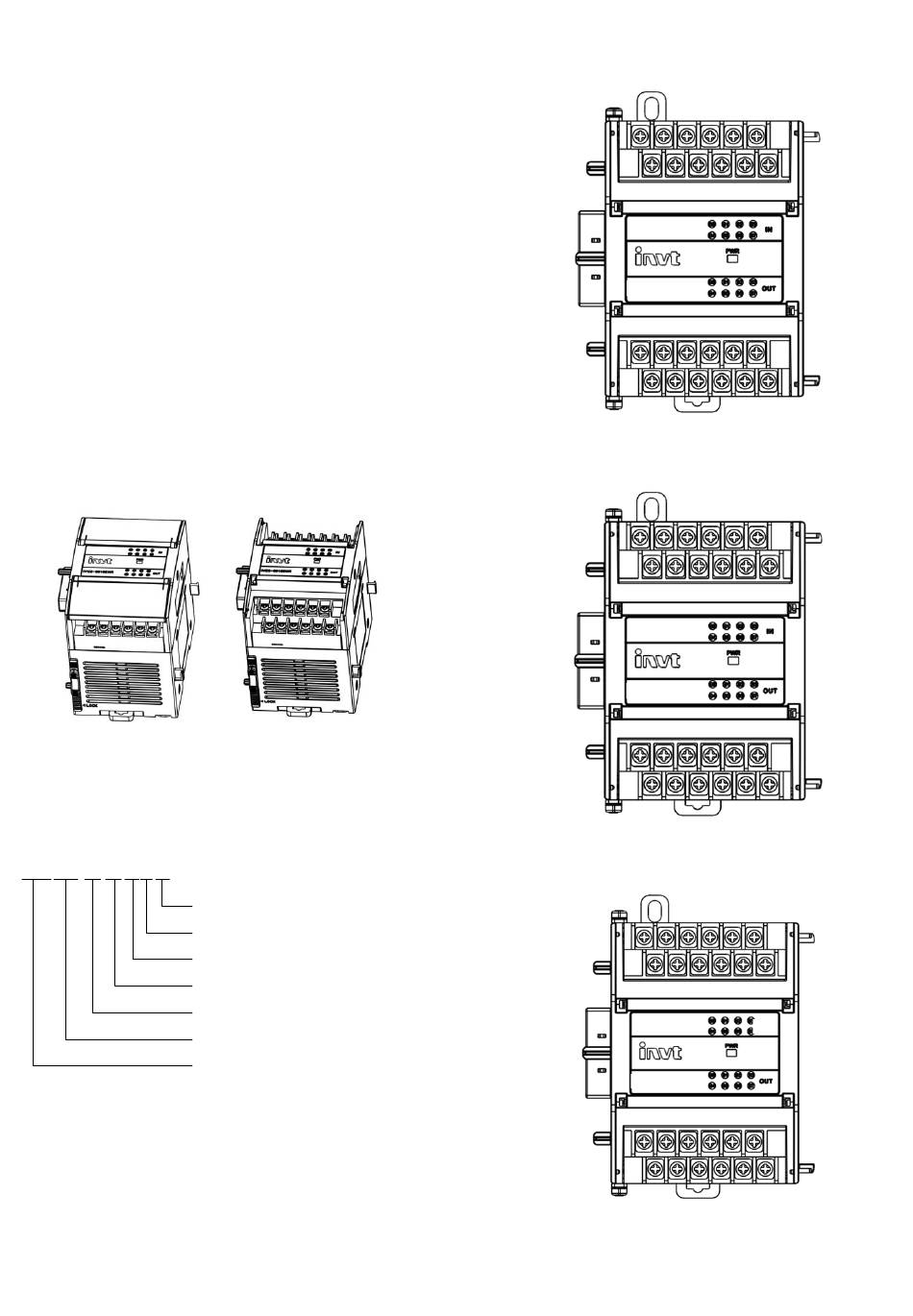

Figure 1-1 shows the appearance and structure of the IVC3
series no-power supply I/O extension module.
Figure 1–1 Appearance, structure, and components of the
no-power supply I/O extension module
1.2
Model description
Figure 1-2 describes the product model.
IVC-EH-08 08 E N R
Figure 1–2 Product model description
Output mode (R: Relay; T:
Transistor; N: No output)
No external power
supply connected
Extension unit
Number of output points
(8 points in this example)
Number of input points
(8 points in this example)
Extended high performance
Identifier of INVT Auto-Control PLCs
1.3
Appearance and terminals
Appearance and terminals of IVC-EH-0808ENR
.
S/S X0 X2 X4 X6
IVC-EH-0808ENR
.
Y0
COM0
Figure 1–3 Appearance and terminals of IVC-EH-0808ENR
Appearance and terminals IVC-EH-0808ENT
.
S/S X0 X2 X4 X6
IVC-EH-0808ENT
.
Y0
COM0
Figure 1–4 Appearance and terminals of IVC-EH-0808ENT
Appearance and terminals of IVC-EH-0016ENT
.
COM0 Y0 Y2 Y4 Y6
IVC-EH-0016ENT
.
Y10
COM1
Figure 1–5 Appearance and terminals of IVC-EH-0016ENT
. .
X1
X3 X5 X7
.
.
Y4 Y6
Y2
Y3 Y5 Y7
Y1
. .
X1
X3 X5 X7
.
.
Y2
Y4 Y6
Y1
Y3 Y5 Y7
. .
Y1
Y3 Y5 Y7
OUT
.
.
Y12
Y14 Y16
Y11
Y13 Y15 Y17
