A S
BOUT THE YSTEM

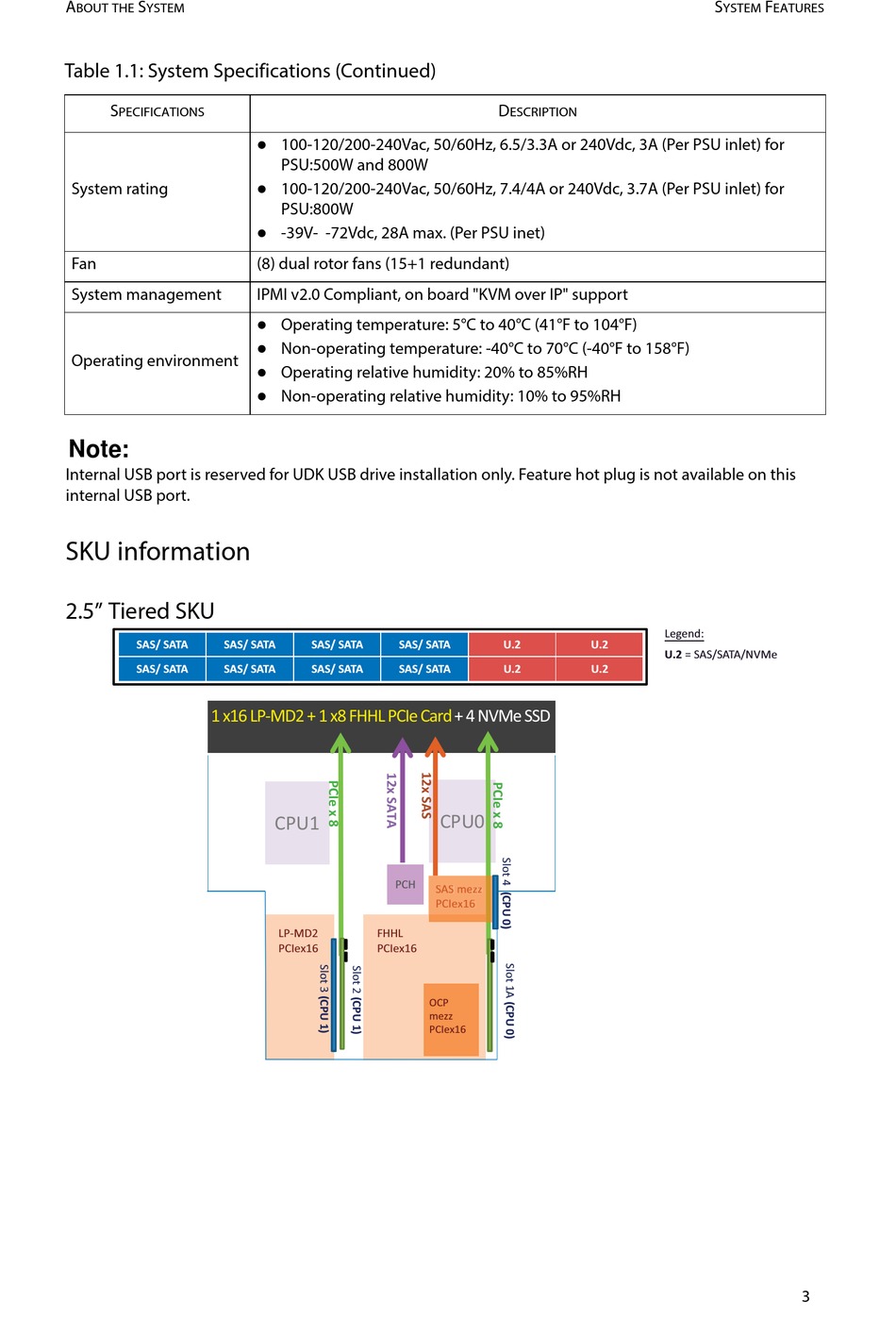

Table 1.1: System Specifications (Continued)
S
PECIFICATIONS
System rating
Fan
System management
Operating environment
Note:
Internal USB port is reserved for UDK USB drive installation only. Feature hot plug is not available on this
internal USB port.

SKU information

2.5" Tiered SKU
SAS/ SATA SAS/ SATA
SAS/ SATA SAS/ SATA
1 x16 LP-MD2 + 1 x8 FHHL PCIe Card
100-120/200-240Vac, 50/60Hz, 6.5/3.3A or 240Vdc, 3A (Per PSU inlet) for

PSU:500W and 800W
100-120/200-240Vac, 50/60Hz, 7.4/4A or 240Vdc, 3.7A (Per PSU inlet) for

PSU:800W
-39V- -72Vdc, 28A max. (Per PSU inet)

(8) dual rotor fans (15+1 redundant)
IPMI v2.0 Compliant, on board "KVM over IP" support
Operating temperature: 5°C to 40°C (41°F to 104°F)

Non-operating temperature: -40°C to 70°C (-40°F to 158°F)

Operating relative humidity: 20% to 85%RH

Non-operating relative humidity: 10% to 95%RH

SAS/ SATA SAS/ SATA
SAS/ SATA SAS/ SATA
CPU1
PCH
LP-MD2 FHHL
PCIex16 PCIex16
D
ESCRIPTION
U.2 U.2
U.2 U.2
+ 4 NVMe SSD
CPU0
SAS mezz SAS mezz
PCIex16 PCIex16
OCP
mezz
PCIex16
S F
YSTEM EATURES
Legend:
U.2 = SAS/SATA/NVMe
