Signet 0252 Configuration Tool
*3-0252.090*
3-0252.090
Rev. A 01/16
•
English
Deutsch
•
•
Français
•
Español
Description

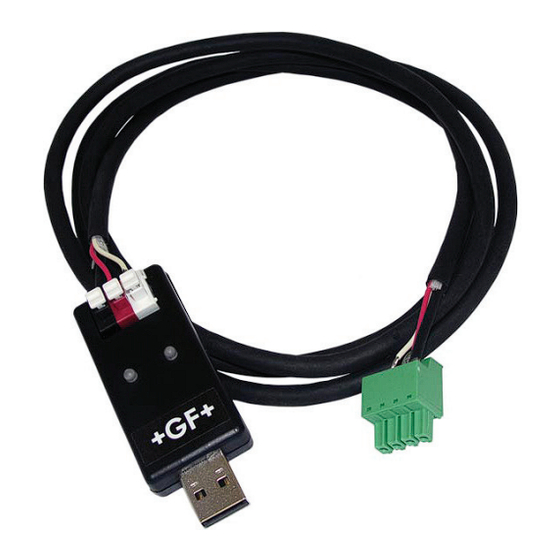

The 0252 Configuration Tool is a USB to Digital (S
Windows
compatible software program used for interfacing with Signet 9900
®
Transmitters and blind sensors via a computer.
The 0252 tool and software allows:
•
Set application parameters (Engineering units, 4 to 20 mA span, etc.)
•
Save the setting configuration data to a computer file.
•
Upload a previously stored configuration data file into the Signet product.
•
Monitor a sensor's performance and log the data to a file.
•
Reset the product settings to factory default condition.
Certain parameters (such as calibration) cannot be changed because access
to an external sensor is required.
Table of Contents
Warranty Statement ................................................................................ 2
Product Registration ............................................................................... 2
Safety Information ................................................................................... 2
Specifications .......................................................................................... 2
Required Equipment ............................................................................... 3
Install Software ....................................................................................... 3
Run Software .......................................................................................... 3
Set Software Language .......................................................................... 3
Sensor Wiring (2250, 2350, 2450, 2750) ................................................ 4
2551 Magmeter Wiring............................................................................ 5
2552 Magmeter Wiring............................................................................ 5
9900 Wiring ............................................................................................. 6
General Software Operation ................................................................... 6
Sensor Operation .................................................................................... 7
2551 & 2552 Operation ........................................................................ 8-9
9900 Operation ................................................................................ 10-11
Datalogger Operation............................................................................ 12
Ordering Information ............................................................................. 12
Microsoft, Windows, and Windows Vista are registered trademarks of
Microsoft Corporation in the United States and other countries.
Operating Instructions
L) convertor and Microsoft
3
English
®
Advertisement
Table of Contents
Related Manuals for GF Signet 0252
Summary of Contents for GF Signet 0252
-
Page 1: Table Of Contents
English Signet 0252 Configuration Tool *3-0252.090* 3-0252.090 Rev. A 01/16 Operating Instructions Description The 0252 Configuration Tool is a USB to Digital (S L) convertor and Microsoft ® Windows compatible software program used for interfacing with Signet 9900 ® Transmitters and blind sensors via a computer. -
Page 2: Warranty Statement
All warranty and non-warranty repairs being returned must include a fully completed Service Form and Operating System ....Windows XP, Windows Vista, goods must be returned to your local GF Sales office Windows 7 (32 and 64 bit), or distributor. -
Page 3: Required Equipment
3. A separate Preferences dialog box should be on the computer display. 4. Select the desired language from the drop-down menu. Supported languages: English, French, German, Spanish, Italian, Portuguese, Chinese 5. Click Save to set language preference. Signet 0252 Configuration Tool... -
Page 4: Sensor Wiring (2250, 2350, 2450, 2750)
Data Black Black +5V out +5V out +5V out White Windows PC Windows PC Windows PC Signet 2750 In-Line pH/ORP Sensor Black Black Data Data +5V out +5V out White White Windows PC Windows PC Signet 0252 Confi guration Tool... -
Page 5: 2551 Magmeter Wiring
Turn 24 VDC Power OFF when wiring the magmeter. Blue Wire Nut Blue Wire Nut *Additional wire required *Additional wire required White White *Wire 3 *Wire 3 To GND To GND *Wire 2 To -VDC *Wire 2 To -VDC Signet 0252 Confi guration Tool... -
Page 6: 9900 Wiring
After resetting the software to a factory default condition, click Write to reset the connected device to a factory default condition. NOTE: Performing the above reset to factory default condition will not change the input type on the 9900 Transmitter. Signet 0252 Confi guration Tool... -
Page 7: Sensor Operation
Click “Save” to save these settings to a local computer file for later use. To use a saved file (from 4b): 1. Click “Load” 2. Navigate to the saved file 3. Select “Open” 4. Click “Write” 5. Click “Read” to confirm Signet 0252 Configuration Tool... -
Page 8: 2551 & 2552 Operation
Click “Save” to save these settings to a local computer file for later use. To use a saved file (from 13b): 1. Click “Load” 2. Navigate to the saved file 3. Select “Open” 4. Click “Write” 5. Click “Read” to confirm Signet 0252 Configuration Tool... - Page 9 Set the flow rate where all Magmeter outputs will be forced to zero. Low Flow Cut Off When the flow rate drops below this value, the frequency output will be 0 Hz and the current output will be 4 mA. Signet 0252 Configuration Tool...
-
Page 10: 9900 Operation
Click "Save" to save these settings to a local computer file. Wire another 9900 as shown on page 7. Initiate communication with the 9900 via step 1a or 1b above. Load the saved settings via step 6 above. Signet 0252 Configuration Tool... -
Page 11: Operation
9900 Operation (General Software Operation, pg. 6) Signet 0252 Configuration Tool... -
Page 12: Datalogger Operation
Datalogger Operation The 0252 can serve as a field data logger to download data directly into a *.csv (Comma Separated Value) file. NOTE: The 0252 does NOT have internal memory to store data. It must be connected to a computer to use the datalog function. 1.
