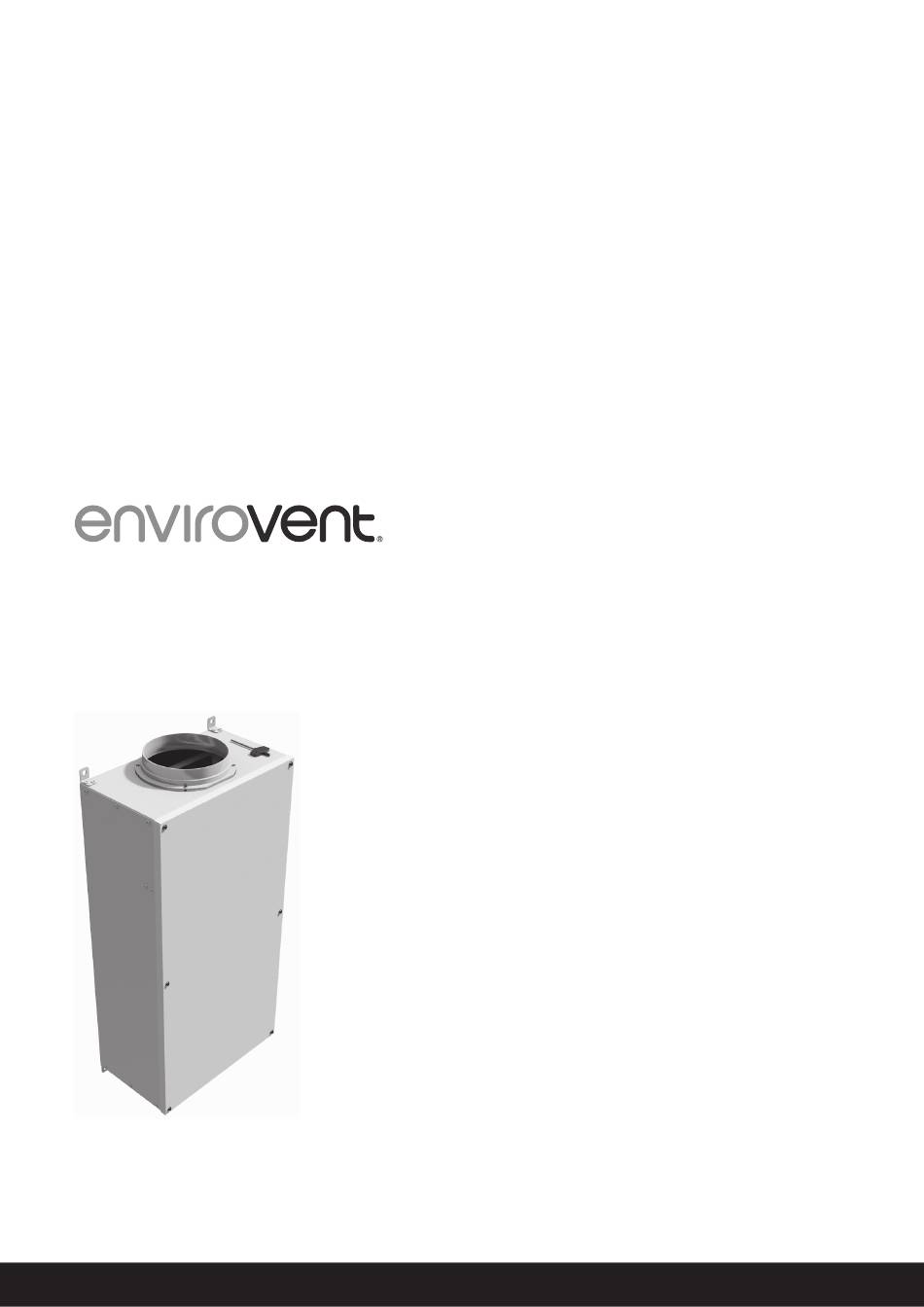

- Page 1 NitroBox NO2 Filter INSTALLATION GUIDE FOR ENGINEER / INSTALLER...
-
Page 2: Important Information
3. This manual covers the installation and Children should be supervised to ensure maintenance of the EnviroVent NitroBox that they do not play with the appliance. NO2 Filter. Cleaning and user maintenance shall not be made by children without supervision. -
Page 3: Recommendation
Inspect the unit when taking delivery. Check the unit for damage and that all accessories have been supplied. Package supplied with:- • NitroBox NO2 Filter system (including active carbon filters and G4 pre-filter as standard) x 1. • Product Manual x 1. -
Page 4: Table Of Contents
Ducting Behind Unit Maintenance Filter Replacement Pre-Filter Active Carbon Filters NO2 Testing Kit Carbon Life Prediction Service How to Change Filters Disposal of Filters SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING 0345 27 27 810 THIS UNIT, CALL US ON: NitroBox NO2 Filter... -
Page 5: Product Information
Due to this pollution arising in cities and urban areas there is a need to implement mitigation measures to improve the indoor air quality (IAQ). The NitroBox NO2 Filter is an effective means of reducing high NO2 levels down to an acceptable level of 40µg/m as a mean annual concentration level. -
Page 6: Dimensions
Product Information Dimensions (mm excluding ports) Filter Access - 400 Port Size Round: Ø150mm SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING 0345 27 27 810 THIS UNIT, CALL US ON: NitroBox NO2 Filter... -
Page 7: Mounting
Mounting safety information 1. Mark positions of the mounting holes onto the mounting surface using dimensions • The NitroBox NO2 Filter is designed to be as shown. mounted in any orientation. 2. Prepare the mounting surface in the • The mounting surface substrate must be positions specified for four Ø8mm fixings. -
Page 8: Wall Mounting
For advice on suitable fixings contact your local specialized fixings dealer. 324.5 MIN 2MM MAX 4MM 284.5 Fixing Screw Fixing positions Rear Front SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING 0345 27 27 810 THIS UNIT, CALL US ON: NitroBox NO2 Filter... -
Page 9: Ducting Connection Airflow Direction
Ducting Connections Airflow Directions Ducting Behind Unit The NitroBox NO2 Filter uses a prefilter and active carbon filters, the air to be filtered must pass though the prefilter before the active carbon filters, therefore it is very important that ducting is connected correctly... -
Page 10: Maintenance Filter Replacement
At the end of the exposure period, replace NO2 Testing Kit cap and label the sample with the barcode A NO2 testing kit is available from EnviroVent label provided. that can be used to determine the levels of NO2 4. Affix the corresponding number label to the within the property. -
Page 11: How To Change Filters
EnviroVent do not offer a waste disposal service and therefore cannot accept filters for disposal, but can recommend the following... -
Page 12: Accessories And Spare Parts List Removable Insulation Jacket
FILTER-C- EV-FILTB2-NO2 EV-FILTBJ-NO2 FILTB FILTB FILTB2 NO2 Testing Kit A NO2 testing kit is available from EnviroVent that can be used to determine the levels of NO2 within the property. Fitting Kit Ducting Behind Unit NO2 Testing Kit Exposure Time... -
Page 13: Terms Of Warranty
Warranty Conditions & Exclusions The EnviroVent NitroBox NO2 Filter is covered by a full 3 year warranty which will benefit the occupier over many years. In the event that the product requires servicing, maintenance or reaches the end of its useful life, the quick, simple component replacement programme will ensure minimal disruption - no re-wiring, no drilling or dust. - Page 14 Service Record Serviced By Company Date Notes SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING 0345 27 27 810 THIS UNIT, CALL US ON: NitroBox NO2 Filter...
- Page 15 Weee Directive To all residents of the European Union; Important environmental information about this product. This symbol on this unit or the package, indicates that disposal of this unit after its lifecycle could harm the environment. Do not dispose the unit as unsorted municipal waste;...
- Page 16 Your feedback is important to us as we strive to improve our and improvement EnviroVent reserves products, services, and overall customer experience. Please email the right to alter products specification us to help us serve you better: feedback@envirovent.com and appearance without notice.
