Initial Setup & Assembly
Mount Remote Deflector Control
1. Using the template included in the back of this manu-
al, drill two 9/32" holes in the dashboard to mount the
remote chute control. See MOUNTING REMOTE
DEFLECTOR CONTROL on page 22.
2. Mount the mounting bracket (E, Figure 16) to the
dashboard. Secure with two 1/4-20 x 7/8 capscrews
(A), lockwashers (C), and large flat washers (B).
3. Install the remote deflector control handle (B, Figure
17) in the mounting bracket (C) and secure with a
clevis pin (A) and hair pin clip (D).
D
C
B

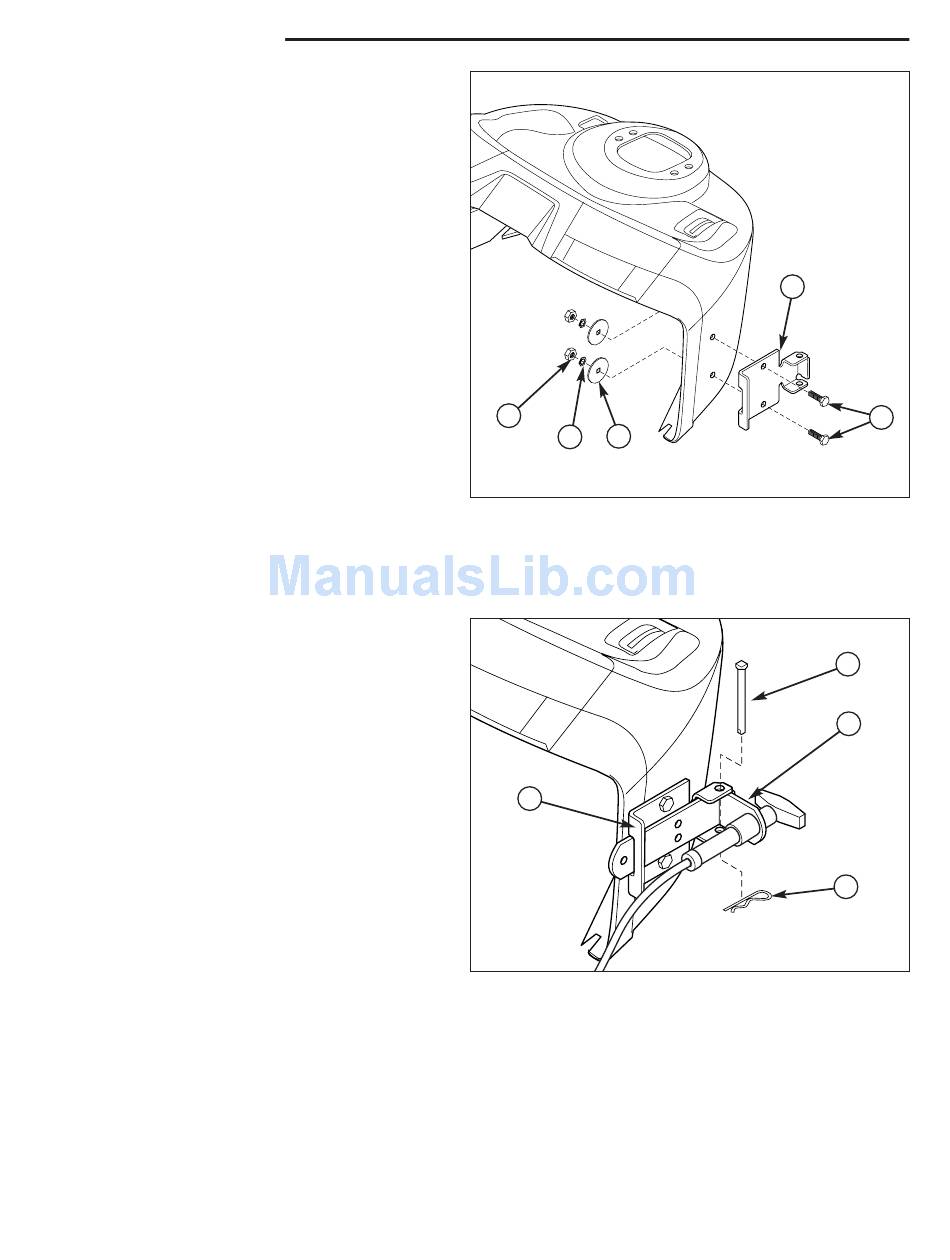

Figure 16. Mount Control Bracket - Current Models
A. 1/4-20 x 7/8 Capscrews
B. 1/4 x 1-1/4 Flatwashers
C. 1/4 Lockwashers
C
Figure 17. Install Remote Deflector Control
A. Clevis Pin
B. Deflector Control Handle
C. Mounting Bracket
D. Hair Pin Clip
18
E
A
D. 1/4-20 Nuts
E. Mounting Bracket
A
B
D
