Summary of Contents for SYR STS 5

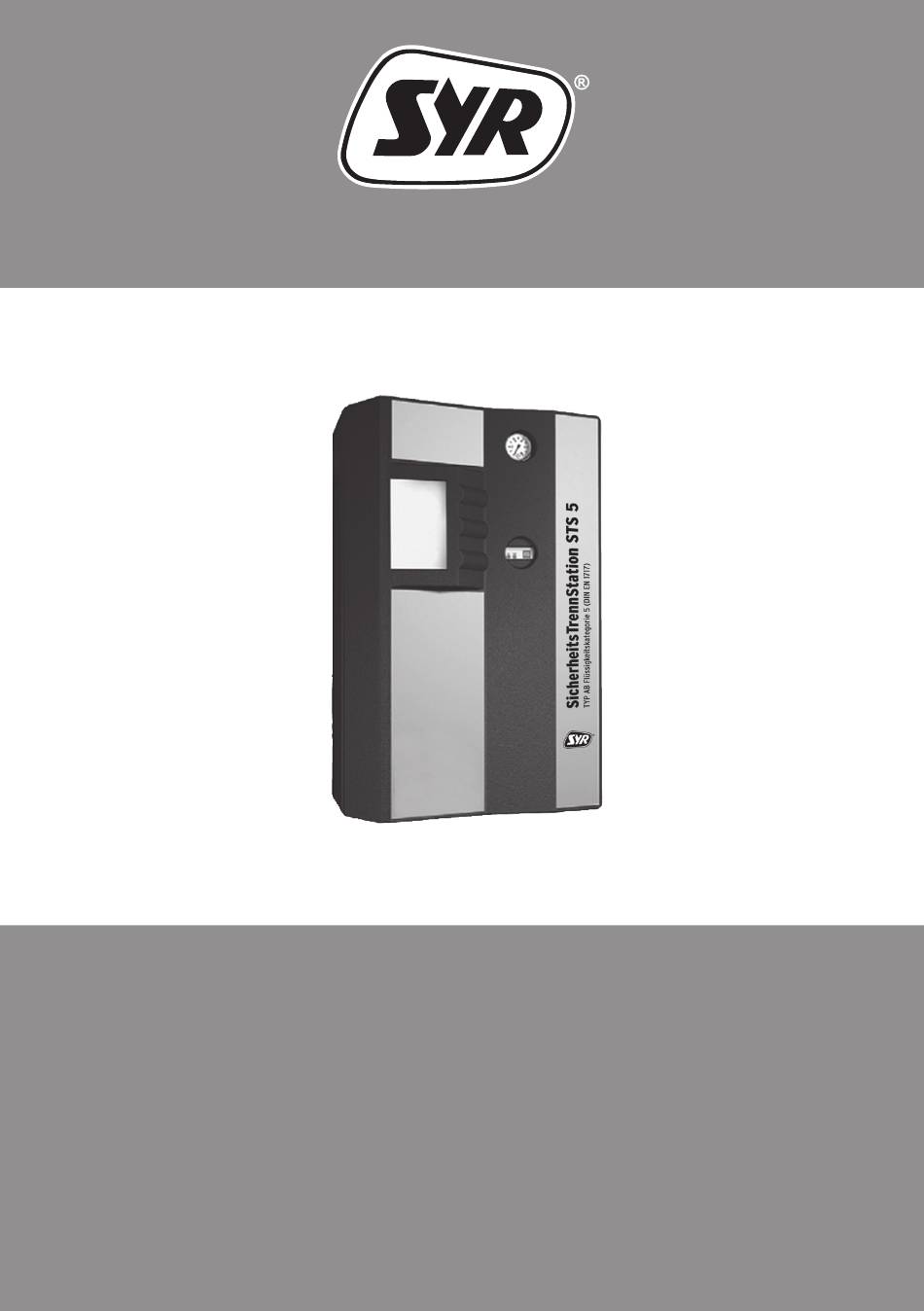

- Page 1 Innovative solutions for smart people User Manual Safety Disconnection Unit STS 5...
-
Page 2: Table Of Contents
Table of contents: Foreword Warranty (extract) General instructions Product description Flow guard Maintenance Troubleshooting 1.7 Technical specifications Important information Declaration of conformity Read prior to installation and operation! Observe all safety instructions! Keep in a safe place for future reference! This user manual includes important information and warnings. Read the instructions for use and installation prior to installation, electric connection and start-up. -
Page 3: Foreword
1.0 Foreword You made a very good decision in selecting this high-quality product. To ensure trouble-free functionality, read and observe the use instructions. When installing and starting the device, observe the instructions for installation. All operational conditions of the product have been tested in the manufacturing process. -
Page 4: Product Description
1.3 Product description Water is supplied by the device in the non potable water network in conformity with EN 1717. The disconnection is made according to category 5 - type AB. Product features Benefits • Automatic control of the water feed •... -
Page 6: Flow Guard
1.4 Flow guard (cf. picture 1) • Green LED ”On” (1) Shows that the flow guard and the pump are ready to operate. • Red LED ”Error” (2) Alert message: Indicates that the flow guard has identified a defect (pump running dry) •... -
Page 8: Maintenance
1.5 Maintenance The device includes components that require inspection and maintenance works. The indicated intervals for the inspection and maintenance works as well as the work steps should be observed by the operator in his own interest! • The operator is authorized to inspect the device himself! • Maintenance and repair shall be carried out by qualified installers or competent operators! Inspection and maintenance of the device:... - Page 9 Pump with flow guard Inspection: Verify the pressure built-up, the leaktightness, the pump and flow generated noise as well as the function: briefly press the key ”Start Pump.” on the flow guard until the pump starts to run. Interval: Every 6 months Execution: Operator Maintenance: Mechanical seal / Replace the bearing.
-
Page 10: Troubleshooting
1.6 Troubleshooting Proceed as follows: 1. Disconnect the device from the power supply (unplug). 2. Eliminate the defect, cf. possible malfunctions under ”What to do, if”. 3. Re-insert the plug into the appropriate socket. - The plug must be readily accessible and not be covered! 4. - Page 11 What to do, if..the pump permanently starts at short intervals? There is a leakage problem on the pressure side or a point of use is not leaktight. Shut-off the stop valve on the pressure side of the device. Check whether the pressure gauge shows a pressure drop and the pump starts again. If not, the leakage problem is not due to the device but to the downstream pressure pipe.
-
Page 12: Technical Specifications
1.7 Technical specifications Delivery rate Qmax 47 l/min Delivery head H max. 44 m Temperature range +5°C up to +35°C System pressure pd up to 10 bar Max. installation height Supply voltage 230 V AC / 50 HZ Working voltage Pump 230 V AC / 50 HZ Standby power consumption 2.8 W Nominal consumption... -
Page 13: Important Information
1.8 Important information General This state-of-the-art product has been developed and manufactured with the greatest care. It undergoes permanent quality controls. While observing the installation instructions, the present instructions of use will help the user to become familiar with the device and to operate it in accordance with the intended purpose. - Page 14 Risks incurred by the non-observance of safety instructions The non-observance of safety instructions may endanger people, the environment and damage the device. The non-observance of the safety instructions causes the loss of any claims for damages. For instance, the non-observance may lead to the following dangers: •...
- Page 15 Safety prescriptions for installation Your electric systems shall comply with the general installation regulations IEC 364/ VDE 0100, i.e. present sockets with earthing terminals. According to DIN EN 60335-2-41 / VDE 0700, the power network to which the device will be connected has to be equipped with a residual current device (ground fault circuit interrupter).
-
Page 16: Declaration Of Conformity
2.0 Declaration of conformity Hans Sasserath GmbH & Co. KG • Tel.: +49 2161 6105-0 • Fax: +49 2161 6105-20 Mühlenstraße 62 • D-41352 Korschenbroich • info@SYR.de • www.SYR.de printed in Germany - 9.6500.XX 1516 - Änderungen vorbehalten...
