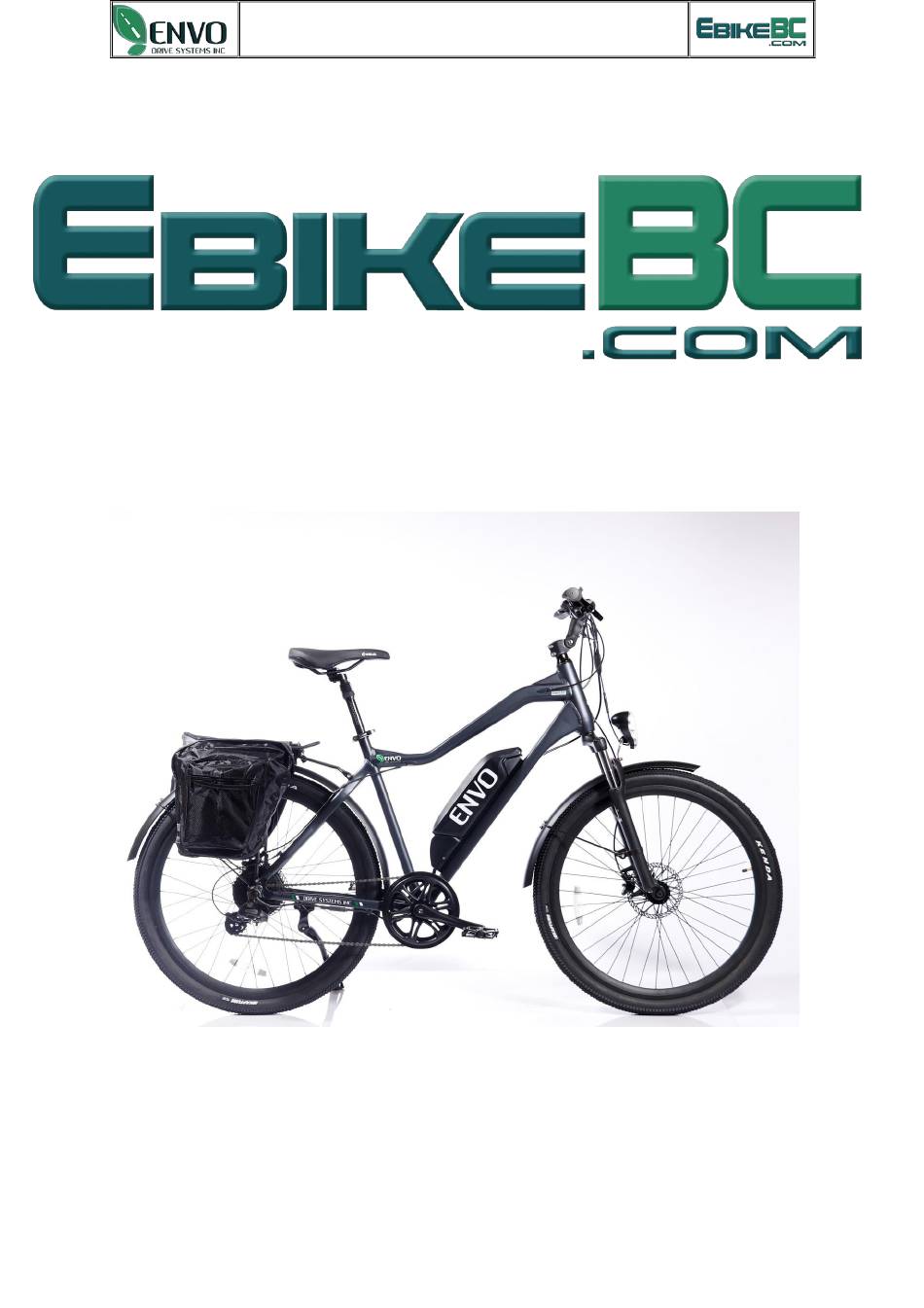

  • Page 1 ENVO E-bike User’s Manual ENVO E-Bike Users’ Manual...

  • Page 2: Table Of Contents

    INTRODUCTION Thank-you for choosing an ENVO Electric Bike. Our number one focus is to make you aware of the dangers of riding a bicycle and especially an electric bicycle so you can ensure you have safe and enjoyable riding experiences for years to come.

  • Page 3: Installation

    ENVO E-bike User’s Manual If you have any concerns, questions or suggestions about your electric bike, please contact us at info@EbikeBC.com Again, thanks for choosing ENVO Electric Bike! INSTALLATION There are 6 pieces in your package as shown in below pictures:...
  • Page 4 ENVO E-bike User’s Manual The one single bolt in the stem is just to adjust the final height of handle bar as soon as you install all the components and wat to ride the bike. Step 4: Make sure that you read the pedal direction before you mount them. There is “L” or “R” engraved on the pedal.

  • Page 5: Warnings And Caution Statements

    ENVO E-bike User’s Manual WARNINGS AND CAUTION STATEMENTS Electric Bikes can be dangerous to use. The user or consumer assumes all risk of personal injuries, damage, or failure of the bicycle or system and all other losses or damages to themselves and others and to any property arising out of or as a result of using the bicycle.
  • Page 6 USE – BEACH CRUISER: ENVO Electric bikes are designed to be ridden on paved roads or light trails only. The bike is not designed to withstand off-road conditions or downhill terrain. EBIKEBC assumes no liability for any accident, injuries, or property damage incurred as a result of rider’s use or misuse of EBIKEBC bicycles, including any damages resulting from or arising out of...
  • Page 7 WEIGHT CAPACITY: ENVO Electric Bike are designed with a maximum weight capacity of 120KG or 250 pounds for all models. The rear rack maximum weight capacity of a is 20KG or 44 pounds. Exceeding the maximum weight capacity can result in damage to the bike, which can lead to serious injury or death.
  • Page 8 ENVO E-bike User’s Manual SMALL BICYCLE ACCESSORIES AND CHOKING HAZARD: Some Bicycle accessories may present a choking hazard and other hazard to small children. Keep any bike parts accessories, tools away from small children. TECHNICAL SUPPORT: It is important to your safety, performance and enjoyment to understand how things work on your bike.
  • Page 9 ENVO E-bike User’s Manual Highlighted Safety Rules: 1. Obey the Rules of the Road and all traffic Laws. 2. Remember that you are sharing the road or path with others – motorists, pedestrians and other cyclists. Respect their rights. 3. Ride defensively. Always assume that others do not see you.
  • Page 10 ENVO E-bike User’s Manual 22. Wet weather impairs traction, braking and visibility, both for the bicyclist and for other vehicles sharing the road. The risk of an accident is dramatically increased in wet conditions. 23. Wet weather may lessen the grip of the rider’s feet on the pedals. If your feet slip off the pedals, it could lead you to fall.

  • Page 11: Battery

    ENVO E-bike User’s Manual Battery 1. Charging Your Battery Your bike comes with an On-Board Charging System accessed by the pull-out ZIP CORD on the below side of the battery pack. This can be plugged into any 110-volt outlet from your home or when you're out and about.

  • Page 12: Battery Position On The Bike

    ENVO E-bike User’s Manual 2. Battery Position on the Bike: To be able to use the electric motor, the battery must be mounted by sliding the battery forward into the battery holder.
  • Page 13 ENVO E-bike User’s Manual Lock the battery when fully inserted in the battery holder. The battery must be locked when riding or it may fall out. The key does not have to be in to operate the bike. Your battery comes with a Master ON/OFF Switch located on the bottom of the battery pack.

  • Page 14: Battery And Charger Care

    Your ENVO Electric Bike battery is engineered with precision for high capacity and a long, useful life. Do not use it to power other electrical devices. Improper use of the battery will damage the battery and shorten its useful life and may cause fire or an explosion.

  • Page 15: Battery Maintenance & Safety

    ENVO E-bike User’s Manual Have your bicycle serviced periodically to ensure that the bearings run freely, and the brakes do not rub the rims (or the rotors for the disc brakes) when they are not applied Minimize the weight that you carry Ride at slower speeds Accelerate gently.

  • Page 16: Fuse

    The fuse is designed to protect the battery. If the fuse blows, there will be no power to any of the electrical components powered by the battery. You can replace the fuse with a standard automotive 40-amp fuse or contact ENVO Electric Bike customer service at info@EbikeBC.com Interface Your LCD Display is controlled through the throttle mechanism located on the left side of your handle bar.

  • Page 17: Quick Start Guidelines For Using Pedal Assist

    ENVO E-bike User’s Manual For advanced LCD programming and/or instructions on changing your settings, please refer to the LCD-3 Controller Manual accompanying your EBIKEBC Operator’s Manual. Note: When you are finished riding, it is always safest to turn OFF the display, so you do not accidentally touch the throttle getting off the bike.

  • Page 18: Activating Head And Tail Lights

    Your ENVO Electric Bike LCD meter monitors pedal assist, speed, odometer, trip distance, riding time, and battery energy level. To turn the meter on, make sure the battery is fully inserted into the ENVO Electric Bike and the on/off switch is “ON”.

  • Page 19: Brakes

    The more hand pressure applied to the brake lever, the faster the Electric Bike will come to a stop. ENVO ebikes brakes are equipped with microswitches which cut-off the motor power whenever either of brake levers are squeezed.

  • Page 20: Brake Controls And Features

    ENVO E-bike User’s Manual mechanic at least every 300 miles or when you observe that your brakes are weak, scraping or generally not working well. Be careful not to damage the rotor, calipers or brake pads when re-inserting the rotor into the caliper. Never activate a disc brake’s control lever unless the rotor is correctly inserted in the caliper.
  • Page 21 ENVO E-bike User’s Manual Rotor screws: 6 pes. RELATED MOUNTING SPECIFICATIONS Specifications of front fork and rear dropout A2 is compatible to International Standard and POST MOUNT forks, see drawings below: The offset of the hubs for A2 disc brake system is the same as SHIMANO specifications, see drawings below: Caliper A2 caliper is completely sealed and has been tested to take high pressure.
  • Page 22 ENVO E-bike User’s Manual 2. After a long time and or intensive braking, the temperature of the rotor become high. Do not touch the rotor. ASSEMBLY *Warning: As the disc pads are self-adjusting. DO NOT pull the brake lever before it is fully assembled with the rotor in the caliper slot.
  • Page 23 ENVO E-bike User’s Manual 3. Place new disc pads with disc pad spring in position, insert disc pad pin through the hose on caliper. Bend the open end of pin to keep the pin from moving out. 4. Spin the wheel and make sure it is clear between the rotor and disc pads. IF it doesn’t clear, redo the step VI Assembly as above.
  • Page 24 ENVO E-bike User’s Manual 2. Connect the syringes to plastic tubes and connect the adaptors to the other end of plastic tubes. 3. Remove the bleed screw on caliper using a T10 torque wrench. 4. Connect on of the syringe with adaptor to the bleed hole on caliper.
  • Page 25 ENVO E-bike User’s Manual used fluid properly to protect environment). 7. Draw fresh brake fluid into the syringe, make sure that there is no air bubble in the brake fluid then connect the adaptor to caliper. 8. Connect the other syringe with adaptor to brake master cylinder.

  • Page 26: Motor

    Using in snow and Freezing Condition: ENVO Li-Ion batteries can be utilized in the temperature range of -20C to +60C, however the battery range and performance will dramatically be affected near and below freezing point. Keep the battery in-doors when the electric bike is not in use to keep the battery cells warm.

  • Page 27: Gears

    ENVO E-bike User’s Manual Covering electric components, applying sealant or silicon glue or grease to seams and glands, especially the motor axle main cable gland will help preventing moisture penetration. Storing the ebike and battery in a dry warm place over night will help melt and dry off the snow, water or ice accumulation.
  • Page 28 ENVO E-bike User’s Manual WARNING - Bicycle Rims are subject to wear. Ask your mechanic to check the usability of your RIMS and keep this in mind in making your decision to ride your bike – constantly check this with your qualified mechanic.

  • Page 29: Bike Fit

    ENVO E-bike User’s Manual Patching: Always carry a patch kit so that you can patch a tube in an emergency repair. Caution: If you do not apply the patch correctly or apply several patches, the tube can fail, which could cause you to lose control and fall.

  • Page 30: Bolts And Nuts

    ENVO E-bike User’s Manual Stem angle: Our Bikes are equipped with an adjustable angle stem. Do not attempt to make the adjustment your self as changing stem angle may also require adjustments to the bikes control. WARNING: An Insufficiently Tightened Stem Clamp Bolt, handle clamp bolt or bar end extension clamping bolt may compromise steering action, which could cause you to lose control and fall.

  • Page 31: Pedals

    ENVO E-bike User’s Manual Raise or lower the seat post in the seat tube (ensure the sleeve is all the way down and snug inside the seat tube). Make sure the saddle is straight fore and aft Make sure the sleeve is all the way down and snug and level with top of set tube tighten the seat post clamp to the recommended torque.

  • Page 32: Kickstand

    APPEARANCE AND CARE Periodically clean your ENVO Electric Bike with a damp cloth. Void spraying the ENVO Electric Bike with a water hose to avoid electrical issues. Store your ENVO Electric Bike in a dry sheltered area away from the direct sunlight and wet or damp environment.
  • Page 33 ENVO E-bike User’s Manual IF YOU HAVE AN ACCIDENT, DROP YOUR BIKE OR IT FALLS OVER: If you have an accident, drop your bike or it falls over, your bike is unsafe to ride until you follow the instructions included in this section.

  • Page 34: Troubleshooting

    TROUBLESHOOTING If your ENVO Electric Bike is not working, check the Quick Disconnect Fittings to make sure they did not come loose or unplugged. There are 5 total colored Quick Disconnect Fittings to check:...
  • Page 35 ENVO E-bike User’s Manual EBikeBC Electrical System Trouble Shooting Guide Make sure you have done all installation and setups as described in installation and maintenance manual. Find all required technical literature as a reference of this trouble shooting guide at this link: https://ebikebc.com/installation-repairs/...
  • Page 36 ENVO E-bike User’s Manual plugs Visual check of all Visual inspection of the motor controller for visible sign of damage Contact EbikeBC for service Battery indicator delays updating the recent charge status. give it some moments of ride or Battery does not...
  • Page 37 ENVO E-bike User’s Manual Make sure magnet disk is spinning together with crank and not loose Check gap and spacing between little magnets and PAS sensor head Sensor should be aligned radial to the magnet disk (not angled or tangential to disk different...
  • Page 38 ENVO E-bike User’s Manual Motor normal vibration is causing resonance on other Try dis-positioning or changing vibration bicycle properties of the part by sticking something to components such or between parts. as disk brake rotor, fenders, etc. Controller getting too If more, try making some ventilation.

  • Page 39: Electric Bike Faqs

    Q. Can I ride up hills and against strong headwinds on my EBIKEBC Bike? A. Yes. One of the main advantages of cycling on an ENVO Electric Bike is that it literally flattens hills and increases your average speed when tackling inclines and headwinds. If you provide a reasonable amount of effort, you should be able to tackle anything from a 1 in 10 (10%) gradient up to a 1 in 7 (14%) gradient.

  • Page 40: The Lifespan Of Your Electric Bike And Its Components

    Q. Can I put an EBIKEBC Bike on a vehicle bike rack? A. Yes, just make sure that the bike rack can hold the weight of an ENVO Electric Bike. We advise taking the battery off to make it easier and lighter to lift and keep the battery safe.

  • Page 41: Warranty Terms

    ENVO E-bike User’s Manual If the problem is caused by an accident, wrong or careless installation by the customer, careless actions, wire stretch, bad storage or not following instruction manual, the customer will pay the cost of the part and replacement.
  • Page 42 ENVO E-bike User’s Manual • If one or more than one EBIKEBC part has been opened, altered or repainted. • Normal wear and tear. • Damage or failure from abuse, neglect, misuse, or accident • Improper assembly and/or follow-up maintenance.
  • Page 43 Dealer's Name: __________________________________ Dealer's Phone: _________________________________ Dealer's Email: _____________________________ BICYCLE SERIAL NUMBER IS ENGRAVED UNDERNEATH THE CRANK OF YOUR ENVO ELECTRIC BIKE BATTERY SERIAL NUMBER IS ON THE BOTTOM OF THE BATTERY OR NEXT TO THE KEY SLOT BELOW THE BARCODE...
