Quick Start: iCR 3600SF Computer Mounting Instructions

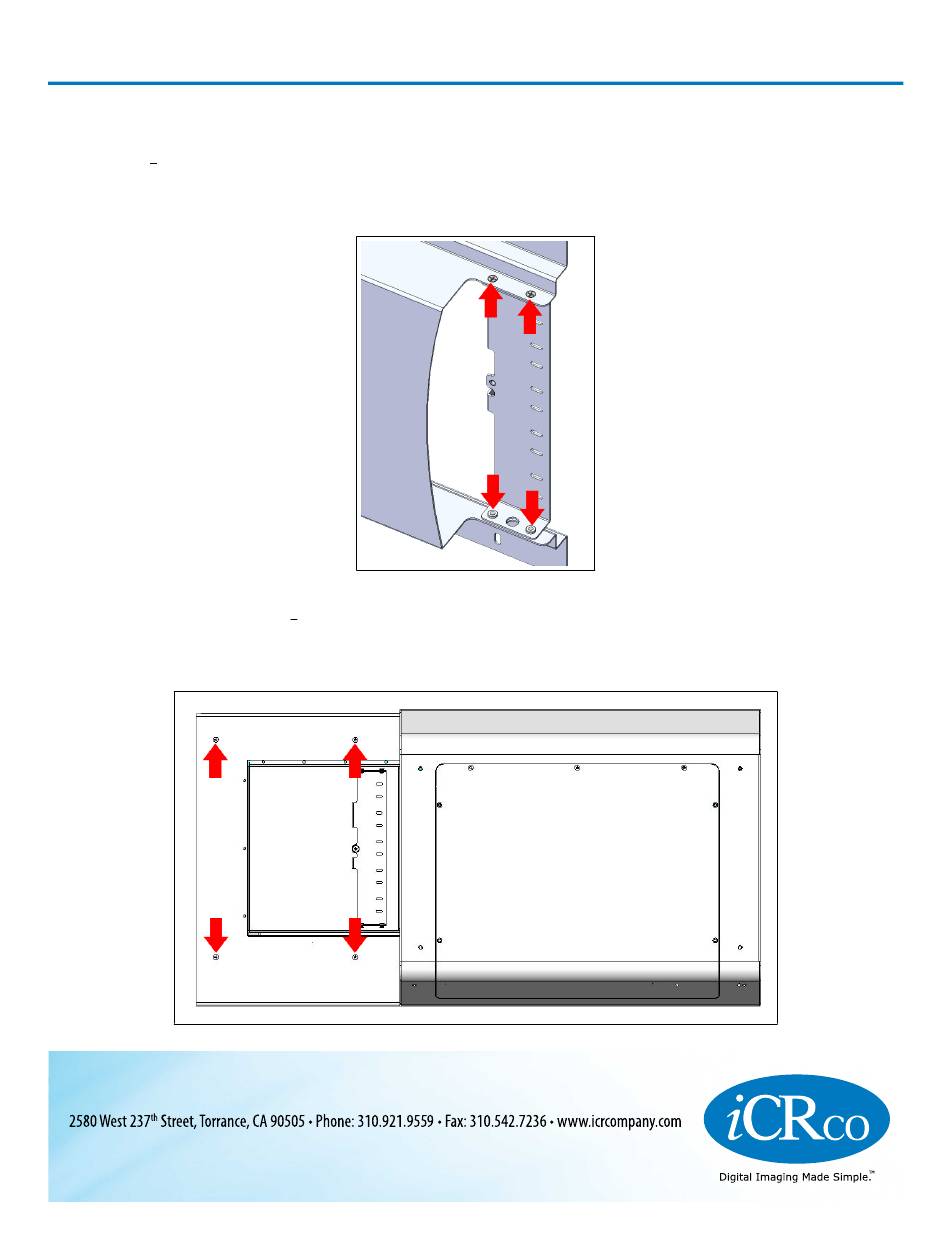

1. Attach the Back Computer Mounting bracket to the Computer Mounting Bracket using four (4)
1
6-32 x
" flathead screws (Figure 1).
4
2. Remove four (4) 6-32 x
1 of 3
Figure 1
3
" truss head screws from the cassette tray (Figure 2).
8
Figure 2
Document # 3600SF-CM-04A Rev A
January 26, 2010
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for iCR 3600SF
Summary of Contents for iCR 3600SF
- Page 1 Quick Start: iCR 3600SF Computer Mounting Instructions 1. Attach the Back Computer Mounting bracket to the Computer Mounting Bracket using four (4) 6-32 x ” flathead screws (Figure 1). Figure 1 2. Remove four (4) 6-32 x ” truss head screws from the cassette tray (Figure 2).
- Page 2 Quick Start: iCR 3600SF Computer Mounting Instructions 3. Align the computer mounting bracket on the back of the cassette tray. 4. Once the screw holes are aligned, fasten the computer mounting bracket to the CR unit using four (4) 6-32 x ”...
- Page 3 Quick Start: iCR 3600SF Computer Mounting Instructions 6. Fasten the computer to the mounting bracket using one (1) 8-32 x ” truss head screws and #10 flat washer. The computer’s security tab should be in between the washer and the mounting bracket (Figure 5).
