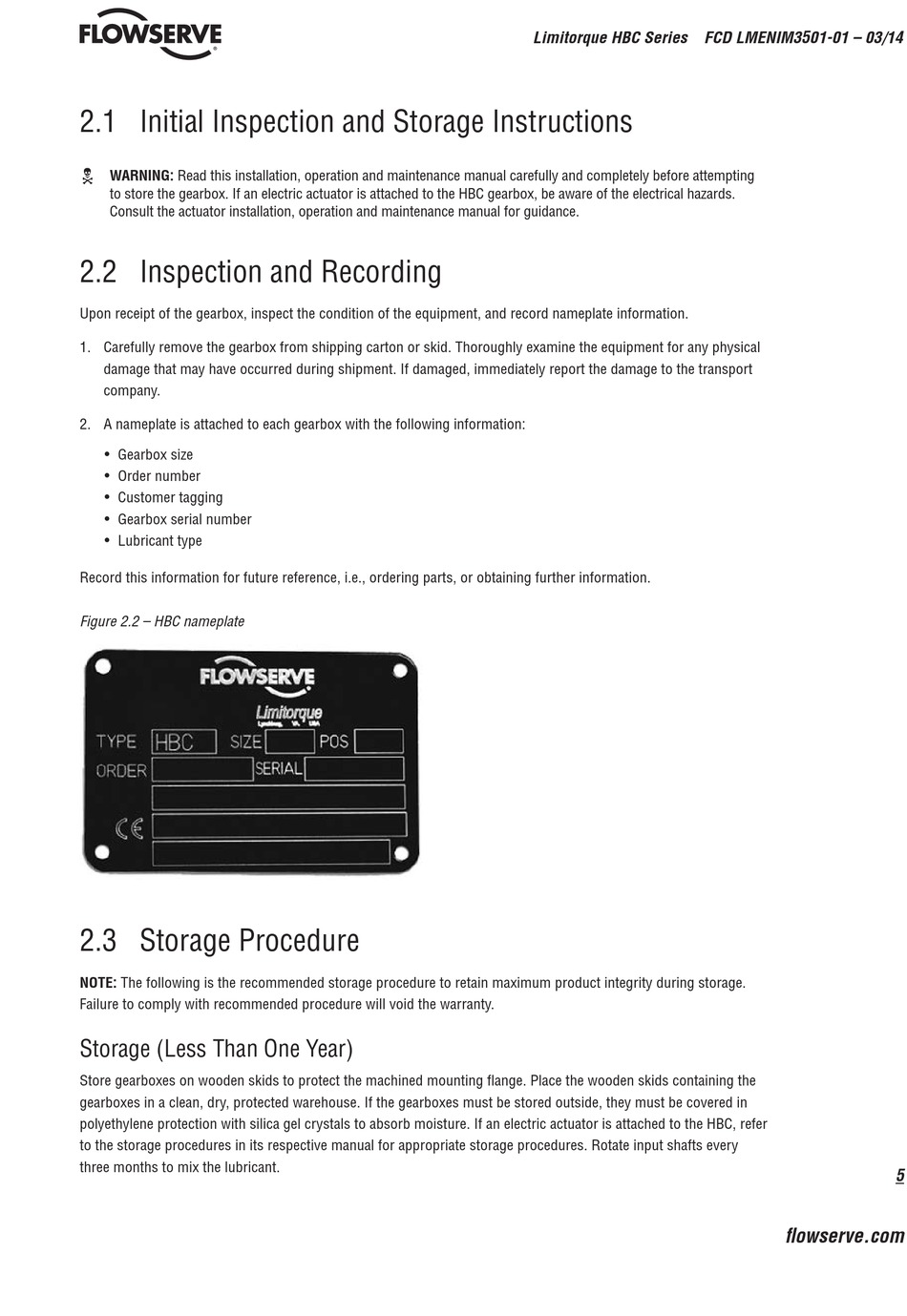

2.1 Initial Inspection and Storage Instructions

c
WARNING: Read this installation, operation and maintenance manual carefully and completely before attempting
to store the gearbox. If an electric actuator is attached to the HBC gearbox, be aware of the electrical hazards.
Consult the actuator installation, operation and maintenance manual for guidance.

2.2 Inspection and Recording

Upon receipt of the gearbox, inspect the condition of the equipment, and record nameplate information.
1. Carefully remove the gearbox from shipping carton or skid. Thoroughly examine the equipment for any physical
damage that may have occurred during shipment. If damaged, immediately report the damage to the transport
company.
2. A nameplate is attached to each gearbox with the following information:
• Gearbox size
• Order number
• Customer tagging
• Gearbox serial number
• Lubricant type
Record this information for future reference, i.e., ordering parts, or obtaining further information.
Figure 2.2 – HBC nameplate

2.3 Storage Procedure

NOTE: The following is the recommended storage procedure to retain maximum product integrity during storage.
Failure to comply with recommended procedure will void the warranty.
Storage (Less Than One Year)
Store gearboxes on wooden skids to protect the machined mounting flange. Place the wooden skids containing the
gearboxes in a clean, dry, protected warehouse. If the gearboxes must be stored outside, they must be covered in
polyethylene protection with silica gel crystals to absorb moisture. If an electric actuator is attached to the HBC, refer
to the storage procedures in its respective manual for appropriate storage procedures. Rotate input shafts every
three months to mix the lubricant.
