- Page 1 HYDRAULIC POWER UNIT G-18S10-54-W OPERATION MANUAL...
- Page 2 HYDRAULIC POWER UNIT G-18S10-54-W OPERATION MANUAL...
- Page 3 HYDRAULIC POWER UNIT G-18S10-54-W OPERATION MANUAL Change overview Auditing Date Comment, including chapter Changed by 04-25-2018 Creation Sven Kummer 04-30-2018 Table 8.1 maintenance, DOC # 6253-OOP,4.2 Table length, Jesse Bunn 4.3 max pressure, 8.2 table changed sealings to seals. 07-09-2018...
-
Page 4: Table Of Contents
HYDRAULIC POWER UNIT G-18S10-54-W OPERATION MANUAL 1 About this manual ..............................7 2 General ................................. 8 General information ........................ 8 Designated use ......................... 9 Environment requirements ..................... 9 2.3.1 Operating requirements ......................9 2.3.2 Emissions ........................... 9 3 Safety ...................................10 Basics............................ - Page 5 HYDRAULIC POWER UNIT G-18S10-54-W OPERATION MANUAL 6.2.1 Start-up ............................ 20 6.2.2 Shutdown ..........................20 7 Maintenance ................................21 Recommended maintenance plan ..................22 Table 6: Maintenance plan .......................... 22 Testing the hydraulic system ....................23 Remove condensation ......................23 Change/Refill of engine oil ..................... 24 Change/Refill of hydraulic fluid .....................
- Page 6 HYDRAULIC POWER UNIT G-18S10-54-W OPERATION MANUAL Publisher: PortaCo Inc. 1805 2nd Ave N, Moorhead, MN 56560 Phone +1 (218) 336 0223, Fax +1 (218) 233 5281 info@portaco.com, www.portaco.com/ Date of publication: 04-25-2018 Documentation version: 1.0 Document number: 6253-OOP_rev1.0...
-
Page 7: About This Manual

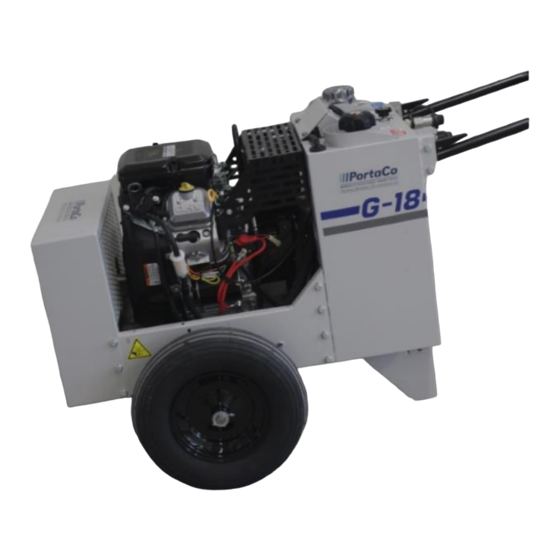

OPERATION MANUAL 1 About this manual This document is the original operation manual for the Hydraulic Power Unit G-18-S10-58-W of PortaCo Inc., 1805 2nd Ave N, Moorhead, MN 56560. The Hydraulic Power Unit is a portable hydraulic unit for powering hydraulic tools. -
Page 8: General
2.1 General information Hydraulic tools can be powered with PortaCo Inc.´s Hydraulic Power Unit. The hydraulic unit is powered by a combustion engine and is thus portable. The Hydraulic Power Unit is equipped with two wheels and a transport handle for safe transport. -
Page 9: Designated Use
2.2 Designated use Hydraulic tools can be powered by the PortaCo Inc. Hydraulic Power Unit. Hydraulic power units may only be used with tools which allow for return flow of the hydraulic fluid to the hydraulic unit. The tools must be equipped with a pressure limiter which also allows for return of the hydraulic fluid to the hydraulic unit. -
Page 10: Safety
HYDRAULIC POWER UNIT G-18S10-54-W OPERATION MANUAL Safety 3.1 Basics The machine corresponds to the generally recognized standards of technology and practice. Nevertheless, knowledge of the residual risks as well as general knowledge of the device are required to ensure safe and accident-free work. -
Page 11: Important Safety Information
Please pay particular attention to this chapter to avoid accidents! PortaCo Inc. is not liable for injury to persons or property which result from misuse of the machine. DANGER The bursting of hydraulic components and uncontrolled whipping of the hydraulic hoses is possible. - Page 12 HYDRAULIC POWER UNIT G-18S10-54-W OPERATION MANUAL DANGER The operator inhales aerosol of hydraulic oil. Only use the device within the prescribed limits. The device must be maintained at regular intervals, the intervals are specified by the operator's risk assessment. In the event of leaks switch the device to a safe state.
- Page 13 HYDRAULIC POWER UNIT G-18S10-54-W OPERATION MANUAL WARNING Inspired gases may lead to irreversible health problems. Keep adequate distance from the exhaust system Do not operate the unit in a tunnel The machine must be shut down if there are defects in the exhaust system.
-
Page 14: Danger Zone
HYDRAULIC POWER UNIT G-18S10-54-W OPERATION MANUAL 3.3 Danger zone Exhaust gases are released during operation of the Hydraulic Power Unit. Do not stand near the exhaust. 3.4 Qualification of the operating and maintenance personnel The intended circle of users for the machine includes the operators and maintenance personnel. -
Page 15: Design And Function
HYDRAULIC POWER UNIT G-18S10-54-W OPERATION MANUAL Design and function 4.1 Design Figure 2: Hydraulic Power Unit 1 Figure 3: Hydraulic Power Unit 2 Drive motor Filler neck gasoline Refill opening motor oil Filler neck hydraulic fluid Dipstick motor oil Ignition switch... -
Page 16: Specifications
HYDRAULIC POWER UNIT G-18S10-54-W OPERATION MANUAL 4.2 Specifications Criteria Value Width 737 mm / 29 inch Length 990 mm / 39 inch Height 813 mm / 32 inch Height 100 kg / 220 lb Hydraulic pressure max. 140 bar / 2,150 psi Hydraulic flow max. -
Page 17: Fuel And Oil
The Hydraulic Power Unit consists of the parts shown in the chapter design. The battery limit is the connection to the hydraulic tools. Fuel and auxiliary materials are not included in PortaCo Inc.´s scope of service. Other parts which are not directly part of the... -
Page 18: Transport, Assembly And Dismantling
HYDRAULIC POWER UNIT G-18S10-54-W OPERATION MANUAL 5 Transport, assembly and dismantling The machine must be disconnected from the hydraulic tools for transport. The hydraulic unit must be switched off and depressurized for this purpose. Then the couplings on the hydraulic hoses can be detached. Allow the hydraulic unit to cool before transport. -
Page 19: Commissioning And Operation
HYDRAULIC POWER UNIT G-18S10-54-W OPERATION MANUAL Commissioning and operation 6.1 General information for start-up DANGER Incorrect operation of the machine or disregard of safety instructions may lead to endangerment of persons or damage to the machine. Familiarize yourself with the complete instruction for use before beginning work on the machine. Pay... -
Page 20: Start-Up
HYDRAULIC POWER UNIT G-18S10-54-W OPERATION MANUAL 6.2.1 Start-up 1. Clean the quick couplings. 2. Connect the hydraulic hoses Ensure that the hydraulic hoses are connected to the tool. Ensure that the flow and return flow of the hydraulic unit are connected to the proper quick coupling. -
Page 21: Maintenance
HYDRAULIC POWER UNIT G-18S10-54-W OPERATION MANUAL Maintenance Proper, on schedule maintenance increases the service life of the machine, ensures availability and helps prevent unwanted standstill. The components of the machine are subject to different maintenance intervals depending on the use. The maintenance intervals must be determined by the system operator as part of the hazard evaluation and risk assessment. -
Page 22: Recommended Maintenance Plan
HYDRAULIC POWER UNIT G-18S10-54-W OPERATION MANUAL 7.1 Recommended maintenance plan Components for which wear and tear or even malfunction is determined during inspection, must be repaired or replaced at the earliest possible date. every six monthly or quarterly or yearly or... -
Page 23: Testing The Hydraulic System
HYDRAULIC POWER UNIT G-18S10-54-W OPERATION MANUAL 7.2 Testing the hydraulic system Please note the chapter General Information for Start-up before beginning the test for the hydraulic unit. 1. Set the flow regulator for the hydraulic fluid to the "OFF" position 2. -
Page 24: Change/Refill Of Engine Oil
HYDRAULIC POWER UNIT G-18S10-54-W OPERATION MANUAL 7.4 Change/Refill of engine oil The motor oil must be replaced quarterly. Depending on frequency of use and contamination of the motor oil, replacement may be necessary at shorter intervals. 1. Place a drip tray under the drain plug. The tray must hold at least 2 liters / 0.5 US gal to collect all the motor oil. -
Page 25: Change/Refill Of Hydraulic Fluid
HYDRAULIC POWER UNIT G-18S10-54-W OPERATION MANUAL 7.5 Change/Refill of hydraulic fluid The hydraulic fluid must be replaced annually. Depending on usage and contamination, the hydraulic fluid may need to be replaced at shorter intervals. 1. Place a drip tray under the drain plug. The tray must hold at least 20 liters / 5.3 US gal so that all the hydraulic fluid can be drained off. -
Page 26: Refill Fuel
HYDRAULIC POWER UNIT G-18S10-54-W OPERATION MANUAL 7.6 Refill fuel The fuel filling level is determined by a float and can be read on the lid. Figure 9 & 10: Fuel display Fill up the fuel no further than the "full" marking. Use a funnel to prevent soiling the surroundings. -
Page 27: Maintenance And Repairs
Repairs to the machine may only be carried out by the PortaCo Inc. or personnel who have been specially instructed. Additionally, work on electrical system parts may only be made by electrical specialists. -
Page 28: Shutdown And Re-Commissioning
HYDRAULIC POWER UNIT G-18S10-54-W OPERATION MANUAL Shutdown and re-commissioning The machine can be shut down for a usual maintenance period without any additional risks. No special maintenance or conservation work is necessary. After a shutdown, a visual inspection must be carried out before a restart.
