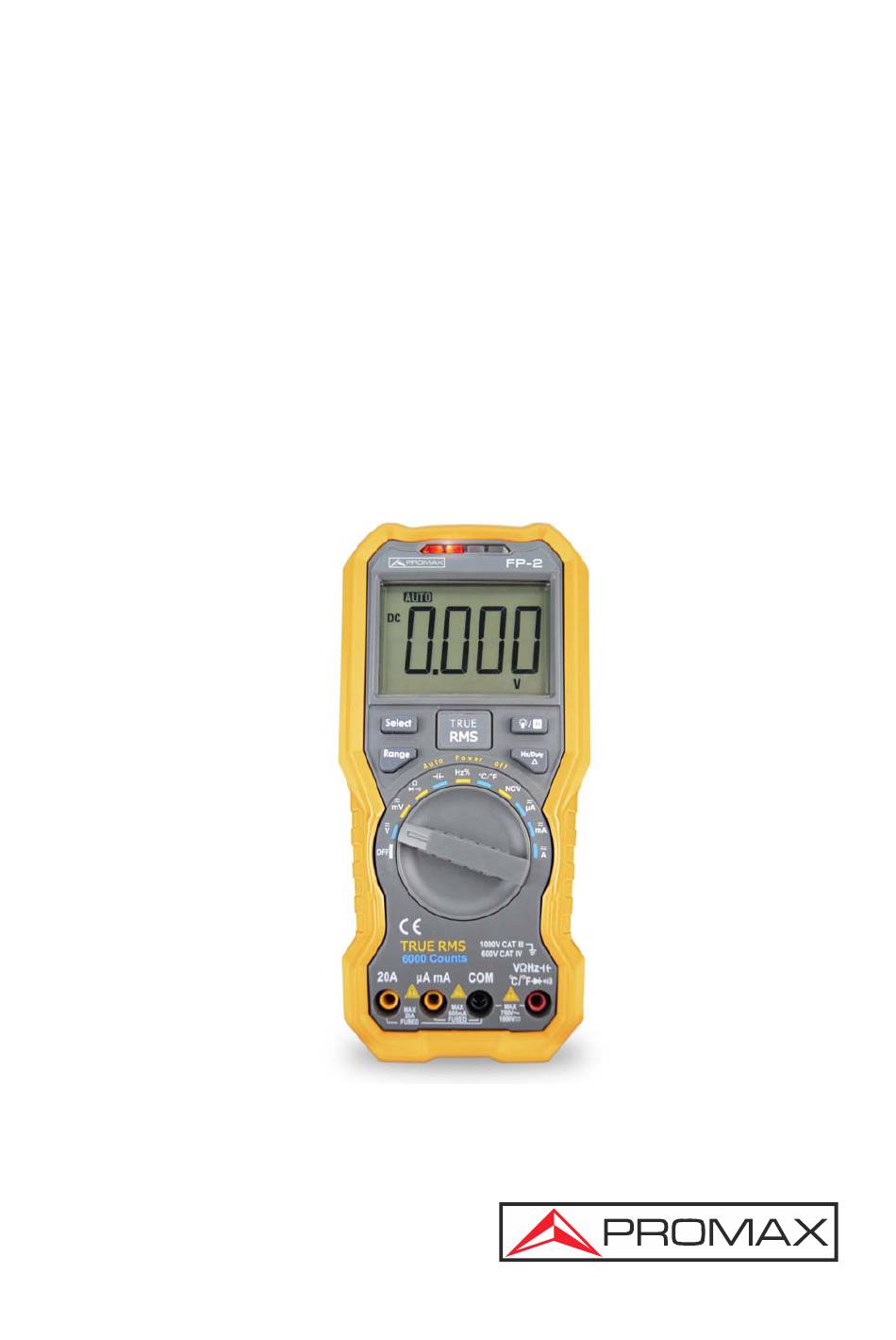

  • Page 1 FP-2 DIGITAL MULTIMETER -0 MI2170 -...
  • Page 2 SAFETY NOTES Read the user’s manual before using the equipment, mainly "SAFETY RULES" paragraph. The symbol on the equipment means "SEE USER’S MANUAL". In this manual may also appear as a Caution or Warning symbol. WARNING AND CAUTION statements may appear in this manual to avoid injury hazard or damage to this product or other property.
  • Page 3 SAFETY INFORMATION Before any operations, please read the following safety precautions to avoid any possible bodily injury and prevent damage to this product or any other products connected. To avoid any contingent danger, use this product only as specified. Limit operation to the specified measurement category, voltage, or amperage ratings.
  • Page 4 Disconnect circuit power and discharge all high-voltage capacitors before testing resistance, continuity, diodes, or capacitance. Use the proper terminals, function, and range for your measurements. When the range of the value to be measured is unknown, set the rotary switch position as the highest range, or choose the auto ranging mode. To avoid damages to the multimeter, do not exceed the maximum limits of the input values shown in the technical specification tables.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS 1. QUICK START .................... 1 1.1. General Inspection ................. 1 1.2. Install the Batteries ................2 1.3. Adjusting the Tilt Stand................2 1.4. Power On ....................3 1.5. Sleep Mode ................... 3 1.6. LCD Backlight and Flashlight ..............3 1.7.

  • Page 6: Quick Start

    PROFESSIONAL DIGITAL MULTIMETER FP - 2 1 QUICK START General Inspection Check the instrument according to the following steps: 1. Check whether there is any damage caused by transportation If it is found that the packaging carton or the foamed plastic protection cushion has suffered serious damage, do not throw it away first till the complete device and its accessories succeed in the electrical and mechanical property tests.

  • Page 7: Install The Batteries

    If it is found that there is any accessory lost or damaged, please get in touch with the distributor of PROMAX responsible for this service or the PROMAX local offices. 3. Check the Complete Instrument If it is found that there is damage to the appearance of the instrument, or the...

  • Page 8: Power On

    Adjusting the Tilt Stand Pull the tilt stand outward to its maximum reach (about 85° to the meter body). Power On To power ON the multimeter, turn the rotary switch to any other position except OFF. To power OFF the multimeter, turn the rotary switch to the OFF position. Sleep Mode The multimeter automatically enters the sleep mode if the rotary switch is not moved or a key is not pressed for 30 minutes.
  • Page 9 In manual range, each additional press of sets the multimeter to the next higher range, unless it is already in the highest range, at which point the range switches to the lowest range. When manual range is enabled, press for more than 2 seconds to enter the auto ranging mode.

  • Page 10: Multimeter In Brief

    Multimeter in Brief Front Panel ► Figure 1. Non-contact Voltage Detector. Flashlight. LED Indicator. Display Screen. Select DC/AC - Select Resistance/Continuity/Diode. Auto/Manual Range. Backlight & Flashlight - Data Hold. Select Frequency/Duty Cycle - Frequency in AC Voltage/Current Mode - Relative Measurements. Rotary Switch.
  • Page 11 Rotary Switch ► Position Description Power off DC or AC voltage measurement DC or AC voltage measurement (up to 600 millivolts) Resistance measurement / Continuity test / Diode test Capacitance measurement Frequency measurement Temperature measurement Non-contact voltage detect DC or AC current measurement (up to 600 microamperes) DC or AC current measurement (up to 600 milliamperes) DC or AC current measurement Keypad...
  • Page 12 Display Screen ► Figure 2. Icon Description Auto range Data hold enabled Relative enabled Diode test selected Continuity test selected Battery is low Measurement display ("OL" is short for overload, indicates the reading exceeds the display range) Non-contact Voltage Detect Measuring units December 2018 Chap.
  • Page 13 Measurement Units ► Sign Description Mega 1E+06 (1.000.000) kilo 1E+03 (1.000) mili 1E-03 (0,001) μ micro 1E-06 (0,000001) nano 1E-09 (0,00000001) Sign Description ºC Degree Celsius (Temperature) ºF Degree Fahrenheit (Temperature) Voltage (Voltage) Ampere (Current) Ohm (Resistance) Hertz (Frequency) Percent (Duty cycle) Faraday (Capacitance) Chap.
  • Page 14 Input Terminals ► Rotary Switch Input Terminals Overload Protection Position 750 VAC / 1000 VDC 250 VAC / 300 VDC 250 VAC / 300 VDC 250 VAC / 300 VDC 250 VAC / 300 VDC 400 mA / 250 V resettable fuse 400 mA / 250 V resettable fuse 20 A / 250 V fast-acting fuse WARNING:...

  • Page 15: Measurements

    2 MEASUREMENTS Measuring AC or DC Voltage Description ► This multimeter displays DC voltage values as well as their polarity. Negative DC voltages will display a negative sign on the left of the display. WARNING: Do not measure any voltage of over 1000 VDC or 750 VAC RMS to avoid instrument damage or electric shock.

  • Page 16: Testing For Continuity

    Probe the test points and read the display. Press to enable and cycle through the manual ranges. CAUTION: To avoid possible damage to your multimeter or to the equipment under test, disconnect the circuit power and discharge all high- voltage capacitors before measuring resistance. Testing for Continuity Operation ►...

  • Page 17: Measuring Frequency

    Measuring Capacitance Operation ► Rotate the rotary switch to Connect the black test lead to the terminal and the red test lead to the terminal. Probe the test points and read the display. CAUTION: To avoid possible damage to the multimeter or to the equipment under test, disconnect circuit power and discharge all high-voltage capacitors before measuring capacitance.

  • Page 18: Non-Contact Voltage Detect (Ncv)

    Connect the red connection of the K-type thermocouple to the terminal and the black connection to the terminal. Probe the test points and read the display. Non-Contact Voltage Detect (NCV) Description ► To detect the presence of AC voltage, place the top of the meter close to a voltage source.

  • Page 19: Measuring Dc Or Ac Current

    If voltage is detected, the LED above the display will flash, and the meter will beep. WARNING: Always test the NCV function on a known live circuit before use. Do not attempt to use the meter as an AC Voltage Detector if the battery is weak or bad.
  • Page 20 Select DC or AC measurement mode. Default is DC measurement mode, will be displayed. Press to switch into AC measurement mode, will be displayed. Turn on the power of the measured circuit, and read the display. Press to enable and cycle through the manual ranges. If "OL" is displayed, it indicates the input exceeds the selected range and the rotary switch should be set to the position with higher range.

  • Page 21: Tools

    3 TOOLS Data Hold Mode Operation ► Press to freeze the display during measurement. will be shown on the display. Press again to exit this mode. Relative Measurements Description ► When making relative measurements, reading is the difference between a stored reference value and the input signal.

  • Page 22: Buzzer Feature

    Buzzer Feature Press the function key, the buzzer emits a short beep. One minute before Auto Power-off, the buzzer will beep five times to warn. Before shutoff, the buzzer will emit a long beep, and then the multimeter will shut off. The buzzer beeps continuously to warn once the measured DC voltage exceeds 1000 V, or the measured AC voltage exceeds 750 V.

  • Page 23: Specifications

    4 SPECIFICATIONS Technical Specifications ► Function Measurement Range Resolution Accuracy 60.00 mV / 600.0 mV 0,01 mV ±(0.5% + 2 dig) DC Voltage (V) 6.000 V / 60.00 V / 600.0 V 1 mV 1000 V ±(0.8% + 2 dig) 600.0 mV 0.1 mV ±(0.8% + 3 dig)
  • Page 24 Features ► Characteristics Instruction Display 5999 Frequency Response (40 - 1000) Hz Sample rate for digital data 3 times/s Bluetooth Not available Auto ranging Available True RMS Available Diodes Test Available Sleep Mode Available Continuity Test Available Low battery indication The icon is displayed when the battery is under the proper operation range.)

  • Page 25: Maintenance

    5 MAINTENANCE Instructions for Returning by Mail Instruments returned for repair or calibration, either within or out of the warranty period, should be sent with the following information: Name of the Company, name of the contact person, address, telephone number, receipt (in the case of coverage under warranty) and a description of the problem or the service required.
  • Page 26 PROMAX ELECTRONICA, S.L. Francesc Moragas, 71-75 08907 L’HOSPITALET DE LLOBREGAT (Barcelona) SPAIN Tel: 93 184 77 00 * Tel. Intl.: (+34) 93 184 77 02 Fax: 93 338 11 26 * Fax Intl.: (+34) 93 338 11 26 http://www.promaxelectronics.com e-mail: promax@promaxelectronics.com...
