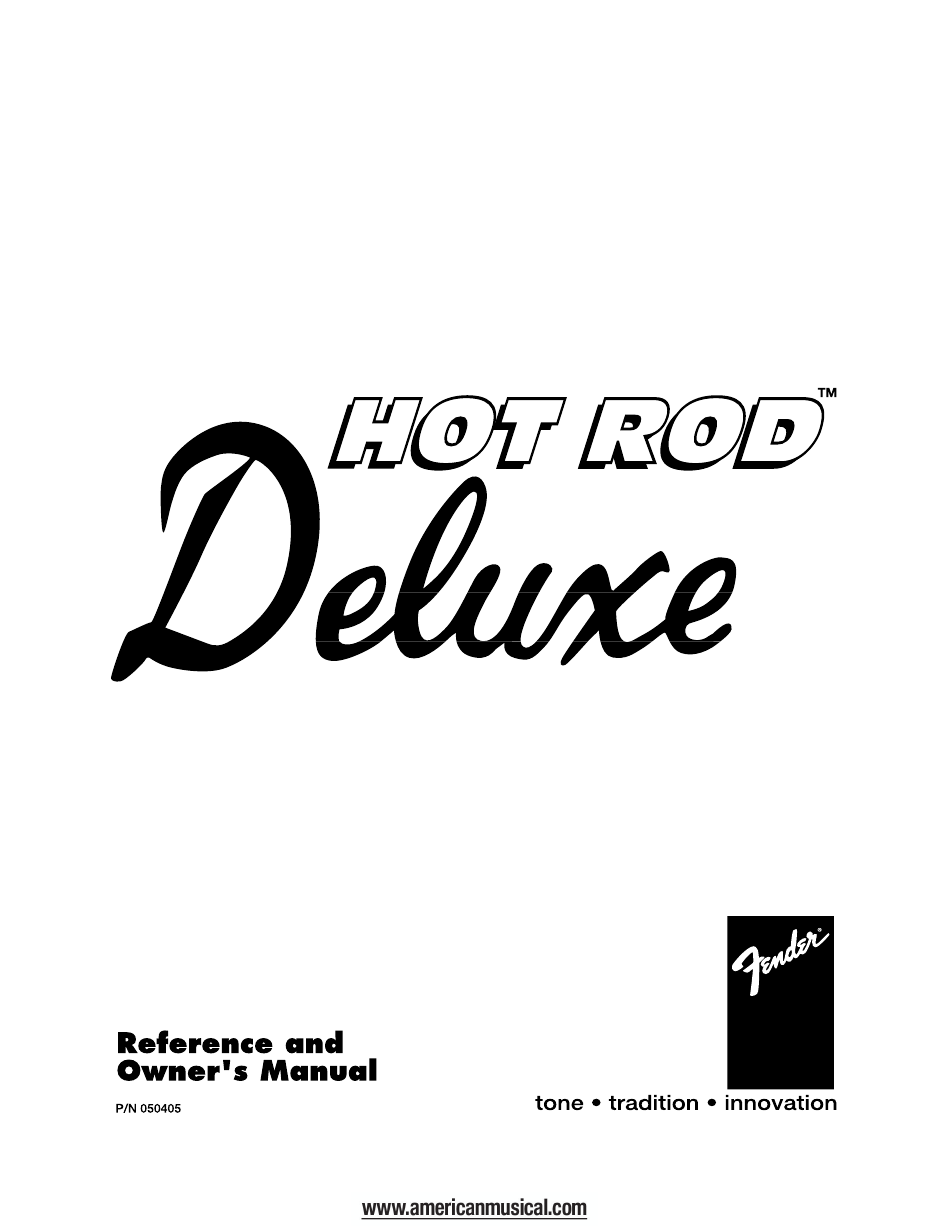

Fender Hot Rod Deluxe Reference And Owner's Manual
  1. Manuals
  2. Brands
  3. Fender Manuals
  4. Amplifier
  5. Hot Rod Deluxe
  6. Reference and owner's manual

Fender Hot Rod Deluxe Reference And Owner's Manual

Hide thumbs Also See for Hot Rod Deluxe:

Advertisement

Quick Links

Download this manual See also: Service Manual, Owner's Manual

Advertisement

loading

Related Manuals for Fender Hot Rod Deluxe

Summary of Contents for Fender Hot Rod Deluxe

  • Page 2 And like any fine musical instrument, it should be treated with special care and attention to detail. At Fender, we know what building guitar amplifiers is all about. For over half a century, we have been designing and producing some of the world's best amplifiers, helping shape the face of music.
  • Page 3 • ALL TUBE PREAMP AND POWERAMP GENERATE THAT TONE AS ONLY TUBES CAN • THREE DISTINCT CHANNELS: NORMAL, DRIVE AND MORE DRIVE, FOR A BROAD PALETTE OF FENDER TONES • MAGNETIC INTERFERENCE REDUCING CHASSIS ELIMINATES UNWANTED NOISE AND RADIO INTERFERENCE •...
  • Page 4 If you replace your tubes with the Fender The Hot Rod Deluxe is rated at 40W R.M.S. and types your amp was originally outfitted with, no bias includes among its many features a unique More adjustment is necessary.
  • Page 5 MORE... HOT ROD DELUXE SOUND SETTINGS Live at Monterey - American Standard Strat Neck Pickup Womanly - Guild ® S100 Talkin' Trash - Tele ® Southern Snap - Tele Jr. Funky Clean - Tele Jr. Fat-A-Tude - Relic Strat To Taste...
  • Page 6 HOT ROD DELUXE TOP PANEL FUNCTIONS INPUTS VOLUME DRIVE TREBLE BASS MIDDLE MASTER NORMAL MORE CHANNEL DRIVE SELECT BRIGHT A. INPUT 1 - Plug your guitar in here. G. TWO COLOR DRIVE CHANNEL INDICATOR - When the DRIVE channel is in use, the LED is B.
  • Page 7 MASTER REVERB PRESENCE PREAMP POWER FOOT AMP IN SWITCH CHANNEL STANDBY SELECT K. CHANNEL SELECT - When this button is Q. FOOTSWITCH (INCLUDED) - Plug-in connection pressed, the amp switches from the NORMAL for the remote footswitch to select between the channel to the DRIVE channel.
  • Page 8 MADE U.S.A. CHANNEL SELECT DRIVE / MORE DRIVE A. LINE CORD - the Hot Rod Deluxe is equipped D. EXTERNAL SPEAKER - Plug-in connection for with a grounding type supply cord to reduce the an external speaker. This jack is wired in parallel possibility of shock hazard.

  • Page 9: Tube Replacement

    TOLEX COVERING CARE Your Hot Rod Deluxe is covered in genuine Tolex for long life and lasting good looks. To clean the Tolex covering, use a sponge and a light soapy water solution.
  • Page 10 DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED PERSONNEL ONLY. Service by persons other than Fender authorized service technicians may void the warranty on this product. THIS EQUIPMENT CONFORMS TO THIS UNIT MUST BE EARTH GROUNDED.
  • Page 11 ® , Strat ® , Tele ® , and Guild ® are Registered Trademarks of the Fender Musical Instruments Corporation. Product specifications are subject to change without notice. A Product of: Fender ® Musical Instruments Corporation Corona, CA 91720 USA...
