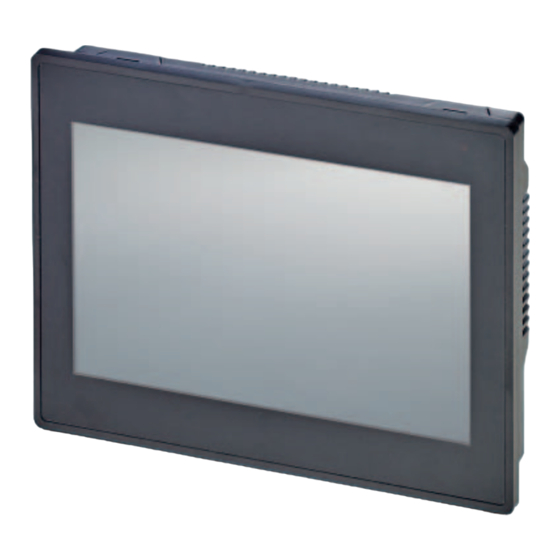

Summary of Contents for Phoenix Contact BWP 2043W

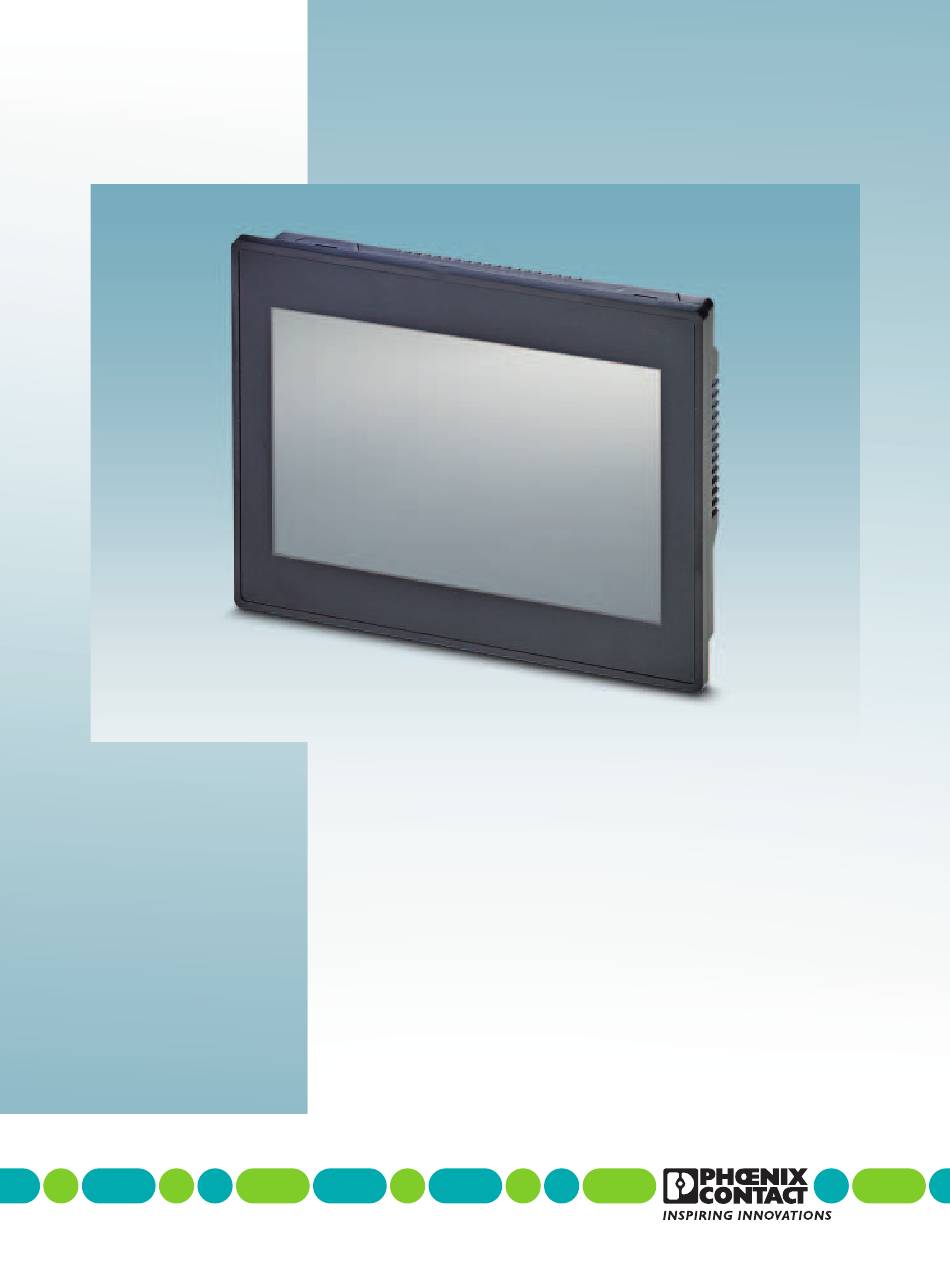

  • Page 1 Web Panels with TFT-Display User manual...
  • Page 2 User manual Web Panels with TFT-Display 2018-10-12 Designation: UM EN BWP 2XXXX Revision: Order No.: — This user manual is valid for: Designation Order No. BWP 2043W 1060549 BWP 2070W 1060632 BWP 2102W 1060630 PHOENIX CONTACT 108593_en_00...
  • Page 3 The receipt of technical documentation (in particular user documentation) does not consti- tute any further duty on the part of Phoenix Contact to furnish information on modifications to products and/or technical documentation. You are responsible to verify the suitability and intended use of the products in your specific application, in particular with regard to observ- ing the applicable standards and regulations.
  • Page 4 BWP 2XXXX PHOENIX CONTACT...
  • Page 5: Table Of Contents

    4.1.1 Cable ....................23 Ethernet....................... 24 4.2.1 Pin Assignment ..................24 4.2.2 Cable ....................24 Maintenance and Servicing ......................25 Front Panel ......................25 Technical Data .........................27 General........................ 27 BWP 2043W......................29 BWP 2070W......................30 BWP 2102W......................31 108593_en_00 PHOENIX CONTACT...
  • Page 6 BWP 2XXXX PHOENIX CONTACT 108593_en_00...
  • Page 7: Important Notes

    The user manual, in particular the safety notes, must be observed by all personnel working with the device. – Observe the accident prevention rules and regulations that apply to the operating site. – Installation and operation must only be carried out by qualified and trained personnel. 108593_en_00 PHOENIX CONTACT...
  • Page 8: Security In The Network

    §§ 15 ff. AktG or German Stock Corporation Act (hereinafter collectively referred to as "Phoenix Contact") from all third-party claims that are made due to improper use. For the protection of networks for remote maintenance via VPN, Phoenix Contact offers the mGuard product series security appliances which you can find described in the latest Phoenix Contact catalog (phoenixcontact.net/products).
  • Page 9: Target Group

    Open-source software under the GNU General Public License, version 2. You may retrieve the source code for these software components from Phoenix Contact using an appropriate storage medium (CD or DVD-ROM), by contacting After Sales Service at the address below.
  • Page 10 BWP 2XXXX PHOENIX CONTACT 108593_en_00...
  • Page 11: Installation And Commissioning

    The threaded pins of the mounting brackets are tightened uniformly to a maximum torque of 0,4 Nm. The device enables quick and easy mounting. A panel thickness of 1 mm to 6 mm is permit- ted for proper mounting. 108593_en_00 PHOENIX CONTACT...
  • Page 12 Insert the mounting clamps (1) into the recesses (2) provided. Tighten the screws (3) on all mounting clamps, alternating from one side to the other until the front bezel is secure against the installation surface. Torque the screws to 0,4 Nm. PHOENIX CONTACT 108593_en_00...
  • Page 13: Mounting Cutout

    Installation and Commissioning 2.2.1 Mounting Cutout 2.2.1.1 BWP 2043W Figure 2-2 Mounting cutout (dimensions in mm) A Mounting Cutout B Front Panel 108593_en_00 PHOENIX CONTACT...
  • Page 14: Bwp 2070W

    BWP 2XXXX 2.2.1.2 BWP 2070W Figure 2-3 Mounting cutout (dimensions in mm) A Mounting Cutout B Front Panel PHOENIX CONTACT 108593_en_00...
  • Page 15: Bwp 2102W

    Installation and Commissioning 2.2.1.3 BWP 2102W Figure 2-4 Mounting cutout (dimensions in mm) A Mounting Cutout B Front Panel 108593_en_00 PHOENIX CONTACT...
  • Page 16: Side View, Mounting Depth

    BWP 2XXXX 2.2.2 Side View, Mounting Depth 2.2.2.1 BWP 2043W Figure 2-5 Mounting depth (dimensions in mm) Front Panel Circumferential Seal Mounting Surface Thickness 1 mm to 6 mm Screw Mounting Bracket PHOENIX CONTACT 108593_en_00...
  • Page 17: Bwp 2070W

    Installation and Commissioning 2.2.2.2 BWP 2070W Figure 2-6 Mounting depth (dimensions in mm) Front Panel Circumferential Seal Mounting Surface Thickness 1 mm to 6 mm Screw Mounting Bracket 108593_en_00 PHOENIX CONTACT...
  • Page 18: Bwp 2102W

    BWP 2XXXX 2.2.2.3 BWP 2102W Figure 2-7 Mounting depth (dimensions in mm) Front Panel Circumferential Seal Mounting Surface Thickness 1 mm to 6 mm Screw Mounting Bracket PHOENIX CONTACT 108593_en_00...
  • Page 19: Connecting The Device

    Preparing the cable Fit the wires with wire end ferrules and connect the wires to the socket strip. Plug the socket strip into the pin strip on the operating device. Secure the socket strip against slipping out with screws. 108593_en_00 PHOENIX CONTACT...
  • Page 20: Switching On

    Input: 24V @ 220 mA Surrounding Air Temp. Ta= Max. 50 C ° See Document # 1069982 for Installation Instructions PHOENIX CONTACT GmbH @ Co. KG Flachsmarktstr. 8, 32825 Blomberg, Germany Figure 2-10 Nameplate (example) Article number, device type MAC-Adress...
  • Page 21: Control And Display Elements

    If the display is damaged, avoid touching, swallowing or breathing in the liquids or gases which may leak out! Pixel failures, which can occur with TFT displays, are due to production and no complaint reason! The operating device is equipped with different displays (see technical data) depending on variant. 108593_en_00 PHOENIX CONTACT...
  • Page 22 BWP 2XXXX PHOENIX CONTACT 108593_en_00...
  • Page 23: Interfaces Of The Device

    4.1.1 Cable For the specification of a suitable cable, please refer to the „Universal Serial Bus Specifi- cation“. NOTICE: Use industrial-suited USB cables with a length of maximally 2.5 m (8.202 feet). 108593_en_00 PHOENIX CONTACT...
  • Page 24: Ethernet

    Received Data, Negative Polarity n.c. Not Connected n.c. Not Connected 4.2.2 Cable NOTICE Use a twisted pair cable of category 5 (CAT 5). The maximum cable length is 100 m (328.084 feet). See the IEEE 802.3 standard for further information. PHOENIX CONTACT 108593_en_00...
  • Page 25: Maintenance And Servicing

    Maintenance and Servicing Maintenance and Servicing Front Panel Only use a damp cloth to remove any dirt from the front panel. 108593_en_00 PHOENIX CONTACT...
  • Page 26 BWP 2XXXX PHOENIX CONTACT 108593_en_00...
  • Page 27: Technical Data

    - 20 °C to + 85 °C (- 4 °F to 185 °F) storage, transport Relative air humidity for operation and 10 % to 95 %, no condensation storage Vibration resistance 5 to 150 Hz (X, Y, Z direction, 3G) according to IEC60068-2-6 108593_en_00 PHOENIX CONTACT...
  • Page 28: Standards

    DIN EN 61131-2 Storage and DIN EN 61131-2 transportation Power supply DIN EN 61131-2 Impact load, shocks IEC 60068-2-27 Sinusoidal vibrations IEC 60068-2-6 NOTICE: Radio Interference Operation of this device may cause radio interference in residential areas. Approvals PHOENIX CONTACT 108593_en_00...
  • Page 29: Bwp 2043W

    Technical Data BWP 2043W Display Size (diagonal) in cm (inch) 10.92 (4.3) Type TFT (color) Resolution (pixels) 480 x 272 Colors 16.77 million Viewing angle (left / right / up / down) 70 / 70 / 50 / 70 in °...
  • Page 30: Bwp 2070W

    Circumferential rubber seal on the rear Mounting cutout (H x W) in mm (Inch) 127 x 175 (5 x 6.889) Mounting brackets Mounting depth in mm (Inch) About 31 (1.22) Degree of protection Front: IP66 Rear: IP20 Total weight About 400 g PHOENIX CONTACT 108593_en_00...
  • Page 31: Bwp 2102W

    Circumferential rubber seal on the rear Mounting cutout (H x W) in mm (Inch) 178 x 256 (7 x 10.078) Mounting brackets Mounting depth in mm (Inch) About 33 (1.299) Degree of protection Front: IP66 Rear: IP20 Total weight About 900 g 108593_en_00 PHOENIX CONTACT...
  • Page 32 BWP 2XXXX PHOENIX CONTACT 108593_en_00...
  • Page 33 Index Side view BWP 2043W............16 Cable BWP 2070W............17 Ethernet..............24 BWP 2102W............18 USB............... 23 Standards ..............28 Connecting..............19 Supply Voltage............19 Switching on ............... 20 Symbols ................ 7 Dimensions Cutout..............13 Display ................ 21 Target group ..............9 Technical data ............
  • Page 34 BWP 2XXXX PHOENIX CONTACT 108593_en_00...
